I heard that Injector Dynamics had developed a data sheet for running the ID1000 injectors on Megasquirt. I sent them an email and got this today.

WITH small pulsewidths.

Try and let us know how it works.

Attached Thumbnails
ID1000 data for Megasquirt from Injector Dynamics-id1000.jpg
Attached Files
File Type: xls ID1000_Megasquirt_Data.xls (61.5 KB, 202 views)
Chiburbian is offline   Reply With Quote
Old 10-14-2014, 07:08 PM   #2
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,757
Total Cats: 2,494
Default

interdasting. wonder if they have some for the 725's since I just got some
18psi is offline   Reply With Quote
Old 10-14-2014, 07:09 PM   #3
Elite Member
Thread Starter

Chiburbian's Avatar

Join Date: Feb 2008
Location: Gilberts, IL
Posts: 2,126
Total Cats: 129
Default

There you go moving the goalposts on me. I feel like Charlie Brown with the football... Send them an email. If they have it we can post all the ID injector data in one thread and change the title.
Chiburbian is offline   Reply With Quote
Old 10-15-2014, 03:04 AM   #4
Senior Member

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,495
Total Cats: 81
Default

I also would be interested in the 725cc data - so 18psi do you shoot them an email please?
Zaphod is offline   Reply With Quote
Old 10-15-2014, 10:29 AM   #5
Elite Member
Thread Starter

Chiburbian's Avatar

Join Date: Feb 2008
Location: Gilberts, IL
Posts: 2,126
Total Cats: 129
Default ID725 Data from Injector Dynamics for Megasquirt

Here you go:
(By the way, it looks like the spreadsheet is editable and you enter your fuel pressure and it adjusts the data...)
Attached Thumbnails

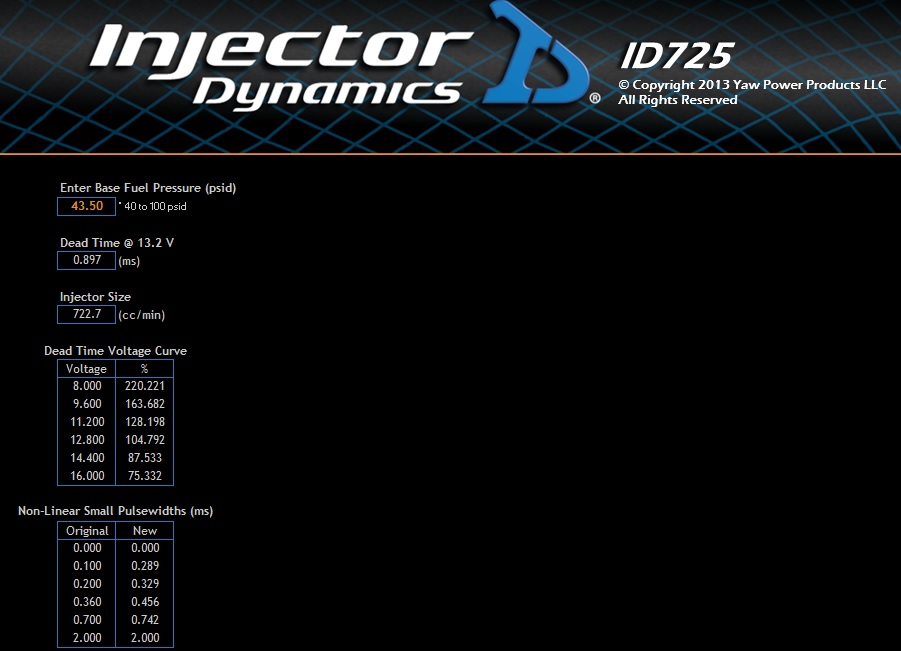

ID1000 data for Megasquirt from Injector Dynamics-id725.jpg
Attached Files
File Type: xls ID725_-_Megasquirt_Characterization_Tables_-_8-26-14.xls (434.5 KB, 186 views)
Chiburbian is offline   Reply With Quote
Old 10-15-2014, 10:36 AM   #6
Senior Member

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,495
Total Cats: 81
Default

Again - where is the +1000 props button, when you need it...! Thank you!
Zaphod is offline   Reply With Quote
Old 10-15-2014, 10:50 AM   #7
Junior Member

Join Date: May 2011
Location: Signal Hill, CA
Posts: 246
Total Cats: 11
Default

As George Takei would say "OH MYY"

-edit-

looks like the "background math" code is password protected
.one lane is offline   Reply With Quote
Old 10-15-2014, 11:24 AM   #8
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,757
Total Cats: 2,494
Default

Quote:
Originally Posted by Zaphod View Post
Again - where is the +1000 props button, when you need it...! Thank you!
SERIOUSLY!!!

Stephen, you are the man
18psi is offline   Reply With Quote
Old 10-15-2014, 11:40 AM   #9
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,244
Total Cats: 744
Default

Now i kinda want IDs just so i can use this data.
concealer404 is offline   Reply With Quote
Old 10-15-2014, 12:18 PM   #10
Elite Member
Thread Starter

Chiburbian's Avatar

Join Date: Feb 2008
Location: Gilberts, IL
Posts: 2,126
Total Cats: 129
Default

I appreciate the props but honestly all I did was send an email. Lol

I am still waiting on data for ID2000s.

As a side note I may be doing a megasquirt build on a twin turbo 1967 mustang this winter/fall.

As part of the project I want to build an injector test bench so I can really dial in numbers for individual injectors. What other test equipment should I build?
Chiburbian is offline   Reply With Quote
Old 10-15-2014, 12:41 PM   #11
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

The data is nice, for sure, and the car runs with the data. My idle is a little rough though at 950rpm at stoich. Need to see what isn't playing nice with the injectors.
Jeffbucc is offline   Reply With Quote
Old 10-15-2014, 01:35 PM   #12
Elite Member
Thread Starter

Chiburbian's Avatar

Join Date: Feb 2008
Location: Gilberts, IL
Posts: 2,126
Total Cats: 129
Default

There are so many variables I think it's difficult to blame any one. My expectation with having the "proper" data is that it eliminates one more possible failure point and allows me to go on troubleshoot other areas. For example, alternator voltage, battery calibration, etc.
Chiburbian is offline   Reply With Quote
Old 10-15-2014, 04:48 PM   #13
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

You bring up a good point. Luckily I'm done cutting the hood so I'll have some time to tune tonight.
Jeffbucc is offline   Reply With Quote
Old 10-16-2014, 04:00 AM   #14
Senior Member
iTrader: (2)

Join Date: Mar 2014
Location: Meridian, Mississippi
Posts: 637
Total Cats: 42
Default

So, is this the data I need to correct the non-linear response of the 1000cc injectors? When I asked about it in my own thread I was told not to worry about the "non-linear small pulsewidth" settings and to just retune the whole map as needed.

Keith
Twodoor is offline   Reply With Quote
Old 10-16-2014, 04:04 AM   #15
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

You don't really NEED it, but it can't hurt. Just use the correct numbers for the amount of fuel flow you are utilizing. (3bar if still running OEM FPR)
Jeffbucc is offline   Reply With Quote
Old 10-16-2014, 07:55 PM   #16
Senior Member
iTrader: (5)

Join Date: Jul 2005
Posts: 715
Total Cats: 53
Default

Nice info. I did manage to unprotect the sheet and there are no calculations in there. It's all manually entered numbers FYI!
bcrx7 is offline   Reply With Quote
Old 10-16-2014, 07:57 PM   #17
Junior Member

Join Date: May 2011
Location: Signal Hill, CA
Posts: 246
Total Cats: 11
Default

How did you manage to bypass the password? Lucky guess? :P
.one lane is offline   Reply With Quote
Old 10-16-2014, 08:13 PM   #18
Senior Member
iTrader: (3)

Join Date: Jul 2011
Location: STL
Posts: 528
Total Cats: 24
Default

I came up with 1.260 (stock 60-65 PSI NB regulator) using the method posted on this forum for calculating injector dead time. It only takes a few minutes and then you have values that are correct for your setup.

https://www.miataturbo.net/ecus-tuni...ad-time-56061/
midpack is offline   Reply With Quote
Old 10-16-2014, 09:53 PM   #19
Senior Member
iTrader: (5)

Join Date: Jul 2005
Posts: 715
Total Cats: 53
Default

Quote:
Originally Posted by .one lane View Post
How did you manage to bypass the password? Lucky guess? :P
Have an excel utility with brute force password option.
bcrx7 is offline   Reply With Quote
Old 10-18-2014, 03:38 PM   #20
Junior Member

Join Date: May 2011
Location: Signal Hill, CA
Posts: 246
Total Cats: 11
Default

Opened up the excel sheet in numbers, and the password was removed. Just plain numbers and simple formulas from what I can tell, but this was a quick glance.

.one lane is offline   Reply With Quote
