Default Ignition map

1.6 lt, td04 at 13psi, ic, 320cc inj, what do you think?
Attached Thumbnails
Ignition map-1506985_10203976501961816_9184106205093741543_n.jpg
Pepino is offline   Reply With Quote
Old 06-03-2014, 01:28 PM   #2
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,168
Total Cats: 2,573
Default

Its relatively aggressive. Though Joe Perez and a couple other people have run something similar to this (though only up to 100kpa) without breaking anything.

What fuel are you on?

....And why the heck are you running 30* at idle?
18psi is offline   Reply With Quote
Old 06-03-2014, 01:29 PM   #3
Junior Member
Thread Starter

Join Date: Nov 2013
Location: Sicily
Posts: 103
Total Cats: 3
Default

95 ron
Pepino is offline   Reply With Quote
Old 06-04-2014, 04:54 AM   #4
Junior Member
Thread Starter

Join Date: Nov 2013
Location: Sicily
Posts: 103
Total Cats: 3
Default

Quote:
Originally Posted by 18psi View Post

....And why the heck are you running 30* at idle?
yep, managed it to stay around 20 on idle...
Pepino is offline   Reply With Quote
Old 06-04-2014, 10:06 AM   #5
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,168
Total Cats: 2,573
Default

20 degrees on idle? why?
is your engine timing way off from what the megasquirt thinks it is?
18psi is offline   Reply With Quote
Old 06-04-2014, 12:41 PM   #6
Junior Member
Thread Starter

Join Date: Nov 2013
Location: Sicily
Posts: 103
Total Cats: 3
Default

last release, a friend of mine told me to set timing at the lower mkp value at idle, it was around 18
Attached Thumbnails
Ignition map-ign.jpg
Pepino is offline   Reply With Quote
Old 06-04-2014, 12:46 PM   #7
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,168
Total Cats: 2,573
Default

you're just wasting fuel and potentially making it idle high

only time I'd run that much is if the car absolutely refused to be smooth with any lower values.

just an observation
18psi is offline   Reply With Quote
Old 06-04-2014, 02:29 PM   #8
Junior Member
Thread Starter

Join Date: Nov 2013
Location: Sicily
Posts: 103
Total Cats: 3
Default

Attached Thumbnails

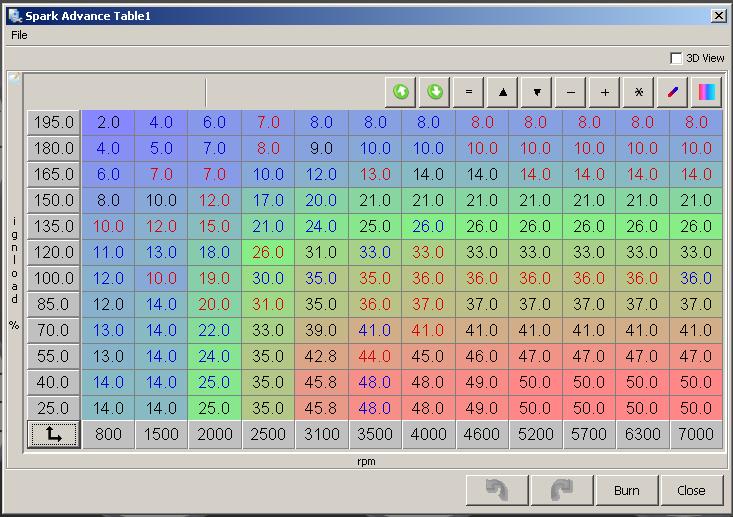

Ignition map-ign2.jpg
Pepino is offline   Reply With Quote
Old 06-04-2014, 02:49 PM   #9
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,168
Total Cats: 2,573
Default

that's better. is it stable and smooth?
18psi is offline   Reply With Quote
Old 06-04-2014, 02:55 PM   #10
Junior Member
Thread Starter

Join Date: Nov 2013
Location: Sicily
Posts: 103
Total Cats: 3
Default

seems to be, just falls a bit low when stopping...
Pepino is offline   Reply With Quote
Old 06-04-2014, 02:58 PM   #11
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Personally, I'd stick to DIY's base map until I visit the dyno. Obviously check and recheck base timing, find out what your engine likes for idle timing, autotune fuel, then visit the dyno to make power with timing.
curly is offline   Reply With Quote
Old 06-04-2014, 04:00 PM   #12
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,168
Total Cats: 2,573
Default

I usually bump up the cells under the idle kpa and rpm lower than idle rpm slightly. so if you idle at 1k 35kpa I'd have cells at 20kpa about 2-3* higher and cells at like 500-700rpm 2-3* higher

so when it droops, it falls into those cells, and they "bump" it back up.

tuning closed loop idle valve is also important for this
