Default Individual injector trim?

It looks like if you run full sequential injection you can manage each injector's fuel trim. Anyone doing this with great success? Just kinda curious.
Harv is offline   Reply With Quote
Old 09-27-2013, 03:47 PM   #2
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,353
Total Cats: 1,319
Default

To do it accurately and see gains, you need four widebands.
Savington is offline   Reply With Quote
Old 09-27-2013, 04:01 PM   #3
Elite Member

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 2,695
Total Cats: 266
Default

Quote:
Originally Posted by Savington View Post
To do it accurately and see gains, you need four widebands.
So you think that taking the flow info from Witch Hunter and putting REQFUEL for the average and then trimming each from that would not be worth the time? Too many other variables?

Also, here is another approach... multiple EGT rather than multiple AFR:
Megasquirt-3 MS3 AFR Safety System
DNMakinson is offline   Reply With Quote
Old 09-27-2013, 04:19 PM   #4
Senior Member
Thread Starter
iTrader: (4)

Join Date: Jul 2006
Location: Shelton, CT
Posts: 672
Total Cats: 2
Default

Quote:
Originally Posted by Savington View Post
To do it accurately and see gains, you need four widebands.
Really? How would that even work? I mean logistically where would you put four widebands?
Harv is offline   Reply With Quote
Old 09-27-2013, 04:22 PM   #5
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,813
Total Cats: 1,780
Default

Quote:
To do it accurately and see gains, you need four widebands...

...and sequential injection.
Braineack is offline   Reply With Quote
Old 09-27-2013, 04:24 PM   #6
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

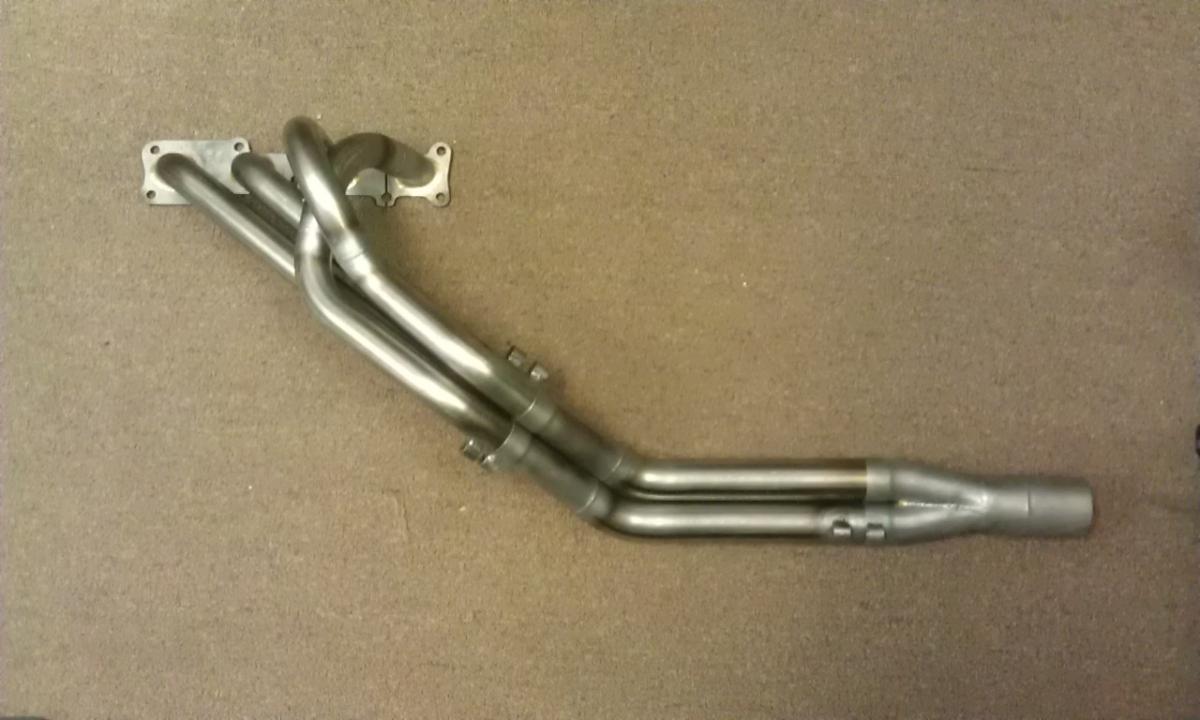

Plenty of room on Savington's headers.

thenuge26 is offline   Reply With Quote
Old 09-27-2013, 07:18 PM   #7
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,165
Total Cats: 2,573
Default

Quote:
Originally Posted by Harv View Post
Really? How would that even work? I mean logistically where would you put four widebands?
Easy peasy. Reverent actually has exactly that on his miata right now.

I tried to find a pic, but can't find it. I'm sure he can re-post it
18psi is offline   Reply With Quote
Old 09-27-2013, 11:50 PM   #8
Senior Member
Thread Starter
iTrader: (4)

Join Date: Jul 2006
Location: Shelton, CT
Posts: 672
Total Cats: 2
Default

I get the idea from the nuge's pic, so basically you end up with individual runners on each exhaust cylinder and each one gets a wideband.
Harv is offline   Reply With Quote
Old 09-28-2013, 04:10 AM   #9
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

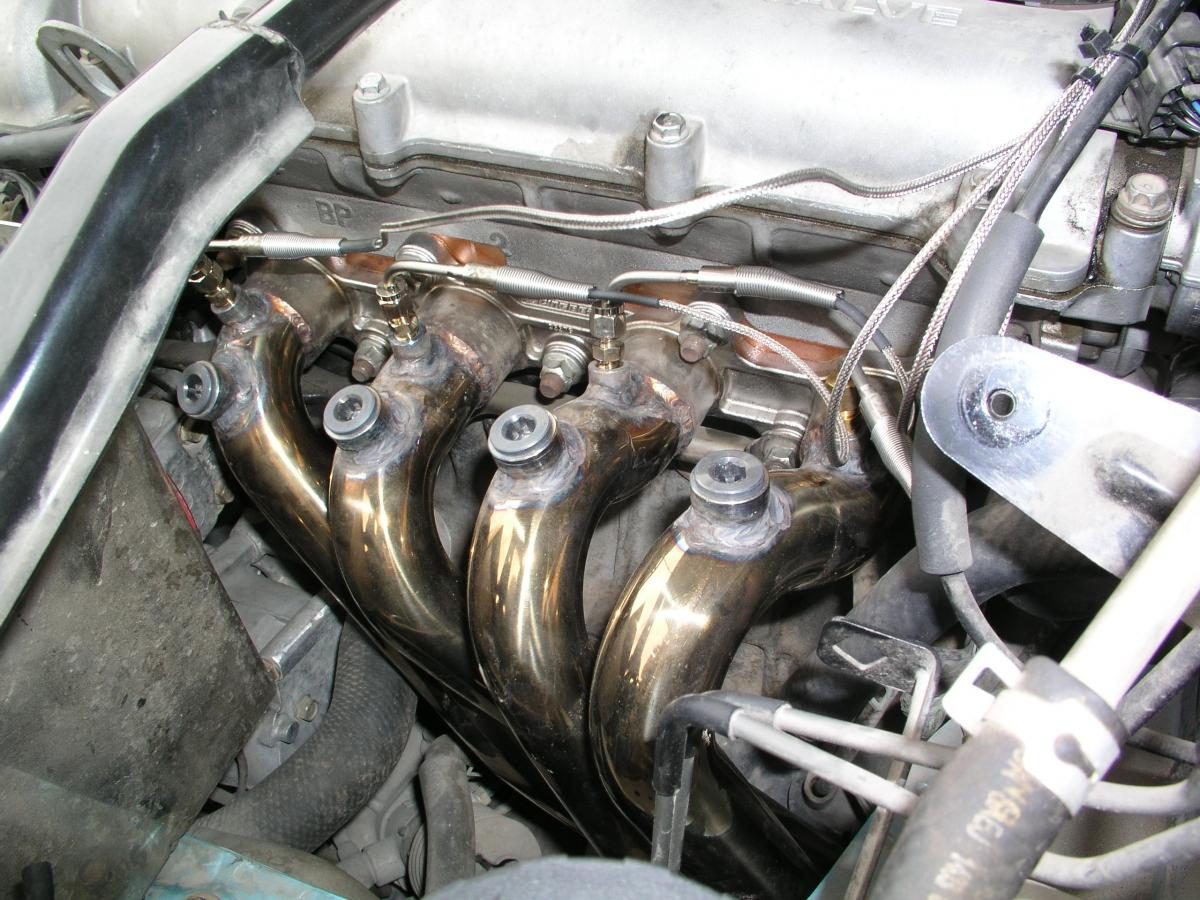

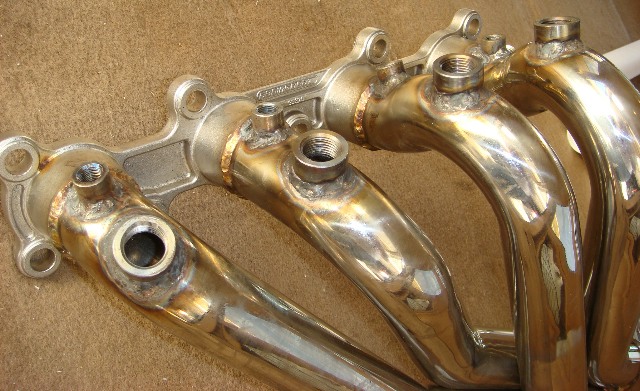

Strangely enough, I can't find the pic with the widebands on the headers.



Attached Thumbnails
Individual injector trim?-dsc00446_1.jpg   Individual injector trim?-p1010295.jpg
Reverant is offline   Reply With Quote
Old 09-28-2013, 06:16 AM   #10
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

Did you see much deviation cylinder to cylinder Rev?
richyvrlimited is offline   Reply With Quote
Old 09-28-2013, 07:41 AM   #11
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

0.1-0.2. And guess what, cyl #4 is not the "hottest" (old m.net myth), and there's no direct correlation between EGT temps and AFR, ie the hottest cylinder is not the one that runs the leanest.
Reverant is offline   Reply With Quote
Old 09-28-2013, 08:00 AM   #12
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,638
Total Cats: 25
Default

So where is the data on individual cylinder temp?

And you are talking EGT not coolant right?

Dann
nitrodann is offline   Reply With Quote
Old 09-28-2013, 08:38 AM   #13
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

What data do you want? Yes, EGT, not coolant temps.
Reverant is offline   Reply With Quote
Old 09-28-2013, 08:42 AM   #14
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

Quote:
Originally Posted by Reverant View Post
0.1-0.2. And guess what, cyl #4 is not the "hottest" (old m.net myth), and there's no direct correlation between EGT temps and AFR, ie the hottest cylinder is not the one that runs the leanest.
I thought cyl 4 was only hot on the earlier cars, with the MK2.5, the adjusted headgasket fixed the issue?
richyvrlimited is offline   Reply With Quote
Old 09-28-2013, 08:55 AM   #15
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,638
Total Cats: 25
Default

Me too, and coolant only not EGT, Id have thought egt would have to do with flow in the IM and fuel rail.

Dann
nitrodann is offline   Reply With Quote
Old 09-28-2013, 09:31 AM   #16
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

I just said what the m.net myth was.
Reverant is offline   Reply With Quote
Old 09-28-2013, 09:46 AM   #17
Senior Member
Thread Starter
iTrader: (4)

Join Date: Jul 2006
Location: Shelton, CT
Posts: 672
Total Cats: 2
Default

No turbo for you Reverant? Or is it somewhere down the line?
Harv is offline   Reply With Quote
Old 09-28-2013, 12:30 PM   #18
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,682
Total Cats: 216
Default

lol @ individal widebands

4 channel EGT

Full_Tilt_Boogie is offline   Reply With Quote
Old 09-28-2013, 12:49 PM   #19
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,813
Total Cats: 1,780
Default

okay, Tom.
Braineack is offline   Reply With Quote
Old 09-28-2013, 03:10 PM   #20
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,165
Total Cats: 2,573
Default

Quote:
Originally Posted by Reverant View Post
I just said what the m.net myth was.
Yep, basically all the dual feed fuel rail fanbois were saying #4 was starving, etc.
18psi is offline   Reply With Quote
