Default INJ outputs not working on DIYPnP

I just built a DIYPnP for a 1.6 miata. Hopefully this is just an ID-10T error on my part, but I suspect that the microsquirt module is defective.

Two issues when running it on the JimStim:

1. The O2 sensor is reading 0.28 volts in megatune regardless of the output voltage from the jimstim.

2. Neither INJ output is working (INJ1, INJ2). Jimstim INJ LED's don't light up. Multimeter confirms 0v on both outputs.

All other functions work in TunerStudio... it's sync'd up and displays the RPM and PW... so the injectors should be firing. Jimstim is confirmed working with another megasquirt.

I built it per the 90-93 instructions. I only included the 5v circuit, high side driver, the 2 pullups (R3, R4), and the iac flyback diode (R5). It's wired per the spreadsheet.

I put 3.0.3t on there and loaded DIY's default config.

Any thoughts before I email DIY?
JustinHoMi is offline   Reply With Quote
Old 01-10-2011, 03:07 PM   #2
Newb

Join Date: Mar 2010
Posts: 8
Total Cats: 0
Default

I have been in communication with matt at diyautotune. Trying to resolve a similar issue. I have the whole thing built with sequential ignition and injection. I have all circuits working on with the Jim Stim except the INJ2 circuit. The LED for this output just glows dimmly when power is applied. Under realtime display in tunerstudio the circuit just sits at 0, while the INJ1 circuit is pulsing between 1 & 0.
zuki_dan is offline   Reply With Quote
Old 01-10-2011, 03:09 PM   #3
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

how are you using the JimStim on a DIYPNP?

pic of the board please, both sides.
Braineack is offline   Reply With Quote
Old 01-10-2011, 03:13 PM   #4
Newb

Join Date: Mar 2010
Posts: 8
Total Cats: 0
Default

I am using the Jim Stim with a spare ecm pigtail I had purchased and wired in with the screw in connections.
zuki_dan is offline   Reply With Quote
Old 01-10-2011, 03:26 PM   #5
Junior Member
Thread Starter

Join Date: Jul 2005
Location: Hillsborough, NC
Posts: 273
Total Cats: 0
Default

In my case it was just an oversight. I forgot that you have to supply the Jimstim with 5v. I've been doing it the same way for so long (using afm signal), that I forgot that I was drawing the 5v for the jimstim from the afm's vref.
JustinHoMi is offline   Reply With Quote
Old 01-10-2011, 03:30 PM   #6
Newb

Join Date: Mar 2010
Posts: 8
Total Cats: 0
Default

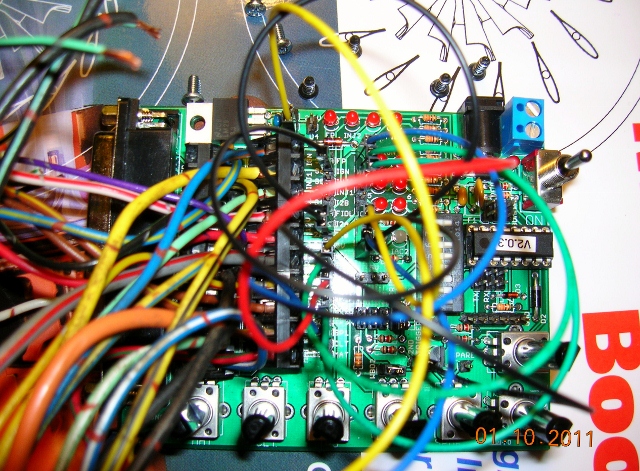

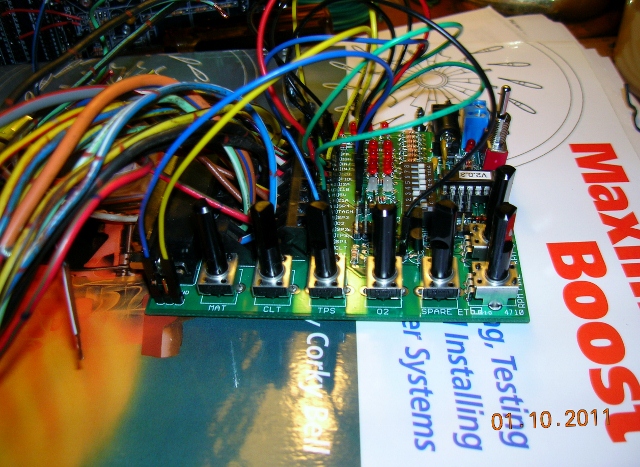

pics of the Jim Stim.
Attached Thumbnails
INJ outputs not working on DIYPnP-jim-stim-001-640x471-.jpg   INJ outputs not working on DIYPnP-jim-stim-002-640x467-.jpg
zuki_dan is offline   Reply With Quote
Old 01-10-2011, 03:35 PM   #7
Newb

Join Date: Mar 2010
Posts: 8
Total Cats: 0
Default

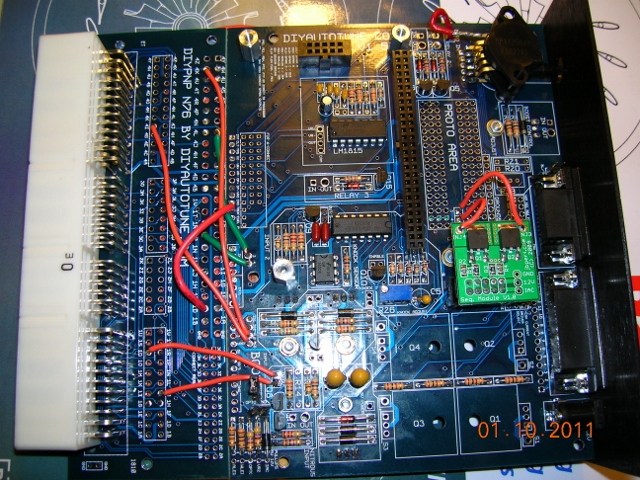

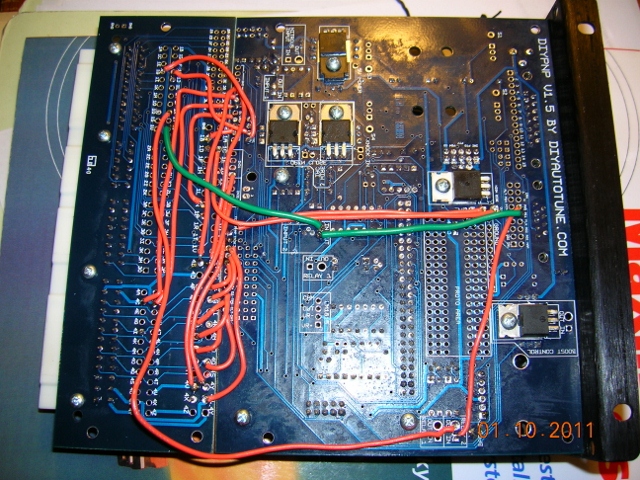

pics of diypnp
Attached Thumbnails
INJ outputs not working on DIYPnP-dscn4602-640x480-.jpg   INJ outputs not working on DIYPnP-dscn4603-640x480-.jpg
zuki_dan is offline   Reply With Quote
Old 01-10-2011, 04:48 PM   #8
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

zuki, see no reason they wouldn't work through a quick visual scan.
Braineack is offline   Reply With Quote
Old 01-10-2011, 06:04 PM   #9
Newb

Join Date: Mar 2010
Posts: 8
Total Cats: 0
Default

Yeah I have been talking back and forth with matt at diyautotune and don't seem to be getting anywhere with getting the problem fixed. I have tried different firmwares and making a tune from scratch, even using 2 injection events and the same thing happens every time. I am currently using 303y firmware.

Any help would be greatly appreciated.
zuki_dan is offline   Reply With Quote
Old 01-10-2011, 06:36 PM   #10
Senior Member
iTrader: (14)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,404
Total Cats: 262
Default

Did you set the number of coils from "wasted" spark to "coil on plug" in Ignition Options?
99mx5 is offline   Reply With Quote
Old 01-10-2011, 07:19 PM   #11
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Zuki,
I don't 100% understand your problem. Are you saying that TunerStudio is reporting that the DIYPNP is not firing injector 2? What do your pulsewidth gauges tell you, does pulsewidth1 = pulsewidth2 ?

How about taking a datalog of the DIYPNP running on the stim for 10 or 15 seconds, and posting it along with the .msq?

Justin,
Glad I was able to help you get that going
Ben is offline   Reply With Quote
Old 01-11-2011, 06:07 PM   #12
Newb

Join Date: Mar 2010
Posts: 8
Total Cats: 0
Default

Quote:
Originally Posted by 99mx5 View Post
Did you set the number of coils from "wasted" spark to "coil on plug" in Ignition Options?
Yes, I have changed the coils to coil on plug.
zuki_dan is offline   Reply With Quote
Old 01-11-2011, 06:20 PM   #13
Newb

Join Date: Mar 2010
Posts: 8
Total Cats: 0
Default

Quote:
Originally Posted by Ben View Post
Zuki,
I don't 100% understand your problem. Are you saying that TunerStudio is reporting that the DIYPNP is not firing injector 2? What do your pulsewidth gauges tell you, does pulsewidth1 = pulsewidth2 ?

How about taking a datalog of the DIYPNP running on the stim for 10 or 15 seconds, and posting it along with the .msq?

Justin,
Glad I was able to help you get that going
Justin,
Under the tuning tab in tunerstudio in real time displays, all output channels the inj2 circuit just sits at 0. I have put all 4 pulsewidth gauges on my dash and they all match when using the stim.
Attached Files
File Type: msl 2011-01-11_17.14.48.msl (478.0 KB, 112 views)
File Type: msq miata303w2011-01-11_17.17.06.msq (79.0 KB, 66 views)
zuki_dan is offline   Reply With Quote
Old 01-24-2011, 05:12 PM   #14
Newb

Join Date: Mar 2010
Posts: 8
Total Cats: 0
Default

It ended up being a defective mircosquirt module. Matt at DIYPNP took care of me.
