Intermittent Sync Loss MS3x

Old 05-16-2018, 08:46 AM
  #1
Elite Member
Thread Starter
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,877
Total Cats: 162
Default Intermittent Sync Loss MS3x

My 2000 Miata with MS3X has been randomly turning off the last month or so. I'll be sitting in traffic and it'll die, or driving down the road and randomly lose all power. If I'm stopped sometimes it'll start back up immediately, sometimes it won't start for a minute or two, then fire right back up. If I'm rolling I can usually put the clutch in, release it and it'll crank back up. This happens around one time per hour of driving and under completely random situations (warm/cold motor, accelerating/cruise/idle, sunny/raining, etc). Other than this once per hour occurrence the car runs great with no issues.

I seem to remember seeing both sync loss reason 31 and 32 (2 cams not seen, 0 cams seen), but it's been a while since I've gotten a data log of it. I've replaced both the crank and cam sensors, adjusted the crank sensor multiple times, and checked wiring for any frays/cuts immediately around the sensors. I'll start to think it's fixed, then it happens again. I'm going to start logging all the time now so I can get a log of it to share, it's been a while since I've captured it now.

Any other suggestions on what to check or things to try? I'm a little lost at this point and driving the car is pretty terrible now since I'm always waiting for it to just randomly die and leave me in the middle of traffic.
pdexta is offline
Old 05-16-2018, 09:05 AM
  #2
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 14,070
Total Cats: 1,227
Default

Is it when the car is hot? Possibly need the upgraded CAM sensor that ballenger motorsports sells.
shuiend is offline
Old 05-16-2018, 10:12 AM
  #3
Elite Member
Thread Starter
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,877
Total Cats: 162
Default

It happens in all conditions, totally random as far as I can tell. This morning it died about half a mile from my house at 75 ambient temp and 120 water temp.
pdexta is offline
Old 05-18-2018, 06:35 PM
  #4
Elite Member
Thread Starter
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,877
Total Cats: 162
Default

I finally got a datalog of my issue. This afternoon, I leave from work, a few seconds later it misses a bit. By the time I get my phone connected I've got 4 counts of sync loss. After that the car runs fine. Just over 5 minutes into my drive I'm cruising at 65mph and it just dies. Tach drops to 200rpms and holds for a few seconds before blipping to 780rpms and then flat-lining. This is while the engine is still mechanically turning ~3000rpms. After a few seconds I throw it in neutral, try to recrank the car and still get no tach signal. Pull off the side of the road, cry for 2 minutes, then the car cranks back up and drives the remaining 15 minutes home without any issue.

This happened again right at 1 hour drive time since the last occurrence. Totally random conditions, rpms, temps, etc.

Datalog and tune are attached. If anyone has any suggestions at all, even stupid ones, please throw it out there. I'm open to try anything at this point.

Attached Files
File Type: msl
2018-05-18_16-33-00.msl (3.87 MB, 5 views)
File Type: msq
2018-05-14_03.27.52.msq (204.4 KB, 4 views)
pdexta is offline
Old 05-18-2018, 07:12 PM
  #5
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 74,898
Total Cats: 2,079
Default

kinda sounds like the cam sensor is failing.
Braineack is offline
Old 05-18-2018, 07:30 PM
  #6
Elite Member
Thread Starter
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,877
Total Cats: 162
Default

Originally Posted by Braineack View Post
kinda sounds like the cam sensor is failing.
I've replaced both cam and crank sensors.
pdexta is offline
Old 05-18-2018, 08:43 PM
  #7
Senior Member
iTrader: (1)

TNTUBA's Avatar

Join Date: Jan 2011
Location: Chattanooga, Tn
Posts: 1,100
Total Cats: 204
Default

Run a tooth log and a composite log and post those.
TNTUBA is offline
Old 05-20-2018, 07:25 PM
  #8
Elite Member
Thread Starter
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,877
Total Cats: 162
Default

Originally Posted by TNTUBA View Post
Run a tooth log and a composite log and post those.

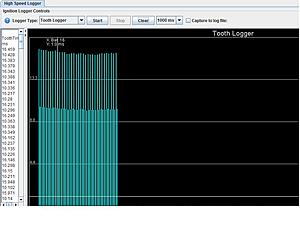

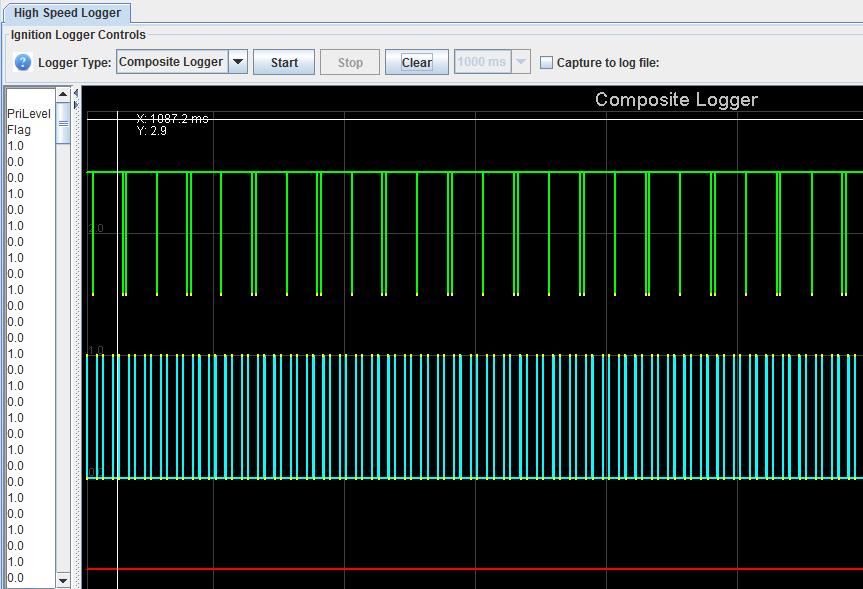

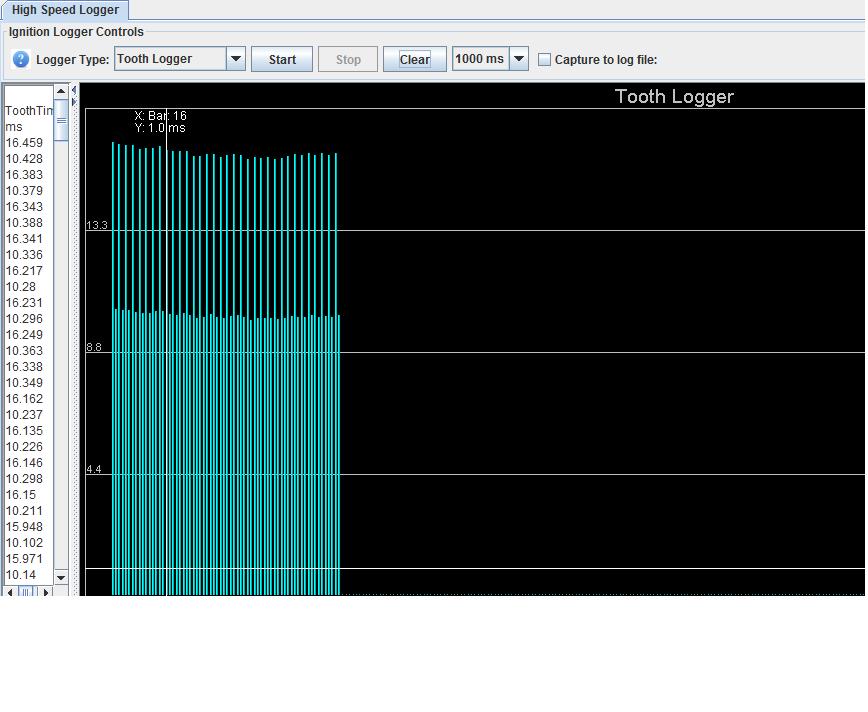

I screenshot both a tooth log and composite log, it didn't look like I could save the log itself. The issue is so rare I wouldn't expect it to show in either log, but I wouldn't know what I'm looking for either, so hopefully you can see something there.
Attached Thumbnails Intermittent Sync Loss MS3x-toothlogger.jpg   Intermittent Sync Loss MS3x-compositelog.jpg
pdexta is offline
Old 05-26-2018, 09:48 AM
  #9
Elite Member
Thread Starter
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,877
Total Cats: 162
Default

I'm still chasing this issue. I found an ancient thread with similar issues and people discussing replacing the stock cam sensor with an Evo 8 sensor. I gave that a shot, ordered the sensor and swapped it. The car runs fine with the Evo 8 sensor just have to wait to see if the issue comes back again.
pdexta is offline
Old 05-26-2018, 01:13 PM
  #10
Senior Member

Join Date: Apr 2011
Location: Hollywood, FL
Posts: 590
Total Cats: 28
Default

We used to have the sync issue but it was definitely a heat related issue. I think that people who swapped to the EVO sensor was for the heat related issue also. But since the heat related issue is nothing more than a connector being placed too close to the heat source then it is really a connector issue which means it could happen intermittently even without the heat present.

So maybe just do what will ultimately fix the connector issue and get rid of it and solder up the the connection to the cam sensor wires which ultimately fixes the issue as has been proven in SM. You can use it with a connector like the SM solution or just leave it as-is since the cam sensor is a one bolt disassembly and can stay as part of the harness when unplugged. Our cam sync issues magically disappeared with this solution.
hector is offline
Old 06-07-2018, 12:59 PM
  #11
Elite Member
Thread Starter
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,877
Total Cats: 162
Default

Thanks for the help and suggestions, especially identifying the cam sensor as the issue.

Just wantrd to update that the evo 8 cam sensor seems to have **NOT** cured the problem. It's been 2 weeks now with no issues at all after 2 separate oem sensors gave me issues. Best of all, the evo sensor was plug and play and dirt cheap, $14 on amazon prime.

*Edit - Problem returned yesterday afternoon and again this morning. :(

Last edited by pdexta; 06-12-2018 at 08:55 AM.
pdexta is offline
Old 06-07-2018, 01:52 PM
  #12
Design Engineer
iTrader: (1)

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 3,093
Total Cats: 368
Default

Originally Posted by pdexta View Post
Thanks for the help and suggestions, especially identifying the cam sensor as the issue.

Just wantrd to update that the evo 8 cam sensor seems to have cured the problem. It's been 2 weeks now with no issues at all after 2 separate oem sensors gave me issues. Best of all, the evo sensor was plug and play and dirt cheap, $14 on amazon prime.
Link or P/N, please.
DNMakinson is offline
Old 06-07-2018, 08:00 PM
  #13
Elite Member
Thread Starter
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,877
Total Cats: 162
Default

Originally Posted by DNMakinson View Post
Link or P/N, please.
It's part MD327107 and fits a ton of different cars.

pdexta is offline
Old 06-29-2018, 08:56 AM
  #14
Elite Member
Thread Starter
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,877
Total Cats: 162
Default

So I'm back to beg for more help. The car started dying on me with the new Evo cam sensor, just like before. I ordered a new cam sensor clip and pigtail and spliced it in, but the issue has continued.

I know several people have suggested this is a cam sensor issue. After trying 3 sensors and replacing the harness clip, is that still the consensus issue? I'm ready to start pulling the intake manifold so I can trace the wiring back toward the ecu.

I just wanted to see if there were any other things to investigate before I start pulling the wiring harness apart.
pdexta is offline
Old 06-29-2018, 01:27 PM
  #15
Senior Member

Join Date: Apr 2011
Location: Hollywood, FL
Posts: 590
Total Cats: 28
Default



Start by doing this. If the issue is lost sync because of heat or otherwise messing with the cam signal, this is the fix.
hector is offline
Old 07-15-2018, 04:19 PM
  #16
Elite Member
Thread Starter
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,877
Total Cats: 162
Default

I hardwired the harness to the sensor as suggested and still had the same issue. I'm absolutely confident at this point it's not the sensor or harness plug.

I've run 3 OEM Miata cam sensors, an aftermarket Evo8 cam sensor, and an OEM Evo8 cam sensor. I've run these in various combinations; hardwired, with my stock harness, an aftermarket harness, and a stock Evo8 harness. No amount of pulling, jiggling, wiggling of the cam sensor harness with the car warm or cold has been able to duplicate the sync loss issue. All combinations of sensors and harnesses result in the same intermittent and completely random car cutting off. Each time this has happened the car will restart and run fine somewhere between 5 seconds and 3 minutes later.

I pulled the intake manifold and de-loomed the wiring harness all the way back to the firewall. None of the cam wires show any kind of physical damage. I really feel like I can discount this being a cam sensor issue, unless it's at the ECU. Just not sure where to go from here. If anyone has additional suggestions I'd greatly appreciate it.
pdexta is offline
Old 07-15-2018, 05:57 PM
  #17
Design Engineer
iTrader: (1)

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 3,093
Total Cats: 368
Default

Who built the MS3X?
DNMakinson is offline
Old 07-15-2018, 09:14 PM
  #18
Elite Member
Thread Starter
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,877
Total Cats: 162
Default

Originally Posted by DNMakinson View Post
Who built the MS3X?
Brain built it. I'm not at all trying to suggest that it is an ECU issue, I'm just lost as to what my next steps should be.
pdexta is offline
Old 07-28-2018, 09:24 AM
  #19
Senior Member

Join Date: Apr 2011
Location: Hollywood, FL
Posts: 590
Total Cats: 28
Default

Any news? I know you are trying to diagnose it as a connection/wiring issue which is reasonable. Maybe just start cleaning off all the ground points.

I would say to also do a re-adjustment of the ign signal pots. Just a shot in the dark as maybe resistance in the wiring building up over time may affect the adjustment.
