Default Knock-window...it is time

Will this ever happen?
hustler is offline   Reply With Quote
Old 09-06-2011, 07:52 AM   #2
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

In MSIII yes 100% definitely, I think it's scheduled for the code 2.xx release on MSIII. The coders are writing a new clock angle algorithm thingy (way over my head) which will allow this to happen.

in MS1/2 no never ever ever.
richyvrlimited is offline   Reply With Quote
Old 09-06-2011, 08:00 AM   #3
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

I believe it has something to do with your sig quote.
curly is offline   Reply With Quote
Old 09-06-2011, 09:25 AM   #4
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

MS3 alpha code has some awesome knock stuff going on. When Ken gets his angle clock code done, it should get even better.
Ben is offline   Reply With Quote
Old 09-06-2011, 11:49 AM   #5
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,353
Total Cats: 1,322
Default



How about 2D rpm filtering and user-adjustable frequency filtering?
Savington is offline   Reply With Quote
Old 09-06-2011, 12:10 PM   #6
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

What is knock window?
Faeflora is offline   Reply With Quote
Old 09-06-2011, 12:17 PM   #7
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Quote:
Originally Posted by Savington View Post

How about 2D rpm filtering
There is already a sensitivity vs RPM function.

Quote:
and user-adjustable frequency filtering?
That would be a hardware function of the knock conditioner. Keep in mind current MegaSquirt hardware does not include an onboard conditioner--You have to use an external box such as KnockSenseMS or a GM ESC module.

Quote:
Originally Posted by Faeflora View Post
What is knock window?
Looking for knock only at specific crank angles when it can occur. It helps to eliminate false knock signals. It can also be used to determine exactly which cylinder is knocking.
Ben is offline   Reply With Quote
Old 09-06-2011, 04:03 PM   #8
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Quote:
Originally Posted by hustler View Post
Will this ever happen?
I plan to offer this on my next generation of Megasquirt II ECUs.

Quote:
Originally Posted by richyvrlimited View Post
in MS1/2 no never ever ever.
Unless of course, I have say in this.

Quote:
Originally Posted by Savington View Post
How about 2D rpm filtering and user-adjustable frequency filtering?
Most definitely. The frequency will be fixed based on whether this is a 1.6 or a 1.8, and there weill user-adjustable RPM filtering.
Reverant is online now   Reply With Quote
Old 09-06-2011, 06:06 PM   #9
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

Quote:
Originally Posted by Reverant View Post
I plan to offer this on my next generation of Megasquirt II ECUs.



Unless of course, I have say in this.



Most definitely. The frequency will be fixed based on whether this is a 1.6 or a 1.8, and there weill user-adjustable RPM filtering.
Just



Quote:
That would be a hardware function of the knock conditioner. Keep in mind current MegaSquirt hardware does not include an onboard conditioner--You have to use an external box such as KnockSenseMS or a GM ESC module.
Now that's disappointing. I was under the assumption one of the spare analogue MS3X inputs would be able to be used to analyse the knock signal.

Relying on a KnockSenseMS is pointless, it doesn't rpm filter so you just get noise induced knock BTDT. No amount of MS trickery will stop a poor input signal.

Shame.
richyvrlimited is offline   Reply With Quote
Old 09-06-2011, 07:31 PM   #10
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Quote:
Originally Posted by Ben View Post
Looking for knock only at specific crank angles when it can occur. It helps to eliminate false knock signals. It can also be used to determine exactly which cylinder is knocking.
That's pretty darn cool. Does this exist in any EMS's out there, factory or aftermarket?
Faeflora is offline   Reply With Quote
Old 09-06-2011, 08:48 PM   #11
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

6.5 kHz bandpass filter is appropriate for the miata. And then said knock window.

I have a schematic for a simple bandpass filter somewhere. One could maybe add it on board a MS.
JasonC SBB is offline   Reply With Quote
Old 09-06-2011, 09:02 PM   #12
Senior Member
iTrader: (7)

Join Date: Dec 2006
Location: Chicagoland
Posts: 1,362
Total Cats: 3
Default

EDIT: Realized this is for MS

ProEFI has this...
jtothawhat is offline   Reply With Quote
Old 09-06-2011, 11:21 PM   #13
I'm Miserable!

Join Date: Jun 2009
Location: albany, ga
Posts: 1,869
Total Cats: 3
Default

Quote:
Originally Posted by Faeflora View Post
That's pretty darn cool. Does this exist in any EMS's out there, factory or aftermarket?
yeah a good amount of the more expensive EMS solutions have support for knock windowing.
Techsalvager is offline   Reply With Quote
Old 09-07-2011, 12:26 AM   #14
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

AEM has it and AEM is fairly inexpensive.
hustler is offline   Reply With Quote
Old 09-07-2011, 12:31 AM   #15
I'm Miserable!

Join Date: Jun 2009
Location: albany, ga
Posts: 1,869
Total Cats: 3
Default

Quote:
Originally Posted by hustler View Post
AEM has it and AEM is fairly inexpensive.
I meant more than megasquirt costs, which I paid about 300 after I did mine up

I use a J&S safeguard on my miata for knock detection and retarding per cylinder
Got it for a good price so I jumped on it.
Techsalvager is offline   Reply With Quote
Old 09-07-2011, 12:50 AM   #16
Elite Member
iTrader: (11)

Join Date: Feb 2009
Posts: 2,982
Total Cats: 10
Default

This thread has made my upgrade to MS3 worth it. Thank You!
miatauser884 is offline   Reply With Quote
Old 09-07-2011, 01:05 AM   #17
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

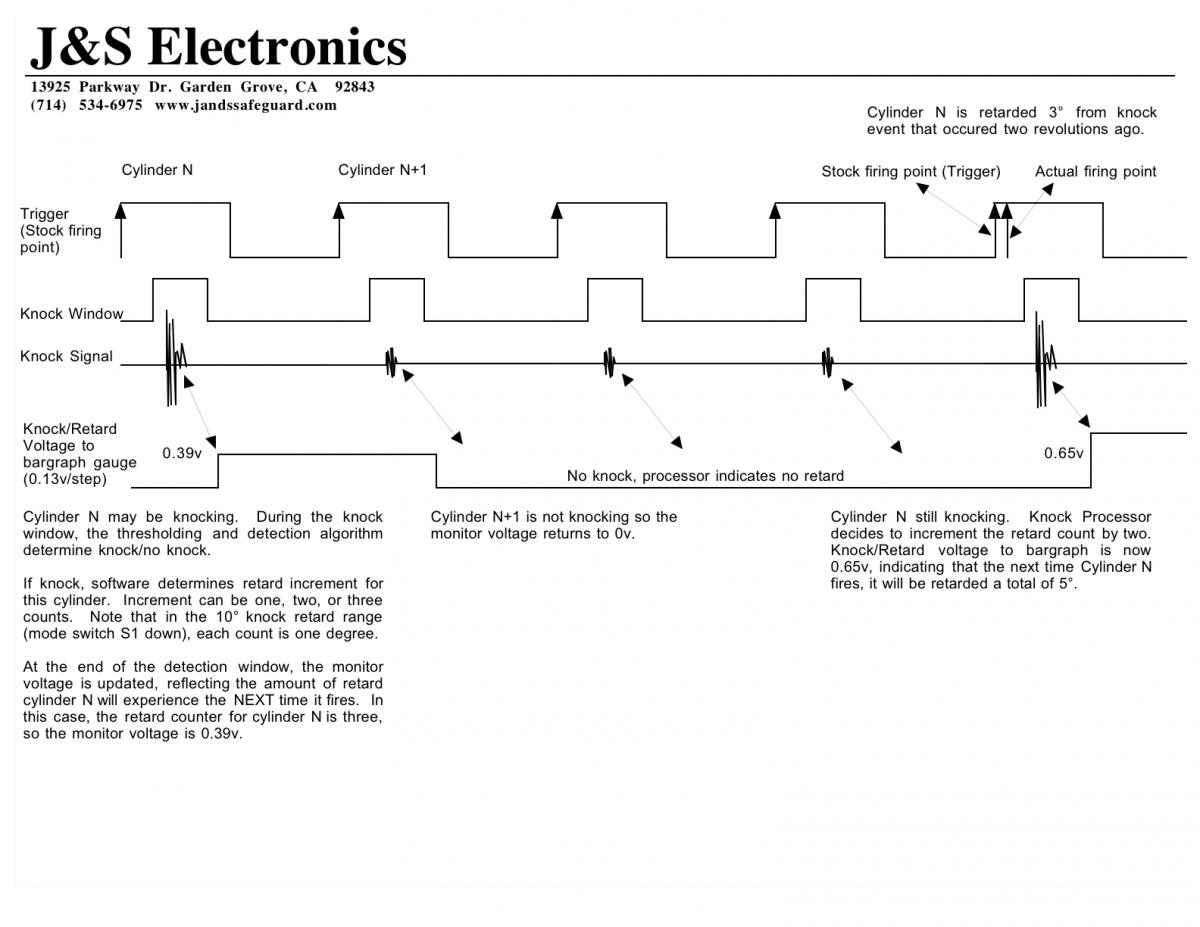

For people who don't know how knock-window works:
Attached Thumbnails
Knock-window...it is time-knockwindow.jpg
hustler is offline   Reply With Quote
Old 09-07-2011, 12:08 PM   #18
Supporting Vendor

Matt Cramer's Avatar

Join Date: Sep 2006
Posts: 2,264
Total Cats: 51
Default

Quote:
Originally Posted by richyvrlimited View Post
Now that's disappointing. I was under the assumption one of the spare analogue MS3X inputs would be able to be used to analyse the knock signal.

Relying on a KnockSenseMS is pointless, it doesn't rpm filter so you just get noise induced knock BTDT. No amount of MS trickery will stop a poor input signal.

Shame.
An analog input reading the knock signal won't work. It doesn't have enough sampling speed to use an analog input for knock processing.

The knock sensing will use some more sophisticated hardware - I wouldn't count out user specified frequency ranges or other features.
Matt Cramer is offline   Reply With Quote
Old 09-07-2011, 01:33 PM   #19
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

The windowing not only ID's which cylinder is knocking, it filters out noise that occurs outside said window.
JasonC SBB is offline   Reply With Quote
Old 09-07-2011, 03:30 PM   #20
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Quote:
Originally Posted by Matt Cramer View Post
An analog input reading the knock signal won't work. It doesn't have enough sampling speed to use an analog input for knock processing.

The knock sensing will use some more sophisticated hardware - I wouldn't count out user specified frequency ranges or other features.

? So how do other EMS's analyze the signal? Does the analog voltage signal go through an A/D converter and then through a DSP chip before feeding into a closed loop "burned in" timing trim?

I'm not trying to derail the discussion from MS; I'm just curious about how this stuff works.
Faeflora is offline   Reply With Quote
