Default Latest gslender mod posted v2.7

Hi folks,

Latest mod I've released is v2.7
Megasquirt MSEXTRA / MS3EFI • [FW MOD] ms2extra pre3.3alpha5 gslender v2.7 (View topic)

If you're still on 3.2 or earlier of MS2 then there is a crap load of new features available. This latest release of my mod has these few new things...

* Fuel calc now uses aircorrection and gammae in 10ths % resolution (eg. 100.1%)
* Changed mat based retard to linear MAT/Fuelload table (eg. allows retard when at full boost but none at idle)
* Added RPM/FuelLoad table scaling to aircorrection (eg. allows reduction to 0% air correction based on RPM & MAP/Load)

Spot ya..

G
gslender is offline   Reply With Quote
Old 07-13-2012, 09:12 AM   #2
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,640
Total Cats: 25
Default

Did your intake show up?

Dann
nitrodann is offline   Reply With Quote
Old 07-13-2012, 09:39 AM   #3
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

what is aircorrection? like gair?

so you can reduce MAT corrections to 0% based on map/load?
Braineack is offline   Reply With Quote
Old 07-13-2012, 03:07 PM   #4
Senior Member
iTrader: (8)

Join Date: Jun 2010
Location: Navarre, FL
Posts: 1,127
Total Cats: 39
Default

Thanks for doing this!!!

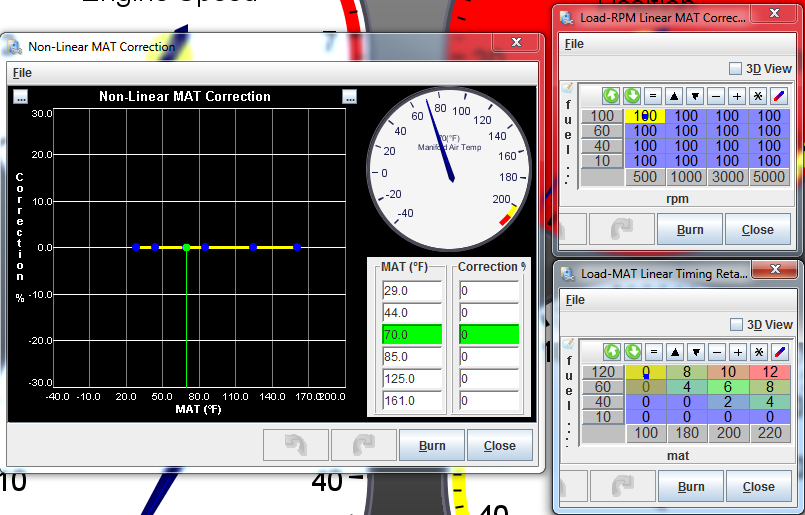

Yep pretty much... here's a screenshot of all the tables. still have the original non linear table, plus these 2 new ones. I see he removed the "MAT correction value" field as well.

Name:  mattaper.png
Views: 8
Size:  98.0 KB
aaronc7 is offline   Reply With Quote
Old 07-13-2012, 04:24 PM   #5
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2011
Location: Australia
Posts: 178
Total Cats: 3
Default

Quote:
Originally Posted by Braineack View Post
what is aircorrection? like gair?

so you can reduce MAT corrections to 0% based on map/load?
Sorry. In the code it's called aircorr - gair only exists in the TS ini

Yes, with a table you can have MAT corrections at 0% (or any scale value) depending on either rpm or map/load. Like all tables it will interpolate % values between cells too.

G
gslender is offline   Reply With Quote
Old 10-01-2012, 09:15 PM   #6
Junior Member

Join Date: Feb 2011
Posts: 51
Total Cats: 2
Default

I loaded this up last night. All is well except the overrun fuel cut menu seems to have disappeared completely from TS. I've looked everywhere.
QWKDTSN is offline   Reply With Quote
Old 10-02-2012, 01:49 PM   #7
Senior Member
iTrader: (5)

Join Date: Jul 2005
Posts: 715
Total Cats: 53
Default

Quote:
Originally Posted by QWKDTSN View Post
I loaded this up last night. All is well except the overrun fuel cut menu seems to have disappeared completely from TS. I've looked everywhere.
You know there is a version 2.8 now, right?
bcrx7 is offline   Reply With Quote
Old 10-02-2012, 03:46 PM   #8
Junior Member

Join Date: Feb 2011
Posts: 51
Total Cats: 2
Default

Yes I am on 2.8. I found what I was looking for this morning, it was hidden away in the "general settings" menu or similar.

QWKDTSN is offline   Reply With Quote
