Default Look at my MSQ ploize?

Disclaimer: I do not know how to tune, the car was tuned by a professional who is supposedly good, however the MS is running off narrowband (temporarily) and tuning was done via what I suspect was a tailpipe sniffer.

Tell me what you think... It looks so different to me compared to what everyone else has posted.

SPARK and FUEL is totally diff.

This is a 94' w/ 460cc rx7 injectors, gt2560, 9-10psi
Attached Files
File Type: msq megasquirt200902041523.msq (35.1 KB, 65 views)
naarleven is offline   Reply With Quote
Old 02-10-2009, 10:18 PM   #2
Elite Member
iTrader: (12)

Join Date: Jan 2007
Location: Hermosa Beach, CA
Posts: 2,575
Total Cats: 11
Default

Ok your spark table looks pretty much like mine, at the top end you are running like 1 or 2 degrees more than me.. but as long as there is no knock your fine.


Now... your fuel table...

WTF is going on? It jumps all over the place, ad makes no sence at all... plut at high rpm/ high load its at like 53 then jumps to 105 at the very top? You have to change that, its not too hard you should beable to do it yourself

Not to mention your AFR target table is messed up... but you dont even have a wideband so idk why its on? The guy doesn't know ****.

EDIT: I see your running only 150kpa, so why is the table scaled so high?

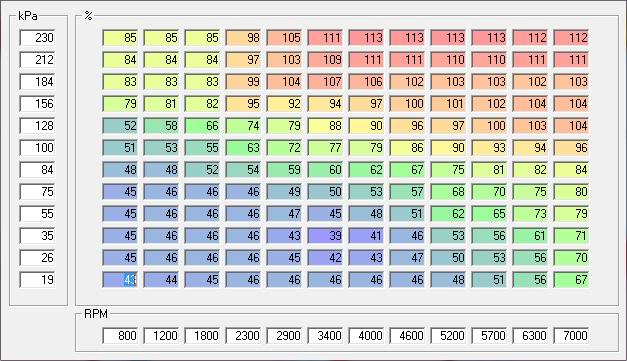

Example of mine

Name:  Fuel_map.jpg
Views: 2
Size:  57.6 KB
cardriverx is offline   Reply With Quote
Old 02-10-2009, 10:19 PM   #3
Elite Member
iTrader: (3)

Mach929's Avatar

Join Date: Oct 2004
Location: lansdale PA
Posts: 2,500
Total Cats: 0
Default

your spark table looks ok, just conservative. your fuel table looks so low because your required fuel is still at 13 with 460cc injectors, will work but you lose some fine tuning
Mach929 is offline   Reply With Quote
Old 02-10-2009, 10:20 PM   #4
Elite Member
iTrader: (3)

Mach929's Avatar

Join Date: Oct 2004
Location: lansdale PA
Posts: 2,500
Total Cats: 0
Default

he's only tuned for 9-10 psi so super high values in the upper row are harmless

edit: your table is a little all over the place, i'd recommend changing the required fuel and smoothing out the table
Mach929 is offline   Reply With Quote
Old 02-10-2009, 10:25 PM   #5
Elite Member
iTrader: (12)

Join Date: Jan 2007
Location: Hermosa Beach, CA
Posts: 2,575
Total Cats: 11
Default

Quote:
Originally Posted by Mach929 View Post
your spark table looks ok, just conservative. your fuel table looks so low because your required fuel is still at 13 with 460cc injectors, will work but you lose some fine tuning
That makes sence, the resolution must really suck..
cardriverx is offline   Reply With Quote
