Old 06-27-2009, 09:33 PM   #21
meatbag
Thread Starter
iTrader: (50)

gospeed81's Avatar

Join Date: Nov 2008
Location: Houston, TX
Posts: 7,357
Total Cats: 26
Default

Yeah, I think I could handle the setup, but getting it to work would surely be the hard part.

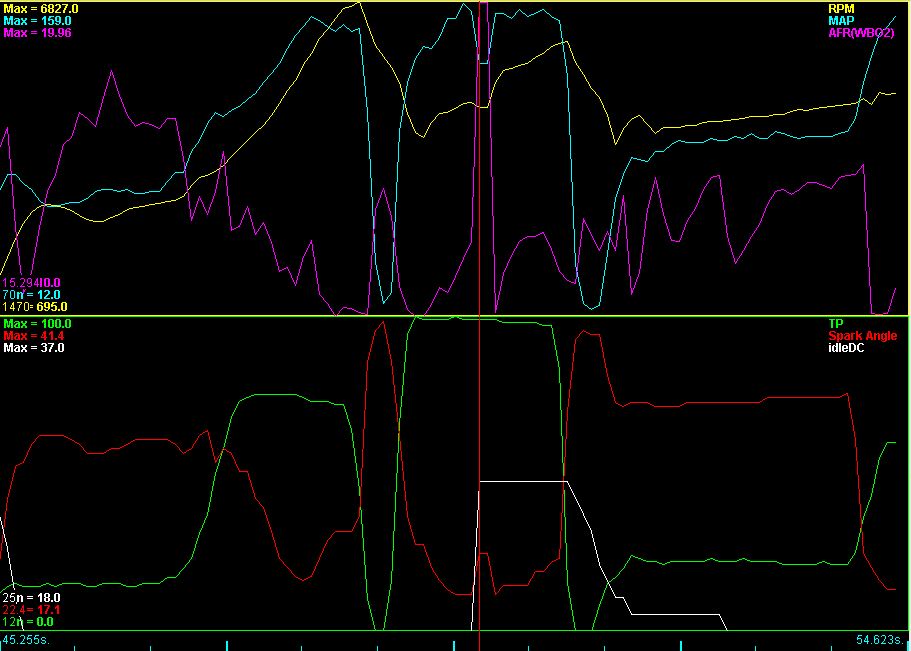

I finally got a chance to peruse my datalogs...and they're showing up as resets! Check record 304 (just before 50sec) in the one below. I was also expecting to see the abnormally high rpm spikes, and they're not anywhere to be seen, so I may have a different problem.
Attached Thumbnails
Losing Spark/Tach at 5000rpm under load-reset.jpg
Attached Files
File Type: xls summer4.xls (1.61 MB, 58 views)
gospeed81 is offline   Reply With Quote
Old 06-29-2009, 12:26 PM   #22
Supporting Vendor

Matt Cramer's Avatar

Join Date: Sep 2006
Posts: 2,266
Total Cats: 51
Default

Looks like you have major battery voltage noise issues. Check your wiring grounds.
Matt Cramer is offline   Reply With Quote
Old 06-29-2009, 08:14 PM   #23
meatbag
Thread Starter
iTrader: (50)

gospeed81's Avatar

Join Date: Nov 2008
Location: Houston, TX
Posts: 7,357
Total Cats: 26
Default

Quote:
Originally Posted by Matt Cramer View Post
Looks like you have major battery voltage noise issues. Check your wiring grounds.
Wow...I'm going to kick myself if that's it. I had upgraded my grounds a few months back and it fixed a lot of issues. I guess I had just shut that out as a possibility. I guess something happened...maybe I should check the grommet where it goes through the firewall.

Thanks for the advice Matt.
gospeed81 is offline   Reply With Quote
Old 07-09-2009, 02:57 PM   #24
Junior Member

Join Date: Aug 2008
Location: BC, Canada
Posts: 58
Total Cats: 0
Default

Ever solve your issue?
boosted7 is offline   Reply With Quote
Old 07-09-2009, 02:59 PM   #25
meatbag
Thread Starter
iTrader: (50)

gospeed81's Avatar

Join Date: Nov 2008
Location: Houston, TX
Posts: 7,357
Total Cats: 26
Default

Pulled my grounds out again over the weekend...need to go get a big lug as I want to solder EVERY ground that is there (5 wire) onto ONE lug to see if the multiple lugs were giving me noise.
gospeed81 is offline   Reply With Quote
Old 09-12-2009, 08:16 PM   #26
Junior Member
iTrader: (1)

Join Date: Oct 2007
Location: Bay Area, CA
Posts: 105
Total Cats: 0
Default

Any updates?
Latch is offline   Reply With Quote
Old 09-12-2009, 09:17 PM   #27
meatbag
Thread Starter
iTrader: (50)

gospeed81's Avatar

Join Date: Nov 2008
Location: Houston, TX
Posts: 7,357
Total Cats: 26
Default

Quote:
Originally Posted by Latch View Post
Any updates?
I was just thinking the other day I needed to update this thread...glad you reminded me.


So far the re-done grounds seem the be holding up.

I also put in some DIY urethane motor mounts...and a beefier engine ground.

My theory is the motor was moving just enough under high rpm torque to tug and shear the OEM driver's side engine ground...which was killing my reference voltage as Matt stated.

I've yet to take a log as I've been fairly busy with school...but it pulls all the way to redline now.
gospeed81 is offline   Reply With Quote
Old 09-29-2009, 12:04 PM   #28
meatbag
Thread Starter
iTrader: (50)

gospeed81's Avatar

Join Date: Nov 2008
Location: Houston, TX
Posts: 7,357
Total Cats: 26
Default

Nevermind...still having the problem.

I am reflashing as we speak.

I've redone grounds...replaced ignitor, plugs, and coils...no dice.
gospeed81 is offline   Reply With Quote
Old 09-30-2009, 02:09 PM   #29
meatbag
Thread Starter
iTrader: (50)

gospeed81's Avatar

Join Date: Nov 2008
Location: Houston, TX
Posts: 7,357
Total Cats: 26
Default

Okay...I reflashed yesterday...and the car runs better.

The resets had seemed to be load related, and apparently MS wouldn't let the Duty Cycle exceed a certain amount. I'm convinced it's some kind of grounding problem, but had checked, cleaned, and beefed up every ground I could find.

It seems to have gone away int he reflash...but I've yet to turn the boost back up to confirm this. It seems happy below 10psi...but would cut out like crazy after that.




NEW PROBLEM:

Now I'm getting serious duty cycle spikes. I will post .msq and pics when I am done with class...but I can describe.

The pulse width and duty cycle both jump up for a split second, causing AFRs to dip down to 9-10:1. This mainly happens in vacuum (10-20in on boost gauge), and below 4500rpm...basically when I'm cruising in 4th or 5th.

It's violent enough to feel...about like a brisk headwind hitting the car..and causes shifter to move. Really feels like I'm losing spark at the same time...but not sure.


I have:

Reflashed

Replaced ignitor

Replaced coils

Replaced/cleaned grounds



And am still seeing this.

I'm sure Matt hit the nail on the head...and that this is all related to crazy battery voltage. I've seen other datalogs where folks had generally stable battV...and mine has a shitton of noise. I haven't the slightest as to why this is happening. I've checked grounds...do I need to check ECU power?


Any and all input appreciated.
Attached Thumbnails

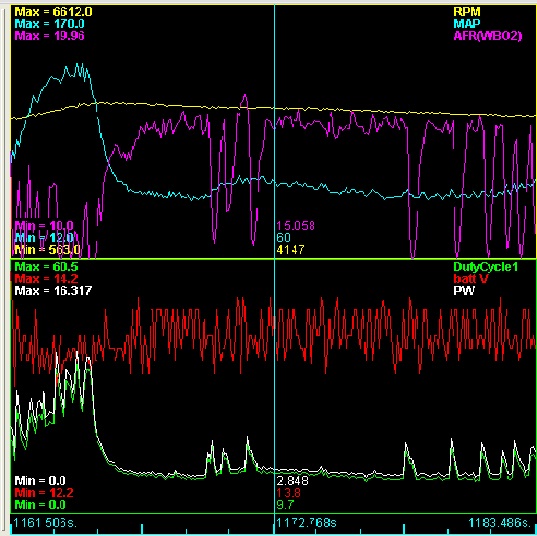

Losing Spark/Tach at 5000rpm under load-pulse-width-spikes-batt-v.jpg

Last edited by gospeed81; 09-30-2009 at 03:03 PM.
gospeed81 is offline   Reply With Quote
Old 09-30-2009, 03:06 PM   #30
meatbag
Thread Starter
iTrader: (50)

gospeed81's Avatar

Join Date: Nov 2008
Location: Houston, TX
Posts: 7,357
Total Cats: 26
Default

Put a screen capture in previous post.

Here is that .msq and datalog.
Attached Files
File Type: msq final.msq (35.3 KB, 57 views)
File Type: xls sep097.xls (1.95 MB, 51 views)
gospeed81 is offline   Reply With Quote
Old 09-30-2009, 03:24 PM   #31
meatbag
Thread Starter
iTrader: (50)

gospeed81's Avatar

Join Date: Nov 2008
Location: Houston, TX
Posts: 7,357
Total Cats: 26
Default

Do I need a large cap on the 12V in?

Scott...did you build this thing with one?



When will my ***** drop Dad?
gospeed81 is offline   Reply With Quote
Old 09-30-2009, 05:59 PM   #32
Supporting Vendor

Matt Cramer's Avatar

Join Date: Sep 2006
Posts: 2,266
Total Cats: 51
Default

Duty cycle spikes are usually your acceleration enrichment.
Matt Cramer is offline   Reply With Quote
Old 09-30-2009, 06:02 PM   #33
meatbag
Thread Starter
iTrader: (50)

gospeed81's Avatar

Join Date: Nov 2008
Location: Houston, TX
Posts: 7,357
Total Cats: 26
Default

I've noticed that in a few more recent logs today...so I turned it down.

Any other way to keep it from kicking in so violently at cruise?

I'd like to think I'm pretty steady with the pedal...maybe just truly poor settings. The problem did kind of creep up though.
gospeed81 is offline   Reply With Quote
Old 09-30-2009, 06:04 PM   #34
meatbag
Thread Starter
iTrader: (50)

gospeed81's Avatar

Join Date: Nov 2008
Location: Houston, TX
Posts: 7,357
Total Cats: 26
Default

Current settings are:

2.9-25.5(v/s) giving 1.0-4.5(ms)
gospeed81 is offline   Reply With Quote
Old 10-16-2009, 06:24 PM   #35
meatbag
Thread Starter
iTrader: (50)

gospeed81's Avatar

Join Date: Nov 2008
Location: Houston, TX
Posts: 7,357
Total Cats: 26
Default

ALL PROBLEMS FIXED!

Posting solutions for posterity.


RESETS:

The beefier grounds may have helped, but a reflash cured them once and for all.

RICH AFR SPIKES:

Continued to adjust accel enrichments, and they don't perceptibly kick in during cruise anymore without looking at the datalog. Their slope is much lower on the datalog, and the AFR doesn't move more than 0.75 when it happens, unlike the 2-3 full points as before. I don't wish to lower AE anymore as it seems it would lose it's effectiveness.

SPARK CUTOUT:

One word.....COPS.

Apparently I was blowing out the spark pretty bad, even when gapped at 0.023". This made me hate life...and now I am better. Big difference in power (about half the kick in the butt as full 2.5" exhaust with straight-thru muffler) and MUCH smoother.
gospeed81 is offline   Reply With Quote
Old 10-16-2009, 06:44 PM   #36
Elite Member
iTrader: (14)

Join Date: Mar 2006
Location: Edmonton, AB
Posts: 4,921
Total Cats: 0
Default

Could you describe the symptoms of spark cut out? We you getting misfires?
jayc72 is offline   Reply With Quote
Old 10-16-2009, 06:53 PM   #37
meatbag
Thread Starter
iTrader: (50)

gospeed81's Avatar

Join Date: Nov 2008
Location: Houston, TX
Posts: 7,357
Total Cats: 26
Default

Pretty bad misfires. I could feel it during hard acceleration. This combined with the poor grounding and some firmware corruption would make it stop accelerating for a half second right around peak torque.
gospeed81 is offline   Reply With Quote
Old 04-21-2010, 01:35 AM   #38
Junior Member
iTrader: (1)

Join Date: Oct 2007
Location: Bay Area, CA
Posts: 105
Total Cats: 0
Default

Let me just say THANK YOU for closing this thread! Usually problems go unresolved and searching is just like walking down a hallway of doors with nothing but disappointment on the other sides.
Latch is offline   Reply With Quote
Old 04-21-2010, 05:13 PM   #39
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,367
Total Cats: 1,332
Default

dammit this **** is like 6 months old, nm.
Savington is offline   Reply With Quote
Old 04-21-2010, 07:26 PM   #40
meatbag
Thread Starter
iTrader: (50)

gospeed81's Avatar

Join Date: Nov 2008
Location: Houston, TX
Posts: 7,357
Total Cats: 26
Default

I'm just awesome like that.
gospeed81 is offline   Reply With Quote
