Default MegaSquirt is for the fishes...

A few of you are already familiar; now we're lifting the cloak of secrecy and showing our newest EMS for the first time to the public at the Performance Racing Industry show in Orlando.

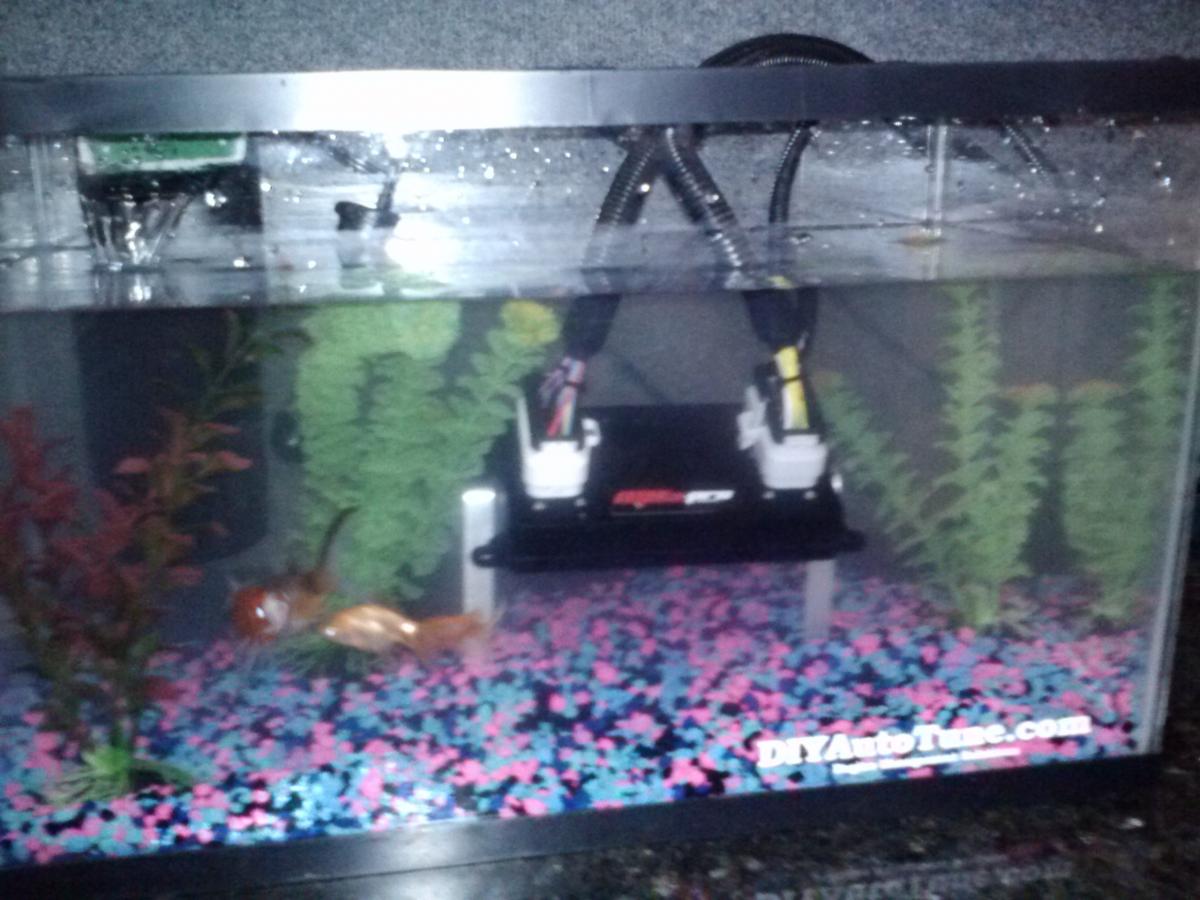

Introducing MS3-Pro. With the same great features of the MS3X EMS, but with m0ar aw3som3. Yes, it's a crappy cell phone pic. Yes, that's our new MS3-Pro EMS running from inside a fishtank, with fish swimming around it. Yes, I think that this is very likely to be a first in the industry.



Some better pics on our facebook page
http://www.facebook.com/diyautotune
Attached Thumbnails
MegaSquirt is for the fishes...-cam00010%5B1%5D.jpg   MegaSquirt is for the fishes...-cam00018%5B1%5D.jpg
Ben is offline   Reply With Quote
Old 11-30-2012, 01:44 AM   #2
Ben
Supporting Vendor
Thread Starter
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

And here is a pic taken from the coolest shopping center ever, in Orlando, FL

Ben is offline   Reply With Quote
Old 11-30-2012, 02:05 AM   #3
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,812
Total Cats: 187
Default

I wonder if they give handjobs at that massage parlor. What a shopping center! A wack shack! Liquor! and Guns!
thirdgen is offline   Reply With Quote
Old 11-30-2012, 09:19 AM   #4
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,206
Total Cats: 2,587
Default

Quote:
but with m0ar aw3som3
More info on this plz: is it more awesome as in it includes all the features you'd otherwise have to opt for on the regular ones, or does it have things never before seen in hte regular ones? (besides the waterproof casing)
18psi is offline   Reply With Quote
Old 11-30-2012, 09:27 AM   #5
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Finally, watersports and motorsports can come together in my life.
hustler is offline   Reply With Quote
Old 11-30-2012, 09:32 AM   #6
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,206
Total Cats: 2,587
Default

Beat me to it. I think its useless as hell. But what do I know.

I saw in the other thread that on these everything is on 1 board....Thats neat. Hasn't Joe been ranting about this for months?

The compactness is def a big plus since there's so little extra space in our cars.
18psi is offline   Reply With Quote
Old 11-30-2012, 09:35 AM   #7
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

Quote:
Originally Posted by 18psi View Post
I saw in the other thread that on these everything is on 1 board....Thats neat. Hasn't Joe been ranting about this for months?
Yeah, when Ben told me about this, my reply was: "You're going to give JoeP a boner"
Braineack is offline   Reply With Quote
Old 11-30-2012, 12:13 PM   #8
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,328
Total Cats: 1,926
Default

Quote:
Originally Posted by 18psi View Post
I saw in the other thread that on these everything is on 1 board....Thats neat. Hasn't Joe been ranting about this for months?
More than months.

Years.

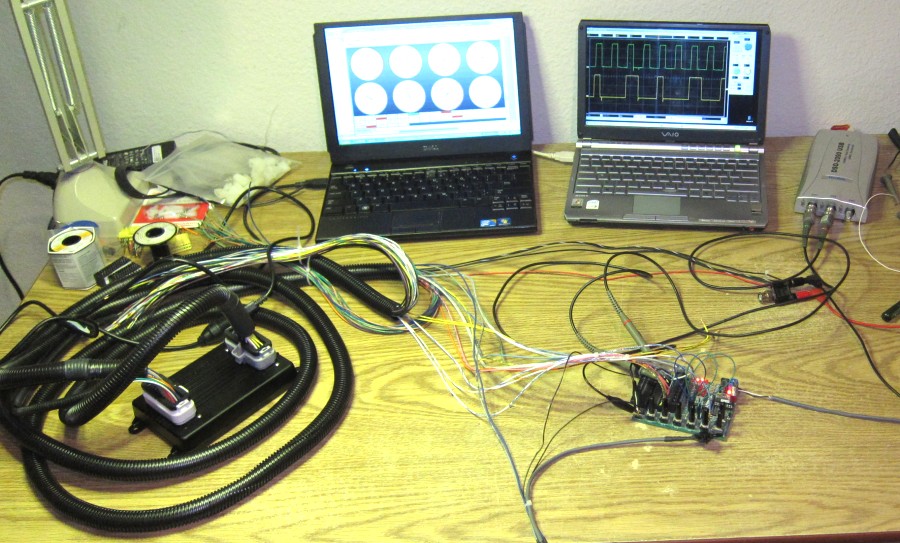

Which is why I was happy to accept one of the Beta units when DIY offered it a month ago. The secrecy has been killing me- now I can finally brag about what an awesome device this is!




As you noted, this is a truly all in one solution. What really impressed me, however, is that thay've done more than just re-package the existing circuit design. This really is a new ECU, which fixes all of the stupid circuit topologies which we've all hated for years. Gone, for example, is the flaky op-amp input circuit for the crank and cam sensors. In its place is a MAX9926 chip, which is the dual-input version of the 9924 that I started using a few years ago when I built that 36-1 crankwheel setup for my '92. It's a great device- differential inputs, automatic threshold detect, decent noise immunity. Been rock-solid with the CAS on my '90 so far. The era of tweaking pots is at an end.

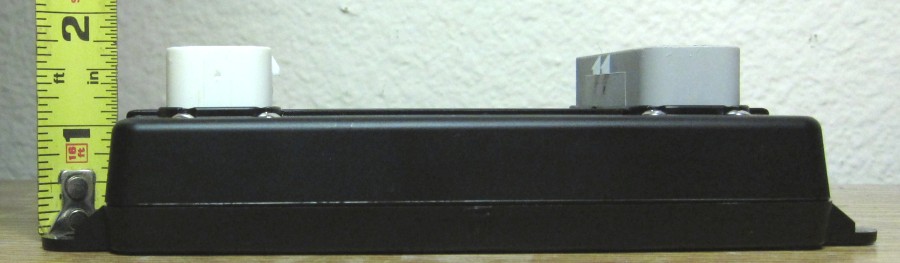

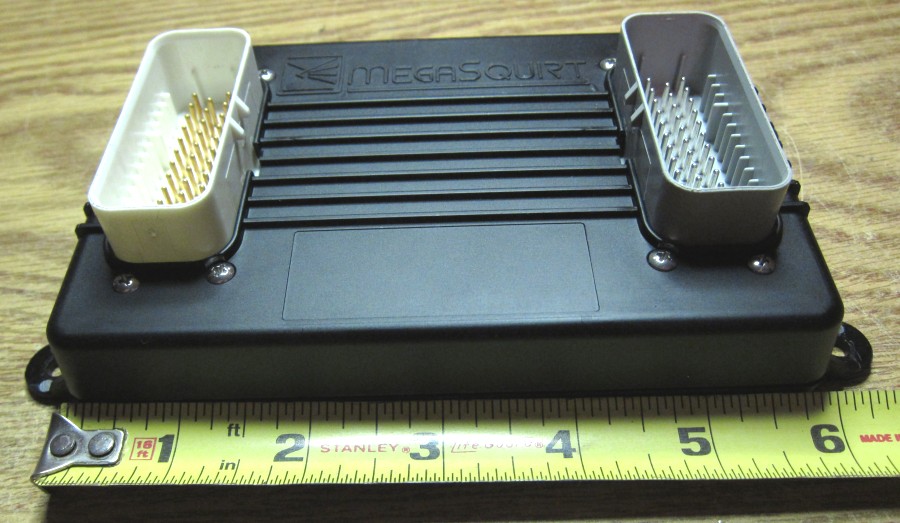

And yeah, it's small.

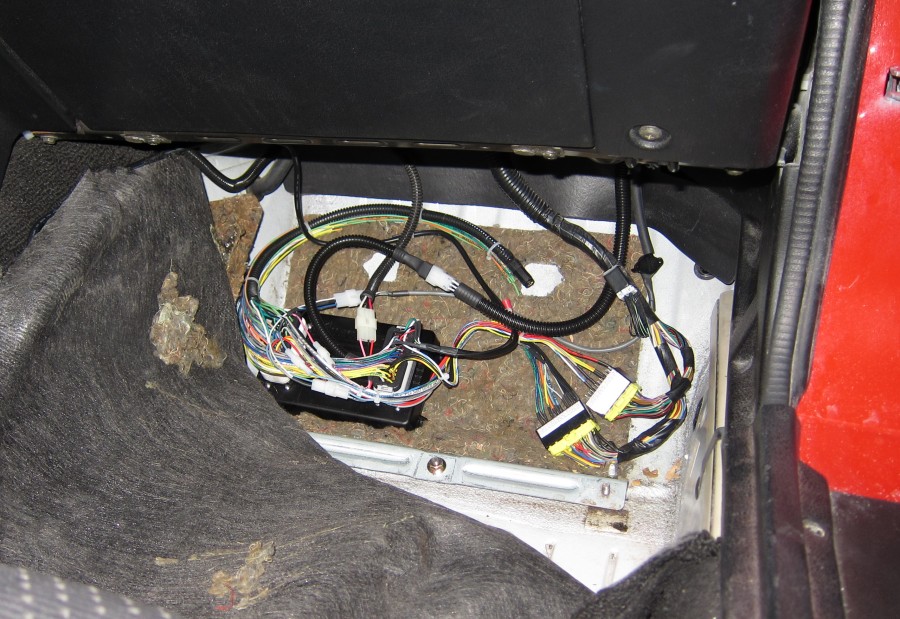

The form-factor is a bit unusual what with the connectors coming out of the top, but it still fits into the stock ECU space in my '90. Might stick out a bit on the '94-'97 cars, but that shouldn't be too big a problem. Apparently folks who mount their ECUs on the firewall love this form-factor.



(pardon the messy wiring; this is a work-in-progress shot.)

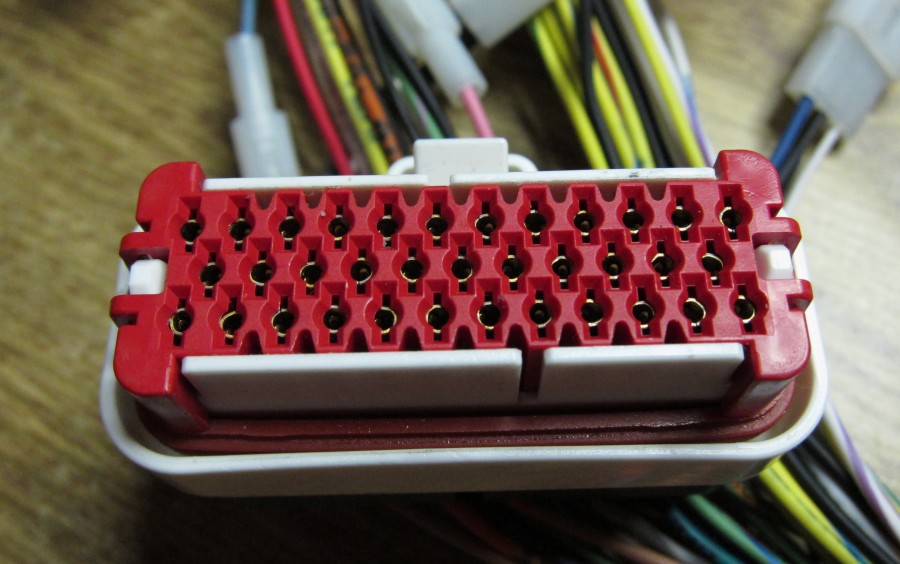

The connectors themselves are pure sex. I don't so much care whether they are watertight or not, but unlike the DB-37, they are seriously robust, have very nice contacts, and latch into place like a "real" ECU connector should.




The harness which is comes with is a bit of a python, as they've wired out every conceivable function and then some. One nice thing about these connectors is that you can easily remove un-needed contacts from then without special tools. Doing so compromises the watertight integrity of the connector, but for an "indoor" ECU, it will allow you to shrink the harness down to a more reasonable thickness. I haven't yet done this with mine, as I'm still experimenting and adding features.


Rather unusually for a Megasquirt, there is no internal MAP sensor. Putting a MAP hole in the case would have compromised the watertight nature of the case, so that now has to be mounted externally. No biggie. You can either use a conventional GM-style sensor, or you can take an MPX4250 (the sensor normally found inside an MS) and solder a couple of wires to it. I went a step further and tacked a couple of filter caps to the legs, then encased the termination in epoxy and heatshrink.




(Sorry- crappy cell-phone pix on that one.)
Attached Thumbnails
MegaSquirt is for the fishes...-onbench.jpg   MegaSquirt is for the fishes...-side.jpg   MegaSquirt is for the fishes...-top.jpg   MegaSquirt is for the fishes...-connector.jpg   MegaSquirt is for the fishes...-installed.jpg

MegaSquirt is for the fishes...-mpx1.jpg   MegaSquirt is for the fishes...-mpx2.jpg   MegaSquirt is for the fishes...-mpx3.jpg
Joe Perez is offline   Reply With Quote
Old 11-30-2012, 12:21 PM   #9
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

How much longer with MS be "open source"? Are they still giving-out licensing?
hustler is offline   Reply With Quote
Old 11-30-2012, 12:26 PM   #10
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,206
Total Cats: 2,587
Default

So its not just smaller? Its faster and better too? FUUU
18psi is offline   Reply With Quote
Old 11-30-2012, 12:49 PM   #11
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

MS thats not pnp with real connectors finally comes out. Please tell me is uses a full speed usb interface too rather than just having the chip from a usb to serial converter cable built in. Kind of regretting the EMS4 choice now.
Leafy is offline   Reply With Quote
Old 11-30-2012, 01:30 PM   #12
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,328
Total Cats: 1,926
Default

Quote:
Originally Posted by hustler View Post
How much longer with MS be "open source"? Are they still giving-out licensing?
While there are a few minor tweaks, the code running on the MS3Pro is essentially the same as on the regular MS3. I'm not aware that the open-ness of the code will be diminished.

As with the MSPnP, the schematics for the unit are proprietary to DIY. I have opened the box and spend some time poking around, and while I'd prefer to have access to the schematics for my own personal curiosity, there isn't nearly as serious a need for it as with the regular MS3, since there's really nothing inside the box that you would ever need to modify.



Quote:
Originally Posted by Leafy View Post
Please tell me is uses a full speed usb interface too rather than just having the chip from a usb to serial converter cable built in.
Doing that would have rendered the unit incompatible with all of the existing software, and vise-versa. As it stands, the MS3P is directly compatible with the same TunerStudio and other tools that we are all accustomed to. Retention of the stock RS-232 interface also means that it will continue to be compatible with the same bluetooth adapters that the Android crowd use.

Is there some reason that you find the present USB interface to be unacceptable?

Last edited by Joe Perez; 11-30-2012 at 06:16 PM. Reason: Moved info re: Innovate serial interface to new thread.
Joe Perez is offline   Reply With Quote
Old 11-30-2012, 01:53 PM   #13
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

I figure Joe was one of the beta testers Ben mentioned I did notice the size of his timing maps, but never remember mentioned he was on ms3.
Braineack is offline   Reply With Quote
Old 11-30-2012, 01:59 PM   #14
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,328
Total Cats: 1,926
Default

I said I was using an MS3, I just didn't mention which one.
Joe Perez is offline   Reply With Quote
Old 11-30-2012, 05:04 PM   #15
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Any word on price and availability? I dont think my EMS4 harness has been made yet, since its already 3 months behind schedule.
Leafy is offline   Reply With Quote
Old 11-30-2012, 05:12 PM   #16
I haz no trubo
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

Paging Reverant
Oscar is offline   Reply With Quote
Old 11-30-2012, 05:32 PM   #17
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,328
Total Cats: 1,926
Default

Quote:
Originally Posted by Oscar View Post
Paging Reverant
These are really two totally different things.

Rev's enhanced MS is more of an MSPnP on steroids. It does everything you could possibly need on a Miata, but is application-specific.

The MS3Pro, by comparison, is a universal Über-ECU designed to work with pretty much anything that uses spark plugs to ignite gasoline, without requiring all of the application-specific internal hacking (aka, mods) that have always been necessary in the past. In terms of the build quality and completeness, it's well-poised to compete against the "big boy" ECUs from companies such as Hydra, Bosch, Adaptronic, Electromotive, AEM, etc., and appeal to buyers who, in the past, may have viewed the MegaSquirt family as more of a hobbyist toy / science-fair project than a "real" ECU.

Last edited by Joe Perez; 11-30-2012 at 06:16 PM. Reason: Moved info re: Innovate serial interface to new thread.
Joe Perez is offline   Reply With Quote
Old 11-30-2012, 05:48 PM   #18
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

I think they just made it so they can make Techsalvager shut up.
Braineack is offline   Reply With Quote
Old 11-30-2012, 06:17 PM   #19
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,328
Total Cats: 1,926
Default

Discussion concerning Innovate serial interface moved to a new thread: https://www.miataturbo.net/megasquir...-serial-69739/
Joe Perez is offline   Reply With Quote
Old 11-30-2012, 07:27 PM   #20
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,206
Total Cats: 2,587
Default

Quote:
Originally Posted by Braineack View Post
I think they just made it so they can make Techsalvager shut up.
but bro

it doesn't make 200wtq @ 2k rpm

Last edited by 18psi; 11-30-2012 at 07:48 PM.
18psi is offline   Reply With Quote
