Default Miata v Megasquirt

Mortal Combat has begun!

Adam v MegaSquirt
Round One Getting MS powered up and CAS decoder wheel Decoding - Accomplished
Round Two Getting Spark Working - Accomplished
Round Three Fuel - Accomplished
Round Four Dyno - 106rwhp

I'll keep everyone posted on excactly how to make this happen so everyone can squit.

Car: 1992 Miata 100% stock. Leaking OEM header mod.

Last edited by kingofl337; 10-23-2005 at 02:28 PM.
kingofl337 is offline   Reply With Quote
Old 10-19-2005, 10:28 PM   #2
Elite Member
iTrader: (6)

Loki047's Avatar

Join Date: Sep 2005
Location: Chicago
Posts: 4,145
Total Cats: 0
Default

This will be awesome! where did u get it from, what year is your car? Tell us everyting. ....specially.... what are you wearing.. haha but let us know what happens and what msitakes you make.
Loki047 is offline   Reply With Quote
Old 10-19-2005, 10:31 PM   #3
Junior Member
Thread Starter

Join Date: Oct 2005
Location: New Hampshire
Posts: 248
Total Cats: 0
Default

Ok, I have the megasquirt piggy backed to the 1.6L ECU.

I have it reading, RPM using generic encoder wheel. And according to D17 and D19 I should have good spark but haven't hooked that up yet. Tomorrow.

I have the 02 sensor hooked up and I'm getting .6v cold and it jumps from .3 to .6 warmed up. I think the 02 sensor is junk because it looks orginal and the car has 150k miles on it.

I have the coolant sensor hooked up.

I also hooked up the MAP sensor and its reading 26kpa at idle.

I need to find an open elelement Air Intake Sensor so I can ditch the MAF when I do the hand off to the megasquirt.

To get the CAS to work correctly I used a 470ohm 1/4 watt resistor and soildered one end to pin 3 on the map sensor (5v) and the other to the CPU pin 11. Then I ran a wire from CPU pin 11 to X11 which goes to pin 25 on the DB-37 connector.

I also took a 1.2k 1/2 watt resistor and soildered on end to pin 28 on the connector and the other to pin 24.
Attached Thumbnails

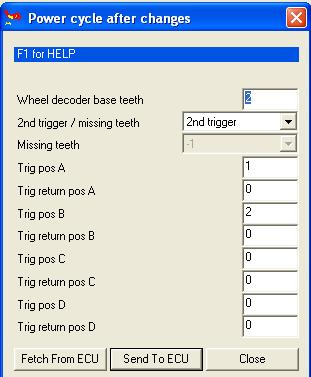

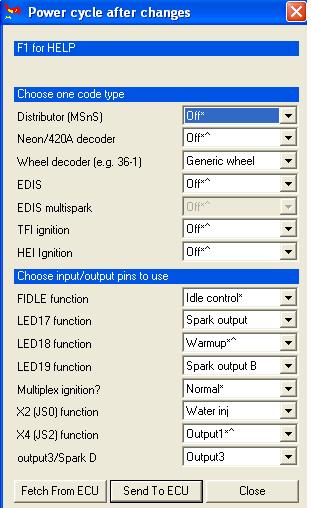

Miata v Megasquirt-wheel-decoder.jpg   Miata v Megasquirt-codebase.jpg

Last edited by kingofl337; 10-20-2005 at 09:12 PM.
kingofl337 is offline   Reply With Quote
Old 10-19-2005, 11:42 PM   #4
Elite Member

Philip's Avatar

Join Date: Dec 2004
Posts: 3,270
Total Cats: -4
Default

I want this to be more like a howto thread, so please try to ask only questions related to the topic at hand or clarifying the info posted, if you've got unrelated questions please make a new thread, I'm just going to be deleting anything unnecessary anyway.
Philip is offline   Reply With Quote
Old 10-20-2005, 09:34 PM   #5
Junior Member
Thread Starter

Join Date: Oct 2005
Location: New Hampshire
Posts: 248
Total Cats: 0
Default

Got ignition working today.

The car is showing proper timing with a timing light.

Code Version 26a

I removed the Transistors for D17 & D19
I replaced R25 & R28 with 330ohm resistors.

I connected the top of R25 to X12 -> Pin 27
I connected the top of R28 to X13 -> Pin 29
.
I connected Pin 27 to 1G Wire Color Brown-Yellow
I connected Pin 29 to 1H Wire Color Brown

I set my Trigger Angle to 73deg
I set Spark Invert to Yes.

I set Dwell to 5.5ms.
Max Discharge to .5ms

Normally anything over 4ms would be fine but the 1.6L ignition system is very weak. Make sure if you have a non-stock configuration or a 1.8L you start at 3.0ms and work your way
up until the coils start to get warm. They should remain cool to the touch.

Last edited by kingofl337; 10-30-2005 at 07:26 PM.
kingofl337 is offline   Reply With Quote
Old 10-21-2005, 01:06 AM   #6
Junior Member

Join Date: Jan 2005
Location: San Jose, CA
Posts: 248
Total Cats: 0
Default

what is 'Dwell' ?

Last edited by Philip; 10-21-2005 at 01:17 AM.
medisyn is offline   Reply With Quote
Old 10-21-2005, 11:09 AM   #7
Junior Member
Thread Starter

Join Date: Oct 2005
Location: New Hampshire
Posts: 248
Total Cats: 0
Default

Dwell is basicly the amount of time it takes the coil to charge. At low RPM's there is plenty of time to charge at high RPM's there my not be. So you define how long you want the coil to receive power to spark.

I may still upgrade the coils to 4G36 untils which run very well under boost and almost never fail.

Last edited by kingofl337; 10-30-2005 at 07:22 PM.
kingofl337 is offline   Reply With Quote
Old 10-21-2005, 04:17 PM   #8
Junior Member

Join Date: Jan 2005
Location: San Jose, CA
Posts: 248
Total Cats: 0
Default

Quote:
Originally Posted by kingofl337
Dwell is basicly the amount of time it takes the coil to charge. At low RPM's there is plenty of time to charge at high RPM's there my not be. So you define how long you want the coil to receive power to spark.

I'm not sure what I'm going to do with the OEM ignitor. I may replace it with a more megasquirt friendly 4g63 DSM ignitor. Has the OEM ignitor fires at a low voltage input 0v and the DSM fires at high 5v. This would also alow me to use 4G36 coils which run very well under boost and almost never fail.

I may also try reversing the ignitor inputs and then inverting the output to them which may help with the overheating ignitor.
would something like coils from a 1.8L miata work? I know some high end turbo guys switch over to them sometimes when they run more than 15psi of boost... I imagine useing DSM stuff would be cheap tho...
medisyn is offline   Reply With Quote
Old 10-21-2005, 11:50 PM   #9
Junior Member
Thread Starter

Join Date: Oct 2005
Location: New Hampshire
Posts: 248
Total Cats: 0
Default

Adam 1 - MAF 0

I just got fuel working on the MS and stock computer for spark. I also removed the MAF, which is a victory in its own. I need to check to see what the OEM ECU does for spark tables without the MAF.

I tried to get fuel and spark working together on the MS but I let the two channels of the coil outputs touch and they were canceling each other out and the flooded the car bad. I couldn't even get the OEM computer to restart the car from it. Plus my TPS isn't hooked up for flood clear yet. Anyways on to the details.

I went to NAPA and purchased: ECHTS5100 - Caged Air Intake Temp Sensor
I also bought: ECHTSC300 which is the connector for above sensor.
Cost me $46.00

I wired one lead into pin 20 and the other was spliced into the main MS ground. Boom instant ait temp readings.

1.6L 90-93
Connect ECU pin 2U Yellow to pins 32&33 on the MS
Connect ECU pin 2V Yellow-Black. to pins 34&35 on the MS

1.8L 94-95
Connect 2U Yellow to pin 32 on the MS
Connect 2V Yellow-Black to pin 34 on the MS
Connect Y2 White-Green to pin 33 on the MS
Connect Z2 Green to pin 35 on the MS

1.6L Fuel Pump Relay
I also had to add a relay to switch the relay for the fuel pump. The megasquirt fires the fuel pump by shorting pin 37 to ground. But, Mazda uses 12v to switch the relay for the fuel pump on the 1.6L. So I spliced into the MAF cable there is one plain black wire in the harness. This is the wire that needs 12v to switch the OEM relay on the 1.6L.
I used an automotive relay to convert the megasquirt fuel pump output to 12v.
Pin 87 was the black - fuel pump relay wire that needs 12v.
Pin 30 and 86 need to be connected to +12v
Pin 85 was connected to PIN37 on the megasquirt.

Also, a benefit of using a relay is it doesn't interfere with the operation of the MAF. When not using the megasquirt.

1.8L 94-95
You guys suck :-p
All you have to do is connect 2T Light-Green to pin 37 on the MS and your done.

Tomorrow is dyno day. I want to get fuel and spark running together for the dyno run. If not I'll just be running fuel and I'll do spark separately.

Last edited by kingofl337; 10-30-2005 at 07:24 PM.
kingofl337 is offline   Reply With Quote
Old 10-22-2005, 09:28 PM   #10
Junior Member
Thread Starter

Join Date: Oct 2005
Location: New Hampshire
Posts: 248
Total Cats: 0
Default

Dyno today - 106rwhp fuel only stock ECu running timing. Still had the MAF hooked up for timing. I'll post the chart soon.
kingofl337 is offline   Reply With Quote
Old 10-22-2005, 10:14 PM   #11
Elite Member
iTrader: (6)

Loki047's Avatar

Join Date: Sep 2005
Location: Chicago
Posts: 4,145
Total Cats: 0
Default

King of l337, im really impressed with what you are doing. Is there an instruction manual you got with the megasquirt? Is it helping at all? WHere did you get the megasquirt? Where are you located?

Are you going to go stand alone with the Megaquirt?

Last edited by Loki047; 10-22-2005 at 10:17 PM.
Loki047 is offline   Reply With Quote
Old 10-23-2005, 10:47 AM   #12
Junior Member
Thread Starter

Join Date: Oct 2005
Location: New Hampshire
Posts: 248
Total Cats: 0
Default

The megasquirt does not come with an instruction manual other than whats online. I have been using msefi.com forums and scrapping bits together to get it working. I do plan to have it running full standalone.
.

Last edited by kingofl337; 10-30-2005 at 07:25 PM.
kingofl337 is offline   Reply With Quote
Old 10-26-2005, 08:11 PM   #13
Junior Member

Join Date: Jun 2005
Location: Huntington Beach, CA
Posts: 354
Total Cats: 0
Default

If you can get a writeup with or without pics on how to get the M$ up and running on the miata I will gladly host it. I wanted to take the plunge, but there isn't enough documentation for me to go all-in.
iWeasel410 is offline   Reply With Quote
Old 10-27-2005, 01:25 AM   #14
Elite Member

Philip's Avatar

Join Date: Dec 2004
Posts: 3,270
Total Cats: -4
Default

I can host it on the foum too.
Philip is offline   Reply With Quote
Old 10-27-2005, 08:38 AM   #15
Junior Member
Thread Starter

Join Date: Oct 2005
Location: New Hampshire
Posts: 248
Total Cats: 0
Default

While I got spark to work fine I still want to try a few betterways of firing the ignitor and learn more about its oppperation. Unfortunatly its dark when I get home from work. So, I can see anything to work on it. Hopefully Sunday I will get a chance to finish everything up.

My T25 turbo parts are starting to come in.
kingofl337 is offline   Reply With Quote
Old 10-27-2005, 06:01 PM   #16
Junior Member

Join Date: Jul 2005
Location: Alexandria, VA
Posts: 125
Total Cats: 0
Default

I assume you're running MSnS on a MS1 board? What PCB are you using? Did you put it together, or buy one pre made?

Very curious, as I'm seriously thinking about it on the track car.. I was actually hinking about going with the EDIS setup. But would need to figure out how to get the 36-1 wheel mounted to the crank..

Last edited by MiaTurbo; 10-27-2005 at 06:12 PM.
MiaTurbo is offline   Reply With Quote
Old 10-27-2005, 09:12 PM   #17
Junior Member
Thread Starter

Join Date: Oct 2005
Location: New Hampshire
Posts: 248
Total Cats: 0
Default

I am running MSnS on the v2.2 board but highly recommend using the v3.0 has it has many upgrades. Most importantly the board is more robust. The install is pretty much the same for both boards. I'm going to purchase a V3.0 for my 99 this winter and see how few parts I actually need to make it run right .

I purchased my board assembled new but it had some improperly installed parts so the FIDLE didn't work. I fixed the F-Idle but don't use it.
kingofl337 is offline   Reply With Quote
Old 10-30-2005, 07:31 PM   #18
Junior Member
Thread Starter

Join Date: Oct 2005
Location: New Hampshire
Posts: 248
Total Cats: 0
Default

Ok, I cleaned up my posts so they are easier to follow. I have the car running 90% on the megasquirt. I plan to update this post as I add functionality to the MS. Next is the cooling fan. Spark is good and strong compared to the way it was when I started.

I'm going to install my turbo and get a LC-1. I figure its better to pay 200.00 for a wideband 02 then spend that for 2hrs of dyno time.

If anyone has any questions that they feal will clarify the install let me know.
kingofl337 is offline   Reply With Quote
Old 11-10-2005, 06:22 AM   #19
Junior Member

Join Date: Jun 2005
Location: Huntington Beach, CA
Posts: 354
Total Cats: 0
Default

How's the install coming along, I'm thinking of DIY irtbs for my next miata, so the sooner you get all of this figured out, the sooner I can do my irtbs
iWeasel410 is offline   Reply With Quote
Old 11-10-2005, 11:23 AM   #20
Junior Member
Thread Starter

Join Date: Oct 2005
Location: New Hampshire
Posts: 248
Total Cats: 0
Default

I just got a protege automatic trottle body for TPS input.
I also don't have the idle done yet, I'm working on that.
I also need to get the cooling fan going.
But you will have to setup your own TPS and idle contol for that setup. You just need a good MAP source.

Last edited by kingofl337; 11-10-2005 at 11:27 AM.
