Microsquirt v3 ignition coil trouble


Old 10-14-2018, 11:56 AM
  #1
Newb
Thread Starter

Join Date: Oct 2018
Posts: 2
Total Cats: 0
Default Microsquirt v3 ignition coil trouble

I am trying to use my miata with a microsquirt v3, no turbo . The engine/trans/diff are swapped from a 96.

Right now most sensors are working and I am only missing spark. The coils have three wires each and I have wired them according to the 1996_miata_system_wiring_diagram.pdf found online. coil 1 Brn/Yel and and coil 2 Brn are going to IGN 1 and IGN 2. Then just power and engine ground left on each coil. I am using test mode to check for the coil operation. I've tried many settings from online resources and have loaded a few base tunes found online. The ecu is using MSII extra 3.4.2 firmware. I have a post over at Megasquirt Support Forum (MSEXTRA) ? Microsquirt fw v3.83 (View topic) that has my tune and ignition logs if needed.

I have experimented with setting for spark output and that warns it can damage components, so I feel like I many have done that at this point. I tried using an igniter too at one point with no luck. I am looking to start this car today guys with your help !

Last edited by lupac; 10-14-2018 at 07:34 PM.
lupac is offline
Old 10-15-2018, 11:54 AM
  #2
Newb
Thread Starter

Join Date: Oct 2018
Posts: 2
Total Cats: 0
Default

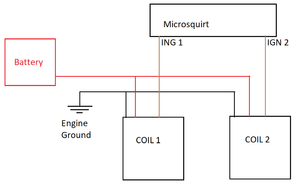

guys here is some more info. My current tune msq and an ignition log csv. also a picture of my coil wiring.
Attached Thumbnails Microsquirt v3 ignition coil trouble-coils.png
Attached Files
File Type: msq
miata_tunetest_1.msq (119.0 KB, 4 views)
File Type: csv
2018-10-13_14.03.55.csv (32.0 KB, 4 views)
lupac is offline
