Default Miocrosquirt access board

Is the access board for microsquirt available already? where can I buy one? DIY doesnt have it listed on their website.
RdSnake is offline   Reply With Quote
Old 02-24-2010, 04:47 PM   #2
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,317
Total Cats: 1,915
Default

So far as I am aware, they have not yet been manufactured.

Out of curiosity, is your intended application a lawnmower or a motorcycle?
Joe Perez is offline   Reply With Quote
Old 02-24-2010, 07:36 PM   #3
Junior Member
Thread Starter

Join Date: Aug 2005
Location: So Cal
Posts: 125
Total Cats: 0
Default

Quote:
Originally Posted by Joe Perez View Post
So far as I am aware, they have not yet been manufactured.

Out of curiosity, is your intended application a lawnmower or a motorcycle?
Neither. Looking to do a clean install on a couple of Mercedes.....
RdSnake is offline   Reply With Quote
Old 02-25-2010, 10:57 AM   #4
Supporting Vendor

Matt Cramer's Avatar

Join Date: Sep 2006
Posts: 2,266
Total Cats: 51
Default

There wasn't all that much demand for them, so they haven't been put into production yet.
Matt Cramer is offline   Reply With Quote
Old 02-25-2010, 11:44 AM   #5
Junior Member
Thread Starter

Join Date: Aug 2005
Location: So Cal
Posts: 125
Total Cats: 0
Default

Matt:
Thanks for the info. So, does this mean that I shouldnt wait for them to be put into production? I'm ready to start on these projects. Ultimate goal is to run sequential fuel injection and COP ignition. Should I just use relay board and MS-II v3.0?

Quote:
Originally Posted by Matt Cramer View Post
There wasn't all that much demand for them, so they haven't been put into production yet.
RdSnake is offline   Reply With Quote
Old 02-25-2010, 12:09 PM   #6
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Which engines are they?
Ben is offline   Reply With Quote
Old 02-25-2010, 12:47 PM   #7
Junior Member
Thread Starter

Join Date: Aug 2005
Location: So Cal
Posts: 125
Total Cats: 0
Default

Quote:
Originally Posted by Ben View Post
Which engines are they?

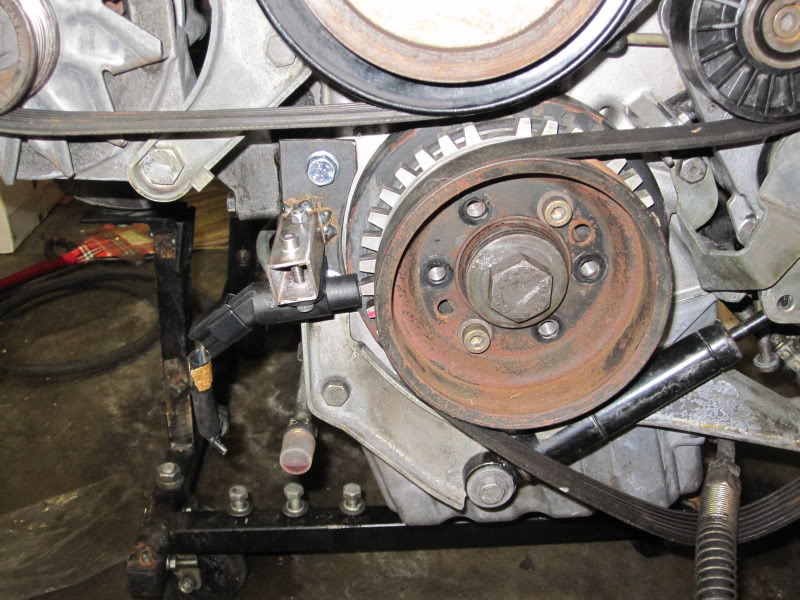

16V Cosworth engines. The engines already have 36-1 crank trigger wheels on them. Want to get them up and running with EDIS first and then convert to sequential and COPs.

Name:  IMG_0140.jpg
Views: 137
Size:  126.1 KB
RdSnake is offline   Reply With Quote
Old 02-25-2010, 01:17 PM   #8
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,317
Total Cats: 1,915
Default

Quote:
Originally Posted by RdSnake View Post
Should I just use relay board and MS-II v3.0?
I guess my biggest question would be why you want to mess around with any kind of external breakout board at all?

Given the stated goal of doing "a clean install," my instinctive reaction is that a standard MS2-3.0 build, plus either the P&H board or the 4 channel driver board (if you don't plan on low-impedance injectors) would be an absolutely ideal solution. Either of the two daughterboards will fit into the stock case, and with the addition of a second connector on the endplate (such as a DB-15 or a Molex 062 or Mini-Fit Jr) you can then build a simple harness to plug the MegaSquirt box into the vehicle's wiring harness (assuming you can find a source for the correct Motronic connector.)

If you're planning to re-wire the car anyway, then it's even simpler.

Either way, I don't see how a Microsquirt Access Board or a regular MS Relay Board simplifies the situation at all. To the contrary, it just adds bulk, exposed wiring, and points of failure.

Unless I'm missing something which seems obvious to people who work on Mercedes.


Nice looking crank-trigger setup, by the way. Always wished I could have figured out how to do a behind-the-pulley setup with mine.
Joe Perez is offline   Reply With Quote
Old 02-25-2010, 01:20 PM   #9
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

I am going to agree with Joe, but also add that I would also skip the EDIS module, and go straight to 36-1 and good coils.
Ben is offline   Reply With Quote
Old 02-25-2010, 01:25 PM   #10
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Quote:
Originally Posted by Joe Perez View Post
I guess my biggest question would be why you want to mess around with any kind of external breakout board at all?
+1. I'm currently upgrading a 6cyl Mercedes SL (R129) which has a mechanical injection system and a distributor (M103 engine) plus a small turbo to EFI + COP. There is absolutely no need for a relay board - to the contrary, it will make matters worse.

Jim
Reverant is offline   Reply With Quote
Old 02-25-2010, 01:54 PM   #11
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,317
Total Cats: 1,915
Default

Quote:
Originally Posted by Ben View Post
I would also skip the EDIS module, and go straight to 36-1 and good coils.
Ben is apparently reading my mind. I'd meant to say that, but it escaped me.

To put it bluntly, EDIS is a crutch, and in my opinion, not a very good one. With a Megasquirt, it merely adds complexity to the situation. Your best bet is to wire the VR sensor directly to the MS, and set up the MS to drive the ignition coils directly.

If you find yourself running low on output ports, I recently discovered a relatively new gadget called the I/O extender. It's a daughterboard for the MS2 which contains an on-board uC, and gives you four VR conditioners, six high-current drivers, six general-purpose logic-level I/O ports, and 8 ADCs.

Woot!

Info:

I/O Extender Board v1.0 for M2/Extra
jbperf.com • View forum - I/O Extender
Joe Perez is offline   Reply With Quote
Old 02-25-2010, 02:09 PM   #12
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,317
Total Cats: 1,915
Default

Oh, RdSnake, one other thing- You'd mentioned a desire to go full sequential eventually. To do this, you will need a second trigger off of one of the cams, giving you exactly one pulse per camshaft rotation (or more importantly, one pulse for every two crankshaft rotations, which is one complete engine cycle.)

Wasn't sure if you were aware of this already.
Joe Perez is offline   Reply With Quote
Old 02-25-2010, 06:00 PM   #13
Junior Member
Thread Starter

Join Date: Aug 2005
Location: So Cal
Posts: 125
Total Cats: 0
Default

The cars dont have Motronic. They came fitted with CIS injection. It is absolutely important for me that no hacking of the factory wiring is done. I want to be able to reverse the MS conversion if I decide that I want to. The MS installation is going to be a parallel install with no intertwining with the factory wiring and thats what I meant by doing a clean install. Again, it is absolutely important that I preserve as much of the originality of the car as possible. I just cant live with the CIS injection anymore.
My last MS-II install, my miata, was 3 years ago and Im a bit rusty with the details and all.
For me, EDIS is a simple install and because Im familiar with it, I know I can get it up and running in no time. Im very happy with the EDIS system on my miata. I will eventually convert to sequential but that will come after I figure out a way to add CMP signal either via a camfshaft trigger or a custom trigger that I will put inside the distributor.
One car will be converted to ITB's while the other one will remain "stock".

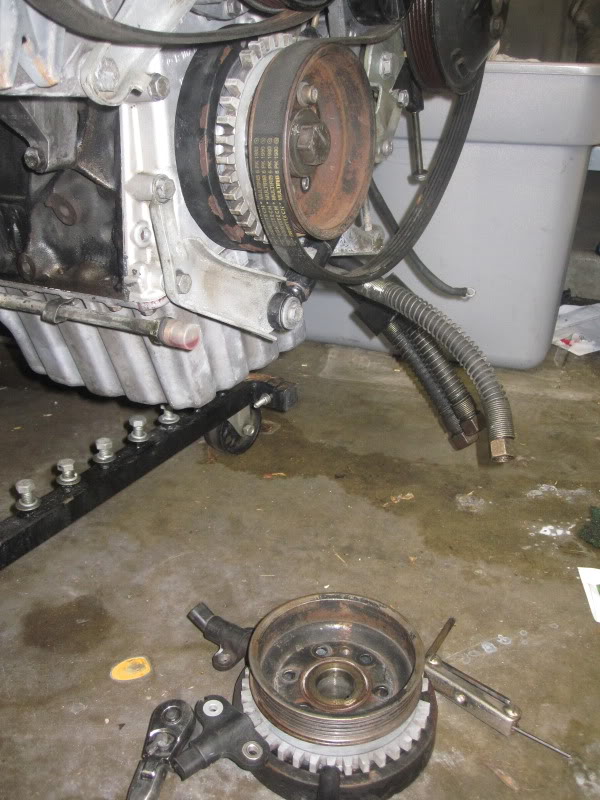

Name:  IMG_0107.jpg
Views: 50
Size:  107.5 KB

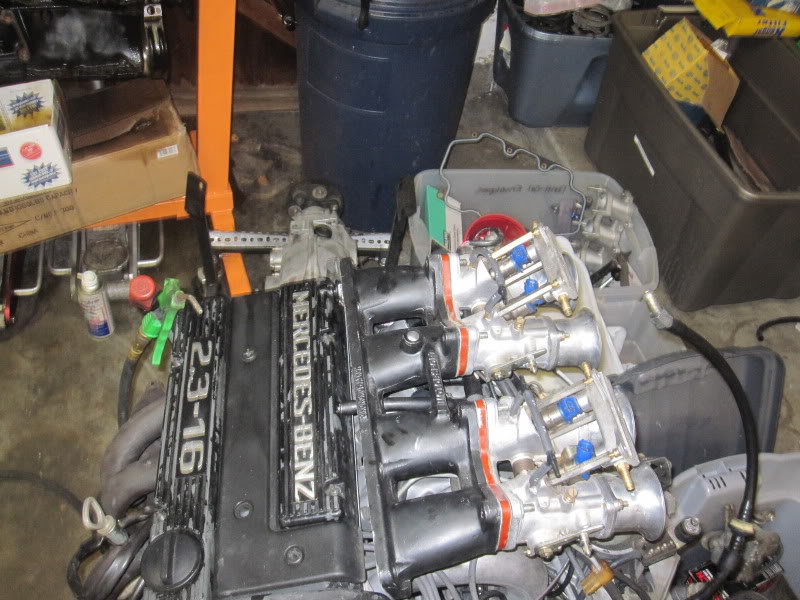

Name:  IMG_0090.jpg
Views: 25
Size:  112.5 KB
RdSnake is offline   Reply With Quote
Old 02-25-2010, 06:13 PM   #14
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,317
Total Cats: 1,915
Default

Quote:
Originally Posted by RdSnake View Post
The MS installation is going to be a parallel install with no intertwining with the factory wiring and thats what I meant by doing a clean install.
Well, that actually makes doing a standard MS2-3.0 build (with, optionally, one of the daughterboards I mentioned earlier) a clear no-brainer in my opinion. You'll need to tap into the factory wiring at some point to get power to run the thing, but aside from that you'd just need to construct a harness to go from the MS itself directly to the sensors, injectors, and ignition system.

Sounds like there's no clear path on the cam sensor at the moment, which actually isn't a horrible thing. You can obviously run without one, though you won't be going sequential. In all honestly, sequential injection is more about idle emissions than anything else- you're not going to see any power gain. That fact alone would further simplify the build a bit, as the regular 3.0 board would suffice with no daughterboards. You could even run an MS1 CPU instead of an MS2 if cost is a major factor, or if you're more comfortable with its rather simpler design.


Quote:
For me, EDIS is a simple install and because Im familiar with it, I know I can get it up and running in no time.
I can certainly understand an attachment to that which is familiar. From the Megasquirt's point of view, however, EDIS adds complexity without providing any benefit. Honestly, running a 36-1 wheel into the MS, and then driving the ignition in wasted-spark mode, is just about the simplest ignition setup imaginable, both from a standpoint of wiring / install as well as software setup. You tell it that you have a 36-1 wheel, set a couple of cardinal trigger points, and tell it you have two ignition output channels. That's really all there is to it.

Are you planning to retain the distributor as a functional item, or is a distributorless ignition (either a Miata style wasted-spark system or COPs) a part of the picture?
Joe Perez is offline   Reply With Quote
Old 02-25-2010, 06:22 PM   #15
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Rd, I'd go with the MS2 V3.0 with the 12' long wiring harness. I'd opt to not use the EDIS control box, but would still use the trigger wheel, VR sensor, and coils. You'll need to add 2 BIP373s to the ECU. Wiring labor would essentially be identical to using the EDIS box, but you've removed its unneeded complexity. I think you'd still have a really well thought out and clean installation, actually I think it would be cleaner. The EDIS coils themselves are cheap, fairly hot and require a short dwell time, so they'd do great in a wasted spark set up like this.
Ben is offline   Reply With Quote
Old 02-25-2010, 06:54 PM   #16
Junior Member
Thread Starter

Join Date: Aug 2005
Location: So Cal
Posts: 125
Total Cats: 0
Default

Definitely ditributorless. I would consider putting the distributor back in only if I decide to use it to house the CMP sensor in the future.
If I decide against EDIS and trigger the coils directly, would I have to disconnect the coils every reflash to prevent them from burning out?
RdSnake is offline   Reply With Quote
Old 02-25-2010, 07:11 PM   #17
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,317
Total Cats: 1,915
Default

Quote:
Originally Posted by RdSnake View Post
If I decide against EDIS and trigger the coils directly, would I have to disconnect the coils every reflash to prevent them from burning out?
No.
Joe Perez is offline   Reply With Quote
Old 02-25-2010, 07:16 PM   #18
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,317
Total Cats: 1,915
Default

Ok, that last response could have been more thorough.


Article 1: By "flashing", we are describing the process of loading new boot code, not merely of loading new maps. IOW, it's not something you do often.

Article 2: This is only a problem when you are running coils which use a +5 logic-level trigger, and at that, only when you have configured the coil driver outputs of the MS in the old-fashioned style. Here is a writeup which describes a better design, which alleviates this problem: https://www.miataturbo.net/forum/t33964/

Article 3: If you use coils without internal igniters, and drive them directly with BIP373s as Ben suggests, then this is also a non-issue. Personally, I prefer not to do it this way to keep noisy, high-current stuff out of the MS, but to each his own.
Joe Perez is offline   Reply With Quote
Old 02-25-2010, 07:37 PM   #19
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

Quote:
Originally Posted by Joe Perez View Post
In all honestly, sequential injection is more about idle emissions than anything else- you're not going to see any power gain. That fact alone would further simplify the build a bit, as the regular 3.0 board would suffice with no daughterboards. You could even run an MS1 CPU instead of an MS2 if cost is a major factor, or if you're more comfortable with its rather simpler design.
You'd be surprised at how much smoother your car is to drive, both at idle and low speed/pootling around town with sequential injection.

I'd reccomend going for sequential injection if you have the time/inclination etc.
richyvrlimited is offline   Reply With Quote
Old 02-25-2010, 07:41 PM   #20
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,317
Total Cats: 1,915
Default

Quote:
Originally Posted by richyvrlimited View Post
You'd be surprised at how much smoother your car is to drive, both at idle and low speed/pootling around town with sequential injection.
No, I wouldn't be surprised at all. Just saying that ultimate power isn't going to be affected, and since the OP hasn't mentioned forced induction, injector size is likely to be quite moderate.
Joe Perez is offline   Reply With Quote
