Default Mounting Megasquirt in an NB (parallel install)

For those of you running parallel, where have you mounted your Megasquirt? I know that lots of folks running standalone will put the Megasquirt in the stock ECU location, and I've seen photos of a few in the glovebox.

I've got a boomslang harness with an 18" MS pigtail wired in. Crawling around under the footwell with this cable in my hand was fruitless. I don't see any good spots to mount the MS within reach of the pigtail.

I guess I could replace the 18" with this 12' cable, and then put the MS in the glovebox or under the seat.

Have I overlooked anything?
dillononthecoast is offline   Reply With Quote
Old 05-10-2010, 05:02 AM   #2
Senior Member
iTrader: (7)

Join Date: Jul 2007
Location: Milpitas, CA
Posts: 1,057
Total Cats: 1
Default

Quote:
Originally Posted by dillononthecoast View Post
For those of you running parallel, where have you mounted your Megasquirt? I know that lots of folks running standalone will put the Megasquirt in the stock ECU location, and I've seen photos of a few in the glovebox.

I've got a boomslang harness with an 18" MS pigtail wired in. Crawling around under the footwell with this cable in my hand was fruitless. I don't see any good spots to mount the MS within reach of the pigtail.

I guess I could replace the 18" with this 12' cable, and then put the MS in the glovebox or under the seat.

Have I overlooked anything?
WHen I was in parallel, I just had it hanging up there on the steering column with zipties. worked good enough, but it stil hung pretty low in the footwell where my feet would kick it around every now and then.
Marc D is offline   Reply With Quote
Old 05-10-2010, 09:30 AM   #3
Guest
iTrader: (6)

Join Date: Sep 2007
Location: Vaughan, On, Canada
Posts: 1,092
Total Cats: 0
Default

I have mine zip tied to the far right by the back of the radio / center dash section.

No issues with it there..
M-Tuned is offline   Reply With Quote
Old 05-10-2010, 11:34 AM   #4
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Why parallel? Standalone is easier to set up.
Ben is offline   Reply With Quote
Old 05-10-2010, 01:51 PM   #5
Guest
iTrader: (6)

Join Date: Sep 2007
Location: Vaughan, On, Canada
Posts: 1,092
Total Cats: 0
Default

I love my paralled setup!

Stock ECU controls my Alternator, Air Conditioning, Idle Air Control Valve & Rad Fan. I can also still use my ODBII port for Dyno Integration (RPM etc) / Datalogging a lot of my stock sensors as I have independent GM Air and GM Coolant Temp sensors for the MS.

All my MS1 unit is worrying about is Fuel and Spark Started the car in 40f weather on Saturday and the the stock ECU controlled the Idle at 1800rpm for warm-up and then dropped it down to my idle at 900rpm once we had a little heat in the system.

I used to be all about Standalones, but I love my parrallel setup.... + plus it is very easy to reverse for my etest.

Just my 2 cents....
M-Tuned is offline   Reply With Quote
Old 05-10-2010, 04:41 PM   #6
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

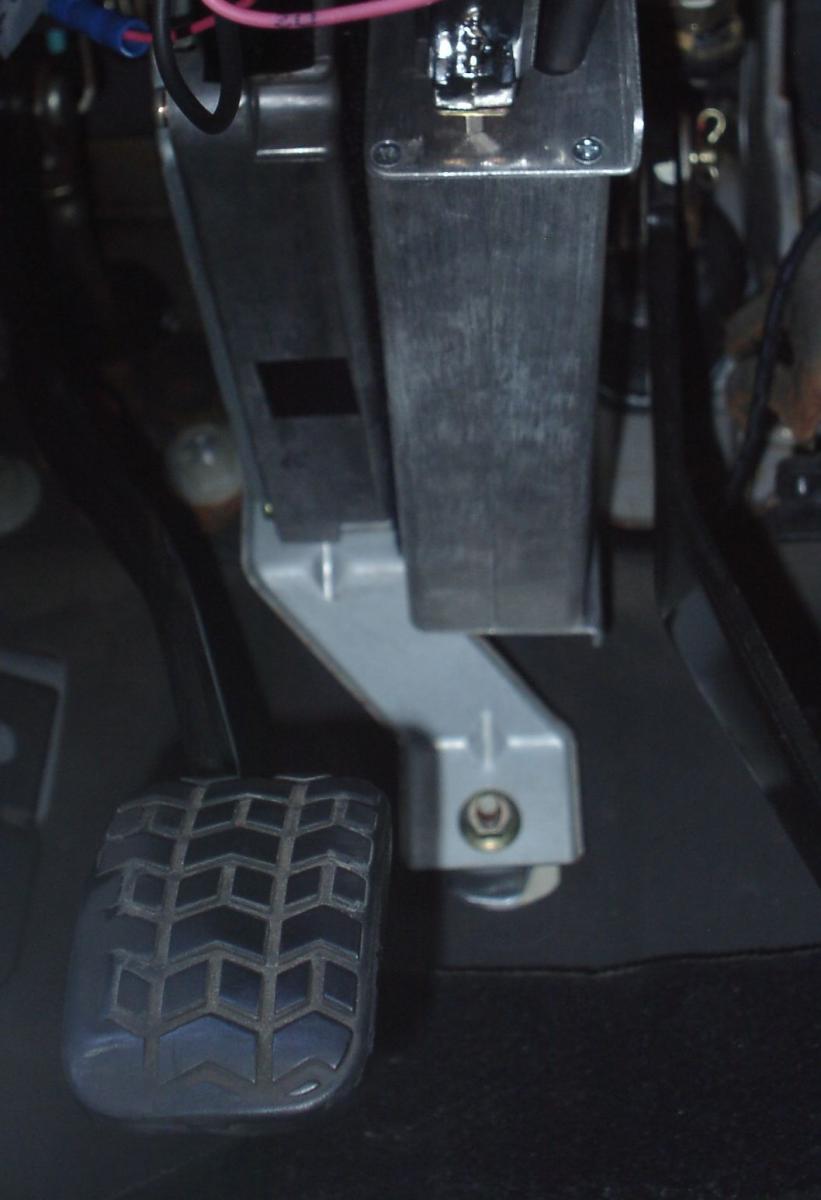

I velcro'd my MS to the stock ECU. It fits well there. Your cables are plenty long for this location.
Otherwise you can mount it on the vertical steel member to the right of the steering column. You can zip tie it vertically to that bar easily with the holes in the MS case.
Attached Thumbnails
Mounting Megasquirt in an NB (parallel install)-msvelcro.jpg
cjernigan is offline   Reply With Quote
