Default MS Reset craziness!! HELP

I have done the following fix, but still not have yet stopped the RESET.

I have install helped a friend to install an MS parrallel, please see log and map.

I have done the following:
- Clean ground, both ECU ground and terminal.
- Seperated ECU ground and AEM WB ground.
- Added Additional Ground to 2A or 2C from fuel rail ground.
- Gapped spark plug to .025

Well, none of the aboved worked.

Any comments, please free feel to share. I am out of ideas.
Attached Thumbnails

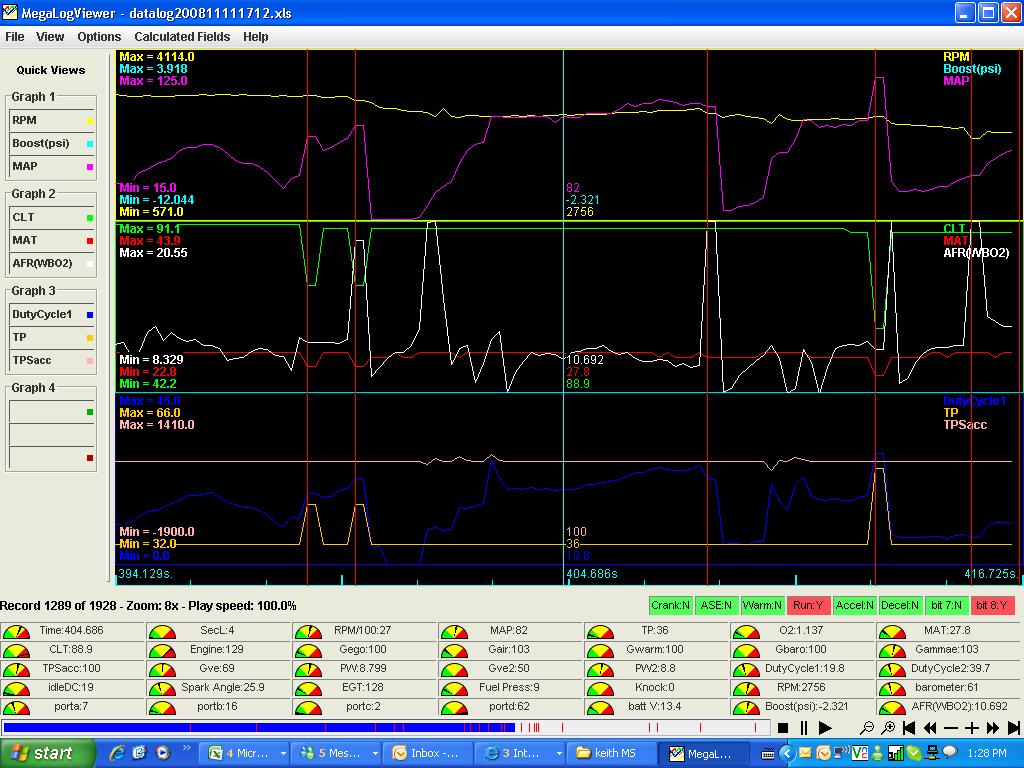

MS Reset craziness!! HELP-keith-log-reset-nov-12-2008.jpg
Attached Files
File Type: xls datalog200811111712.xls (239.4 KB, 47 views)
File Type: msq keith fuel change Nov11-2008.msq (35.3 KB, 60 views)
Mimime is offline   Reply With Quote
Old 11-12-2008, 02:32 AM   #2
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Overland Park, Kansas
Posts: 5,382
Total Cats: 43
Default

I've been through this, too. Recheck all of your connections on your parallel harness and you might add a few more grounds.

My friends PNP we ended up adding 9 new grounds all across the car, even grounded the ECU case to the chassis brace under the car. I know its very frustrating but just keep at it, I think it might be a power / grounding issue for the resets.
elesjuan is offline   Reply With Quote
Old 11-12-2008, 04:15 AM   #3
Senior Member
Thread Starter
iTrader: (1)

Join Date: Sep 2006
Location: Hong Kong
Posts: 523
Total Cats: 0
Default

added in total 3 more ground from fuel rail. 2A, 2C, 2B pins. It seem to hold up without reset. But much I get ahead of myself fixing that problem, another came when I adjust the timing.

Timing mark was all the way at the 10am area, then i swapped the Stock ECU back in, the mark is still in the same position.

Sigh...

Last edited by Mimime; 11-12-2008 at 06:38 AM.
Mimime is offline   Reply With Quote
Old 11-13-2008, 10:56 PM   #4
Senior Member
Thread Starter
iTrader: (1)

Join Date: Sep 2006
Location: Hong Kong
Posts: 523
Total Cats: 0
Default

Well.. good thing dosen't last very long. No reset at idle, but when I tested out on the street with part thottle RESET is back!!!!

What are causing this? only on part thottle around 20%
Mimime is offline   Reply With Quote
Old 11-13-2008, 11:56 PM   #5
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

May be way off, but you may need a capacitor on the coils to reduce noise. Type in capacitor in the search function and research it. It may be the problem. There is an utter lack of help in the MS forums on this site lately. Half the new threads are in BS and nobody helps all the newbs with their MS's. I'm MS2E, so I don't know MS1 all that well. But I'll try to help. Posting more info on your setup helps too. Like tell us everything that's stock and everything you changed. EG-injector size, low/high ohm, coils, grounding, wiring mods, any other mods, etc.
patsmx5 is offline   Reply With Quote
Old 11-14-2008, 12:33 AM   #6
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

it has it. I built the MS in question. First one that I've had any reseting issues...I suggested the grounds.
Braineack is offline   Reply With Quote
Old 11-14-2008, 03:18 AM   #7
Senior Member
Thread Starter
iTrader: (1)

Join Date: Sep 2006
Location: Hong Kong
Posts: 523
Total Cats: 0
Default

Brainack has been a great help to nail the problem. I have solved all the reseting issues by taking out the Splitfire COPs. Runs great now.. no more reset driving all day.


Thanks all for your inputs, Thanks Scott.
Mimime is offline   Reply With Quote
Old 11-14-2008, 11:00 AM   #8
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

that's very interesting....
Braineack is offline   Reply With Quote
Old 11-14-2008, 11:44 AM   #9
Senior Member
iTrader: (6)

Join Date: Jul 2007
Location: Cocoa Beach, FL
Posts: 808
Total Cats: 3
Default

wrong impedance maybe? do you have them set up individually or wasted spark?
TrickerZ is offline   Reply With Quote
Old 11-14-2008, 12:10 PM   #10
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

how do they install? I'm curious.
Braineack is offline   Reply With Quote
Old 11-14-2008, 12:23 PM   #11
Senior Member
Thread Starter
iTrader: (1)

Join Date: Sep 2006
Location: Hong Kong
Posts: 523
Total Cats: 0
Default

Does not attached to the ignitor like our DIY COPS, it plugs to the Coil plug then goes to a small capacitor modedule and to some Nissan coils.
Mimime is offline   Reply With Quote
