Default MS shift light

Hey,

I run DIYPNP and I want to add a shift light and then some other lights

Tell me if I make sense.

I run DIYPNP with A/C idle up using output WLED.
If I understand correctly I have ALED,PT6 and PT7 outputs available.

I can use them for shift light, I just need to add a resistor, PT6 and PT7 are direct cpu pins, so I just put a resistor on the proto area and make connection to PT6 and my LED ? (of course after defining the condition for this output)



Then I can make lights for any other MS parameter the same way... (at least two more - outputs limited)

Make sense ?

Thanks !
Attached Thumbnails

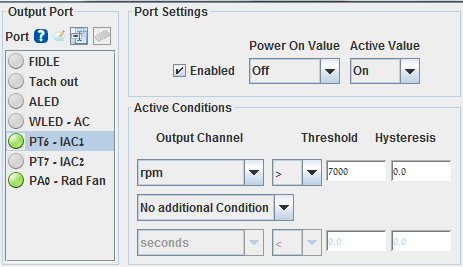

MS shift light-capture.png
elior77 is offline   Reply With Quote
Old 03-30-2015, 03:44 PM   #2
Senior Member
Thread Starter

Join Date: Nov 2012
Location: Israel
Posts: 543
Total Cats: -298
Default

I understand now that my sequential interjection occupy PT6 and PT7...

Can I use relays, nitrous or boost control to activate shift light ?
elior77 is offline   Reply With Quote
Old 03-30-2015, 05:03 PM   #3
Junior Member

Join Date: May 2014
Location: North St Paul, MN
Posts: 397
Total Cats: 23
Default

I can't directly answer your question. However, there was this thread that I plan to mimic.

https://www.miataturbo.net/general-m...t-light-79996/
ofspunk7 is offline   Reply With Quote
Old 03-30-2015, 05:06 PM   #4
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

I'm currently using nitrous 1 to trigger my check engine light to use as a shift light. So yeah nitrous 1 should work.
aidandj is offline   Reply With Quote
Old 03-31-2015, 10:37 AM   #5
Supporting Vendor

Matt Cramer's Avatar

Join Date: Sep 2006
Posts: 2,266
Total Cats: 51
Default

Looks like you've got ALED free to use as a shift light. It can ground the shift light directly.
