Default MS1 intermittantly not working w/stim

This ******* thing should be in my car already but some piece of **** stole my laptop at my halloween party. Thusly i'm waiting on buying a new one...that whole lack of money while in school problem.

Anyway, last week I plugged it in with the stim to play with it and change some settings around on my desktop. Worked fine in MT and nothing was amiss. Tonight I plug it in and the middle light lights up on the MS, and the IDL light on the Stim lights up but nothing else is happening. When I plug it into the computer it doesn't recognize it. Here are pics of the lights:

It's always done this. Sometimes I plug it in and it works. Sometimes I plug it in and it doesn't. No rhyme or reason to any of it seemingly. I cannot spot any shorts or solder bolbs anywhere on the board top or bottom. Not sure where or what to t-shoot...

I'm a wordy ************, sorry. Cliffs:
Sometimes MS works, Sometimes it doesn't, here are pics:

The MS:

The Stim:

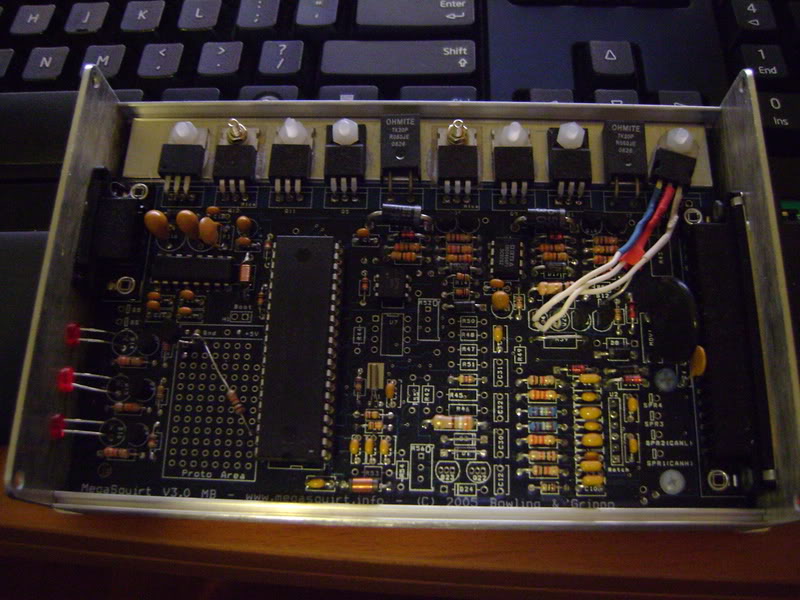

Shitty pic of the board for shitz and gigz:
Name:  DSC00714.jpg
Views: 0
Size:  111.1 KB
wayne_curr is offline   Reply With Quote
Old 12-01-2008, 08:54 PM   #2
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Take a few more clear, well focused pics of both sides of the MS. Pics of the entire thing, then zoomed in pics of various areas so we can see if everything looks right. And try using more flash.
patsmx5 is offline   Reply With Quote
Old 12-01-2008, 08:58 PM   #3
Elite Member
Thread Starter
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

Quote:
Originally Posted by patsmx5 View Post
Take a few more clear, well focused pics of both sides of the MS. Pics of the entire thing, then zoomed in pics of various areas so we can see if everything looks right. And try using more flash.
Alright i'll try. Flash washes it out and makes it even harder to see though. I'll try a well lit macro.

So after sitting plugged in for about 20 mins its working again now. Just looked over and noticed it. no idea wtf is up with this.
wayne_curr is offline   Reply With Quote
Old 12-01-2008, 09:04 PM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

dont think it's related....is your FET for the idle valve on an insulator?
Braineack is offline   Reply With Quote
Old 12-01-2008, 09:05 PM   #5
Elite Member
Thread Starter
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

Quote:
Originally Posted by Braineack View Post
dont think it's related....is your FET for the idle valve on an insulator?
No sir.

and here are some pics:

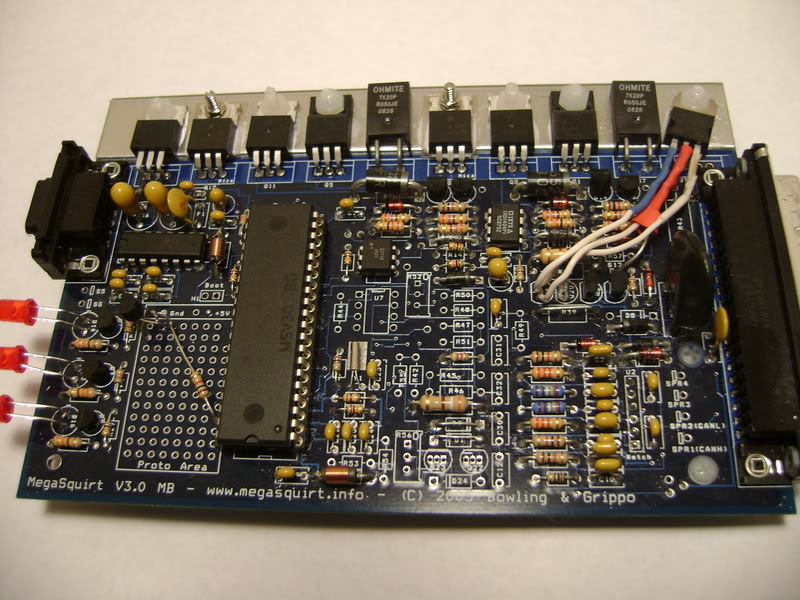

Name:  DSC00716.jpg
Views: 0
Size:  137.5 KB

Name:  DSC00720.jpg
Views: 0
Size:  159.5 KB

Name:  DSC00717.jpg
Views: 0
Size:  124.9 KB

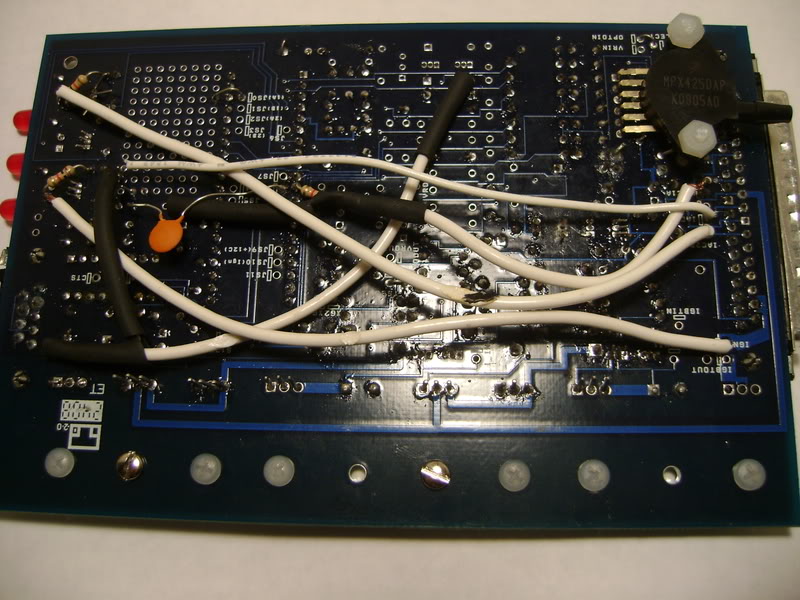

Name:  DSC00718.jpg
Views: 0
Size:  126.6 KB

Ignore my rookie mistake on Q20, i dont think it is an issue but i was pretty newbish there with desoldering.
