I had an issues with the alternator overcharging the battery on my way back home from a trip. In an attempt to make it home I tried unplugging the battery and try to drive the car. It didn't work and the car immediately shut off.

I tried restarting and MS would not power on anymore. I checked the fuses and replaced the 80amp main in the engine bay. After that MS wont come on. I grounded the fuel pump to make sure that it works and it does. So it's definitely MS. I have the unit off the car, how can I diagnose if the board is fried? Thanks
buffon01 is offline   Reply With Quote
Old 11-03-2014, 11:14 AM   #2
Supporting Vendor

Matt Cramer's Avatar

Join Date: Sep 2006
Posts: 2,266
Total Cats: 51
Default

What main board version do you have?
Matt Cramer is offline   Reply With Quote
Old 11-03-2014, 12:02 PM   #3
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Livonia, Michigan
Posts: 5,684
Total Cats: 10
Default

Quote:
Originally Posted by Matt Cramer View Post
What main board version do you have?
MSV30
BG

That's what is written on it.
buffon01 is offline   Reply With Quote
Old 11-03-2014, 12:38 PM   #4
Supporting Vendor

Matt Cramer's Avatar

Join Date: Sep 2006
Posts: 2,266
Total Cats: 51
Default

That's the chip etching. See this link for how to ID the MegaSquirt:

http://www.msextra.com/doc/general/whatmegasquirt.html
Matt Cramer is offline   Reply With Quote
Old 11-03-2014, 12:48 PM   #5
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Livonia, Michigan
Posts: 5,684
Total Cats: 10
Default

Looks like a 3.0 pcb
buffon01 is offline   Reply With Quote
Old 11-03-2014, 12:48 PM   #6
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,793
Default

he has a v3.0 board MS1 that I built him back in like 2007.

can you tell if any diodes or capacitors look fried? specifically the large yellow ones near the serial port.
Braineack is offline   Reply With Quote
Old 11-03-2014, 01:03 PM   #7
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Livonia, Michigan
Posts: 5,684
Total Cats: 10
Default

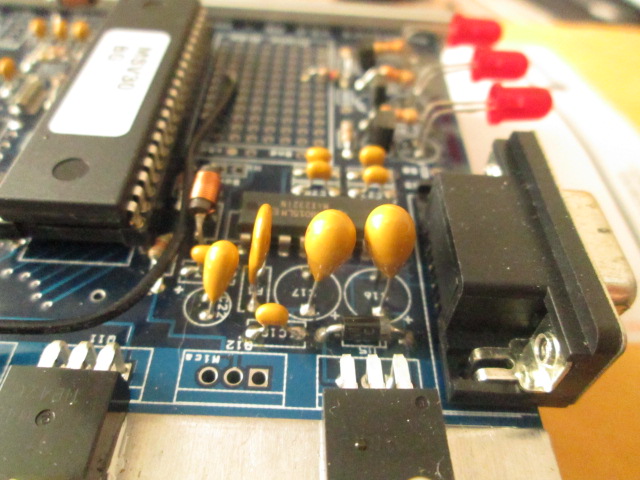

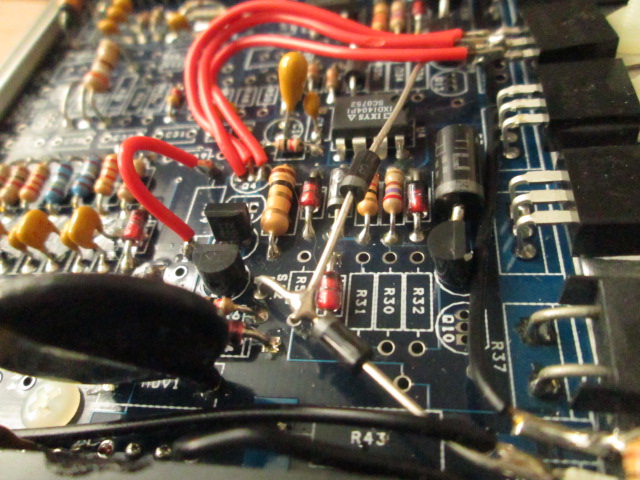

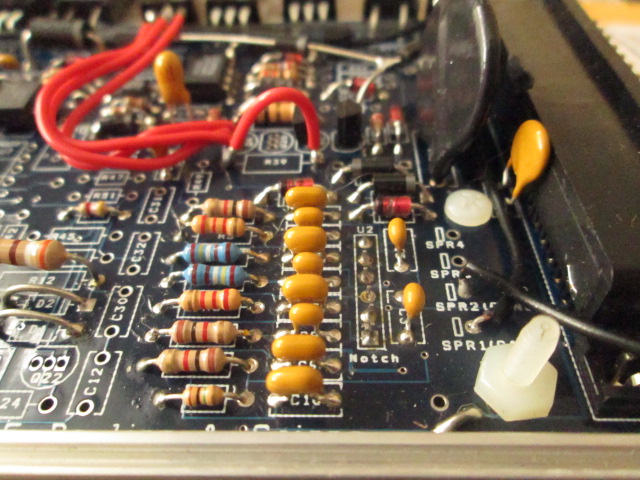

They do not seem to be fried
Attached Thumbnails
MS1 Not powering up-img_2683.jpg   MS1 Not powering up-img_2684.jpg   MS1 Not powering up-img_2685.jpg
buffon01 is offline   Reply With Quote
Old 11-03-2014, 07:37 PM   #8
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Livonia, Michigan
Posts: 5,684
Total Cats: 10
Default

I tested the diodes with a multimeter and they all seem fine. Any other ideas? I need to have my car running asap
buffon01 is offline   Reply With Quote
Old 11-03-2014, 09:36 PM   #9
Senior Member
iTrader: (1)

Join Date: Apr 2011
Location: Columbia, SC
Posts: 1,342
Total Cats: 78
Default

Did you check all the fuses in the cabin? The "Engine" controls the main relay and fuel pump relay.
Schuyler is offline   Reply With Quote
Old 11-03-2014, 11:31 PM   #10
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Livonia, Michigan
Posts: 5,684
Total Cats: 10
Default

Quote:
Originally Posted by Schuyler View Post
Did you check all the fuses in the cabin? The "Engine" controls the main relay and fuel pump relay.
Yeah they all were fine. Although, I'll double check them later tomorrow again.
buffon01 is offline   Reply With Quote
Old 11-04-2014, 03:47 PM   #11
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Livonia, Michigan
Posts: 5,684
Total Cats: 10
Default

I checked the fuses again today just to be sure and they're all fine.

Also, for an instant I plugged in MS and it lit up. However, when I tried again I got no signal from it and the LEDs went dead again.
buffon01 is offline   Reply With Quote
