Default MS1 v3.0 questions

Yesterday I received my first Megasquirt and Iím really excited to get this thing up and running but I have a few newbish questions concerning rewiring the harness and the mods that exist on the board. Unfortunately I haven't had to look at a wiring diagram since high school (we won't discuss how long ago that was) but at least I can still solder.

First, a bit of background on this unitÖthe original owner had Scott build him this MS a couple years ago for his í95 with A/C, cruise control and IAT, and thatís about all he could remember, I guess. He never used it and the fella who bought it from him rewired it to work with his í96 turbo. I bought it from this guy and now I have to rewire the harness to run it as a standalone in my stock í91 1.6 with an MTX-L wideband and no AFM.

So, Iíve been studying the thread on how to make and install your diy Megasquirt and I noticed that the ground wires are supposed to be soldered and bridged to pins 7,8,9 and 17,18,19 on the DB37 connector, but on my DB37 the ground wires are soldered to 7,8,9 and then to 12,13,14 as in the photo below:




I'm not sure why this is and am a bit confused over it. The DIYautotune site says these pins are connected to the ground plane also, so do I leave the DB37 connector as is or move 12-14 over to 17-19 and bridge them as per Scottís writeup?

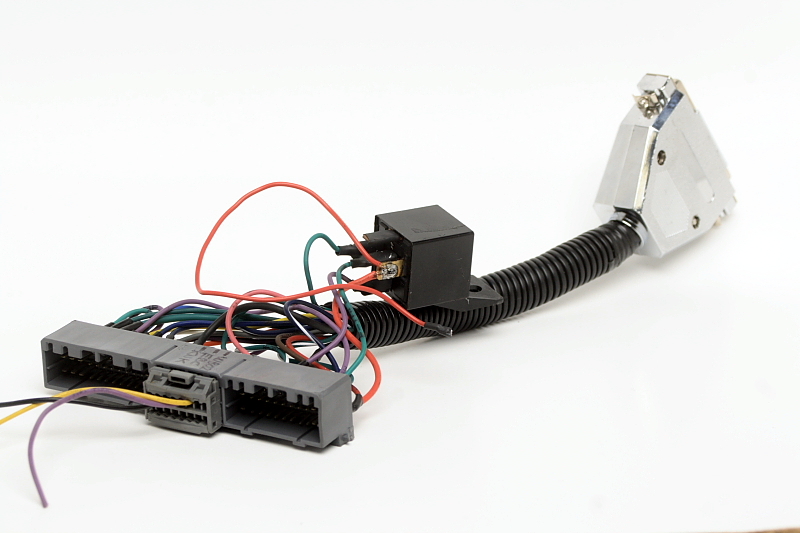

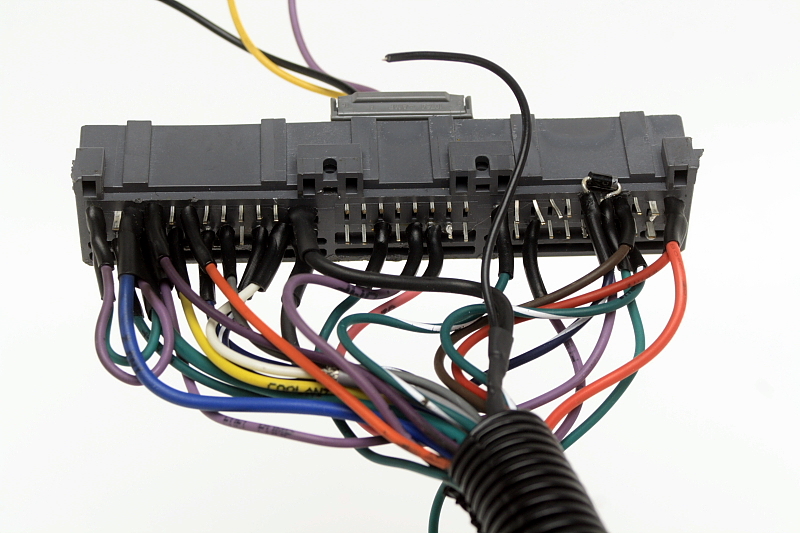

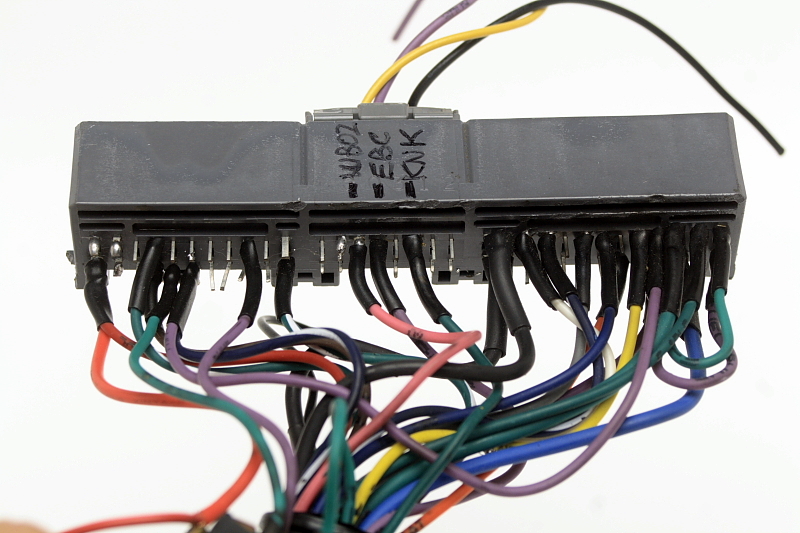

Next, here are photos of the 64-pin connector as it sits now. It doesn't look anything like what I saw on Scott's writeup for a '96 but I suppose this is irrelevant for my purposes and I just need to resolder the wires to the appropriate pins for my '91? Unless anything's changed since that writeup?

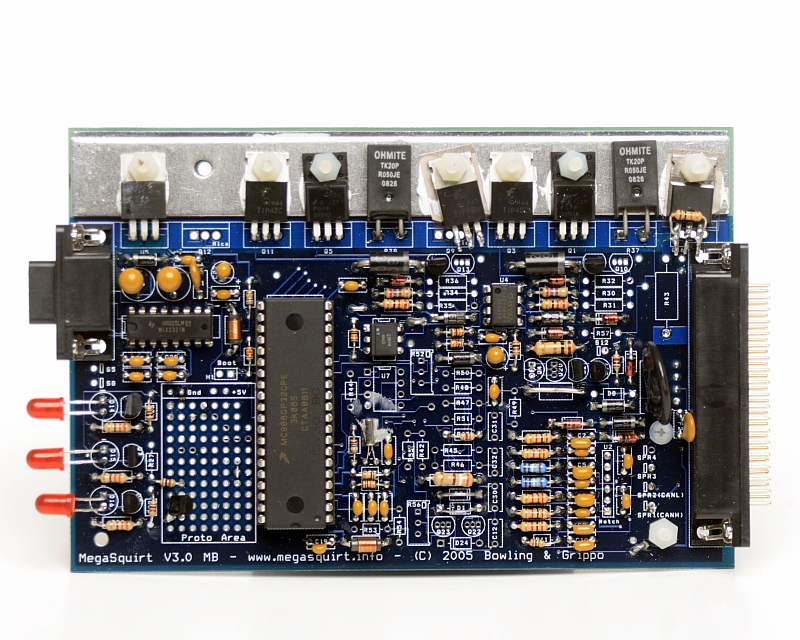

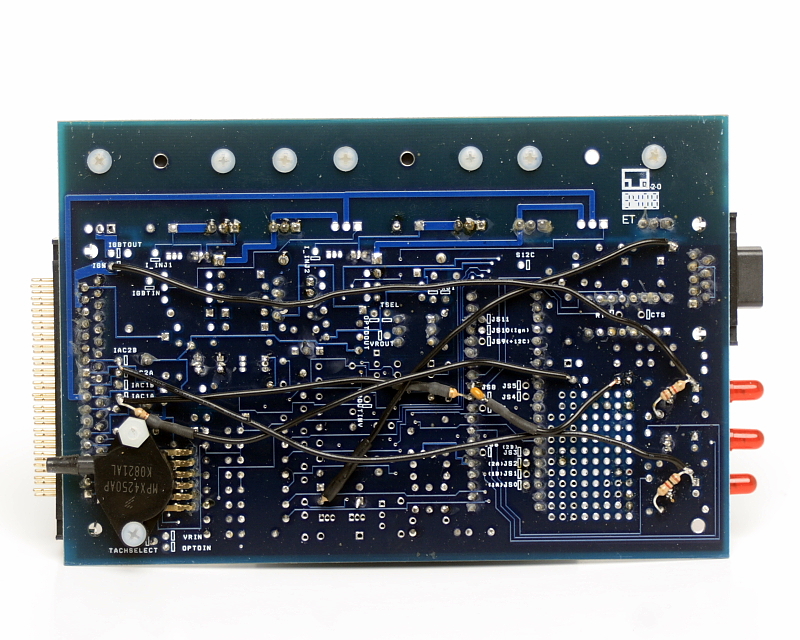

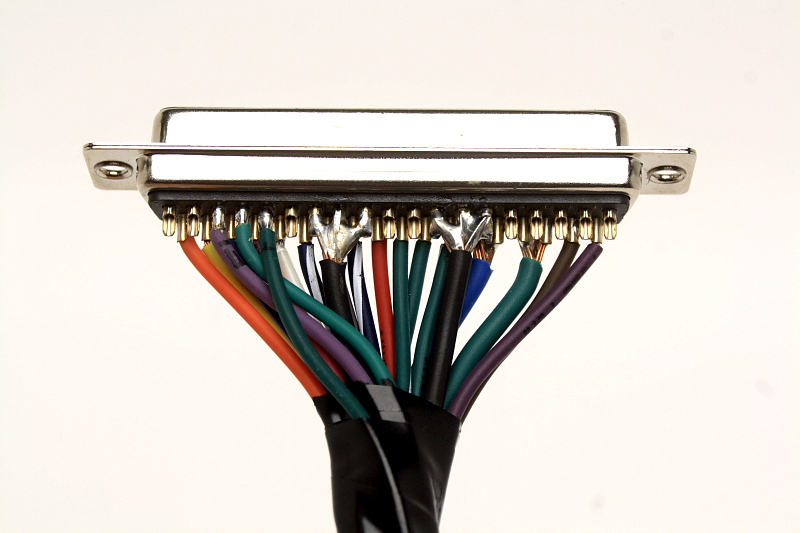

I'll include pics of the MS board as well in case anyone might need to look at it to help answer my questions or inform me of any other mods on this unit.





I'm sure I'll have many other questions but thanks if you can help with these!

Ray
Attached Thumbnails
MS1 v3.0 questions-db37_ms_pinouts_zps8c754b57.jpg   MS1 v3.0 questions-db37-1_zps90e7f2c1.jpg   MS1 v3.0 questions-harness1_zps1578dbfc.jpg   MS1 v3.0 questions-harness2_zps4b82058f.jpg   MS1 v3.0 questions-harness3_zpsc976d387.jpg

MS1 v3.0 questions-msboard1_zps54bf63f2.jpg   MS1 v3.0 questions-msboard2_zpsaaaca276.jpg

Last edited by RayinNorCal; 12-14-2012 at 10:13 PM.
RayinNorCal is offline   Reply With Quote
Old 12-15-2012, 10:03 AM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,833
Total Cats: 1,786
Default

is this that $50 one where that guy was under-handingly trying to say i built it wrong and he had the "fix" it?

looks like they removed the tachout from js2, idle control, FAN control, and boost control from it. the bottom of the board looks untouched from my wiring.








I'd remove the relay.

That gray connector was from a part number that's absolutely the worst to solder to. When you redo the harness, make sure all your joints are secure, the solder isn't going to want to hold to the pins. Then I'd coat it all in hot glue so they dont work there way loose/break.

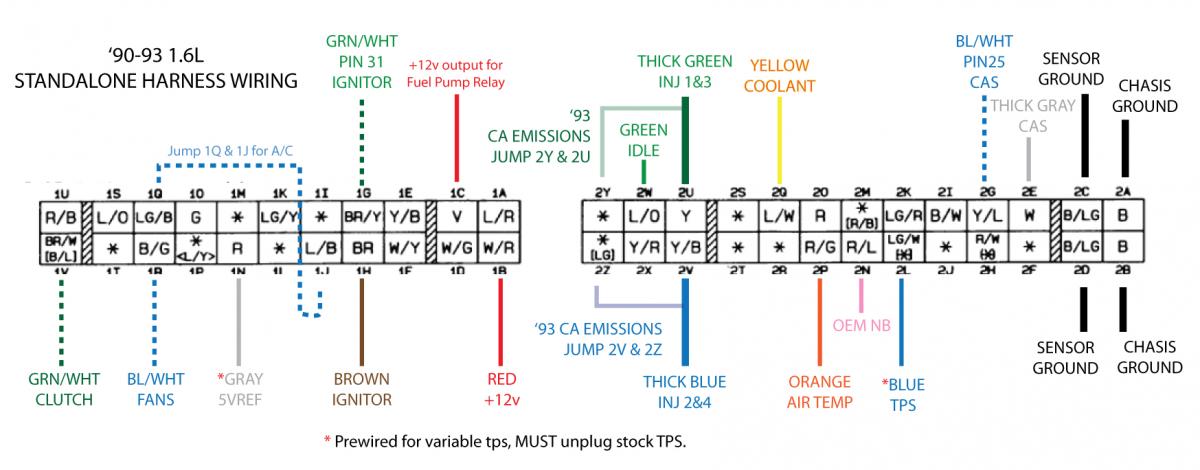

dont run anything to 1C, instead, run the FP wire on pin 37 to 2O, you can then use a jumper wire in the AFM connector to complete the circuit back to the fuel pump relay.
Attached Thumbnails

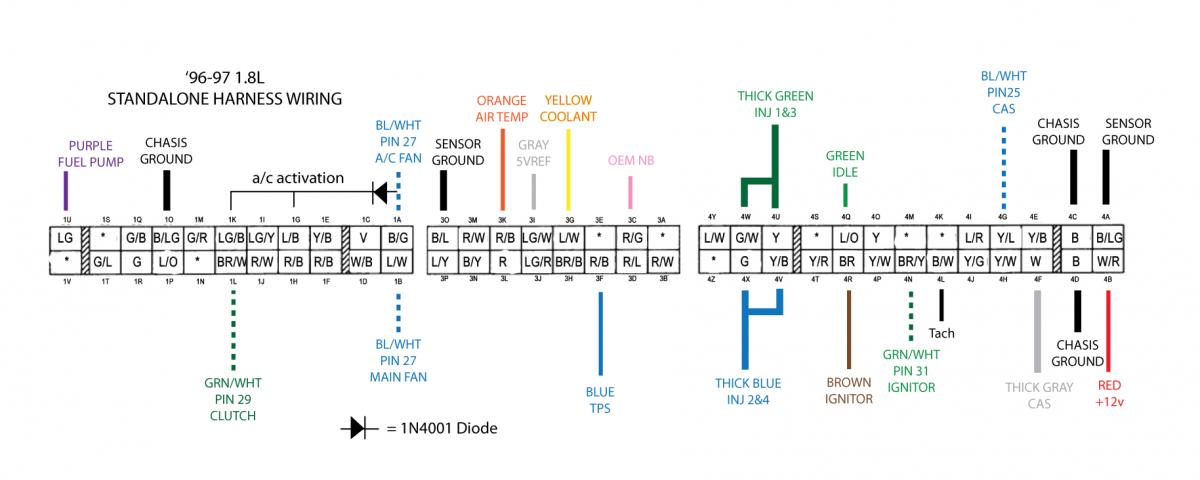

MS1 v3.0 questions-9093_standalone_harness.jpg   MS1 v3.0 questions-9697_standalone_harness.jpg
Braineack is offline   Reply With Quote
Old 12-15-2012, 01:32 PM   #3
Junior Member
Thread Starter
iTrader: (6)

Join Date: Nov 2010
Location: Three Rivers, Ca
Posts: 176
Total Cats: 4
Default

Thanks Scott. That helps a lot but I'm now thinking I may as well go with a parallel harness. If you have some time next month how much would you charge to build me one? Given my lack of involvement in electronics over the years I'd actually feel much better having someone else build it for me.

And yes, this is that same you unit you referred to but the seller wasn't speaking of you in his for sale thread. What happened was that he bought it from Ken who had you build it for his '95. Ken never used it and sold it to Paul who thought he could just plug it in to his '96 but of course it wouldn't work. So he and a friend rewired it as shown in my pics above. Did he post somewhere else claiming you screwed up?

Ray
RayinNorCal is offline   Reply With Quote
Old 12-15-2012, 06:27 PM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,833
Total Cats: 1,786
Default

No. Maybe I misread. It seemed like the low price and story was saying something bad about me.


And parallel harness... ugghhh
Braineack is offline   Reply With Quote
Old 12-16-2012, 02:32 AM   #5
Junior Member
Thread Starter
iTrader: (6)

Join Date: Nov 2010
Location: Three Rivers, Ca
Posts: 176
Total Cats: 4
Default

Quote:
Originally Posted by Braineack View Post
And parallel harness... ugghhh
Well I heard you just love building harnesses.

Besides, you can have all of January to build it as I still need to get an IAT kit and variable TPS. Just PM me a price if you want to do it.

Ray
RayinNorCal is offline   Reply With Quote
Old 01-02-2013, 12:15 PM   #6
Junior Member
Thread Starter
iTrader: (6)

Join Date: Nov 2010
Location: Three Rivers, Ca
Posts: 176
Total Cats: 4
Default

Ok, so I got off my lazy duff and ordered a new 64-pin connector from DIYautotune so I could start working on my standalone harness. Once I received it I quickly realized my soldering skills could use some work but I think they will suffice. Now, I’m almost done with the harness but I have a few questions.

First, I cross-referenced Joe’s writeup here and used the Green wire from pin 30 to connect to 2W for idle. Just want to make sure this is correct.

Second, regarding the two black ground wires coming off the db37: I imagine it doesn’t matter which of the two wires goes to either the sensor or ground pins on the 64-pin connector, but I’m assuming I must split one of the wires and connect each end to 2C/2D respectively and then split the other wire for 2A/2B?

Third, I haven't looked at the AFM wiring yet but where do I connect the jumper wire to complete the circuit back to the fuel pump relay? I have connected the fuel pump wire to 2O on the MS harness.

I’ll post a pic of the harness once I finish connecting the ground wires in case anyone would like to look it over to see if there are any problems with it.

Ray
RayinNorCal is offline   Reply With Quote
Old 01-02-2013, 12:25 PM   #7
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,833
Total Cats: 1,786
Default

Quote:
Originally Posted by RayinNorCal View Post
First, I cross-referenced Joe’s writeup here and used the Green wire from pin 30 to connect to 2W for idle. Just want to make sure this is correct.
correct. but the idle PWM mod inside the MS must be reinstalled (the FET above q13).

Quote:
Second, regarding the two black ground wires coming off the db37: I imagine it doesn’t matter which of the two wires goes to either the sensor or ground pins on the 64-pin connector, but I’m assuming I must split one of the wires and connect each end to 2C/2D respectively and then split the other wire for 2A/2B?
I connect pin 1 to 2C, pin 2 to 2D, pin 8 to 2A, and pin 9 to 2B


Quote:
Third, I haven't looked at the AFM wiring yet but where do I connect the jumper wire to complete the circuit back to the fuel pump relay? I have connected the fuel pump wire to 2O on the MS harness.

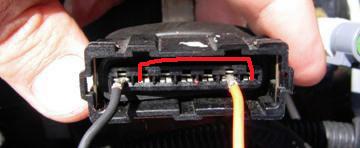

the black and orange are the AIT sensor positions. the red line is jumping 2O back to the Fuel Pump Relay.



Quote:
I’ll post a pic of the harness once I finish connecting the ground wires in case anyone would like to look it over to see if there are any problems with it.
inspiration:
Attached Thumbnails
MS1 v3.0 questions-fuel-pump-jump.jpg
Braineack is offline   Reply With Quote
Old 01-02-2013, 04:48 PM   #8
Junior Member
Thread Starter
iTrader: (6)

Join Date: Nov 2010
Location: Three Rivers, Ca
Posts: 176
Total Cats: 4
Default

Cool. Thanks Scott. I'll have to digest this when I get home from work.
RayinNorCal is offline   Reply With Quote
Old 01-02-2013, 09:52 PM   #9
Junior Member
Thread Starter
iTrader: (6)

Join Date: Nov 2010
Location: Three Rivers, Ca
Posts: 176
Total Cats: 4
Default

Quote:
Originally Posted by Braineack View Post
correct. but the idle PWM mod inside the MS must be reinstalled (the FET above q13).
I see. So that's just a matter of soldering the FET back into it's place, right? Should I do likewise for the fan control that was removed?

Quote:
I connect pin 1 to 2C, pin 2 to 2D, pin 8 to 2A, and pin 9 to 2B...

...the black and orange are the AIT sensor positions. the red line is jumping 2O back to the Fuel Pump Relay.
Easy enough.

Quote:
inspiration
Show off. Mine certainly won't be that pretty.

Ray
RayinNorCal is offline   Reply With Quote
Old 01-03-2013, 09:07 AM   #10
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,833
Total Cats: 1,786
Default

Quote:
Originally Posted by RayinNorCal View Post
I see. So that's just a matter of soldering the FET back into it's place, right? Should I do likewise for the fan control that was removed?
No. It needs to remain as is. Someone pulled at the wires that attached it to Q4 for some odd reason.



you should also run a diode from the middle pin back to s12:




Quote:
Should I do likewise for the fan control that was removed?

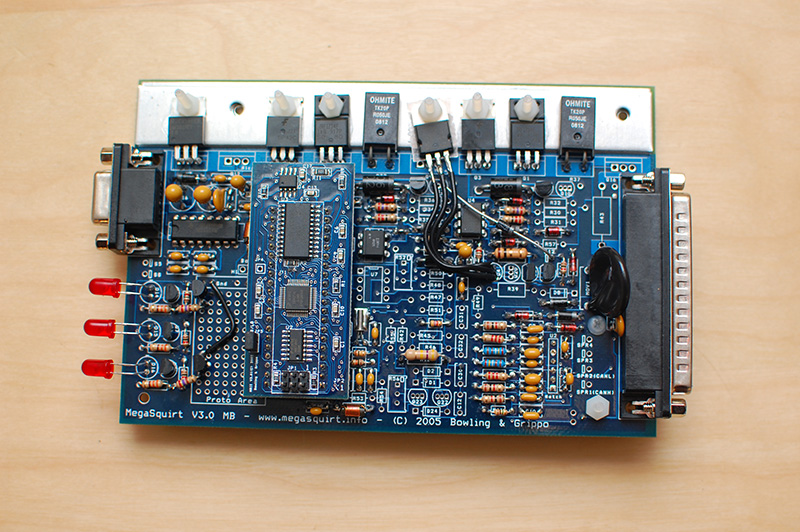

To fix fan control. put r27 back to span across the two holes marked. and then run a wire from the LED to one of the 4 spare holes or one of the spare IAC holes, whichever matches your harness for the fan relay. I almost always used IAC1B which puts it on pin 27 of the DB37.



----

One more thing, I'd probably add a simple relay cirucit on the proto board so you could input your a/c into the MS and out through the the relay and use the gslender code so you have improved idle functions and a/c feed forward.
Attached Thumbnails
MS1 v3.0 questions-tip120_pwm_idle.jpg   MS1 v3.0 questions-dsc_0273_small.jpg
Braineack is offline   Reply With Quote
Old 01-03-2013, 12:04 PM   #11
Junior Member
Thread Starter
iTrader: (6)

Join Date: Nov 2010
Location: Three Rivers, Ca
Posts: 176
Total Cats: 4
Default

Thanks again for the help, Scott.

I'm beginning to see why this was a $50 Megasquirt, lol. Not that I mind working on it as its kinda fun and geeky, I just wish I knew more about electronics gadgetry. I'll attempt those fixes once I get a chance to head down the hill into town to get a new soldering iron. The old one went kaput last night.

Ray
RayinNorCal is offline   Reply With Quote
Old 01-03-2013, 12:05 PM   #12
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,833
Total Cats: 1,786
Default

$50 was a steal regardless. Just odd that someone went in and removed the mods inside the case.
Braineack is offline   Reply With Quote
Old 01-05-2013, 01:13 AM   #13
Junior Member
Thread Starter
iTrader: (6)

Join Date: Nov 2010
Location: Three Rivers, Ca
Posts: 176
Total Cats: 4
Default

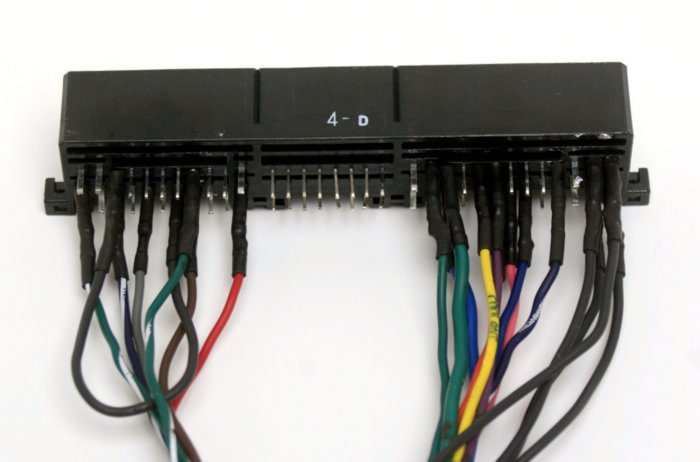

So, I just finished my first harness, I hope. Told you it wouldn't be pretty. I tried to follow the diagram exactly plus your notes but I could have easily goofed up somewhere--or everywhere.

To show you what an amateur I am, on almost every wire I kept forgetting to put the heat shrink on first before soldering to the connector, torched the cord on my old soldering gun and broke the screw that holds in the tip, pretty much ruined a small dish that served as a resting place for the soldering iron, and even managed to burn my wife on the arm once. Good times.

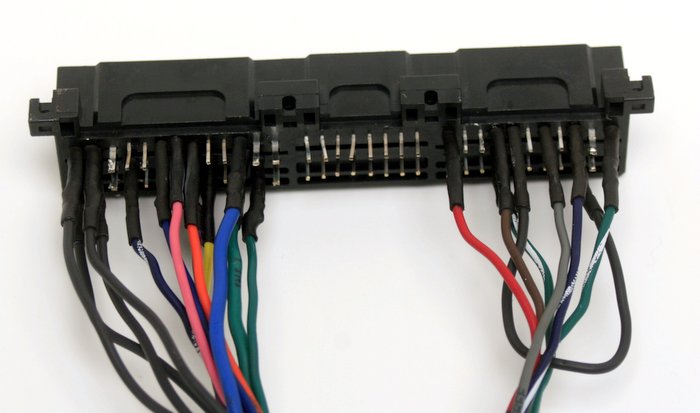

So anyway, here's some photos:





Ray
Attached Thumbnails
MS1 v3.0 questions-_mg_5024_zpsfe2d74ed.jpg   MS1 v3.0 questions-_mg_5025_zpscb183b6e.jpg
RayinNorCal is offline   Reply With Quote
Old 01-05-2013, 02:56 PM   #14
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,833
Total Cats: 1,786
Default

looks good actually. eventually you should upgrade the a/c switch wiring and use feed forward firmware.



there's just one issue, and I hate to tell you this...


you completely populated it backwards. The black grounds end up on the inside of the harness, the red power on the outside. The diagram pictured is show as looking into the plugs, not from the backside...





Take notice how mine is wired in the pic I posted compared to yours...
Braineack is offline   Reply With Quote
Old 01-05-2013, 04:18 PM   #15
Junior Member
Thread Starter
iTrader: (6)

Join Date: Nov 2010
Location: Three Rivers, Ca
Posts: 176
Total Cats: 4
Default

Quote:
Originally Posted by Braineack View Post
looks good actually. eventually you should upgrade the a/c switch wiring and use feed forward firmware.

there's just one issue, and I hate to tell you this...

you completely populated it backwards. The black grounds end up on the inside of the harness, the red power on the outside. The diagram pictured is show as looking into the plugs, not from the backside...



Take notice how mine is wired in the pic I posted compared to yours...
lol, that figures! Back to the drawing board! Er, soldering iron that is.
RayinNorCal is offline   Reply With Quote
Old 01-09-2013, 04:03 AM   #16
Junior Member
Thread Starter
iTrader: (6)

Join Date: Nov 2010
Location: Three Rivers, Ca
Posts: 176
Total Cats: 4
Default

My harness will be on hold for a few days but I did make a little progress on the board itself.

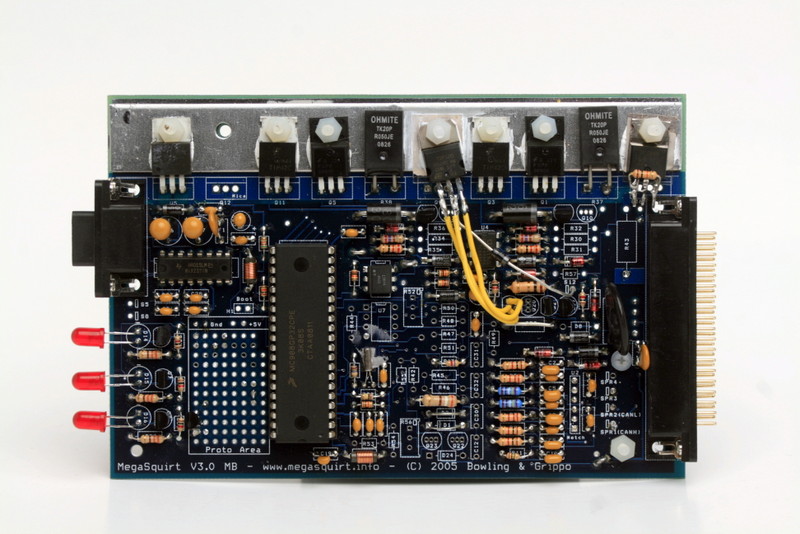

First, tip120 is reinstalled with a diode to S12. Mutt ugly soldering but it will hold. Also, the resistor is back in place on R27. I looked on the back of the board and it appears there already is a wire going from the LED to IAC1B (see pic in first post). So, hopefully I've got idle and fan control back under control.



You said: "looks like they removed the tachout from js2."

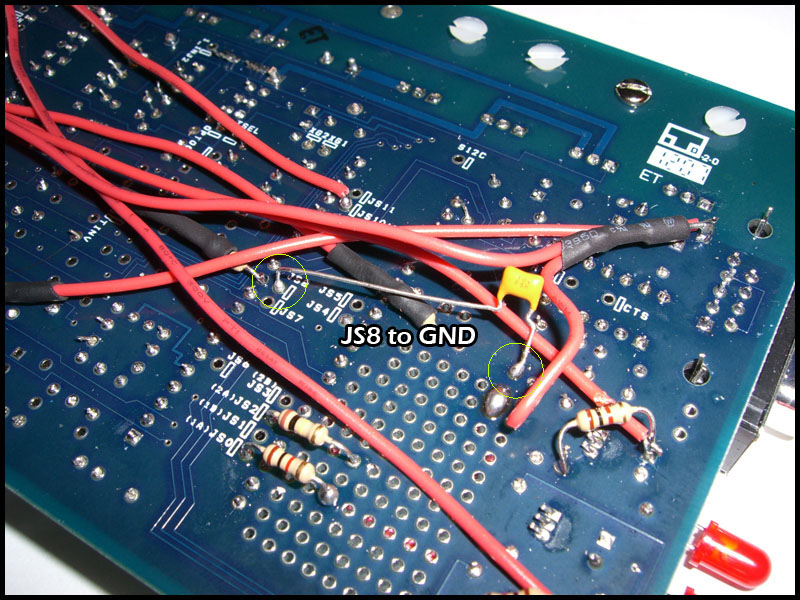

Yes, and looking at my board a bit closer it appears they removed JS0 as well. Question: I can't quite tell from your photo but what resistor does JS2 take? And I assume I should replace JS0 too. Looks like a 1K resistor? Hard for me to tell.



Ray
Attached Thumbnails
MS1 v3.0 questions-_mg_5042_zpsaecba292.jpg   MS1 v3.0 questions-1uf_cap_zps133f4d1e.jpg
RayinNorCal is offline   Reply With Quote
Old 01-09-2013, 09:12 AM   #17
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,833
Total Cats: 1,786
Default

you dont need anything extra on js0 or js2.
Braineack is offline   Reply With Quote
Old 01-09-2013, 10:32 PM   #18
Junior Member
Thread Starter
iTrader: (6)

Join Date: Nov 2010
Location: Three Rivers, Ca
Posts: 176
Total Cats: 4
Default

Okey dokey.
RayinNorCal is offline   Reply With Quote
Old 01-13-2013, 03:42 AM   #19
Junior Member
Thread Starter
iTrader: (6)

Join Date: Nov 2010
Location: Three Rivers, Ca
Posts: 176
Total Cats: 4
Default

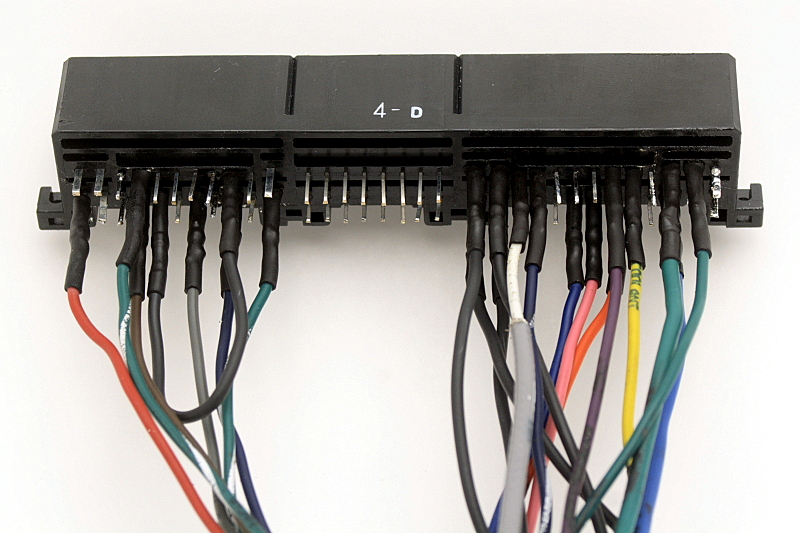

So here we go the second time around, hoping not for a third.



Ray
Attached Thumbnails
MS1 v3.0 questions-harness1_zps08b01110.jpg
RayinNorCal is offline   Reply With Quote
Old 01-13-2013, 10:06 AM   #20
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,833
Total Cats: 1,786
Default

looks good, going off the top of my head.
