Default ms2 diypnp no rpm signal

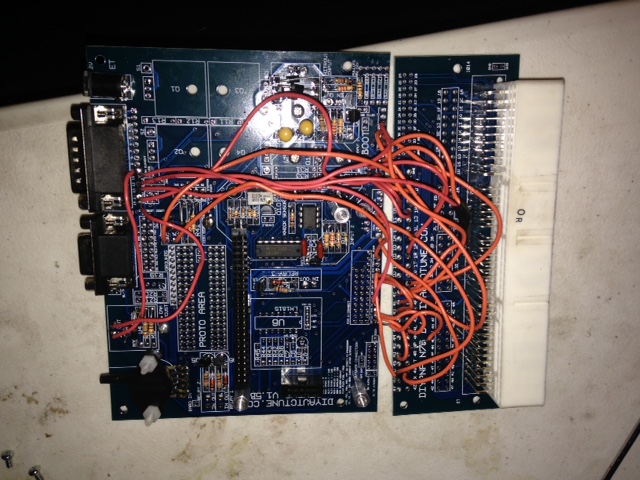

Well to make a long story short I ended up ditching my old ms1 v3.0 for an ms2 diypnp. I ran across a strange issue while assembling my diypnp for a 1990 miata. After assembly the board connected two the car and everything worked except I noticed that I was not getting an rpm signal. I did get an rpm signal with my ms1 v3.0 so I do not think the cas is the problem. In the process of trouble shooting my diypnp, I desoldered and resoldered r30 and removed and reinstalled the microsquirt cpu. After doing all this, the board would no longer connect and the fuel pump stays on all the time. I cannot figure out what is going on. I checked all my solder joints and resoldered anything questionable. The fuel pump is not jumpered to ground in the diagnostics box . Ive attached pictures of the board.
Attached Thumbnails
ms2 diypnp no rpm signal-img_0596-1-.jpg   ms2 diypnp no rpm signal-img_0595-1-.jpg
gdoehl is offline   Reply With Quote
Old 02-15-2015, 11:38 AM   #2
Junior Member
Thread Starter
iTrader: (11)

Join Date: Jul 2013
Location: Fort Worth, TX
Posts: 254
Total Cats: -4
Default

Fixed the fuel pump issue by resoldering the transistor from the top of the board.
gdoehl is offline   Reply With Quote
Old 02-15-2015, 01:33 PM   #3
Junior Member
Thread Starter
iTrader: (11)

Join Date: Jul 2013
Location: Fort Worth, TX
Posts: 254
Total Cats: -4
Default

I do not have spark or injection pulse on any of the cylinders...please help. Could this be an issue with the Microsquirt module?
gdoehl is offline   Reply With Quote
Old 02-15-2015, 07:56 PM   #4
Junior Member
Thread Starter
iTrader: (11)

Join Date: Jul 2013
Location: Fort Worth, TX
Posts: 254
Total Cats: -4
Default

Just checked and I do have power to pin1b on the main board
gdoehl is offline   Reply With Quote
Old 02-16-2015, 04:03 PM   #5
Supporting Vendor

Matt Cramer's Avatar

Join Date: Sep 2006
Posts: 2,266
Total Cats: 51
Default

Please post a composite log of an attempted start and a copy of your MSQ.
Matt Cramer is offline   Reply With Quote
Old 02-17-2015, 10:23 AM   #6
Junior Member
Thread Starter
iTrader: (11)

Join Date: Jul 2013
Location: Fort Worth, TX
Posts: 254
Total Cats: -4
Default

I was not able to post a log before I lost connection. I'm currently working to resolve this over at the msextra forums. I will keep you posted on what happens.
gdoehl is offline   Reply With Quote
