Old 03-12-2010, 12:32 AM   #41
Junior Member
Thread Starter
iTrader: (13)

Join Date: Jul 2007
Location: San Antonio, TX
Posts: 498
Total Cats: 6
Default

Quote:
Originally Posted by thirdgen View Post
I found the picture but I can't find what size capacitor. I think it's a .22uF? I'll post it up when I get home.
Thanks, I appreciate.

Well I replaced the plugs, but the verdict is, it's the starter. It won't even turn the engine, it won't click. I just hear a rattling noise. At least it's not MS related, which is a good thing.
lsc224 is offline   Reply With Quote
Old 03-12-2010, 01:14 AM   #42
Senior Member
iTrader: (7)

Join Date: Jul 2007
Location: Milpitas, CA
Posts: 1,057
Total Cats: 1
Default

rattling noise? If its a rattling noise, your battery is just dying.

Seriously, try jumping it again, and try to keep click it into start and see if it does anything.
Marc D is offline   Reply With Quote
Old 03-12-2010, 01:26 AM   #43
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,812
Total Cats: 186
Default

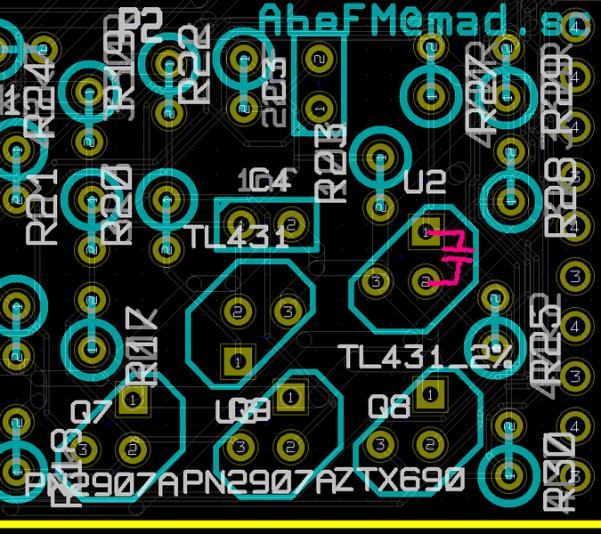

Here ya go. The red drawing is where the cap goes.
MS2 Install with AbeFM PNP Adapter Board-altcaps.jpg
thirdgen is online now   Reply With Quote
Old 03-12-2010, 04:13 AM   #44
Senior Member
iTrader: (7)

Join Date: Jul 2007
Location: Milpitas, CA
Posts: 1,057
Total Cats: 1
Default

And, from abe's email:

"Try a 0.1 or 0.22 uF capacitor between the top and middle pins of the TL431"
Marc D is offline   Reply With Quote
Old 03-12-2010, 08:45 AM   #45
Junior Member
Thread Starter
iTrader: (13)

Join Date: Jul 2007
Location: San Antonio, TX
Posts: 498
Total Cats: 6
Default

Thanks, I'll do this while my car is down
lsc224 is offline   Reply With Quote
Old 03-16-2010, 07:10 PM   #46
Elite Member
iTrader: (3)

AbeFM's Avatar

Join Date: Aug 2006
Location: San Diego, CA
Posts: 3,048
Total Cats: 8
Default

Heh, thanks guys.
1) For paying more attention to the forums than I do
2) For taking better notes. I guess if I'd thought to look on my photopage I would have found it.

(checks now)

Bigger version:


Huh. I like the small version better. Looks more Pro. :-)

Just a note, though since you guys are running you don't need it anymore. I always say go buy 3-4 sets of plugs for a first start. Nothing fancy. $0.80 plugs is fine. If everything's fine, ok, you don't use them. But if not, well, I'd rather foul $12 of plugs than one set of $30 plugs.
AbeFM is offline   Reply With Quote
Old 03-17-2010, 10:33 AM   #47
Junior Member
Thread Starter
iTrader: (13)

Join Date: Jul 2007
Location: San Antonio, TX
Posts: 498
Total Cats: 6
Default

My car runs! No, I did not fry the coilpacks, it's not the starter either. It's my battery. I bought a red top Optima #35 to replace my 11 yr old (I think) battery. It says Panasonic, I don't know if the PO replaced the battery or not.

But anyway, I'm going to do the battery indicator light mod and then install the MS again. I'll keep you posted.
lsc224 is offline   Reply With Quote
Old 03-17-2010, 02:36 PM   #48
Elite Member
iTrader: (3)

AbeFM's Avatar

Join Date: Aug 2006
Location: San Diego, CA
Posts: 3,048
Total Cats: 8
Default

Did you bring enough optimas for everyone in the class? :-) SO JEALOUS
AbeFM is offline   Reply With Quote
Old 03-19-2010, 02:15 PM   #49
Senior Member
iTrader: (7)

Join Date: Jul 2007
Location: Milpitas, CA
Posts: 1,057
Total Cats: 1
Default

Quote:
Originally Posted by AbeFM View Post
Did you bring enough optimas for everyone in the class? :-) SO JEALOUS
Lol Abe. Go buy one

Glad your car is running. Did you install that cap? Work well for you?
Marc D is offline   Reply With Quote
Old 03-19-2010, 02:23 PM   #50
Junior Member
Thread Starter
iTrader: (13)

Join Date: Jul 2007
Location: San Antonio, TX
Posts: 498
Total Cats: 6
Default

Quote:
Originally Posted by Marc D View Post
Lol Abe. Go buy one

Glad your car is running. Did you install that cap? Work well for you?
I haven't installed the cap yet, I am doing that this weekend. I'll keep you guys posted.
lsc224 is offline   Reply With Quote
Old 03-19-2010, 04:34 PM   #51
Elite Member
iTrader: (3)

AbeFM's Avatar

Join Date: Aug 2006
Location: San Diego, CA
Posts: 3,048
Total Cats: 8
Default

If you put in the cap and it works well, I might just tear my whole MS apart and run one of these boards myself. My charging sucks, I have no low battery light, all my inputs are hokey.... I'm really pretty jealous - even with the poorly thought out "someone might want to put it in a box" design of the board - of the set up your guys have.
AbeFM is offline   Reply With Quote
Old 03-20-2010, 02:36 PM   #52
Junior Member
Thread Starter
iTrader: (13)

Join Date: Jul 2007
Location: San Antonio, TX
Posts: 498
Total Cats: 6
Default

Update:

First a picture of my Optima battery in stock location.

Name:  IMG_0505.jpg
Views: 0
Size:  107.8 KB

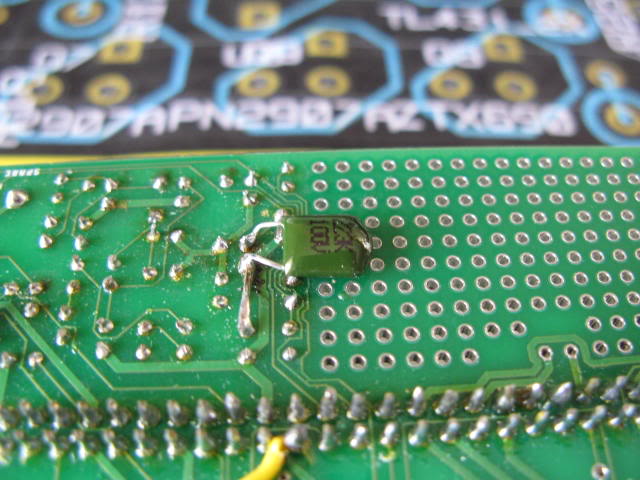

Now my AbeFM PNP Adapter board with the capacitor fix. I used a 0.022 uF capacitor.

Name:  IMG_0508.jpg
Views: 0
Size:  61.1 KB

Gonna try this one out again and keep you guys updated.
lsc224 is offline   Reply With Quote
Old 03-20-2010, 02:59 PM   #53
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,812
Total Cats: 186
Default

I hope you meant .22uF.
thirdgen is online now   Reply With Quote
Old 03-20-2010, 03:48 PM   #54
Junior Member
Thread Starter
iTrader: (13)

Join Date: Jul 2007
Location: San Antonio, TX
Posts: 498
Total Cats: 6
Default

Quote:
Originally Posted by thirdgen View Post
I hope you meant .22uF.
It's .022uF and it didn't work. Battery light is still on. I guess I bought the wrong capacitor. Gonna go back to Radio Shack and buy the right one.

But the good news is, the board works. My car started fine, it idles fine but it runs rich, needs tuning. This PNP board rocks!
lsc224 is offline   Reply With Quote
Old 03-20-2010, 05:55 PM   #55
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,812
Total Cats: 186
Default

If I remember right, radio shack didn't have them, I'll check to see if I have any when I get home. I'll hook you up if I find one...
thirdgen is online now   Reply With Quote
Old 03-20-2010, 05:57 PM   #56
Senior Member
iTrader: (7)

Join Date: Jul 2007
Location: Milpitas, CA
Posts: 1,057
Total Cats: 1
Default

Hmm..

I bought a couple of 0.1uF capacitors yesterday for this and my bluetooth project, so ill try updating it this weekend. I'll let you know the outcome.

Congrats again on the PNP board.
Marc D is offline   Reply With Quote
Old 03-20-2010, 07:35 PM   #57
Junior Member
Thread Starter
iTrader: (13)

Join Date: Jul 2007
Location: San Antonio, TX
Posts: 498
Total Cats: 6
Default

Quote:
Originally Posted by thirdgen View Post
If I remember right, radio shack didn't have them, I'll check to see if I have any when I get home. I'll hook you up if I find one...
Cool, I appreciate
lsc224 is offline   Reply With Quote
Old 03-20-2010, 08:48 PM   #58
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,812
Total Cats: 186
Default

So I'm home and I looked...I have (7) .1UF and (7) .22UF capacitors. If you want one, PM me your address and I'll throw a stamp on an envelope and mail you one out just cause I'm nice. Also PM me which kind you want? I'd go with the .22UF...
thirdgen is online now   Reply With Quote
Old 03-24-2010, 04:24 PM   #59
Elite Member
iTrader: (3)

AbeFM's Avatar

Join Date: Aug 2006
Location: San Diego, CA
Posts: 3,048
Total Cats: 8
Default

Thirdgen - is your car running? Just do the mod and see what you get. :-)
AbeFM is offline   Reply With Quote
Old 03-24-2010, 07:23 PM   #60
Senior Member
iTrader: (7)

Join Date: Jul 2007
Location: Milpitas, CA
Posts: 1,057
Total Cats: 1
Default

i think thirdgen sold your PNP board and did a complete custom install.
Marc D is offline   Reply With Quote
