Default MS2 standalone with stock ignitor

so the stock ignitor is as follows:

1. Coil Pack 2,3
2. Ms Spark out
3. Coil 1,4
4. Tach output
5. 12v pullup
6. ground
7. Ms. Spark Out
8. Power


so i have the wires ran to the coils, power, ground and tach output.

my question is, for coil 1,4 (3) Im pretty sure that Spark A is the output to run. But which spot on the ignitor feeds to Coil 1,4 (3)?

Next question, for the tach pullup (5), whats a good place to pull a signal from? can i split from the power (8) feeding the ignitor? Should it be on a dedicated fused line?
Whizbang is offline   Reply With Quote
Old 01-12-2013, 06:03 PM   #2
Junior Member
Thread Starter

Join Date: Feb 2012
Location: Boise, ID
Posts: 56
Total Cats: 0
Default

after looking at the wires, i really don't think that layout is correct. it seems like 8 should go to the coil. and 3 should be power. based on what it says on the ignitor (1 and 8 are shown as OC1 and OC2). 3 is a thicker blue wire and it says Vb on the ignitor. thoughts?
Whizbang is offline   Reply With Quote
Old 01-12-2013, 06:12 PM   #3
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

what are you trying to do here?

Attached Thumbnails
MS2 standalone with stock ignitor-ignitor-wiring.jpg

Last edited by Braineack; 01-12-2013 at 06:22 PM.
Braineack is offline   Reply With Quote
Old 01-12-2013, 06:13 PM   #4
Junior Member
Thread Starter

Join Date: Feb 2012
Location: Boise, ID
Posts: 56
Total Cats: 0
Default

determine which wires go where on the ignitor.

Whizbang is offline   Reply With Quote
Old 01-12-2013, 06:15 PM   #5
Junior Member
Thread Starter

Join Date: Feb 2012
Location: Boise, ID
Posts: 56
Total Cats: 0
Default

i feel like it should be

1 - coil 2,3
2 - IAC2B from MS
3 - Power
4 - tach
5 - 12v pullup
6 - Ground
7 - Spark A from Ms
8 - Coil 1,4
Whizbang is offline   Reply With Quote
Old 01-12-2013, 07:22 PM   #6
Junior Member
Thread Starter

Join Date: Feb 2012
Location: Boise, ID
Posts: 56
Total Cats: 0
Default

that wiring diagram answered my questions! thanks!
Whizbang is offline   Reply With Quote
Old 02-18-2013, 09:32 PM   #7
Junior Member
Thread Starter

Join Date: Feb 2012
Location: Boise, ID
Posts: 56
Total Cats: 0
Default

okay, ignition issues are a foot.

seems to be like 180 degrees out.

i have R24 connecting to IGN on the board. then R28 going to IAC2B. Then to the stock ignitor, I have Spark A from the MS going to Pin 7 on the ignitor, Pin 2 is IAC2B. The outs are Pin 1 to coil 2,3 and pin 8 to 1,4. Spark out put is set as "going high (inverted)" based on the MS1 information for the improved spark circuit.

I really think i might have it backwards in settings or wiring...

also, if anyone has screenshots of an MS2 tach/ignition settings and more ignition settings for a 1.6 miata (non turbo application) i could REALLY use them since the MS1 stuff is all i can find.

Thanks!

Last edited by Whizbang; 02-18-2013 at 09:47 PM.
Whizbang is offline   Reply With Quote
Old 02-19-2013, 10:00 AM   #8
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

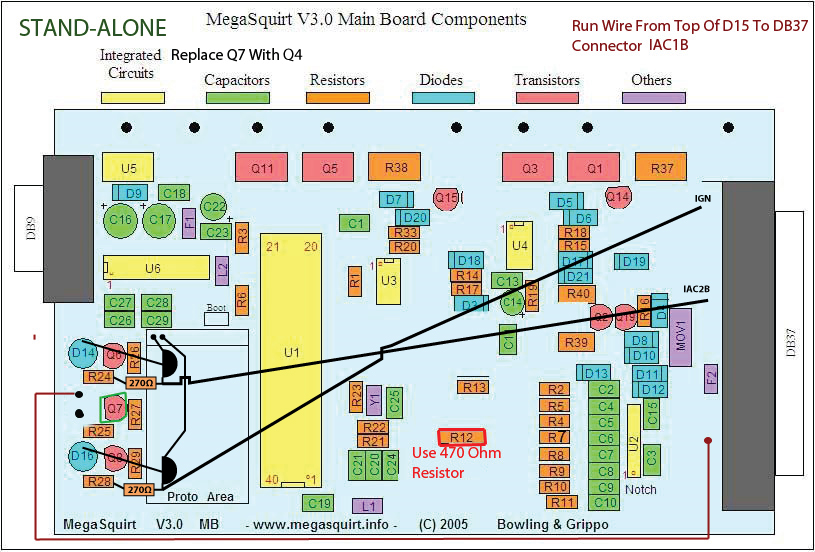

MSI and MS2 Spark A and B are reversed from each other.

your junk should look like this:

Attached Thumbnails
MS2 standalone with stock ignitor-new_spark_output_msii.jpg
Braineack is offline   Reply With Quote
Old 02-19-2013, 07:58 PM   #9
Junior Member
Thread Starter

Join Date: Feb 2012
Location: Boise, ID
Posts: 56
Total Cats: 0
Default

awesome! fires up now!

so then for the going high or going low setting, the megamanual states Going low for MS2. But i saw something about being Inverted for the "improved spark circuit" in MS1 settings which makes me wonder if it needs to be in "going high (inverted)"
Whizbang is offline   Reply With Quote
Old 02-19-2013, 08:44 PM   #10
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

yes.
