Default MS2 Upgrade wont Start

I just finished upgrading my ms1 to ms2 using Braineack's writeup and the car wont start. I can connect to the ms and i see readings from everything except the tach. I want to say it's a problem with the input circuit, but i checked it a few times and it seems correct. The car is a 96 and I am using the 3.0.3u firmware. The map I'm using is derived from the diypnp map. Any advice would be helpful.

Log and msq:
Attached Files
File Type: msq Tune 1.msq (51.2 KB, 55 views)
File Type: msl 2010-06-13_22.28.06.msl (30.2 KB, 41 views)
cjsafski is offline   Reply With Quote
Old 06-14-2010, 05:46 AM   #2
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

If you don't have a tach reading your input mods are wrong...

A picture of both sides of your board will help diagnose.
richyvrlimited is offline   Reply With Quote
Old 06-14-2010, 06:10 AM   #3
Junior Member
Thread Starter
iTrader: (2)

Join Date: Mar 2008
Location: Irvine, Ca
Posts: 277
Total Cats: 23
Default

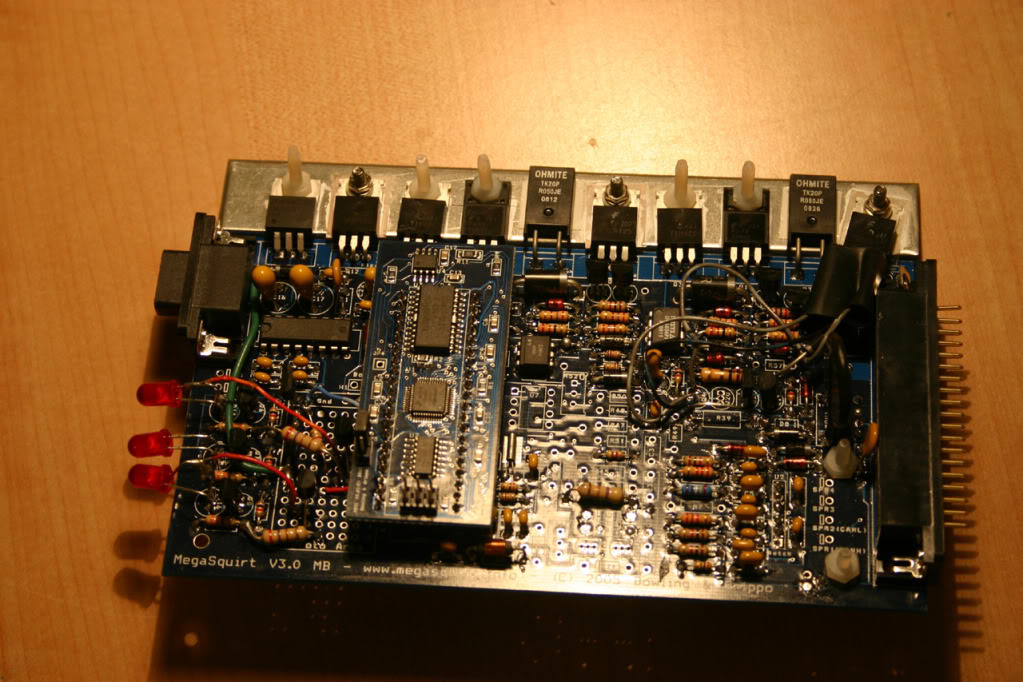

Name:  mega2.jpg
Views: 2
Size:  158.5 KB

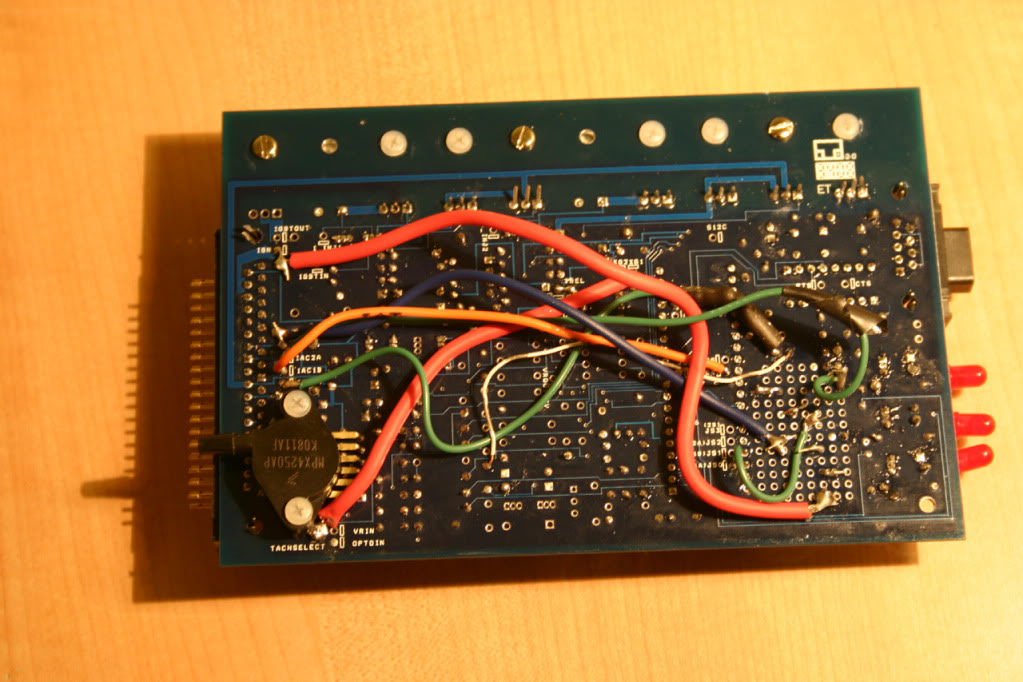

Name:  mega1.jpg
Views: 2
Size:  199.4 KB

The pullup resistor is in the shrink wrap.
cjsafski is offline   Reply With Quote
Old 06-14-2010, 09:53 AM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

could you use any bigger wire?

are you getting any config errors? have you calibrated your TPS and temp sensors?
Braineack is offline   Reply With Quote
Old 06-14-2010, 03:20 PM   #5
Junior Member
Thread Starter
iTrader: (2)

Join Date: Mar 2008
Location: Irvine, Ca
Posts: 277
Total Cats: 23
Default

There are no configuration errors. Made sure everything was calibrated and still doesnt start.

Also, the red wiring isn't as thick as it looks. The insulation is just thick. I used whatever scraps I had lying around.
cjsafski is offline   Reply With Quote
Old 06-14-2010, 04:12 PM   #6
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

i really cant follow what wires go where.
Braineack is offline   Reply With Quote
Old 06-14-2010, 04:32 PM   #7
Junior Member
Thread Starter
iTrader: (2)

Join Date: Mar 2008
Location: Irvine, Ca
Posts: 277
Total Cats: 23
Default

Think i figured it out. From the original msI install, XG1 was jumpered to XG2. From the megamanual section on the 4G63, XG2 is a ground and XG1 the trigger. It helps when your signal isn't grounded . The car still doesn't start but its cranking pretty slow so i think the battery died. At least in tuner studio i see something in the composite logger and the datalogs show a priming pulse now.
cjsafski is offline   Reply With Quote
Old 06-14-2010, 06:45 PM   #8
Junior Member
Thread Starter
iTrader: (2)

Join Date: Mar 2008
Location: Irvine, Ca
Posts: 277
Total Cats: 23
Default

Just got it to start. The jumper on XG1 and XG2 was the problem.
cjsafski is offline   Reply With Quote
