Hey guys, I went to hook up my MS2E I bought from REV for my MSM.

I got everything hooked up, but the problem I'm having with my AEM UEGO.

I had it hooked up the in car along with my boost gauge first, then I ran the blue wire to the MS2E.

So Power and Ground came from Radio.

Went Blue wire to the serial wire Rev supplied, in the MS2E, and it wouldn't read inside TS.

Next I reread the instructions, and I wired the Wideband to the MS2E (Black/Yellow for Ground, and White/Red for power) and my wideband wouldn't come on.

I checked it with my tester and there is power on the B/Y and W/R!!!

I went ahead and grounded the wideband to the B/G and the wideband came on. My laptop is currently charging right now, so I haven't had a chance to see if it works with TS yet.

Any suggestions??

Last edited by ihiryu; 03-18-2015 at 08:35 PM.
ihiryu is offline   Reply With Quote
Old 03-18-2015, 07:49 PM   #2
Elite Member
iTrader: (8)

bahurd's Avatar

Join Date: Apr 2013
Location: Ohio
Posts: 2,132
Total Cats: 145
Default

I'm confused just reading that...

I have the same MS2E as you but don't use the AEM UEGO so assuming the DB37 pinouts are the same (I use the AEM Inline UEGO);

1. The AEM UEGO says to source 12V switched @ 10amp. So you shouldn't get your power from the MS2E (only 5a internal fuse). So source your 12V elsewhere. --- Lighter connection maybe

2. MS2E DB37 Pin 2 (BLACK/YELLOW) --- BLACK out of the AEM UEGO

3. The MS2E DB37 Pin 4 (Yellow) --- WHITE from the AEM UEGO

4. The AEM UEGO BLUE goes unconnected

Don't think I forgot anything.

Don't you have a pinout from Rev for the DB37?
bahurd is offline   Reply With Quote
Old 03-18-2015, 08:36 PM   #3
Junior Member
Thread Starter

Join Date: Jul 2013
Location: TX
Posts: 319
Total Cats: -12
Default

Hey,

REV told me to connect the wideband BLUE to the serial connection.

I found the problem, it was in the connector the B/Y was either not soldered, or bad solder joint. A youtube video, and trip to home depot to buy a soldering gun fixed that. Wideband is now powering up, but still isn't displaying in the TS.

I did get base ignition setup, but on the timing display is fluctuating.

I did a quick log to show, is the timing normal??
https://www.dropbox.com/s/strk5vnehe...19.31.msl?dl=0
ihiryu is offline   Reply With Quote
Old 03-18-2015, 08:45 PM   #4
Elite Member
iTrader: (8)

bahurd's Avatar

Join Date: Apr 2013
Location: Ohio
Posts: 2,132
Total Cats: 145
Default

Quote:
Originally Posted by ihiryu View Post
Hey,

REV told me to connect the wideband BLUE to the serial connection.

I found the problem, it was in the connector the B/Y was either not soldered, or bad solder joint. A youtube video, and trip to home depot to buy a soldering gun fixed that. Wideband is now powering up, but still isn't displaying in the TS.

I did get base ignition setup, but on the timing display is fluctuating.

I did a quick log to show, is the timing normal??
https://www.dropbox.com/s/strk5vnehe...19.31.msl?dl=0
We'll I guess you fixed it then...
bahurd is offline   Reply With Quote
Old 03-18-2015, 08:53 PM   #5
Junior Member
Thread Starter

Join Date: Jul 2013
Location: TX
Posts: 319
Total Cats: -12
Default

Not yet....still not displaying in TunerStudio....
ihiryu is offline   Reply With Quote
Old 03-18-2015, 08:55 PM   #6
Elite Member
iTrader: (8)

bahurd's Avatar

Join Date: Apr 2013
Location: Ohio
Posts: 2,132
Total Cats: 145
Default

Quote:
Originally Posted by ihiryu View Post
Not yet....still not displaying in TunerStudio....
No ****....
bahurd is offline   Reply With Quote
Old 03-18-2015, 09:10 PM   #7
Junior Member
iTrader: (4)

Join Date: May 2012
Location: Mayport, FL
Posts: 478
Total Cats: 33
Default

Quote:
Originally Posted by bahurd View Post

2. MS2E DB37 Pin 2 (BLACK/YELLOW) --- BLACK out of the AEM UEGO

3. The MS2E DB37 Pin 4 (Yellow) --- WHITE from the AEM UEGO

4. The AEM UEGO BLUE goes unconnected
This^

I have the same MS2e and UEGO sensor. Blue wire stays unconnected
FrankB is offline   Reply With Quote
Old 03-18-2015, 09:55 PM   #8
Junior Member
Thread Starter

Join Date: Jul 2013
Location: TX
Posts: 319
Total Cats: -12
Default

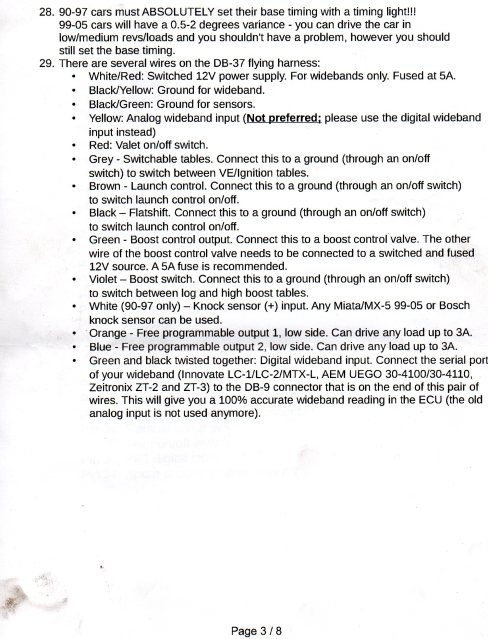

My instructions says that it's not the preferred method
Attached Thumbnails
MS2E HELP!-2h3ps83.jpg
ihiryu is offline   Reply With Quote
Old 03-18-2015, 10:04 PM   #9
Junior Member
iTrader: (4)

Join Date: May 2012
Location: Mayport, FL
Posts: 478
Total Cats: 33
Default

My instructions are different.. I preordered my MS2e when Rev was developing it. My instructions are from early 2013. I'd post them but its obvious he has updated them and I don't want to supply outdated/bad information. Sorry I couldn't be of any help.
FrankB is offline   Reply With Quote
Old 03-18-2015, 10:08 PM   #10
Junior Member
Thread Starter

Join Date: Jul 2013
Location: TX
Posts: 319
Total Cats: -12
Default

Quote:
Originally Posted by FrankB View Post
My instructions are different.. I preordered my MS2e when Rev was developing it. My instructions are from early 2013. I'd post them but its obvious he has updated them and I don't want to supply outdated/bad information. Sorry I couldn't be of any help.
No big, I'm just glad you tried. I sent REV a PM, hopefully he gets back to me soon.

I can't wait to get tuning though....
ihiryu is offline   Reply With Quote
Old 03-18-2015, 10:09 PM   #11
Elite Member
iTrader: (8)

bahurd's Avatar

Join Date: Apr 2013
Location: Ohio
Posts: 2,132
Total Cats: 145
Default

Quote:
Originally Posted by ihiryu View Post


My instructions says that it's not the preferred method
Well, looks like you've got the latest MS2E from Rev. Guess you'll have to contact him...

In the interim, you can hook it up "the old way" that works. Or not.

Edit: I'm curious how you connected the one BLUE wire from the gauge to the DB9 connector. Picture maybe?
bahurd is offline   Reply With Quote
Old 03-18-2015, 10:15 PM   #12
Junior Member
iTrader: (4)

Join Date: May 2012
Location: Mayport, FL
Posts: 478
Total Cats: 33
Default

Quote:
Originally Posted by ihiryu View Post
No big, I'm just glad you tried. I sent REV a PM, hopefully he gets back to me soon.

I can't wait to get tuning though....
I'm sure he'll contact you soon.. remember though he's in Greece and it's like 3:15am over there.
FrankB is offline   Reply With Quote
Old 03-18-2015, 10:19 PM   #13
Junior Member
Thread Starter

Join Date: Jul 2013
Location: TX
Posts: 319
Total Cats: -12
Default

Quote:
Originally Posted by bahurd View Post
Well, looks like you've got the latest MS2E from Rev. Guess you'll have to contact him...

In the interim, you can hook it up "the old way" that works. Or not.

Edit: I'm curious how you connected the one BLUE wire from the gauge to the DB9 connector. Picture maybe?
Rev gave me a serial connector with just the blue wire hanging off of it. I just soldered that from the blue of the wideband, to that, and that was it.

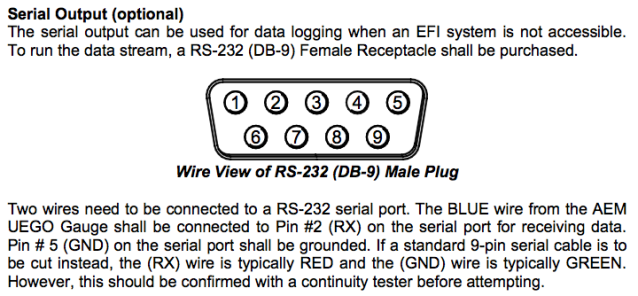

I think I have the solution. Pin number 5 here needs a ground. I'm assuming a chassis ground.

So I think the MS is expecting ground from pin 5?

I'm going to give it a go tomorrow in the morning. I've put my car back to stock to drive it home.

Also can someone take a look at my log for the ignition advance? It continual bounces around (and I'm assume that's right, since the RPM's are jumping, ignition should advances to correlate with the RPM's).
Attached Thumbnails
MS2E HELP!-35jle7b.png
ihiryu is offline   Reply With Quote
Old 03-18-2015, 10:19 PM   #14
Elite Member
iTrader: (8)

bahurd's Avatar

Join Date: Apr 2013
Location: Ohio
Posts: 2,132
Total Cats: 145
Default

It seems you need to enable something in the CAN settings in Tunerstudio also. Not sure what as I don't use the CAN settings.

Maybe someone else can chime in.
bahurd is offline   Reply With Quote
Old 03-19-2015, 05:18 AM   #15
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 198
Default

Did I include a blue cable on the DB9 I sent you?
Reverant is offline   Reply With Quote
Old 03-19-2015, 11:15 AM   #16
Junior Member
Thread Starter

Join Date: Jul 2013
Location: TX
Posts: 319
Total Cats: -12
Default

Yes.
ihiryu is offline   Reply With Quote
Old 03-19-2015, 11:33 AM   #17
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 198
Default

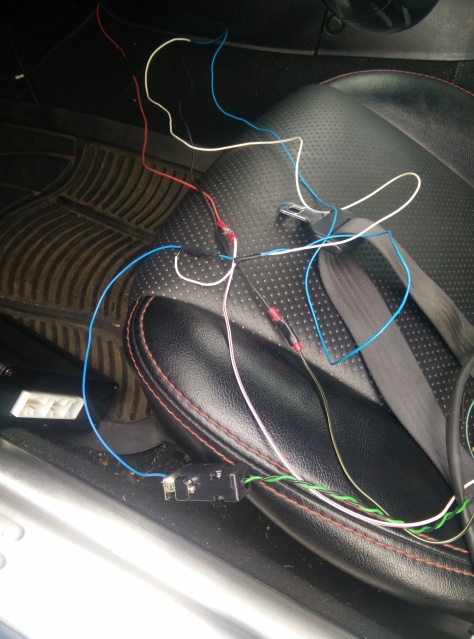

For clarity, can you please take a picture of the blue wire coming out of the DB9, as connected to the ECU and on the AEM?
Reverant is offline   Reply With Quote
Old 03-19-2015, 12:43 PM   #18
Junior Member
Thread Starter

Join Date: Jul 2013
Location: TX
Posts: 319
Total Cats: -12
Default

Attached Thumbnails
MS2E HELP!-ngbsw1.jpg
ihiryu is offline   Reply With Quote
Old 03-19-2015, 12:45 PM   #19
Junior Member
Thread Starter

Join Date: Jul 2013
Location: TX
Posts: 319
Total Cats: -12
Default

MS2 AEM
Black Yellow Black
Red White Red
Blue Blue

Ignore the white. The white is coming from the wideband, but when I was running the wires I was unsure if I needed white or blue, so I just ran both of them. The white is UNCONNECTED.
ihiryu is offline   Reply With Quote
Old 03-19-2015, 02:36 PM   #20
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 198
Default

The blue wire coming out of the DB9, is it on pin 2? (the pins are numbered if you look closely).
