Old 04-08-2016, 08:00 PM   #21
Junior Member
Thread Starter

Join Date: Dec 2010
Posts: 403
Total Cats: 3
Default

Quote:
Originally Posted by midpack View Post

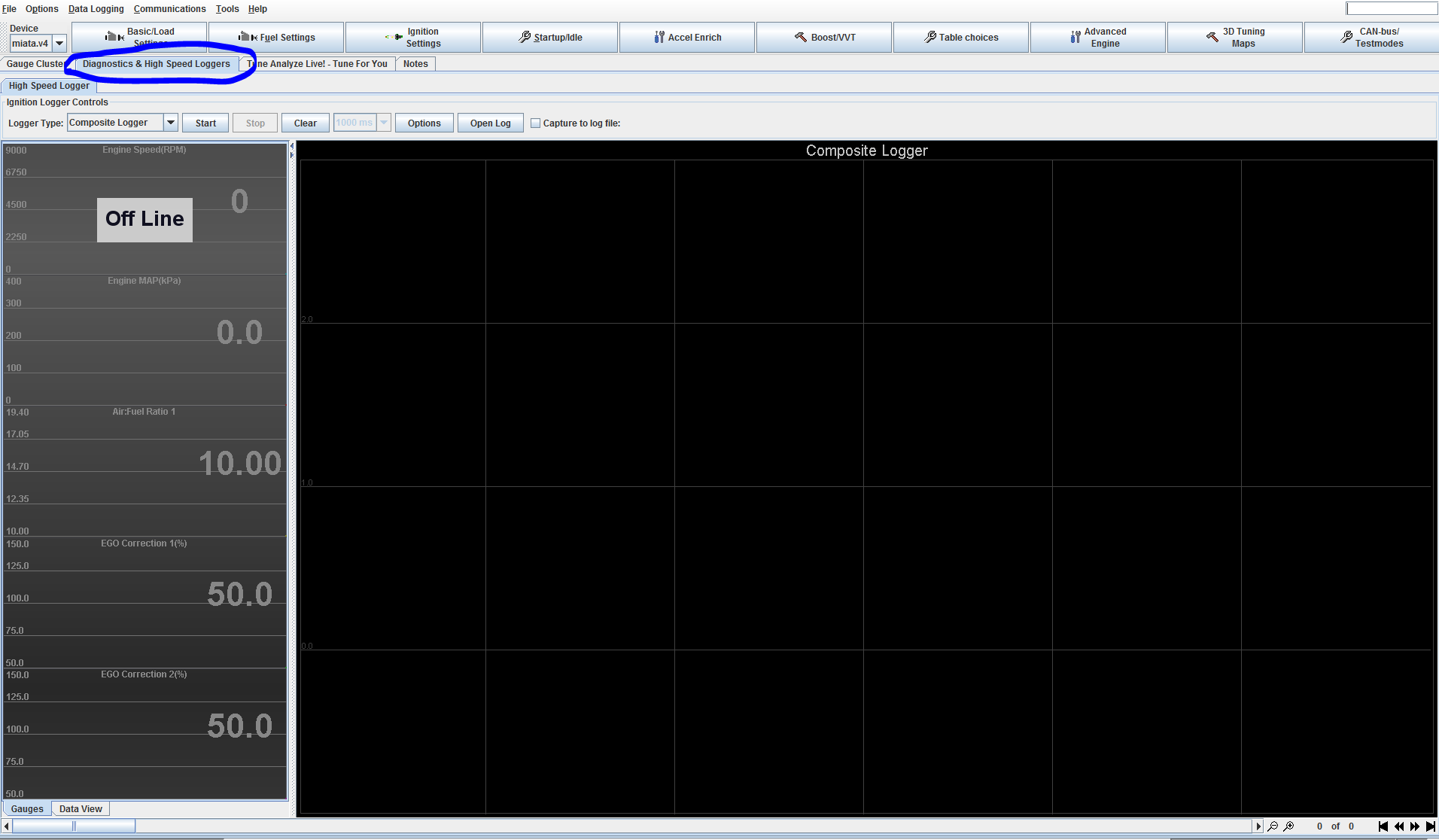

Composite logger is under the Diagnostics and High Speed Loggers tab
I swear I don't have that tab. MS3 Basic.
poormxdad is offline   Reply With Quote
Old 04-08-2016, 08:13 PM   #22
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Quote:
Originally Posted by poormxdad View Post
Pat,

Your tune made the dropoff and Check Engine light come on at about 4000.

Since I can't seem to figure out how to make a composite log, I made a log with the SD card I have hooked up to the MS. Not sure if it will help. This should be from Pat's tune.

Thanks,
Hmm, well that didn't work! Don't use that then, go back to your original tune. I don't use a MS2 anymore, but I remember having to mess with filtering when I had one. I don't know all the differences, but MS3 doesn't have a filtering tab as best as I can tell. I suppose the different input hardware negates the need for it, but not 100% on that.

The fact it made it worse is odd, maybe try less filtering?

Again, I don't know just something to try. I highly agree that logging it via composite logger, which is inside TunerStudio, is the best approach.
patsmx5 is offline   Reply With Quote
Old 04-08-2016, 08:42 PM   #23
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Attached Thumbnails
MS3 Basic 6000 rpm backfire and check engine light-80-aiuljuv_d5ce398d3edfe26c4aca20e422c71ef011f4bc82.png
aidandj is offline   Reply With Quote
Old 04-08-2016, 08:51 PM   #24
Junior Member
Thread Starter

Join Date: Dec 2010
Posts: 403
Total Cats: 3
Default

I'm a big dumbhead...
poormxdad is offline   Reply With Quote
Old 04-08-2016, 09:18 PM   #25
Junior Member
Thread Starter

Join Date: Dec 2010
Posts: 403
Total Cats: 3
Default

Jeez... I pulled my head out of my *** and here's the file
Attached Files
File Type: csv 2016-04-08_20.20.24.csv (369.2 KB, 29 views)

Last edited by poormxdad; 04-08-2016 at 09:35 PM.
poormxdad is offline   Reply With Quote
Old 04-08-2016, 09:49 PM   #26
Junior Member
Thread Starter

Join Date: Dec 2010
Posts: 403
Total Cats: 3
Default

I thought I'd recap.

No tuning problems but I need a retune due to changes to the intake piping.
Retune going great, then a backfire at 6000 rpm and check engine light.
Next run up on the dyno produces the same backfire and check engine light.
Tuner reloads the tune I drove in with, and the next run has same backfire and light.
We both assume hardware, like crank/cam position sensor.
Car runs great otherwise.
I replace crank position sensor. No change.
I replace cam position sensor. No change.
Pat's tune moves the drop off down to about 4000 rpm.
We confirm I don't really know what I'm doing.
There's not enough beer...
poormxdad is offline   Reply With Quote
Old 04-09-2016, 05:41 AM   #27
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 198
Default

Firmware version?
Reverant is offline   Reply With Quote
Old 04-09-2016, 08:30 AM   #28
Junior Member
Thread Starter

Join Date: Dec 2010
Posts: 403
Total Cats: 3
Default

MS3 Release 1.2.0 2012228 23:46 GMT
poormxdad is offline   Reply With Quote
Old 04-09-2016, 10:43 AM   #29
Junior Member
Thread Starter

Join Date: Dec 2010
Posts: 403
Total Cats: 3
Default

Is it possible there is something in play now due to the increase in boost that was in already in the tune that wasn't in play before?
poormxdad is offline   Reply With Quote
Old 04-09-2016, 10:59 AM   #30
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,896
Total Cats: 1,792
Default

are you making more than 11psi of boost?

sounds like youre just simply hitting your boost cut limiter at 6K.
Braineack is offline   Reply With Quote
Old 04-09-2016, 11:04 AM   #31
Junior Member
Thread Starter

Join Date: Dec 2010
Posts: 403
Total Cats: 3
Default

Max boost went from 7 to 9 psi, and I'm cracking through 7 at 6000 rpm now.

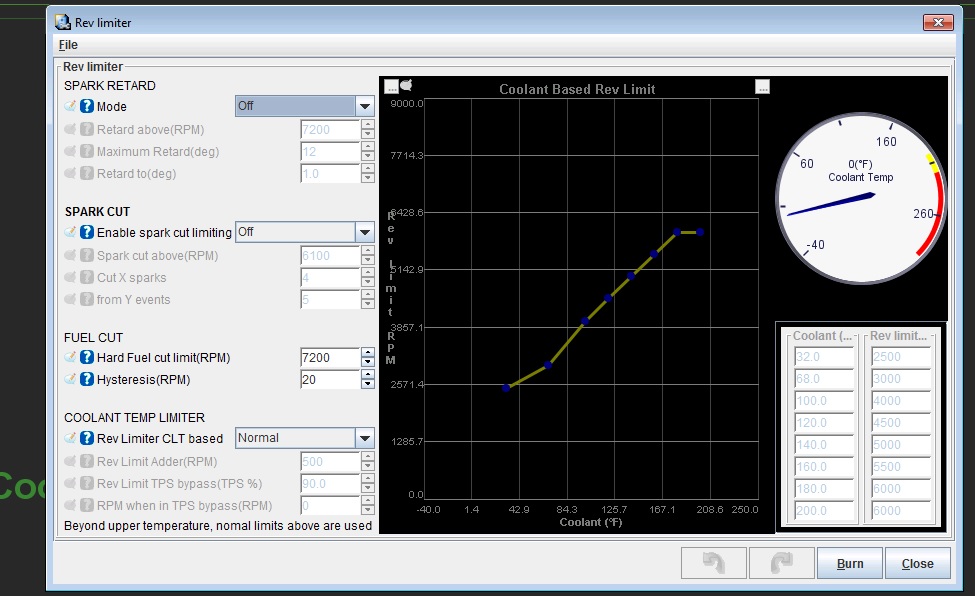

This is what the Rev Limiter page looks like.
Attached Thumbnails
MS3 Basic 6000 rpm backfire and check engine light-revlimiter.jpg

Last edited by poormxdad; 04-09-2016 at 11:16 AM.
poormxdad is offline   Reply With Quote
Old 04-09-2016, 11:16 AM   #32
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,896
Total Cats: 1,792
Default

your boost cut is set to 180kPa. Increase that to 200 and see what happens. Since you make boost linearly, the MS might think youre going to pass 180kPa and cut you, makes sense given your rotrex and consistent rpm where it cuts.
Braineack is offline   Reply With Quote
Old 04-09-2016, 11:17 AM   #33
Junior Member
Thread Starter

Join Date: Dec 2010
Posts: 403
Total Cats: 3
Default

Yes. Isn't that ~26 psi.
poormxdad is offline   Reply With Quote
Old 04-09-2016, 11:33 AM   #34
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,896
Total Cats: 1,792
Default

no. 180kpa is 11psi.
Braineack is offline   Reply With Quote
Old 04-09-2016, 12:14 PM   #35
Elite Member
iTrader: (8)

bahurd's Avatar

Join Date: Apr 2013
Location: Ohio
Posts: 2,132
Total Cats: 145
Default

Quote:
Originally Posted by poormxdad View Post
Yes. Isn't that ~26 psi.
This might help you for future reference; MegaSquirt<sup></sup> and Turbocharging
bahurd is offline   Reply With Quote
Old 04-09-2016, 12:34 PM   #36
Junior Member
Thread Starter

Join Date: Dec 2010
Posts: 403
Total Cats: 3
Default

I set 200 kPa. No change.
poormxdad is offline   Reply With Quote
Old 04-09-2016, 12:56 PM   #37
Junior Member
Thread Starter

Join Date: Dec 2010
Posts: 403
Total Cats: 3
Default

Given the change in Pat's tune, I turned off Noise Filtering. She rev'ed to ~6800, then did the same thing. I took a composite log.
Attached Files
File Type: csv 2016-04-09_11.37.40.csv (274.1 KB, 37 views)
poormxdad is offline   Reply With Quote
Old 04-09-2016, 01:14 PM   #38
Junior Member
Thread Starter

Join Date: Dec 2010
Posts: 403
Total Cats: 3
Default

Quote:
Originally Posted by bahurd View Post
This might help you for future reference; MegaSquirt<sup></sup> and Turbocharging
Very nice. Thanks.
poormxdad is offline   Reply With Quote
Old 04-09-2016, 01:17 PM   #39
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Is that a composite log of the issue happening? We need a composite log of the rev and shutdown.
aidandj is offline   Reply With Quote
Old 04-09-2016, 01:22 PM   #40
Junior Member
Thread Starter

Join Date: Dec 2010
Posts: 403
Total Cats: 3
Default

Quote:
Originally Posted by aidandj View Post
Is that a composite log of the issue happening? We need a composite log of the rev and shutdown.
Is it not? I pulled over, started the log, did the pull to where the dropoff occurs, then pulled over and stopped the log.

The car doesn't completely shut off. It acts like it hits a rev limiter, but the check engine light comes on. The previous composite log was done the same way, but the dropoff occurred at 6000 instead of 6800.
poormxdad is offline   Reply With Quote
