Old 05-01-2014, 09:47 AM   #21
Senior Member
Thread Starter

Join Date: Nov 2007
Location: Belgium
Posts: 939
Total Cats: 59
Default

Forgot some additional circuits for my own car, so had to order a new batch ...

Last edited by WestfieldMX5; 02-04-2017 at 10:40 AM.
WestfieldMX5 is offline   Reply With Quote
Old 05-05-2014, 07:15 AM   #22
Senior Member
Thread Starter

Join Date: Nov 2007
Location: Belgium
Posts: 939
Total Cats: 59
Default

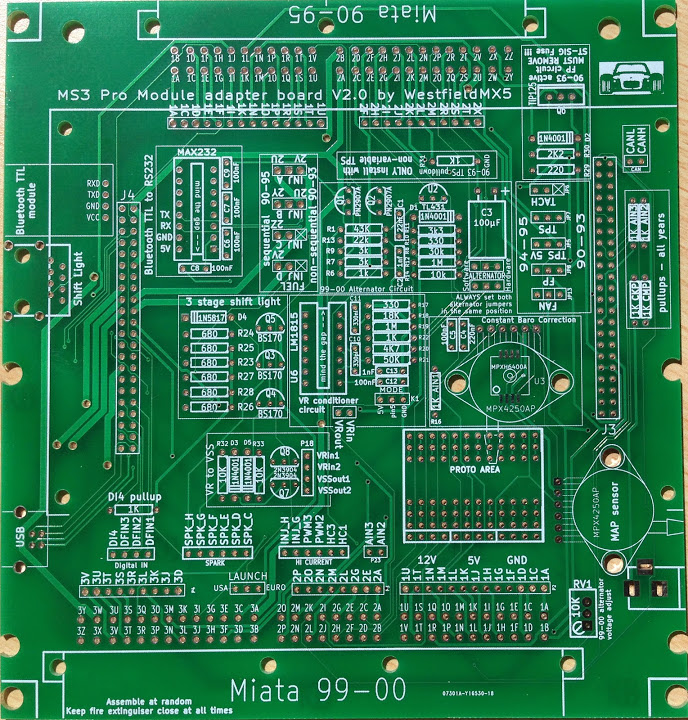

5 new boards have arrived, 4 available





There's a couple of extra circuits now:
- 3 stage shift light
- VR to VSS circuits (2)
- RS232 to TTL (for internal bluetooth)
- VR conditioner circuit (LM1815)
- 90-93 active fuel pump circuit
- usb connector
- CAN port
- 2nd map sensor for baro correction (MPX-4250AP or the smd equivalent)
Attached Thumbnails
MS3 pro module PnP adapter board-img_0439.jpg

Last edited by WestfieldMX5; 02-04-2017 at 10:40 AM.
WestfieldMX5 is offline   Reply With Quote
Old 07-07-2014, 02:38 PM   #23
Senior Member
Thread Starter

Join Date: Nov 2007
Location: Belgium
Posts: 939
Total Cats: 59
Default

EDIT
Couple of boards left, for prices, see here

Last edited by WestfieldMX5; 02-04-2017 at 10:38 AM.
WestfieldMX5 is offline   Reply With Quote
