Ms3Pro Ignition map
#1
Ms3Pro Ignition map
Hello!
I just finished my VVT swap build in 90 NA and I have install the new Garrett G25-550. I will start the engine break-in in atmospheric mode and my goal is to go to the dyno to work on an ignition table with a boost of 21- 23 psi. I wish If anyone could share their ignition table with me so I can will fine tune it when the time comes to go to the dyno.
My current spec is built VVT engine with 83.50 supertech pistons, Manley rods, Supertech valves with VS-855 springs, sequential LS Coils, sequential 960cc Bosch EV14 injectors,
OEM intake rail and manifold, Garrett G25-550 turbo with Tial MV-S external wastegate and 3” exhaust.
Is there anyone who wants to reveal his top secret ignition map? I will be very grateful if someone wants to share it with me to compare
Thank you and greetings from Spain!
I just finished my VVT swap build in 90 NA and I have install the new Garrett G25-550. I will start the engine break-in in atmospheric mode and my goal is to go to the dyno to work on an ignition table with a boost of 21- 23 psi. I wish If anyone could share their ignition table with me so I can will fine tune it when the time comes to go to the dyno.
My current spec is built VVT engine with 83.50 supertech pistons, Manley rods, Supertech valves with VS-855 springs, sequential LS Coils, sequential 960cc Bosch EV14 injectors,
OEM intake rail and manifold, Garrett G25-550 turbo with Tial MV-S external wastegate and 3” exhaust.
Is there anyone who wants to reveal his top secret ignition map? I will be very grateful if someone wants to share it with me to compare
Thank you and greetings from Spain!
#4

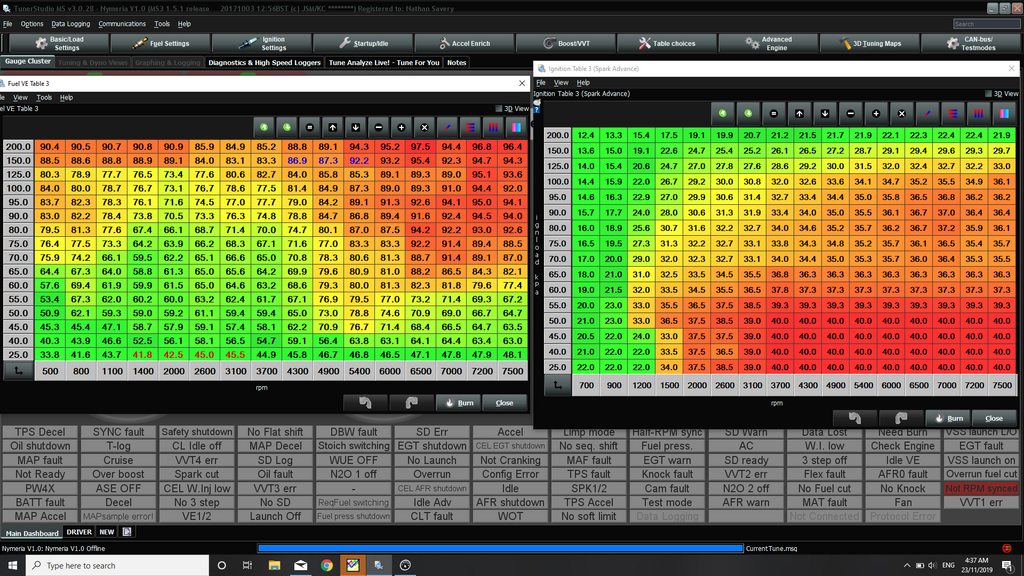

Here is mine for what its worth. YMMV.
Keep in mind that the fuel table for this is still a work in progress (Upgraded injectors), although the spark table has been solid for me.
Granted this will only get you up to 15psi, but its a start
Also note that this is run on E85, your fuel of choice is going to impact your timing severely.
This is run on a MS3Pro PNP01-05
Keep in mind that the fuel table for this is still a work in progress (Upgraded injectors), although the spark table has been solid for me.
Granted this will only get you up to 15psi, but its a start
Also note that this is run on E85, your fuel of choice is going to impact your timing severely.
This is run on a MS3Pro PNP01-05
Last edited by pyr0boy; 03-05-2020 at 11:35 AM.
#16
What I did was to rescale the basemap table and I've also been comparing it with the following thread and it looks pretty much like the table that @Braineack explains:
https://www.miataturbo.net/megasquir...p-85249/page2/
Is my ignition map very aggressive for the target I am looking for?
https://www.miataturbo.net/megasquir...p-85249/page2/
Is my ignition map very aggressive for the target I am looking for?
#19
Thanks VladiTuned for the tips. I still have doubts ...
Yesterday I did a road test at 16-17 psi and this is the route that the turbo makes through the map. I have thoroughly examined the Borka table and when I boost, my values are practically the same:
Seen this way my map does not seem so aggressive. I insist the map that I currently have is the MS3Pro base map scaled to 275Kpa, the original has a scale to 250Kpa. I upload my ignition map file and the logs in case you want to examine it.
In my opinion, the car is going very well and I have not heard strange noises. The Knock sensor seems to give a good reading since in the 2K to 4K section it does not hit.
By the way, my IG profile is @jrmiata in case anyone wants to see my project
Edit: today I have made this pull limiting the wastegate to 10psi and these are the values that I have obtained. Here perhaps it is very advanced?
Yesterday I did a road test at 16-17 psi and this is the route that the turbo makes through the map. I have thoroughly examined the Borka table and when I boost, my values are practically the same:
Seen this way my map does not seem so aggressive. I insist the map that I currently have is the MS3Pro base map scaled to 275Kpa, the original has a scale to 250Kpa. I upload my ignition map file and the logs in case you want to examine it.
In my opinion, the car is going very well and I have not heard strange noises. The Knock sensor seems to give a good reading since in the 2K to 4K section it does not hit.
By the way, my IG profile is @jrmiata in case anyone wants to see my project
Edit: today I have made this pull limiting the wastegate to 10psi and these are the values that I have obtained. Here perhaps it is very advanced?
Last edited by jrmiata42069; 05-26-2020 at 11:34 AM.
