Default MS3x help with starting/cranking tune

I need help getting my tune to work. The attached tune require me to put the throttle to 10% to help it turn on. And I have spun my motor backwards too much/detonation. I would like some help with my tune.
Attached Files
File Type: msq 2013-04-23_17.25.20.msq (188.0 KB, 53 views)
silvermazda is offline   Reply With Quote
Old 04-25-2013, 11:06 PM   #2
Junior Member
Thread Starter
iTrader: (1)

Join Date: Aug 2011
Posts: 93
Total Cats: 0
Default

bumpity
silvermazda is offline   Reply With Quote
Old 04-27-2013, 12:30 AM   #3
Junior Member
Thread Starter
iTrader: (1)

Join Date: Aug 2011
Posts: 93
Total Cats: 0
Default

bump
silvermazda is offline   Reply With Quote
Old 04-27-2013, 12:57 AM   #4
Boosting since 1984
iTrader: (1)

stefanst's Avatar

Join Date: Sep 2011
Location: Levittown
Posts: 1,198
Total Cats: 68
Default

Sorry- would love to help, but have the same problem. I'll try and retard timing during cranking some more.
stefanst is offline   Reply With Quote
Old 04-29-2013, 08:47 PM   #5
Junior Member
Thread Starter
iTrader: (1)

Join Date: Aug 2011
Posts: 93
Total Cats: 0
Default

I agree, every now and then the crank spins backwards, which means its too retarded. This tune that I have likes the 80 degree days I have , so...how would that manifest in colder days, I know I have enough fuel as it indicates 12.5, but when I change the timing and it cranks well I get 19:1 which means its working. It doesnt turn on so..something still not right.

Heck, I'm back to the stock ecu, other than this mishap, using a Megasquirt is pretty easy. After I saw auto-tune work its magic I began to understand how to tune.
silvermazda is offline   Reply With Quote
Old 04-30-2013, 10:54 AM   #6
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,793
Default

it's impossible for the crank to spin backwards.

if it's combusting in bangs and not quite starting, or you need throttle in order for it to catch, you need to lower the crnaking pulsewidths in that CLT temp zone.
Braineack is offline   Reply With Quote
Old 05-01-2013, 12:50 AM   #7
Junior Member
Thread Starter
iTrader: (1)

Join Date: Aug 2011
Posts: 93
Total Cats: 0
Default

My brother saw it spin backwards during cranking. Terrible terrible sounds. Ploof, plop, bang. Ever took an engine apart after this? I doubt visually I will be able to see this when I open the engine, but just wanted to know. Good thing I'm moving towards a 01 block.

As far as cranking goes, if I move timing one way it hardly seems like its going to fire. If I move timing the other way there's a sweet spot where it just doesnt catch, but spins nicely. And then there's the "i think this car has a carburator" zone where I think I'm choking it and tons of bangs go on.
silvermazda is offline   Reply With Quote
Old 05-01-2013, 02:43 PM   #8
Boosting since 1984
iTrader: (1)

stefanst's Avatar

Join Date: Sep 2011
Location: Levittown
Posts: 1,198
Total Cats: 68
Default

Quote:
Originally Posted by Braineack View Post
it's impossible for the crank to spin backwards.
I'm pretty sure that this actually can happen. If your timing is too advanced during cranking and you're cranking somewhat slowly, then you have combustible mix in the combustion chamber, the crank position is BEFORE TDC and when you get a spark it wants to go backwards. Cranking usually stops at that point. Causes the starter to sound pretty funny too!
stefanst is offline   Reply With Quote
Old 05-01-2013, 06:26 PM   #9
Junior Member
Thread Starter
iTrader: (1)

Join Date: Aug 2011
Posts: 93
Total Cats: 0
Default

^that's what I was trying to say. Thanks stefanst.

Now, Brains, how much do I adjust the cranking pulse widths?
silvermazda is offline   Reply With Quote
Old 05-06-2013, 10:47 PM   #10
Junior Member
Thread Starter
iTrader: (1)

Join Date: Aug 2011
Posts: 93
Total Cats: 0
Default

Brains halp
silvermazda is offline   Reply With Quote
Old 05-17-2013, 10:33 PM   #11
Junior Member
Thread Starter
iTrader: (1)

Join Date: Aug 2011
Posts: 93
Total Cats: 0
Default

bump. still need help on cranking pulse
silvermazda is offline   Reply With Quote
Old 05-17-2013, 11:31 PM   #12
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,133
Total Cats: 599
Default

120ve from -30c to 5c
113ve at 10c
102 at 15c
91 at 20
80 at 25
72-30
66-35
63-40
62-45
61-50
60-55
59-60
58-65
57ve from 70-125c

I'm running at 0 degrees of timing during cranking to avoid that exact problem noted in the beginning posts.
triple88a is offline   Reply With Quote
Old 06-04-2013, 11:53 AM   #13
Junior Member
iTrader: (5)

Join Date: Nov 2010
Location: Maine
Posts: 407
Total Cats: -19
Default

Quote:
Originally Posted by triple88a View Post
120ve from -30c to 5c
113ve at 10c
102 at 15c
91 at 20
80 at 25
72-30
66-35
63-40
62-45
61-50
60-55
59-60
58-65
57ve from 70-125c

I'm running at 0 degrees of timing during cranking to avoid that exact problem noted in the beginning posts.

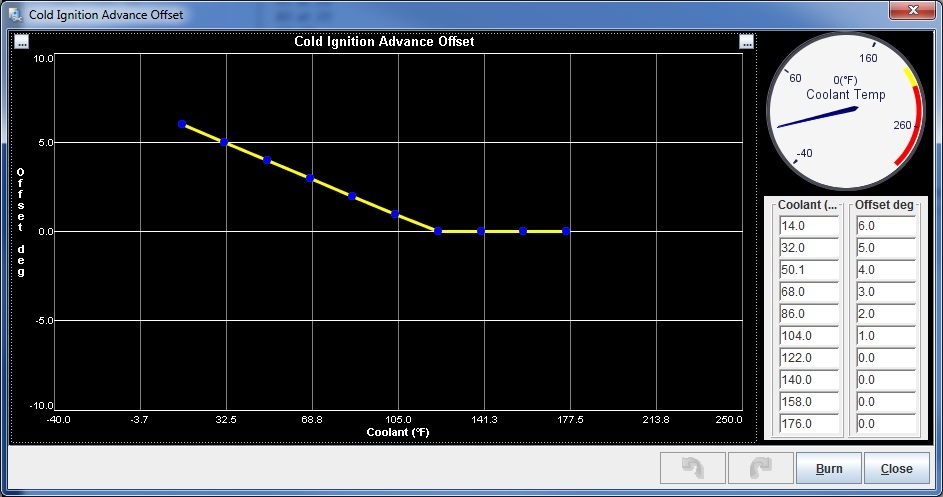

How do you set 0 degrees during cranking? I'm having this same issue. Based on this screenshot, at the lower temps is it adding timing or subtracting timing?
Attached Thumbnails
MS3x help with starting/cranking tune-cltiming.jpg
tuckermon is offline   Reply With Quote
Old 06-04-2013, 11:56 AM   #14
Supporting Vendor

Matt Cramer's Avatar

Join Date: Sep 2006
Posts: 2,266
Total Cats: 51
Default

Could you also post a data log of an attempted start?
Matt Cramer is offline   Reply With Quote
Old 06-04-2013, 09:58 PM   #15
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,133
Total Cats: 599
Default

Quote:
Originally Posted by tuckermon View Post
How do you set 0 degrees during cranking? I'm having this same issue. Based on this screenshot, at the lower temps is it adding timing or subtracting timing?
I am running adaptronic so how i sent my cranking timing wont help u however in Adaptronic cranking settings timing do not get overwritten by air temp.
triple88a is offline   Reply With Quote
Old 06-06-2013, 09:12 AM   #16
Junior Member
iTrader: (5)

Join Date: Nov 2010
Location: Maine
Posts: 407
Total Cats: -19
Default

Here are a couple of quick datalogs to show the cold start issue.
Attached Files
File Type: msl 2013-06-05_21.48.05.msl (136.5 KB, 51 views)
File Type: msl 2013-06-06_06.43.10.msl (704.3 KB, 25 views)
