Default MSPNP 9093 EBC Questions

Looking for a little guidance here. Running a MSPNP 9093. Have modified for a variable TPS. Questions:

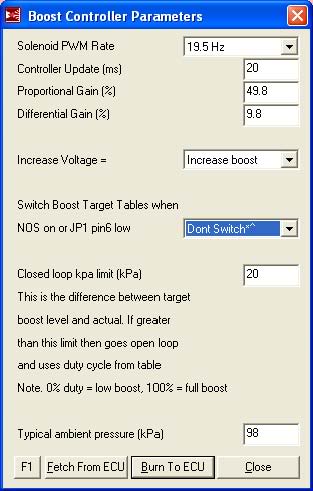

1. I've got the new style solenoid valve from DIY Auto Tune. The MSPNP base map default is for the older GM solenoid. The solenoid PWM rate is 19.5Hz. Anyone know if this works for their new solenoid? Here are the defaults in my "Boost Control" window:

Name:  BoostControl.jpg
Views: 6
Size:  28.9 KB

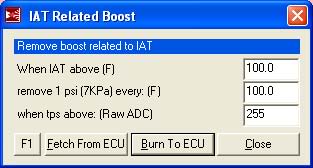

2. I was considering using the "IAT Related Boost" function to pull boost based upon IAT as a fail-safe for WI. See window:

Name:  IATBoost.jpg
Views: 4
Size:  12.9 KB

The problem is that the control seems to be setup to reduce a closed-loop boost target rather than an open-loop duty cycle. From what I've read in other posts, the EBC for the MSPNP is best used open loop. Anybody had success with the closed loop EBC with MSPNP? I suspect I may be wasting my time with this.

Anyway, thanks for the input.
hornetball is offline   Reply With Quote
Old 02-22-2011, 12:54 PM   #2
Elite Member
Thread Starter
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,009
Total Cats: 583
Default

Answered my own question on #1 from the DIY Autotune site (duh!). I guess I just assumed it wouldn't be there since it wasn't in the documentation. Anwer:

"It operates on a frequency of 19.5-40 Hz and is practically a wire-in replacement for the now-discontinued GM EBC Solenoid."

Still looking for guidance on #2.
hornetball is offline   Reply With Quote
Old 02-22-2011, 02:31 PM   #3
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

IAT related boost is set up for closed loop boost. I don't think I've ever tried it.

MSPNP open loop boost control works very well.
Ben is offline   Reply With Quote
Old 02-22-2011, 03:29 PM   #4
Elite Member
Thread Starter
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,009
Total Cats: 583
Default

Quote:
Originally Posted by Ben View Post
IAT related boost is set up for closed loop boost. I don't think I've ever tried it.

MSPNP open loop boost control works very well.
That's what I was afraid of. So, anyone ever try closed loop EBC with the MS-1 or MSPNP? From other posts, it seems like closed loop EBC is functional with MS-2+.
hornetball is offline   Reply With Quote
Old 02-23-2011, 02:51 PM   #5
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default



Closed loop ms1 doesn't work well.
Braineack is offline   Reply With Quote
Old 02-23-2011, 04:34 PM   #6
Elite Member
Thread Starter
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,009
Total Cats: 583
Default

Quote:
Originally Posted by Braineack View Post

Closed loop ms1 doesn't work well.
Darn. Well, at least now I know . . . .
