Default Mspnp 96/97 Afr?

Well, even though I already had my car running quite well, I was curious to take a peek at DIY's base map for the 96/97(since I have a 97 and used the 94/95). Anyways, I was looking at the AFR table, and holy cow is it lean!! I realize the in boost areas aren't tuned at all, but everything is on the ridiculous side of being lean! I attached the table I extracted from the .msq and just wanted to verify with someone that this is indeed the correct table. I mean, I realize the factory leaned out the table from the factory for the OBD-II, but geez! Should I try to re-tune the out of boost area of my fuel table to match those AFR's, I'm sure gas mileage would go up by a good bit!
Attached Files
File Type: zip lean table.zip (426 Bytes, 53 views)
karter74 is offline   Reply With Quote
Old 02-25-2008, 07:51 PM   #2
Junior Member

Join Date: Jan 2007
Posts: 188
Total Cats: 0
Default

Have you compared the REQ fuel setting? If theirs is higher than yours it wont necessarily be lean
richard_ha is offline   Reply With Quote
Old 02-26-2008, 01:29 AM   #3
Senior Member
Thread Starter
iTrader: (3)

Join Date: Feb 2006
Location: Centennial, CO
Posts: 672
Total Cats: 20
Default

I would think regardless of the req fuel, the AFR table will be the same. I just wanted someone to look at the AFR table I exported and tell me I'm not crazy in saying that either somehow the table is wrong, or that is just ridiculously lean.

And, if it is wrong, can someone post the correct AFR table for the PNP 96/97?
karter74 is offline   Reply With Quote
Old 02-26-2008, 02:09 AM   #4
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Is this supposed to be an AFR target table? Why don't you just fix it instead of waiting for someone to give you one.
cjernigan is offline   Reply With Quote
Old 02-26-2008, 03:34 AM   #5
Elite Member
iTrader: (21)

paul's Avatar

Join Date: Jun 2006
Location: Point Pleasant, NJ
Posts: 2,957
Total Cats: 2
Default

what WBO2 are you running?

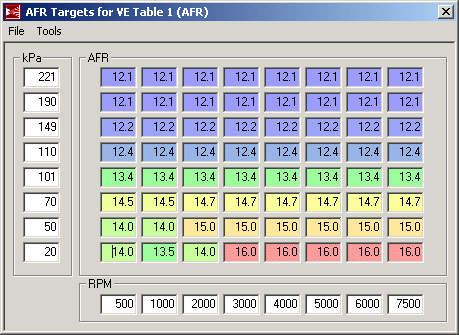

here is my AFR Target table:
Attached Thumbnails
Mspnp 96/97 Afr?-my_afr.gif
paul is offline   Reply With Quote
Old 02-26-2008, 09:24 AM   #6
Senior Member
Thread Starter
iTrader: (3)

Join Date: Feb 2006
Location: Centennial, CO
Posts: 672
Total Cats: 20
Default

Quote:
Originally Posted by cjernigan View Post
Is this supposed to be an AFR target table? Why don't you just fix it instead of waiting for someone to give you one.
The only thing I was asking for was for someone to post the correct target AFR table for the 96/97 MSPNP. For whatever reason, when I open it up in Megatune, it would show volts, then I would select Default LC1, go back and check, and the table I posted is the table I saw. I did this on two of my computers, and got the same results.

I'm assuming the AFR table posted above is the one from the PNP 96/97, so thank you very much, that was what I was after.
karter74 is offline   Reply With Quote
Old 02-26-2008, 09:40 AM   #7
Junior Member

Join Date: Jan 2007
Posts: 188
Total Cats: 0
Default

You should have mentioned the word TARGET in the first post then!

Incidentally I found exactly the same with the 9093 PnP, I assume its because the AFR Target () table is for NB?
richard_ha is offline   Reply With Quote
