Default MSPNP1 error messages

Hello everyone!

Im new to the aftermarket ecu community, and I seek help, and please bare with me.
Installed a used MSPNP1 that used to belong to a turbo '96.

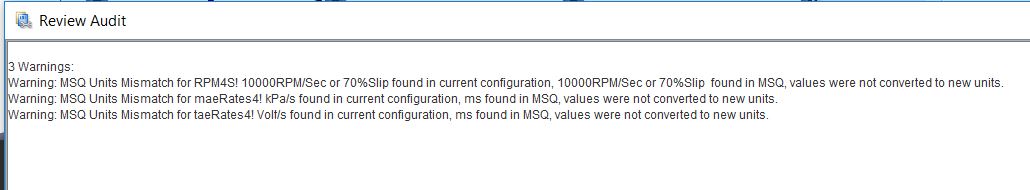

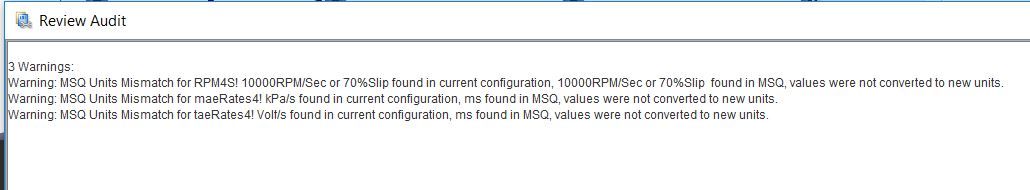

As I was burning the basemap into the ecu, i was presented with three alert messages, as in the picture. Due to my ignorance, I have no idea of what they mean, or what to do next?
Also, I havent "updated" any firmware...i dont know how
HALP. ME. PLS


Attached Thumbnails
MSPNP1 error messages-ms-fail1.jpg   MSPNP1 error messages-80-ms_fail1_2e1107bdedcdc269716efb9d5f1b2b86743766f7.jpg
speeder94 is offline   Reply With Quote
Old 12-31-2015, 12:55 PM   #2
Newb
Thread Starter

Join Date: Dec 2015
Posts: 5
Total Cats: 0
Default

I tried to set the fixed timing to 10 degrees, and then went to the idle control, put it in warmup only. The car starts up, rpm fluctuates, and i smell a lot of gas being dumped.

Also, when i put the key on, not starting the engine, I hear the fuel pump trying to kick in, or at least i think its the fuel pump
speeder94 is offline   Reply With Quote
Old 01-04-2016, 12:40 PM   #3
Supporting Vendor

Matt Cramer's Avatar

Join Date: Sep 2006
Posts: 2,264
Total Cats: 51
Default

Please attach a data log of the problems you're having and a copy of your current MSQ.

The warnings are pretty minor.
Matt Cramer is offline   Reply With Quote
Old 02-28-2016, 04:33 PM   #4
Newb
Thread Starter

Join Date: Dec 2015
Posts: 5
Total Cats: 0
Default

Finally got around to install the damn wideband, car still runs like crap with the MS in. The link is for the datalog, maybe someone could chime in.
Btw, this is for a gen 1 mspnp on a 96 miata.

https://www.dropbox.com/s/6ctcqe3ynn3bqn5/log1.msl?dl=0
speeder94 is offline   Reply With Quote
Old 02-29-2016, 10:56 AM   #5
Supporting Vendor

Matt Cramer's Avatar

Join Date: Sep 2006
Posts: 2,264
Total Cats: 51
Default

MAP readings are way off - make sure you have it set up for a 4 bar. Also, please double check temperature readings.
Matt Cramer is offline   Reply With Quote
Old 02-29-2016, 11:37 AM   #6
Newb
Thread Starter

Join Date: Dec 2015
Posts: 5
Total Cats: 0
Default

A friend helped tweek it last night, got the car idling, but way too rich. Also set the timing. Heres the new log. Also, manifold and coolant temps seem to be a high, indicating 80F when ambient air is around 67F.

https://www.dropbox.com/s/flav7jzrkw...20run.msl?dl=0
speeder94 is offline   Reply With Quote
Old 02-29-2016, 11:43 AM   #7
Newb
Thread Starter

Join Date: Dec 2015
Posts: 5
Total Cats: 0
Default

are you referring to the MAP sensors?
GM 3-BAR is the most common sensor.
-MPX 4250 is the upgraded 4-bar sensor.
-MPXH 6400 is the dual 4-bar sensor.

Im guessing i go for the 6400?
speeder94 is offline   Reply With Quote
