Default MSQ needed

Can someone please provide me with an MSQ for a 1.6 with 550cc injectors?

I've tried the 240cc map and the 460cc but for some reason cannot get it to fire my injectors correctly.

Injector bank 1 and 2 match but do not work with the DIYPNP plugged in, but work when stock ECU and AFM are installed.

Just wondering if someone can help me out, thank you turbo gods.

Email: [email protected]
Phung018 is offline   Reply With Quote
Old 05-05-2013, 02:46 PM   #2
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Change the ReqFuel value on your current MSQ.
hustler is offline   Reply With Quote
Old 05-05-2013, 02:47 PM   #3
Newb
Thread Starter
iTrader: (1)

Join Date: Feb 2010
Posts: 32
Total Cats: -1
Default

I believe the req fuel is 6 right now.
Phung018 is offline   Reply With Quote
Old 05-05-2013, 06:19 PM   #4
Junior Member
iTrader: (1)

Join Date: May 2009
Location: TN
Posts: 328
Total Cats: 4
Default

Does the engine fire up?

Last edited by southernmx5; 05-08-2013 at 04:09 PM.
southernmx5 is offline   Reply With Quote
Old 05-06-2013, 10:48 PM   #5
Newb
Thread Starter
iTrader: (1)

Join Date: Feb 2010
Posts: 32
Total Cats: -1
Default

it's fires up and holds idle at around 500-600, wbo2 reads full lean.
Phung018 is offline   Reply With Quote
Old 05-06-2013, 11:34 PM   #6
Junior Member
iTrader: (1)

Join Date: May 2009
Location: TN
Posts: 328
Total Cats: 4
Default

Increase fuel (VE)
southernmx5 is offline   Reply With Quote
Old 05-06-2013, 11:36 PM   #7
Newb
Thread Starter
iTrader: (1)

Join Date: Feb 2010
Posts: 32
Total Cats: -1
Default

have tried that as well. still sounds like it running on 1-2 cylinders.
i would show composite log but my lap top is currently dead.
Phung018 is offline   Reply With Quote
Old 05-06-2013, 11:41 PM   #8
Junior Member
iTrader: (1)

Join Date: May 2009
Location: TN
Posts: 328
Total Cats: 4
Default

Sequential or batch fuel injection?
southernmx5 is offline   Reply With Quote
Old 05-06-2013, 11:42 PM   #9
Newb
Thread Starter
iTrader: (1)

Join Date: Feb 2010
Posts: 32
Total Cats: -1
Default

batch.
Phung018 is offline   Reply With Quote
Old 05-10-2013, 01:12 AM   #10
Newb
Thread Starter
iTrader: (1)

Join Date: Feb 2010
Posts: 32
Total Cats: -1
Default

Thanks for the MSQ southernmx5

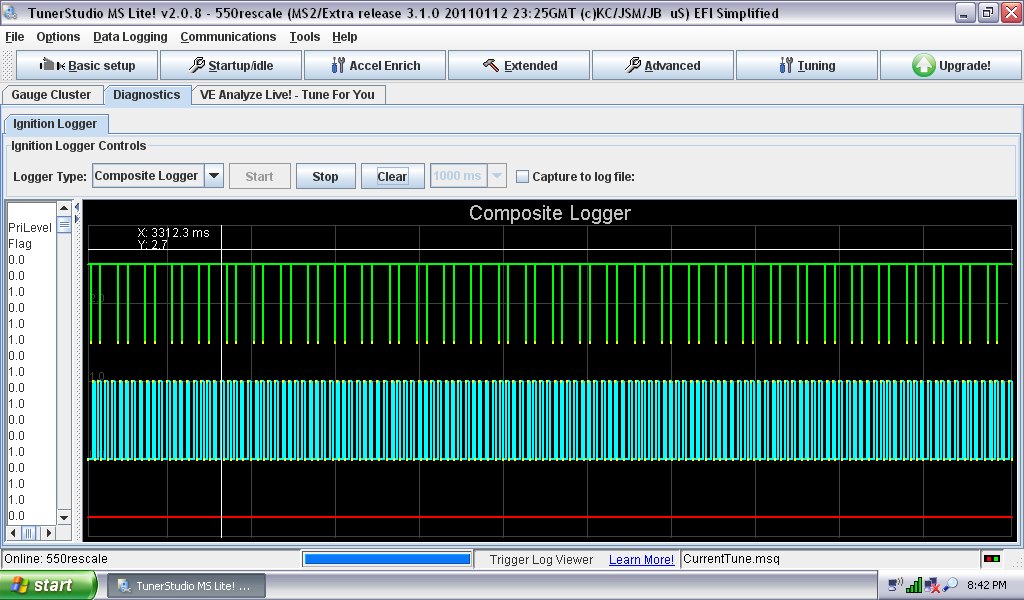

heres a composite log.
on cold starts it sounds like it runs on all 4 for about 3 seconds and then it reverts to poo.

Attached Thumbnails
MSQ needed-919436_10151931197368569_136665589_o.jpg
Phung018 is offline   Reply With Quote
