Default MTX-L Ground/12V Noise PSA

DIYPNP, NA 94 Miata.

I was having serious battery voltage/afr noise when I had GND/12V hooked up via the DB15 to ECU GND/12V.

Rewiring it to the cigarette lighter GND/12V fixed the issue. After some research, it seems that the heater PWM circuit was the cause of the noise.

Before: .4V fluctuation @ lag = 50
After: .1V fluctuation @ lag = 90

This seems to be a shortcoming of the MTX-L wideband. The voltage->afr calibration numbers did not seem to need to change.
meowmeows is offline   Reply With Quote
Old 04-09-2013, 01:40 AM   #2
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

All of them have a lot of noise on the heater ground and 12V. That's why you use separate grounds.
JasonC SBB is offline   Reply With Quote
Old 04-09-2013, 05:43 AM   #3
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

ewwwwww at using the cigarette lighter as power and ground sources too.
richyvrlimited is offline   Reply With Quote
Old 04-15-2013, 10:07 AM   #4
Junior Member

Join Date: Nov 2010
Location: London, UK
Posts: 102
Total Cats: 0
Default

Quote:
Originally Posted by JasonC SBB View Post
All of them have a lot of noise on the heater ground and 12V. That's why you use separate grounds.
The MTX-L has a single ground feed. The heater / controller / gauge grounds are not separate.

IIRC other connections for the MTX-L are the WB output, NB Simulated output and Lighting circuit feed (Dial dimmer)

Most threads on here general for WB and don't obviously translate to the MTX-L. As far as I can see it there seems to be two schools of thought:

1.
- Power from pretty much any Ignition switched +12V.
- Ground to the same spot on the head as ECU Ground feed (Stud by Throttle Body), via a dedicated wire for the WB.

2.
- Route both live and ground into Megasquirt, jumper across internally to the ECU live and ground feeds. Whilst some seem to dislike this, I believe it it is how Reverent does his ECUs.

Plus of course a myriad of other options including grounding to Chassis anywhere behind Dash, tapping into Cigarette Lighter, Stereo etc.

I have currently routed my MTX-L live and ground through the MS DIYPNP as you did previously. Following this and other threads I will likely put in-line bullet connectors on the DB tails so I can change options easily without it getting messy.

The only query I had with this, which possibly relates to this thread, is whether or not it matters which Ground in the DIYPNP to jumper to internally. I saw in one thread a suggestion that the Sensor Ground should be avoided. If this the reason why a few people may have had issues with running the WB all though the ECU? For some reason I thought that the DIYPNP has all the grounds connected internally anyway so it wouldn't make a difference.

Any thoughts?

Dave

Last edited by ManicGTI; 04-15-2013 at 10:20 AM.
ManicGTI is offline   Reply With Quote
Old 04-15-2013, 04:32 PM   #5
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

If single ground wire, it should be connected to power ground pin of MS.
JasonC SBB is offline   Reply With Quote
Old 04-15-2013, 06:09 PM   #6
Newb
Thread Starter
iTrader: (1)

Join Date: Sep 2012
Posts: 22
Total Cats: 0
Default

Quote:
Originally Posted by JasonC SBB View Post
If single ground wire, it should be connected to power ground pin of MS.
No ground loop created if you do that? Won't the heater PWM circuit be returning significant current??

I did not try using an external 12V source with the return wired to the ECU.
meowmeows is offline   Reply With Quote
Old 04-15-2013, 07:04 PM   #7
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

The heater current will produce a voltage drop along the wire that goes from the POWER GND pin to the engine block. This is not a problem as long as the engine sensors have a dedicated ground wire going to the SENSOR GND pin on the ECU. You WILL have a problem if you have a 2nd connection from a sensor's ground to the engine block.
JasonC SBB is offline   Reply With Quote
Old 05-04-2013, 04:30 PM   #8
Senior Member

Join Date: Nov 2007
Location: Belgium
Posts: 939
Total Cats: 59
Default

I installed ABS and COPS on my car a couple of weeks ago and in the process rewired my entire engine harness. I never had AFR noise before but I decided to rewire the MTX-L as well. I can't remember how it was connected before but I moved 12V and GND to the MS.

This was the result

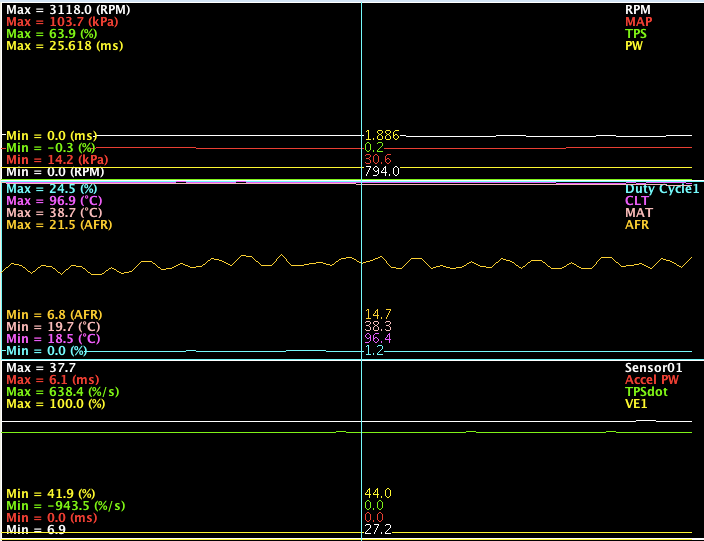

10x zoom:

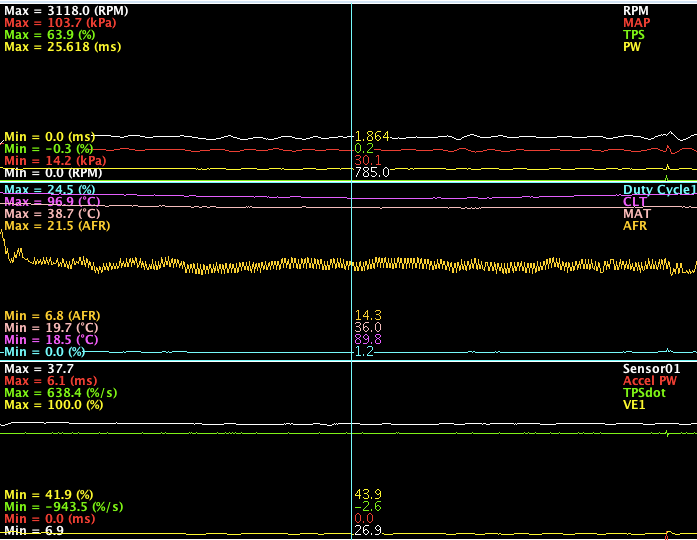

1x zoom:


I moved the gnd point to various places all over the car (rear of engine, front of engine, steering column, cigarette lighter, bare chassis, MS case etc etc) trying to get rid of the noise.
I also measured the voltage drops between the MS ground and the other grounds. I found up to 90mV offset.
In the end, I took gnd via a seperate wire to the back of the engine. This resulted in about 9mV offset. I then ran a gnd wire from the steering column to the MS mounting bracket which further reduced it to 2-3mV.

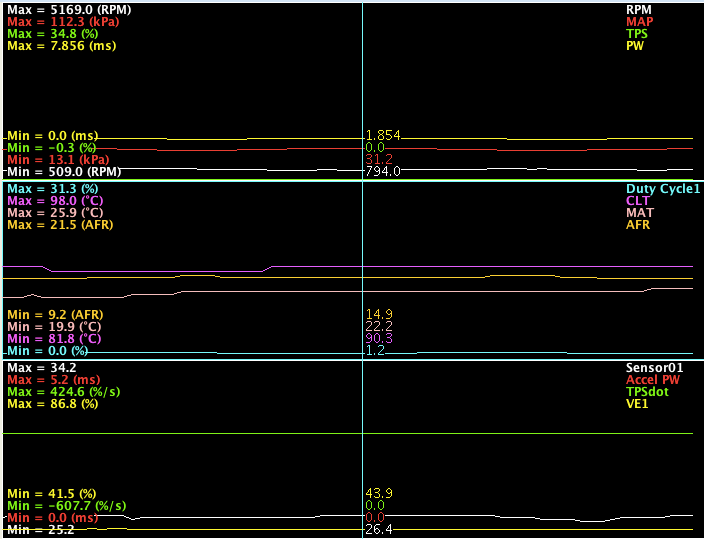

Quite happy with the result:

1x zoom:
Attached Thumbnails
MTX-L Ground/12V Noise PSA-afr%2520before.png   MTX-L Ground/12V Noise PSA-afr%2520before%25201zoom.png   MTX-L Ground/12V Noise PSA-afr%2520after.png

Last edited by WestfieldMX5; 05-04-2013 at 05:14 PM. Reason: to add that Lambda averaging lag factor is set at 90
WestfieldMX5 is offline   Reply With Quote
Old 05-05-2013, 03:04 AM   #9
Junior Member
iTrader: (-2)

Join Date: Nov 2012
Posts: 242
Total Cats: -42
Default

Quote:
Originally Posted by WestfieldMX5 View Post
I then ran a gnd wire from the steering column to the MS mounting bracket which further reduced it to 2-3mV.
Im pretty positive nothing inside the MS uses the case as a ground. So im curious why you noticed a change
Gt2560rMiata is offline   Reply With Quote
Old 05-05-2013, 06:23 AM   #10
Senior Member

Join Date: Nov 2007
Location: Belgium
Posts: 939
Total Cats: 59
Default

I never tested it but since the heatsink touches the case, I'm sure the MS is grounded as well through the case. There's at least a couple of transistors that don't need a mica and have gnd on their mouting tab. A metal tab version of U5 comes to mind.
WestfieldMX5 is offline   Reply With Quote
Old 05-05-2013, 04:54 PM   #11
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Quote:
Originally Posted by WestfieldMX5 View Post
I moved the gnd point to various places
Do you mean the ground wire of the MTX-L?
JasonC SBB is offline   Reply With Quote
Old 05-06-2013, 07:32 AM   #12
Senior Member

Join Date: Nov 2007
Location: Belgium
Posts: 939
Total Cats: 59
Default

yes, the MTX-L gnd. I took a long gnd wire and tried different spots throughout the car until I had the least noise. Actually I used 2 wires. It takes like 15s for the MTX-L to startup, so I made sure to connect the 2nd gnd before disconnecting the 1st one. That way the wb stayed powered up all the time, saving a lot of time.
I know the extra steering column gnd doesn't make sense, but it cured my noise completely so I'm quite happy.
WestfieldMX5 is offline   Reply With Quote
Old 05-06-2013, 11:23 AM   #13
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Your result suggests to me that the PCB routing of the grounds in the MS2(?) are unconventional.

Quote:
I also measured the voltage drops between the MS ground and the other grounds
Where did you place the voltmeter probes while doing this test?
JasonC SBB is offline   Reply With Quote
Old 05-06-2013, 11:37 AM   #14
Senior Member
iTrader: (3)

Join Date: Apr 2011
Location: Volo, IL
Posts: 1,247
Total Cats: 140
Default

It seems the MTX-L is very prone to offset voltage issues. I've never gotten mine perfect and I've tried grounding on the frame, engine block, DIYPNP (tried several grounds internally) and I still have a slight offset between the MTX-L and Tunerstudio.

In LM Programmer, you can set the warmup voltage to whatever you want. I made a graph by setting the output in increments of .5 volts and measured the reading at the MS, and what Tunerstudio was reading. I always have a .06v - .08v difference between the MTX-L output setting, and actual voltage read at the MS. The only way I could get it to track properly was to adjust the Custom Linear Wideband setting to compensate.

Sure would be nice if these two played nicer together.
dieselmiata is offline   Reply With Quote
Old 05-06-2013, 11:51 AM   #15
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

This is because Innovate decided to combine its 2 ground wires into one. Having a separate analog gnd, and heater gnd wire was good (see 4-wire O2 sensors), but I guess it confused too many customers.

Whenever troubleshooting ground offset issues, measure the voltage with the engine off, at the MTX-L's terminals (place voltmeter probes at output, and the end of its ground wire), and compare it against the ECU reading. Also measure the voltage at the ECU pins, (the WBO2 input pin, and the SGND pin).
JasonC SBB is offline   Reply With Quote
Old 05-06-2013, 12:09 PM   #16
Senior Member
iTrader: (3)

Join Date: Apr 2011
Location: Volo, IL
Posts: 1,247
Total Cats: 140
Default

Do you recommend using the SGND pin? I asked the question a few months ago and Rev and Ben recommended using GND , not SGND. I never really understood the difference between the two, and didn't question it.
dieselmiata is offline   Reply With Quote
Old 05-06-2013, 12:43 PM   #17
Senior Member

Join Date: Nov 2007
Location: Belgium
Posts: 939
Total Cats: 59
Default

Quote:
Originally Posted by JasonC SBB View Post
Your result suggests to me that the PCB routing of the grounds in the MS2(?) are unconventional.


Where did you place the voltmeter probes while doing this test?
I've a MS3X.
I measured between the MS gnd right at the back of the connector, black/yellow (power gnd on a 99) and the MTX-L ground.
I shortened the MTX-L power wires to about the same length as the existing connector for the sensor (about 1.5ft) and installed a connector there to make removing the gauge easier.
Each time I moved the MTX-L ground to a different point and measured between MS connector and MTX-L connector that I added (thus about 1.5ft from the gauge).
WestfieldMX5 is offline   Reply With Quote
Old 05-06-2013, 12:51 PM   #18
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Quote:
Originally Posted by dieselmiata View Post
Do you recommend using the SGND pin? I asked the question a few months ago and Rev and Ben recommended using GND , not SGND. I never really understood the difference between the two, and didn't question it.
Signal ground is used as a return for all sensors. Sensors should be connected here and not to the engine or chassis. There should be no wires connecting SGND to the chassis. The only connection between SGND and PGND (power ground) should be inside the ECU.

All grounds that pass high current (e.g. injector, solenoid, O2 heaters), should go to the engine block. Inside the ECU, all high current returns should go to the PGND pin.

If using the LC-1 which has a separate heater ground and signal ground, then you connect the LC1 signal ground to the ECU signal ground, then the LC1 heater ground, to the engine block.

The MTX-L has a single ground wire. Connect it to the ECU power ground pin. This is a compromise. Connecting to the SGND pin will cause the MTX-L heater currents to contaminate the ground signal of *all* other sensors.

In making this recommendation I am assuming that inside the ECU there is a connection between PGND and SGND, near the ADC's, and that the connection from that point, to the PGND pin, is a low impedance. AEM Series 1 did not follow these guidelines, and when I hacked it to fix this, greatly reduced noise on the analog channels.


However, WestfieldMX5's experience does not support my contention; probably because the MS3 does not follow the internal rules I mentioned, OR, there is other information about his experimentation that I'm missing.
JasonC SBB is offline   Reply With Quote
Old 05-06-2013, 12:53 PM   #19
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Quote:
Originally Posted by WestfieldMX5 View Post
I've a MS3X.
I measured between the MS gnd right at the back of the connector, black/yellow (power gnd on a 99) and the MTX-L ground.
MS Power ground, or Signal ground?
JasonC SBB is offline   Reply With Quote
Old 05-06-2013, 01:04 PM   #20
Senior Member
iTrader: (3)

Join Date: Apr 2011
Location: Volo, IL
Posts: 1,247
Total Cats: 140
Default

Thanks for the explanation, Jason. That makes much more sense now.
dieselmiata is offline   Reply With Quote
