Mtx-l plus erratic behavior


Old 09-07-2018, 12:18 AM
  #1
Junior Member
Thread Starter
iTrader: (1)

Join Date: Oct 2017
Location: Destin, FL
Posts: 51
Total Cats: 2
Default Mtx-l plus erratic behavior

Hey having some issues with my MTX-L plus WB. Any help/guidance would be much appreciated. I currently have the WB installed in the stock position. I was only driving it on the weekends to familiarize myself with the MS. Due to a family members jeep going out I loaned them my DD an started driving the 99 with the MS. Was driving fine for about 4 days(during that time autotuning to an from work until I wasnt getting anymore cell change). On the 5th day got an E8 error code as I was pulling into work. On the way home had no issues and for the next two days no issues. long story short and not related but 3rd day after E8 the water pump went out an so I replaced it over the weekend. During this time I had the battery disconnected(shouldn't matter). Anyway. Started up an drove fine for a day then randomly started freezing up/pegging full lean or rich and staying stuck there for awhile. It appears to be heat related but I was wondering if anyone could take a look at the log an give an opinion. It has not given an error code again just the erratic behavior. I cant tell if its noise or bad sensor.


Summary: MTX-L plus. 12v wired with fuse an relay from battery. Ground going directly to MS3. Stock location o2 sensor. No error code.
So results of my searches an your opinions on what route I should take if it is in fact the sensor.
1) Heatsink like posted in this thread https://www.miataturbo.net/diy-turbo...eadings-93315/
2) Weld the 1" bung it came with further down stream(have a mig so can do myself)
3) Throw on aftermarket header(obx i think, pulled off donor) I have laying around with bung further down.

Turbo is still a month out an want to get these FF in an "tuned" before then. Don't want to buy another sensor until I know for sure its bad.
Thanks
Attached Files
File Type: msl
2018-08-29_14.53.05.msl (1.68 MB, 15 views)
File Type: msq
CurrentTune.msq (286.9 KB, 11 views)
2N0B0dy1 is online now
Old 09-07-2018, 12:53 AM
  #2
Junior Member

90LowNSlo's Avatar

Join Date: Mar 2018
Location: Calloway County Kentucky
Posts: 332
Total Cats: 20
Default

Try recalibrating?
90LowNSlo is offline
Old 09-07-2018, 01:12 AM
  #3
Junior Member
Thread Starter
iTrader: (1)

Join Date: Oct 2017
Location: Destin, FL
Posts: 51
Total Cats: 2
Default

Awww ***** thought I covered everything I did... Yeah I recalibrated it twice. No change. It does appear to show acurrate readings while at idle after it "unfreezes" not sure if that means anything..
2N0B0dy1 is online now
Old 09-07-2018, 01:18 AM
  #4
Senior Member

Join Date: Apr 2017
Location: Greeley, CO
Posts: 602
Total Cats: 60
Default

If the sensor is bad heat didn't kill it. EGT's on turbo cars are much much higher and not necessarily any further down stream than the stock location.
SpartanSV is offline
Old 09-07-2018, 08:03 AM
  #5
Moderator
iTrader: (12)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 18,917
Total Cats: 2,364
Default

What does the manual say the E8 code means?
sixshooter is offline
Old 09-07-2018, 12:36 PM
  #6
Junior Member
Thread Starter
iTrader: (1)

Join Date: Oct 2017
Location: Destin, FL
Posts: 51
Total Cats: 2
Default

Originally Posted by sixshooter View Post
What does the manual say the E8 code means?
It popped the E8 code once last week then was working fine. I found some people with similar issues on the nismo forums but there was never any resolution to their issue. After trying another sensor only to have the same issue most appeared to switch to the aem x-series.

This is very similar to what mine is doing now but with no E8 error
it appears his issue was the heater controller but then makes a comment about how it was wired in bad by a shop.. kind of lost on what the most painless way to tackle this is.

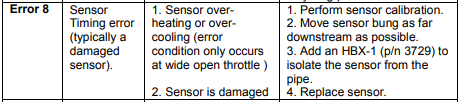

Attached Thumbnails Mtx-l plus erratic behavior-mtx-l-error-code.png
2N0B0dy1 is online now
Old 09-07-2018, 01:25 PM
  #7
Senior Member

Join Date: Apr 2017
Location: Greeley, CO
Posts: 602
Total Cats: 60
Default

Well there you go. Even the manual says it would only happen at WOT if it were overheating. All signs point to a new sensor.
SpartanSV is offline
Old 09-07-2018, 01:44 PM
  #8
Junior Member
Thread Starter
iTrader: (1)

Join Date: Oct 2017
Location: Destin, FL
Posts: 51
Total Cats: 2
Default

Originally Posted by SpartanSV View Post
Well there you go. Even the manual says it would only happen at WOT if it were overheating. All signs point to a new sensor.
Alright ill bite the bullet. Guess I was just looking for some confirmation. After researching I found a lot of horror stories about going through 2-3 sensor before just switching units.
Thanks again
2N0B0dy1 is online now
Old 09-07-2018, 02:08 PM
  #9
Senior Member

Join Date: Apr 2017
Location: Greeley, CO
Posts: 602
Total Cats: 60
Default

It's right there in the manual....

Without having an O-scope and knowing what to look for with it you won't get a more definite answer,
SpartanSV is offline
Old 09-07-2018, 03:44 PM
  #10
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,931
Total Cats: 312
Default

One thing they probably dont say in the manual is to never let the sensor pre-heat without the engine running. Its really easy to do when you have it wired to ignition. Letting it heat up while you sit there goofing off, then when you star the engine the condensed water from a cold engine hits the sensor and kills it.
Full_Tilt_Boogie is offline
Old 09-07-2018, 05:51 PM
  #11
Junior Member
iTrader: (4)

Join Date: Apr 2011
Location: Bay Area- East Bay
Posts: 489
Total Cats: 10
Default

Make sure you weld that new bung for turbo use 3 ft from where the turbo will sit.
brainzata is offline
Old 09-07-2018, 05:53 PM
  #12
VladiTuned
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,142
Total Cats: 3,145
Default

solution to all of this: toss the innovate in the trash where it belongs and get an aem.
18psi is offline
Old 09-07-2018, 06:40 PM
  #13
Junior Member
iTrader: (4)

Join Date: Apr 2011
Location: Bay Area- East Bay
Posts: 489
Total Cats: 10
Default

All the threads I see regarding MTXL or LC1/LC2 is why I sold my new one...mostly

Last edited by brainzata; 09-07-2018 at 07:07 PM.
brainzata is offline
Old 09-07-2018, 07:04 PM
  #14
Junior Member
Thread Starter
iTrader: (1)

Join Date: Oct 2017
Location: Destin, FL
Posts: 51
Total Cats: 2
Default

Originally Posted by 18psi View Post
solution to all of this: toss the innovate in the trash where it belongs and get an aem.
Originally Posted by brainzata View Post
All the threads I see regarding MTXL or LC1/LC2 is why I sold mine new one...mostly
Grrrr. I already ordered the replacement sensor earlier. Might just send it back an get the x-series... I don't want to deal with this again. Also don't want to be out the $100 for the mtxl but such is life I guess. Idk.
2N0B0dy1 is online now
Old 09-07-2018, 07:30 PM
  #15
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,931
Total Cats: 312
Default

AEM has a screen refresh rate slower than calculator
Full_Tilt_Boogie is offline
Old 09-07-2018, 07:40 PM
  #16
VladiTuned
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,142
Total Cats: 3,145
Default

Yeah, its a huge problem that never ever affected anything or impacted in any way on the 600+ cars I've tuned. YOu're right

lol
18psi is offline
Old 09-07-2018, 07:54 PM
  #17
Junior Member
Thread Starter
iTrader: (1)

Join Date: Oct 2017
Location: Destin, FL
Posts: 51
Total Cats: 2
Default

Originally Posted by Full_Tilt_Boogie View Post
AEM has a screen refresh rate slower than calculator
Ha. Idk. just started using an ol ti-84 again and it takes forever. So I mean from what I've found just doing a quick search the aem signal appears to be cleaner (maybe just CAN setup) than the mtx but does the refresh rate of the screen really matter that much? From my limited understanding really only need the gauge for initial tuning after your honed in it's more of just a safety monitor. An of most of the tuning is being through TS does it matter if its slightly slower? Guess what I'm asking is does the refresh rate affect the signal the MS is receiving?
2N0B0dy1 is online now
Old 09-07-2018, 07:56 PM
  #18
Junior Member
Thread Starter
iTrader: (1)

Join Date: Oct 2017
Location: Destin, FL
Posts: 51
Total Cats: 2
Default

Originally Posted by 18psi View Post
Yeah, its a huge problem that never ever affected anything or impacted in any way on the 600+ cars I've tuned. YOu're right

lol
Guess that kinda answers my above question... Lol

2N0B0dy1 is online now
Old 09-07-2018, 08:36 PM
  #19
Junior Member

Marioshi's Avatar

Join Date: Feb 2018
Location: Sacramento CA
Posts: 183
Total Cats: 33
Default

My MTX-L would peg full lean and come back on at idle, new bosch sensor fixed it, got it at pepboys of all places, in stock for a decent price ($45)
Marioshi is offline
Old 09-07-2018, 09:02 PM
  #20
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,931
Total Cats: 312
Default

Originally Posted by 18psi View Post
Yeah, its a huge problem that never ever affected anything or impacted in any way on the 600+ cars I've tuned. YOu're right

lol
cool story

why even bother using a gauge?
Full_Tilt_Boogie is offline
