Question NA 94 MS3(3.57)+MS3x no start - help please

Hi dearest MS gurus,

I have a friend with a 94 MX-5 here in Germany, who can't get his newly set up MS3+MS3X running. The MS3 is a 3.57 board CKP goes through the Mainboard pin 24 and the CAM through the MS3X.

he has both signals - but he get's sync losses instantly - so the car doesn't start:

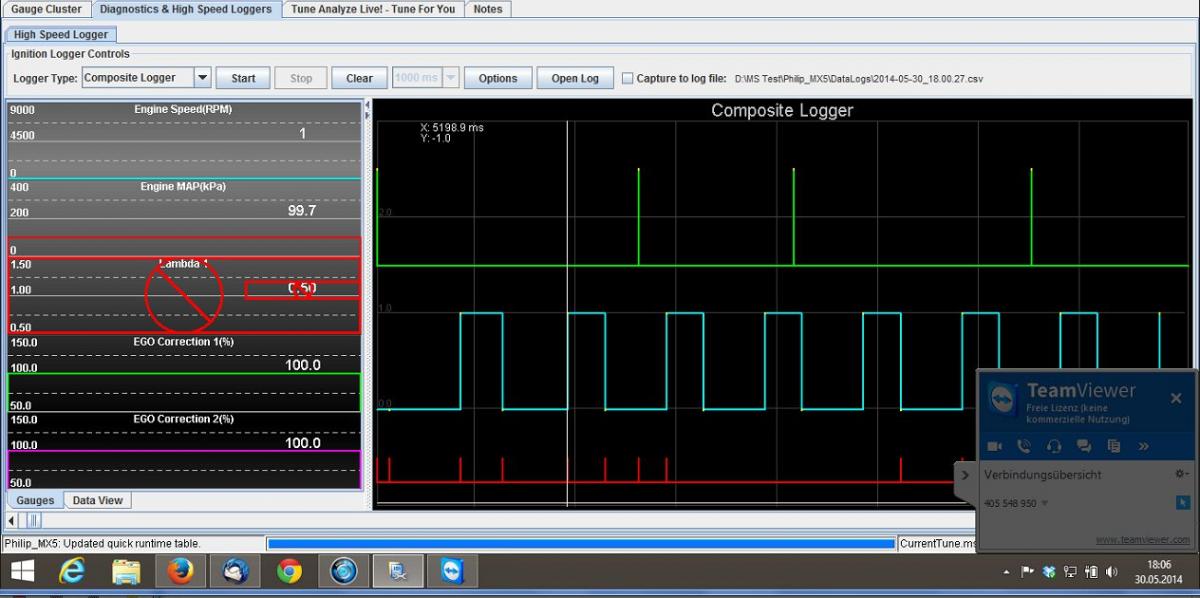

Here is a screenshot of the Composite log:


Any advice is appreciated...!
Attached Thumbnails
NA 94 MS3(3.57)+MS3x no start - help please-philip_nosync.jpg
Zaphod is offline   Reply With Quote
Old 05-31-2014, 02:36 AM   #2
Senior Member
Thread Starter

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

Nobody?

Could it be the pots?
Zaphod is offline   Reply With Quote
Old 06-01-2014, 03:58 AM   #3
Senior Member
Thread Starter

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

Just one more information - the sync lost reason is 38/39 = 4G63 - which doesn't help me...

(I will post the MSQ as soon as I get it from my colleague)

Could it be that his CAS is turned too much and the wrong timing affects the trigger? He couldn't get a got timing light reading - so he wasn't able the check the trigger angle

Here is the MSQ:
https://www.miataturbo.net/attachmen...1&d=1401609356
Attached Files
File Type: msq base_philip_MS3X_28.05.14.msq (272.0 KB, 45 views)

Last edited by Zaphod; 06-01-2014 at 04:56 AM.
Zaphod is offline   Reply With Quote
Old 06-01-2014, 08:48 AM   #4
I haz no trubo
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

I wasn't aware you could run full sequential on NA mode (4G63) alone, even with the CKP and CMP signals split.
Oscar is offline   Reply With Quote
Old 06-01-2014, 02:06 PM   #5
Senior Member
Thread Starter

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

This should be running with the MS3X board...

Sven
Zaphod is offline   Reply With Quote
Old 06-02-2014, 12:28 PM   #6
Supporting Vendor

Matt Cramer's Avatar

Join Date: Sep 2006
Posts: 2,266
Total Cats: 51
Default

Any chance he has the main board set up to trigger off the wrong edge? How was the main board set up?
Matt Cramer is offline   Reply With Quote
Old 06-02-2014, 01:29 PM   #7
Senior Member
Thread Starter

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

I'll have it in my hands on wednesday, I'll keep you updated...

Sven
Zaphod is offline   Reply With Quote
Old 06-02-2014, 02:14 PM   #8
Senior Member
Thread Starter

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

@Matt - what should be set on a 3.57 board specificly (is there something that specifies the egde of the trigger?)

Just had another look at the MS3 documentation, the V3.57 board for the Miata CAS has to be set for VR circuit with a 1K pullup, correct? I have pictures of Philips board here, and there is no pullup on R57... This should be it then...?! And the J1 jumper sits on 5-6 not 3-4, as the docu states... Damn....

I think we are a big step further now...

Sven

Last edited by Zaphod; 06-02-2014 at 02:27 PM.
Zaphod is offline   Reply With Quote
Old 06-02-2014, 09:05 PM   #9
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Quote:
Originally Posted by Zaphod View Post
@Matt - what should be set on a 3.57 board specificly (is there something that specifies the egde of the trigger?)

Just had another look at the MS3 documentation, the V3.57 board for the Miata CAS has to be set for VR circuit with a 1K pullup, correct? I have pictures of Philips board here, and there is no pullup on R57... This should be it then...?! And the J1 jumper sits on 5-6 not 3-4, as the docu states... Damn....

I think we are a big step further now...

Sven
Yes, a pullup can/should be installed at R57. The board should be setup exactly as described here:
Megasquirt-3 MS3 Ignition - 4G63 (Miata)

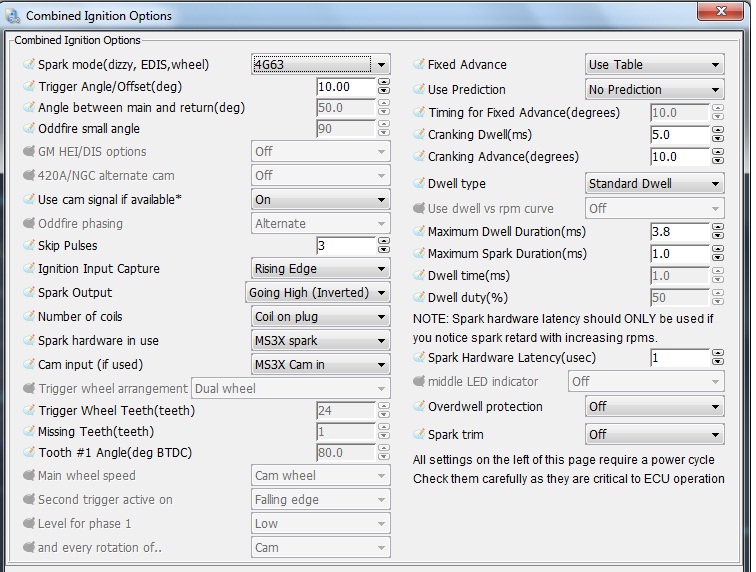

The ignition input capture is the setting for trigger edge. Below are good baseline settings.

Attached Thumbnails
NA 94 MS3(3.57)+MS3x no start - help please-ts-ms34g63sequentialsparksettings.jpg
Ben is offline   Reply With Quote
Old 06-03-2014, 01:49 AM   #10
Senior Member
Thread Starter

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

The settings are correct, so I think just the board needs a little love...
Zaphod is offline   Reply With Quote
Old 06-04-2014, 10:01 AM   #11
Senior Member
Thread Starter

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

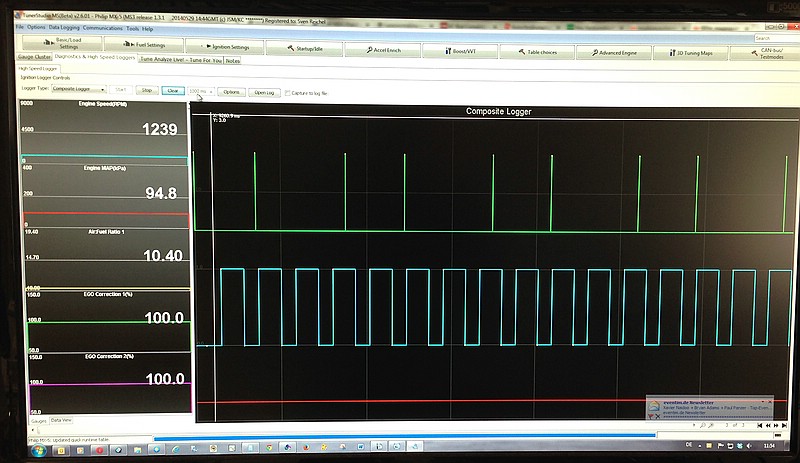

Update - problem solved - was the wrong Jumper on J1 and the missing R57 pullup resistor

Attached Thumbnails
NA 94 MS3(3.57)+MS3x no start - help please-philip_2.jpg
Zaphod is offline   Reply With Quote
