Default Newbie question using LC-1

Got my LC-1 wb lambda sensor installed and as far as I know correctly configured, but I cant say that it seems to be working for me.

I used the LM programmer and set the AFR to 10-20 and then changed EGO setting (to WideBand and 2.352V for 14,7:1 AFR) in MegaTune and also to use the Innovative PLX sensor in MegaTune Configurator.

But on WOT both the MegaTune and the gauge (Innovative G2 using Analog 1 at factory setting 7.35 to 22.39 AFR) says "maximum rich", which is 10 and 8 for the G2 gauge.

At cruise the reading is the other way around, full lean (19.96 and 18). But the car seems to be running nice though.... but do I dare to use it?? And more important these values doesnt seem to do me any good if I should do any tuning on it.

Car is running on 95 octane but with the base map (93 oct) although that should not be of any significance. Bone stock as of now part from a cat-back system and headers... and the MS PnP of course .

TIA
Kroegarn is offline   Reply With Quote
Old 06-10-2008, 06:44 PM   #2
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Did you set up MT in Config for WB?
Did you calibrate the sensor?
Ben is offline   Reply With Quote
Old 06-11-2008, 02:14 AM   #3
Guest
Thread Starter

Join Date: Jun 2008
Location: Sweden
Posts: 4
Total Cats: 0
Default

Quote:
Originally Posted by Ben View Post
Did you set up MT in Config for WB?
Did you calibrate the sensor?
I did calibrate the sensor and the LED blinking was accordingly to the instructions so that should have went ok, but I´ll remove it from the header and try again.

But the "MT" thing sounds like something I could have missed What does MT stand for ?

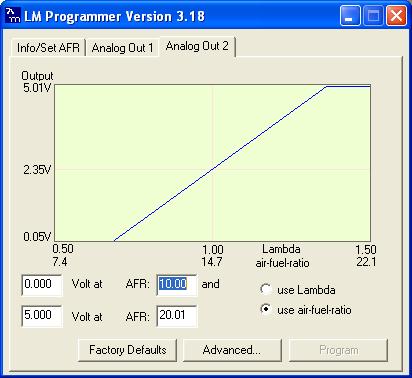

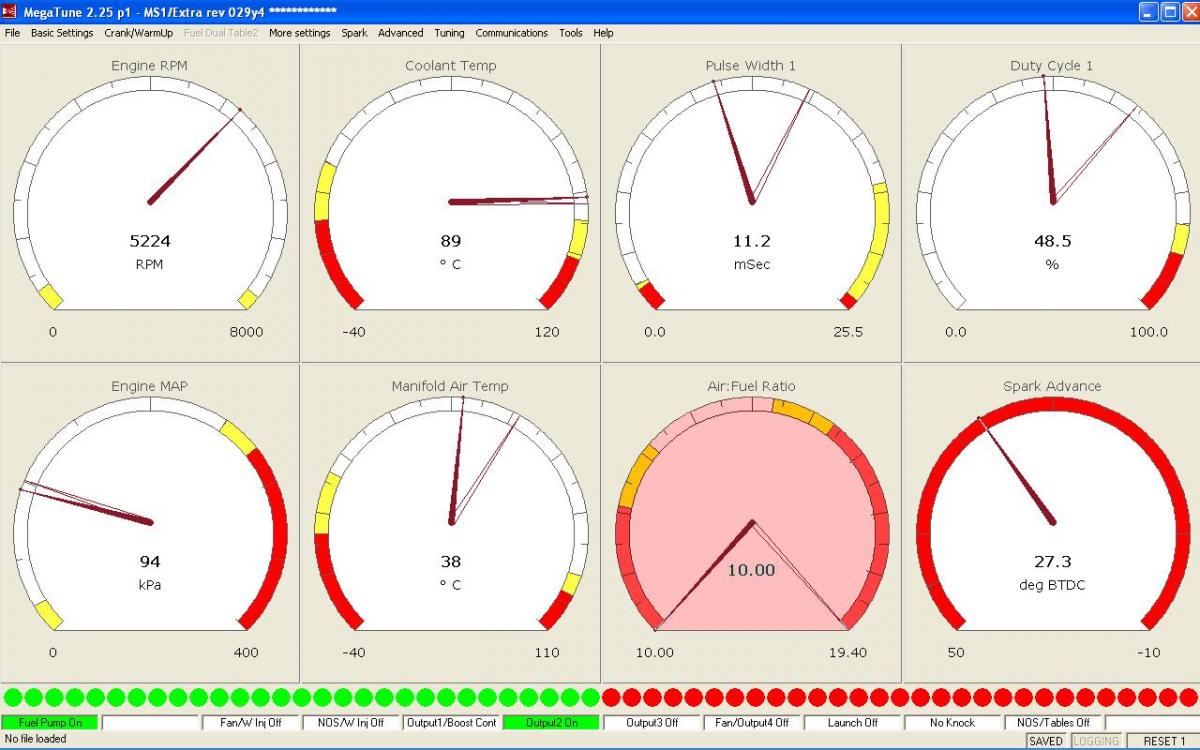

Attached two pics, one of the LM programmer, and one of the MegaTune GUI at WOT... I also have a MegaTune log if it could be of interest, the O2 in it mostly read 4.980 and 0.000/0.0020 and a few volt measurments in between.

Tnx
Attached Thumbnails
Newbie question using LC-1-lmprg.jpg   Newbie question using LC-1-mswot5krpm.jpg
Kroegarn is offline   Reply With Quote
Old 06-11-2008, 02:22 AM   #4
Junior Member

Join Date: Dec 2007
Location: San Diego to LA, CA
Posts: 297
Total Cats: 0
Default

I would get these issues when my sensor lost calibration. Hook the sensor up to your laptop when running the calibrations with the program (not LM programmer but the other one Innovative has that shows you the AFR) and it will tell you while its calibrating so you know its doing it.
91NApeewee is offline   Reply With Quote
Old 06-11-2008, 03:30 AM   #5
Senior Member

Join Date: Oct 2007
Location: Norrahammar, Sweden
Posts: 614
Total Cats: 6
Default

Hej Krögarn,

I just learned from a thread here not so long ago that the Swedish 95 octane fuel is equivalent to the US 91 octane fuel. The octane ratings are not measure by the same standard (R+N)/2 in the US and… only N in Sweden? The 98 octane fuel instead matches the US 93 octane.
Torkel is offline   Reply With Quote
Old 06-11-2008, 03:50 AM   #6
Junior Member

Join Date: Dec 2007
Location: San Diego to LA, CA
Posts: 297
Total Cats: 0
Default

Hopefully its not like California 91 Octane, that stuff seems to suck compared to other states 91 Octane. To top it off, its more expensive than 93 octane elsewhere.

/end rant
91NApeewee is offline   Reply With Quote
Old 06-11-2008, 10:53 AM   #7
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

Quote:
Originally Posted by Kroegarn View Post
I used the LM programmer and set the AFR to 10-20 and then changed EGO setting (to WideBand and 2.352V for 14,7:1 AFR) in MegaTune and also to use the Innovative PLX sensor in MegaTune Configurator.

you don't see the problem here?
Braineack is offline   Reply With Quote
Old 06-11-2008, 03:35 PM   #8
Guest
Thread Starter

Join Date: Jun 2008
Location: Sweden
Posts: 4
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
you don't see the problem here?
A ".002" too much but anything else??

Finally figured out that MT stands for MegaTune or what

Now the garage for a recalibration to see if anything happens.....

Last edited by Kroegarn; 06-11-2008 at 05:35 PM.
Kroegarn is offline   Reply With Quote
Old 06-11-2008, 05:22 PM   #9
Junior Member
iTrader: (2)

Join Date: Nov 2006
Location: N/A
Posts: 360
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
you don't see the problem here?
if you're talking about the plx sensor setting, its the right one for using 0-5v=10-20 afr
mikeflys1 is offline   Reply With Quote
