Default no engine braking?

What settings do I play with if the revs are not dropping when I left of the gas and I'm still in gear? E.g., I'm driving at 40 mph in 4th, I see a red light so I go off the throttle but the car just continues on at 40 mph or maybe VERY slowly starts to slow down. It's clear that the car is not engine braking like I'm accustomed to.

thanks
MoonieGT is offline   Reply With Quote
Old 06-20-2012, 11:47 PM   #2
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Overland Park, Kansas
Posts: 5,382
Total Cats: 43
Default

Sounds like overrun fuel cut?

Does it idle high? If you rev the engine without load, does it linger at higher rpm abnormally long?
elesjuan is offline   Reply With Quote
Old 06-20-2012, 11:50 PM   #3
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,315
Total Cats: 1,913
Default

?

Regardless of over-run, a closed throttle will cause engine braking.

Are you sure that the throttle is not physically binding up? Eg, if you were to drop it into neutral and release the throttle, what would the engine do?
Joe Perez is offline   Reply With Quote
Old 06-21-2012, 12:22 AM   #4
Junior Member
Thread Starter

Join Date: May 2010
Posts: 93
Total Cats: -1
Default

I will try neutral tomorrow and see. I did confirm that the TPS was at zero during this (also tried recalibrating TPS). I'll try to get it in a log.
MoonieGT is offline   Reply With Quote
Old 06-21-2012, 12:42 AM   #5
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,315
Total Cats: 1,913
Default

A revision to my last:

Regardless of over-run, a closed throttle will cause engine braking, presuming that the IAC valve isn't stuck wide-open (and even then, it's kind of a stretch.)
Joe Perez is offline   Reply With Quote
Old 06-21-2012, 12:46 AM   #6
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,164
Total Cats: 2,573
Default

in addition to cutting fuel, you need to cut air, so either one the other or both are not being cut

so like joe said, in addition to checking fuel overrun cut Id look at the iacv
18psi is offline   Reply With Quote
Old 06-21-2012, 03:34 AM   #7
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 197
Default

At what RPM is that?
Reverant is offline   Reply With Quote
Old 06-21-2012, 08:39 AM   #8
Junior Member
Thread Starter

Join Date: May 2010
Posts: 93
Total Cats: -1
Default

I want to say it's around 3000. I am about to drive to work. I'll update in abit.
MoonieGT is offline   Reply With Quote
Old 06-21-2012, 08:44 AM   #9
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 197
Default

Take a datalog if possible, remember to hit spacebar at the exact moment you notice the problem.
Reverant is offline   Reply With Quote
Old 06-21-2012, 08:49 AM   #10
Junior Member
Thread Starter

Join Date: May 2010
Posts: 93
Total Cats: -1
Default

Will do
MoonieGT is offline   Reply With Quote
Old 06-21-2012, 09:46 AM   #11
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

My money is on the IAC valve. Occasionally my PID stuff whacks-out and decides to idle at the cut-off limit of 3000rpm for a few seconds or longer, then reconsiders and lowers RPM.

Dimitris,
I still owe you some data, maybe tomorrow before the gastro-enterologist.
hustler is offline   Reply With Quote
Old 06-21-2012, 09:57 AM   #12
Junior Member
Thread Starter

Join Date: May 2010
Posts: 93
Total Cats: -1
Default

I think the log is too big to attach? The upload keeps failing? Is there a way to chop the log into smaller pieces? For now, screen shots are attached.

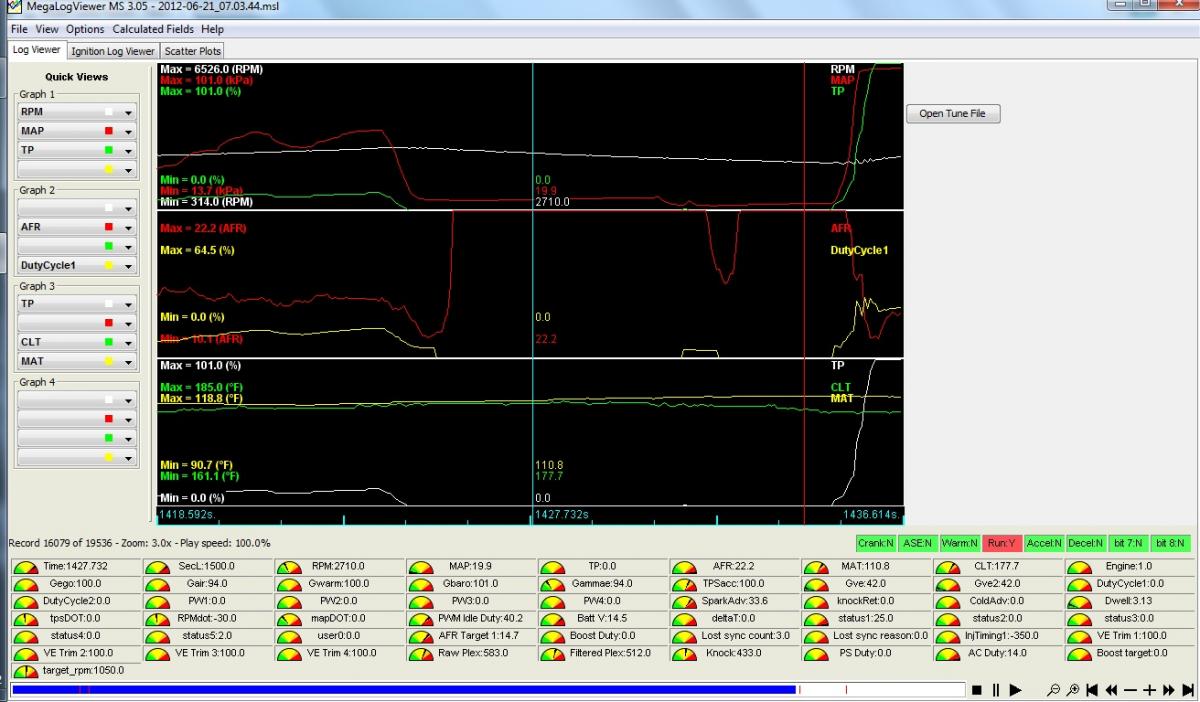

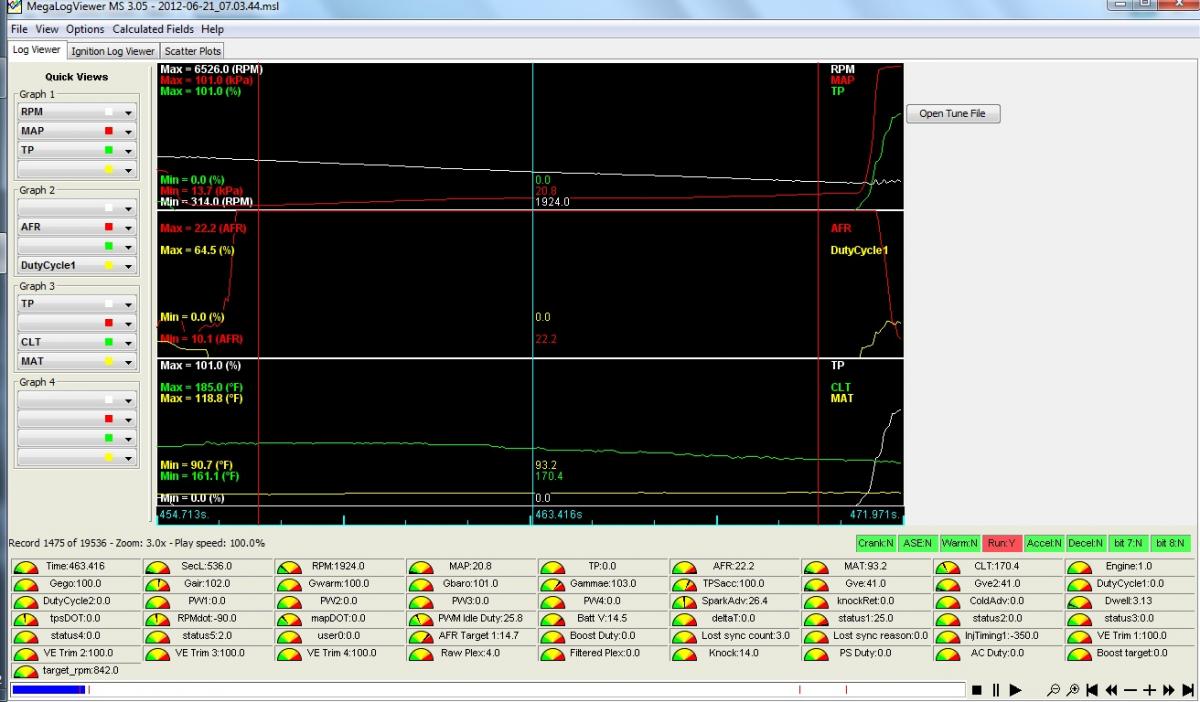

The first two markers (earlier on in the log) kind of bracket one of the examples. Looking at the first one, the rpms went from 2563 to about 1500 over 15 seconds. That's a drop of 66 rpms/sec for those keeping score at home. The third marker identified the end of one of the examples. That time the rpms went from 2912 to 2324 over about 10 seconds. That's a drop of 58 rpms/sec. Am I being too critical?

The last marker identifies where the car almost stalled out after coming to a stop with the AC on.
Attached Thumbnails
no engine braking?-example-1.jpg   no engine braking?-example-2.jpg   no engine braking?-ac-example.jpg
Attached Files
File Type: msq 6-21-12am.msq (89.3 KB, 81 views)
MoonieGT is offline   Reply With Quote
Old 06-21-2012, 10:40 AM   #13
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

I have a feeling your idle settings are fubar. Is your iacvv staying open?
Braineack is offline   Reply With Quote
Old 06-21-2012, 10:42 AM   #14
Junior Member
Thread Starter

Join Date: May 2010
Posts: 93
Total Cats: -1
Default

How do I determine if it is?
MoonieGT is offline   Reply With Quote
Old 06-21-2012, 10:43 AM   #15
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

Look at the log.
Braineack is offline   Reply With Quote
Old 06-21-2012, 10:50 AM   #16
Junior Member
Thread Starter

Join Date: May 2010
Posts: 93
Total Cats: -1
Default

I can't find where that is indicated... Do I have to add that parameter to the log? Or is just not called iacvv? I've got a lot to learn...
MoonieGT is offline   Reply With Quote
Old 06-21-2012, 11:03 AM   #17
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

Idle steps or something like that....been a while since I looked at an ms1 log
Braineack is offline   Reply With Quote
Old 06-21-2012, 11:10 AM   #18
Junior Member
Thread Starter

Join Date: May 2010
Posts: 93
Total Cats: -1
Default

Maybe I'm confused, but this is one of Rev's units that is based on MS2 right?

There is a "PWM Idle Duty" that was holding steady at 25.8 during the first example. For the second example, that value was at 40.2 for the first 5 seconds and dropped to 25.4 for the last five seconds.
MoonieGT is offline   Reply With Quote
Old 06-21-2012, 11:11 AM   #19
Junior Member
Thread Starter

Join Date: May 2010
Posts: 93
Total Cats: -1
Default

Maybe I should have pointed out that my car is a normally aspirated '99.
MoonieGT is offline   Reply With Quote
Old 06-21-2012, 12:02 PM   #20
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 197
Default

Allen send the datalog to my email please.
Reverant is offline   Reply With Quote
