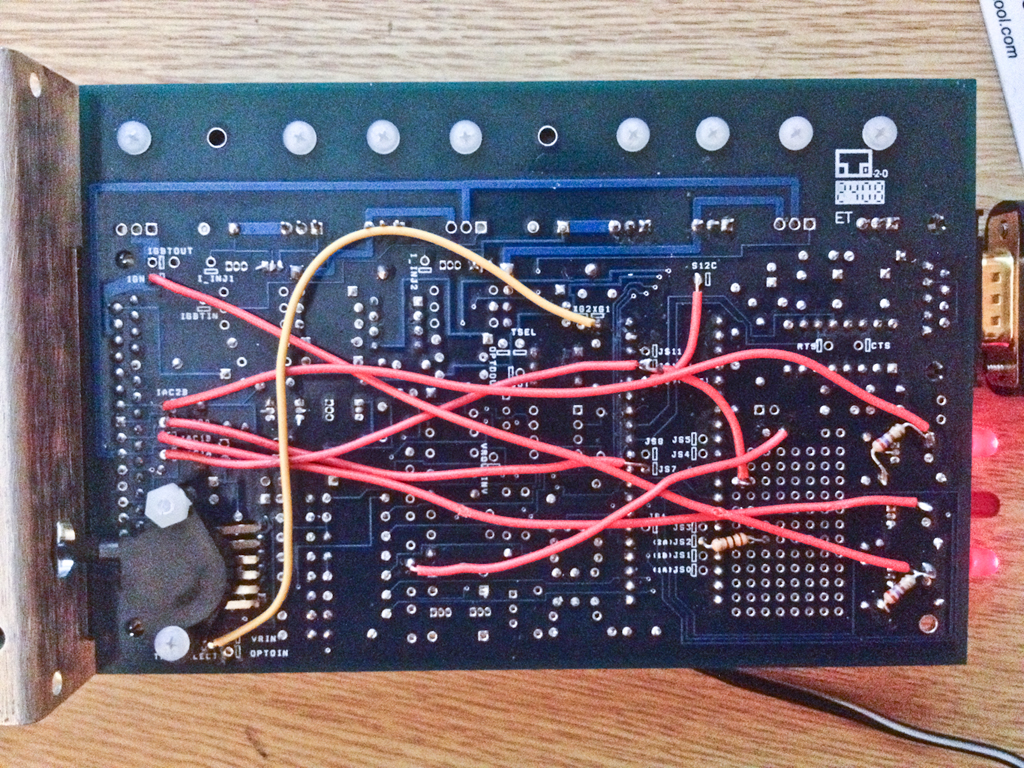

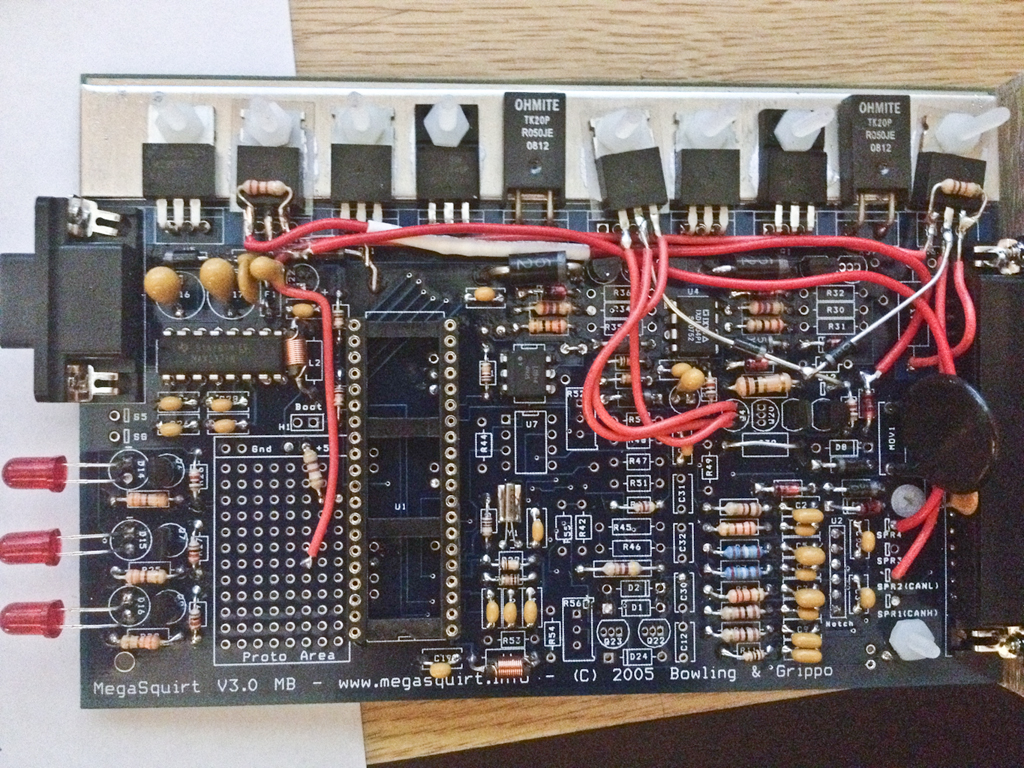

It was originally a working ms1v3 on a 92 1.6. This is how its setup now after I changed the jumpers around for ms2. It's being retarded and RPM only shows 1, however everything else works fine. Standalone.

I've dicked around with some of the settings and changed the falling edge to rising edge and I get erratic rpm's bouncing around. I've searched and tried everything I could find (here and the internets), even asked braineack for some help via pm. Thought I'd put a thread up in case anyone else has a similar problem.




I've reflashed the firmware to make sure it wasn't that. No change.

Derek



I've tried another ms2 daughtercard, same results. still havent figured it out.



does the composite logger show you're getting both cam signals properly?



I logged it and posted it in the first post. right click save as "Diagnostic log"



My bad, broken links to the MSQ and the composite logger's datalog. I just uploaded as attachments. Sorry about that.

Derek
