Default Is this a noisy or normal signal?

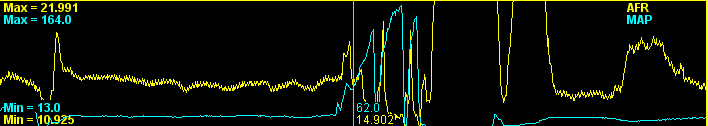

I'm a bit worried. My gauge will only go to 21.5 full lean instead of 21.9, and last time this happened my o2 signal was ridiculous. This is not as bad, but the frequency is way faster.

Am I just being paranoid?

I'm assuming it may just be a gauge problem, this log shows 21.9
Attached Thumbnails
Is this a noisy or normal signal?-noiseee.png
MartinezA92 is offline   Reply With Quote
Old 01-03-2012, 01:50 PM   #2
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,702
Total Cats: 237
Default

Looks very noisy imo. Check/add grounds to everything until you fix it.
Fireindc is offline   Reply With Quote
Old 01-03-2012, 04:33 PM   #3
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

One good way to check for noise is to add max delay to the sensor and then see what the ouput looks like.
hustler is offline   Reply With Quote
Old 01-03-2012, 08:21 PM   #4
Newb

Join Date: Oct 2010
Posts: 21
Total Cats: 0
Default

looks like noise to me, do you have it grounded to the same place as your megasquirt?
pman is offline   Reply With Quote
Old 01-04-2012, 01:29 AM   #5
Elite Member
Thread Starter
iTrader: (4)

MartinezA92's Avatar

Join Date: Aug 2009
Location: Mountain View, CA
Posts: 1,702
Total Cats: 28
Default

Its grounded to the same place as the MS. I havn't touched anything. This always seems to happen after 5-6 months. The signal goes noisy without me touching anything at all.
MartinezA92 is offline   Reply With Quote
Old 01-04-2012, 02:22 AM   #6
Senior Member
iTrader: (6)

Join Date: May 2009
Location: San Francisco
Posts: 989
Total Cats: 23
Default

Solution: buy a UEGO instead of lc-1, win. Thats what I had to do to keep my sanity.
wittyworks is offline   Reply With Quote
Old 01-04-2012, 04:17 AM   #7
Elite Member
Thread Starter
iTrader: (4)

MartinezA92's Avatar

Join Date: Aug 2009
Location: Mountain View, CA
Posts: 1,702
Total Cats: 28
Default

Quote:
Originally Posted by wittyworks View Post
Solution: buy a UEGO instead of lc-1, win. Thats what I had to do to keep my sanity.
I constantly throw this idea around. The lack of reliability of this thing is driving me up a wall.
MartinezA92 is offline   Reply With Quote
Old 01-04-2012, 08:57 AM   #8
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by MartinezA92 View Post
I constantly throw this idea around. The lack of reliability of this thing is driving me up a wall.
Tell us exactly how it's wired-up. Specifically, where is the gnd for the computer, the gnd for the WB heater, gnd for the wideband sensor, and anything else notable.

I've installed/fixed 6 LC-1s and never had a problem.
hustler is offline   Reply With Quote
Old 01-04-2012, 08:58 AM   #9
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,317
Total Cats: 1,914
Default

Quote:
Originally Posted by wittyworks View Post
Solution: buy a UEGO instead of lc-1, win. Thats what I had to do to keep my sanity.
It's funny you mention this. I started with a UEGO and switched to an LC1 after a lot of frustration with offset of the analog output.

Wideband systems are finnicky, and they're just barely mainstream tech at this point. Folks have had problems and success stories with pretty much every unit out there.
Joe Perez is offline   Reply With Quote
Old 01-05-2012, 01:46 PM   #10
Elite Member
Thread Starter
iTrader: (4)

MartinezA92's Avatar

Join Date: Aug 2009
Location: Mountain View, CA
Posts: 1,702
Total Cats: 28
Default

Quote:
Originally Posted by hustler View Post
Tell us exactly how it's wired-up. Specifically, where is the gnd for the computer, the gnd for the WB heater, gnd for the wideband sensor, and anything else notable.

I've installed/fixed 6 LC-1s and never had a problem.
All the grounds are spliced into one ground. That ground is then spliced into the ground at the MS harness. black/green wire I believe.

power comes from the radio.
MartinezA92 is offline   Reply With Quote
Old 01-05-2012, 01:49 PM   #11
Elite Member
iTrader: (5)

Join Date: Dec 2010
Location: Raleigh, NC
Posts: 1,970
Total Cats: 49
Default

Quote:
Originally Posted by MartinezA92 View Post
All the grounds are spliced into one ground. That ground is then spliced into the ground at the MS harness. black/green wire I believe.

power comes from the radio.
its generally not a good idea to share power/analog and signal/digital grounds.

btw, I have an MTX-L and have zero ground problems (my ground is at the dash).

plus splitting the grounds up is generally better anyways, although not likely to matter in many cases.
Seefo is offline   Reply With Quote
Old 01-05-2012, 02:48 PM   #12
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,702
Total Cats: 237
Default

I would add some more grounds first, but if that fails find a better power source that isn't shared.
Fireindc is offline   Reply With Quote
Old 01-05-2012, 03:59 PM   #13
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,009
Total Cats: 583
Default

The LC-1 has a built-in smoothing function, BTW. You may need to play with that a bit.
hornetball is offline   Reply With Quote
Old 01-06-2012, 12:56 AM   #14
Elite Member
Thread Starter
iTrader: (4)

MartinezA92's Avatar

Join Date: Aug 2009
Location: Mountain View, CA
Posts: 1,702
Total Cats: 28
Default

Quote:
Originally Posted by hornetball View Post
The LC-1 has a built-in smoothing function, BTW. You may need to play with that a bit.

whut

Details? I've never even heard of this.
MartinezA92 is offline   Reply With Quote
Old 01-06-2012, 02:08 AM   #15
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Yeah seperate piwer and signak ground
Faeflora is offline   Reply With Quote
Old 01-06-2012, 02:21 AM   #16
Elite Member
Thread Starter
iTrader: (4)

MartinezA92's Avatar

Join Date: Aug 2009
Location: Mountain View, CA
Posts: 1,702
Total Cats: 28
Default

Out of curiosity where do you guys get your power from, and where do you put your grounds? Not in much of a mood to experiment, I want to make this work the first time (or in this case like the 5th time).
MartinezA92 is offline   Reply With Quote
Old 01-06-2012, 10:12 AM   #17
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Any ole key-switched white wire with red stripe
Faeflora is offline   Reply With Quote
Old 01-06-2012, 10:33 AM   #18
Elite Member
iTrader: (5)

Join Date: Dec 2010
Location: Raleigh, NC
Posts: 1,970
Total Cats: 49
Default

Quote:
Originally Posted by MartinezA92 View Post
Out of curiosity where do you guys get your power from, and where do you put your grounds? Not in much of a mood to experiment, I want to make this work the first time (or in this case like the 5th time).
Spliced power from the radio ignition wire (I think it was blue and black for me, blue and red was constant 12v).

I ground it on the support brace for the center dash. I pretty much crimpped the dimming wire with the ground and bolted it to the brace.

I think you have two separate grounds right? If they are coming out of the sensor, you should look for something in that area, but away from the exhaust. if your grounds are coming out of the gauge (like mine), I would find a decent area under the dash. glove box area has a few bolts you can use too.

just make sure you clean any paint off from under the bolt/crimp.
Seefo is offline   Reply With Quote
Old 01-06-2012, 11:14 AM   #19
Senior Member

Join Date: Aug 2010
Location: Maumelle, AR
Posts: 618
Total Cats: 2
Default

Quote:
Originally Posted by MartinezA92 View Post
Out of curiosity where do you guys get your power from, and where do you put your grounds? Not in much of a mood to experiment, I want to make this work the first time (or in this case like the 5th time).
Splice/plug into power window connector (near shifter), plenty of current there... and if you don't have power windows you can actually just plug into the connector with crimp connectors. Use the ground there for power ground. I've done a couple cars this way with LC1 and 14 point 7 WB. Both cars are winning to this day. (make sure the signal ground is run to the sensor ground close to the ECU)
ianferrell is offline   Reply With Quote
Old 01-06-2012, 01:37 PM   #20
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,009
Total Cats: 583
Default

Quote:
Originally Posted by MartinezA92 View Post
whut

Details? I've never even heard of this.
Look at section 6.5.1 ("Advanced Output Programming") of the LC-1 Manual on pages 14 and 15. You can setup the analog output to either be instantaneous or have up to 1/3 second of smoothing. This might help your noise.
hornetball is offline   Reply With Quote
