Default officially computer stupid (diypnp)

Okay . I've had a 96-97 diypnp for about three months and still haven't been able to get the car started. I think there are many factors that contribute to this.

When I load the base map I get 11 warnings. I don't think I have a tach signal because on the computer it reads between 1 and 0, like this 1-0-0-1-0. No tach means no fuel right?

I've been cool so far but now I'm getting depressed because I want to start hitting the track. HELP ME. I have no ideas.

Please don't bitch at me. Megasquirt I'd really appreciate if someone could help out. Thank you.
turotufas is offline   Reply With Quote
Old 02-13-2010, 04:24 PM   #2
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Very small voltage spikes will cause the tach MS to jump a bit. You mean 1rpm, right? Not 1k rpm? What will it do, crank? Check for spark while cranking if it does. And can you hear the fuel pump turn on briefly when you turn the key?
curly is offline   Reply With Quote
Old 02-13-2010, 04:29 PM   #3
Elite Member
Thread Starter
iTrader: (7)

Join Date: Jul 2009
Location: Gainesville,Fl
Posts: 3,354
Total Cats: 7
Default

Yeah 1 rpm. Yes I can hear the fuel pump to. I have spark. It sounds like the timing is off and no fuel at all. I try to crank and I get backfire. I really don't want to mess around with it anymore on my own.
I think my problem is the warnings issue but I honestly can't interpret them.
turotufas is offline   Reply With Quote
Old 02-13-2010, 04:37 PM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

view the log of the warnings and post it. what version firmware do you have loaded, and what version MSQ did you load?

post the msq you used.


if you follow the writeup on diyautotune.com you shouldnt have any issues.
Braineack is offline   Reply With Quote
Old 02-13-2010, 04:41 PM   #5
Elite Member
Thread Starter
iTrader: (7)

Join Date: Jul 2009
Location: Gainesville,Fl
Posts: 3,354
Total Cats: 7
Default

Alright let me go outside really quick. Thanks.

If I can't get this right I might have to swallow it and take advantage of one of your pnp's.
turotufas is offline   Reply With Quote
Old 02-13-2010, 04:43 PM   #6
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

or just get your diypnp working. it's a much better platform. I wouldn't' be opposed to taking a look at it if you cover return shipping a few bones for my time.
Braineack is offline   Reply With Quote
Old 02-13-2010, 05:09 PM   #7
Elite Member
Thread Starter
iTrader: (7)

Join Date: Jul 2009
Location: Gainesville,Fl
Posts: 3,354
Total Cats: 7
Default

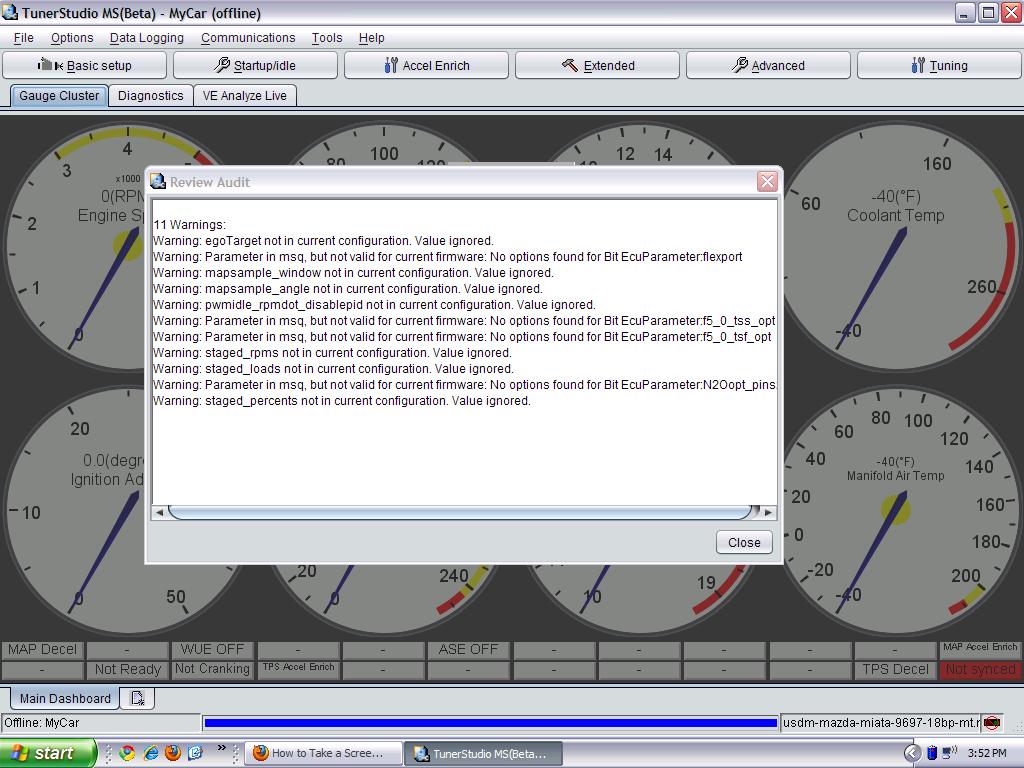

I tried using ms2extra rel 2.1.1a. with their start up map. Had to learn how to take a screen shot real quick.
Attached Thumbnails
officially computer stupid (diypnp)-untitledsdf.jpg
turotufas is offline   Reply With Quote
Old 02-13-2010, 05:12 PM   #8
Elite Member
Thread Starter
iTrader: (7)

Join Date: Jul 2009
Location: Gainesville,Fl
Posts: 3,354
Total Cats: 7
Default

Quote:
Originally Posted by Braineack View Post
or just get your diypnp working. it's a much better platform. I wouldn't' be opposed to taking a look at it if you cover return shipping a few bones for my time.
Thats alright with me.
turotufas is offline   Reply With Quote
Old 02-13-2010, 08:33 PM   #9
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Quote:
Originally Posted by turotufas View Post
I tried using ms2extra rel 2.1.1a. with their start up map. Had to learn how to take a screen shot real quick.
The warnings you are seeing are because you have a firmware mismatch. The firmware our start up map was based on was the 2.1.1 beta that was current at the time. You loaded a different/newer firmware into your ECU.

I'd recommend going ahead and loading the newest firmware, which right now is 3.0.3r available from the MSExtra website.

You will need to hand create the entire map, though you can move the spark and ve tables over as .vex files (import/export) if you want.

Sounds like you might have some other issue(s) as well, but we need to start with a good map before moving forward.
Ben is offline   Reply With Quote
Old 02-13-2010, 10:56 PM   #10
Elite Member
Thread Starter
iTrader: (7)

Join Date: Jul 2009
Location: Gainesville,Fl
Posts: 3,354
Total Cats: 7
Default

I started out with the 3.03r but when I had the first mismatch I tried the 2.1.1a. I'll go ahead and create the new map.

My spirits are lifted. Thank you.
turotufas is offline   Reply With Quote
Old 02-14-2010, 02:29 AM   #11
Elite Member
Thread Starter
iTrader: (7)

Join Date: Jul 2009
Location: Gainesville,Fl
Posts: 3,354
Total Cats: 7
Default

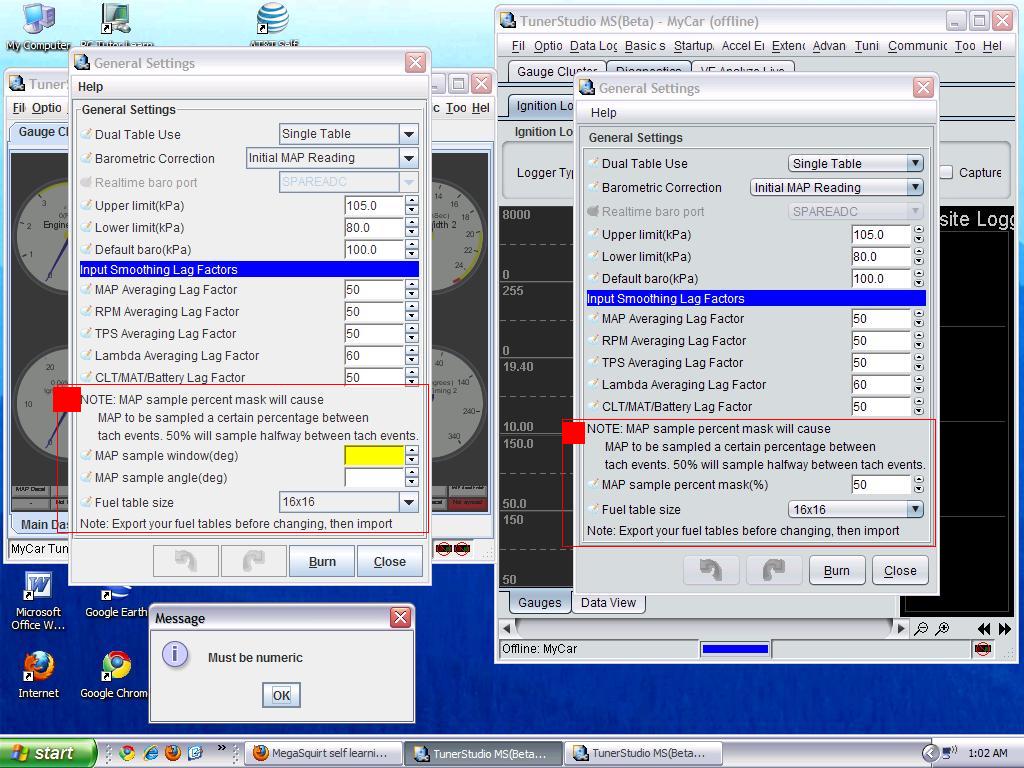

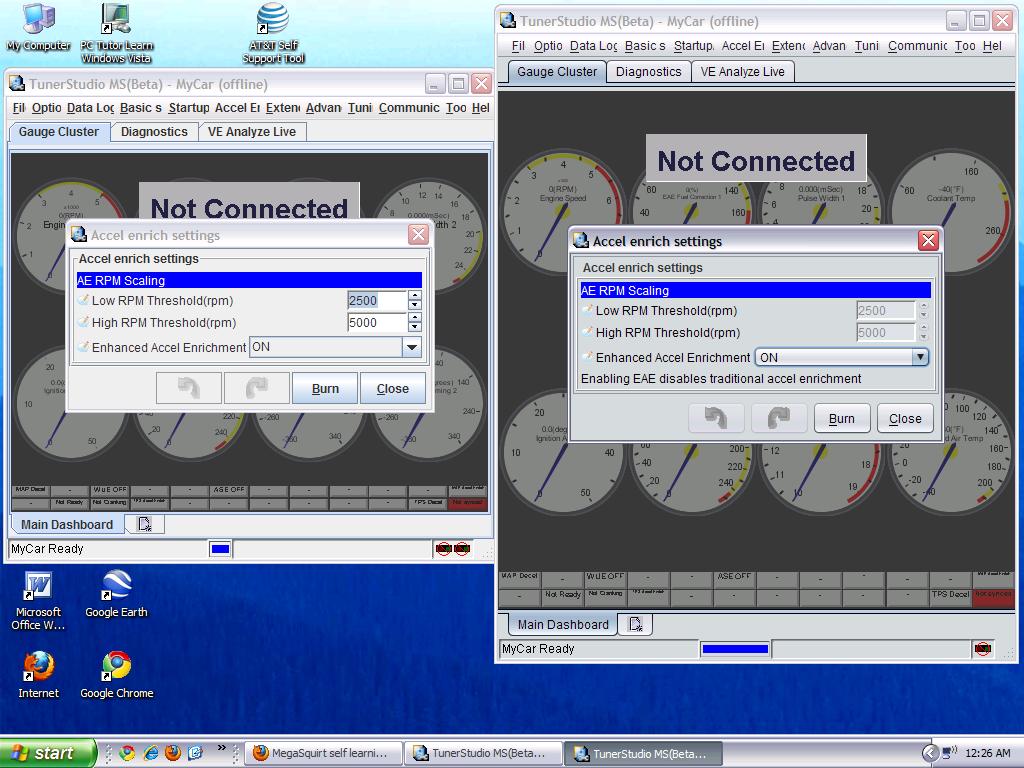

I finished the map. But there were some differences. If you guys wouldn't mind looking general settings and The acceleration wizard. I don't understand the values.
(left side is the new one)
edit: I also updated the firmware to 3.0.3r on the car.
Attached Thumbnails
officially computer stupid (diypnp)-untitleddfg.jpg   officially computer stupid (diypnp)-untitledgf.jpg
turotufas is offline   Reply With Quote
Old 02-14-2010, 02:46 AM   #12
Senior Member

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

Map sampling - try map sample window 10, map sample degree 90. That is what is standard in there.
Zaphod is offline   Reply With Quote
Old 02-14-2010, 04:05 AM   #13
Elite Member
Thread Starter
iTrader: (7)

Join Date: Jul 2009
Location: Gainesville,Fl
Posts: 3,354
Total Cats: 7
Default

Quote:
Originally Posted by Zaphod View Post
Map sampling - try map sample window 10, map sample degree 90. That is what is standard in there.
Okay I will. Thanks!

Right now I'm trying to read a bunch of new tuner studio threads.
turotufas is offline   Reply With Quote
Old 02-14-2010, 05:42 AM   #14
Junior Member

Join Date: Sep 2009
Location: Kennewick, WA
Posts: 67
Total Cats: 0
Default

If your back firing your timing is prob. way off.... Do you have a ms1 or 2 because i wasn't aware of a ms2 pnp. You can only run firmware for the chip you have, that would be a reason for errors. Need more info, please put your car setup in your sig.
ubenpdon is offline   Reply With Quote
Old 02-14-2010, 05:51 AM   #15
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

Quote:
Originally Posted by ubenpdon View Post
i wasn't aware of a ms2 pnp.
The DIYPNP is MSII based (well microsquirt)
richyvrlimited is offline   Reply With Quote
Old 02-14-2010, 10:14 AM   #16
Elite Member
Thread Starter
iTrader: (7)

Join Date: Jul 2009
Location: Gainesville,Fl
Posts: 3,354
Total Cats: 7
Default

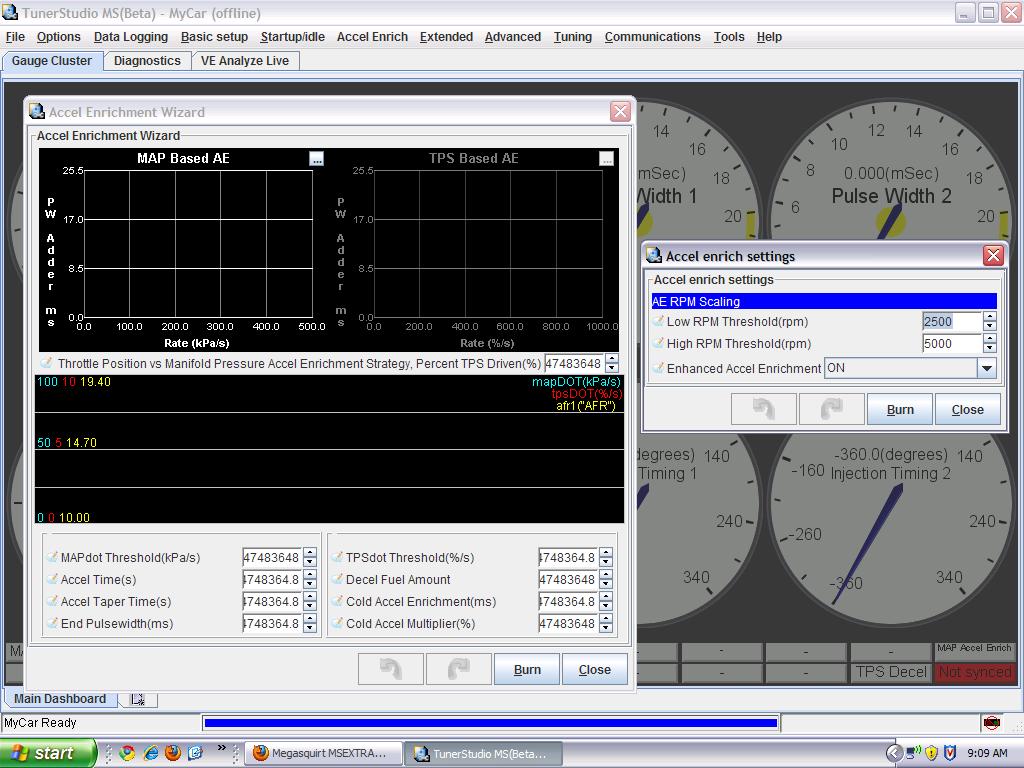

Currently looking for these values. Then I think I can move on.
Attached Thumbnails
officially computer stupid (diypnp)-untitled233.jpg
turotufas is offline   Reply With Quote
Old 02-14-2010, 11:13 AM   #17
Elite Member
Thread Starter
iTrader: (7)

Join Date: Jul 2009
Location: Gainesville,Fl
Posts: 3,354
Total Cats: 7
Default

Attached Files
File Type: msq 303.msq (19.8 KB, 73 views)
turotufas is offline   Reply With Quote
Old 02-14-2010, 12:32 PM   #18
Elite Member
Thread Starter
iTrader: (7)

Join Date: Jul 2009
Location: Gainesville,Fl
Posts: 3,354
Total Cats: 7
Default

I've read the Setting the Acceleration Enrichments in the tuning guide but I still don't understand how to get the values. Can someone point me in the right direction? Thanks.
turotufas is offline   Reply With Quote
Old 02-14-2010, 02:27 PM   #19
Junior Member

Join Date: Sep 2009
Location: Kennewick, WA
Posts: 67
Total Cats: 0
Default

Quote:
Originally Posted by turotufas View Post
I've read the Setting the Acceleration Enrichments in the tuning guide but I still don't understand how to get the values. Can someone point me in the right direction? Thanks.
That's something im still messing with, but one thing to keep in mind is that in the code the numbers you are setting are their percent or rate of change. In other words how fast your tps or map reading is moving. I would post my info up, but its not good enough yet...
ubenpdon is offline   Reply With Quote
Old 02-14-2010, 05:01 PM   #20
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

Here's what I've been using:

MAPdot threshold :100
Accel Time: 0.3
Accel Taper Time: 0.1
End Pulsewidth: 2.0
TPSdot threshold: 80.0
Decel Fuel Amount: 90
Cold Accel: 0.0
Cold Multiplier: 130

Rate (%/s):

65.8 - 1.0ms
330 - 1.3ms
627 - 1.6ms
938 - 2.5ms
Braineack is offline   Reply With Quote
