Old 02-23-2007, 12:11 PM   #1
Senior Member
Thread Starter
iTrader: (2)

Join Date: Feb 2006
Location: Mesa, AZ
Posts: 999
Total Cats: 0
Default Ok i guess i have an issue here

I used the diagrams that are shown on diyautotune's web site for configuring my board to work with the miata... http://diyautotune.com/tech_articles...azda_miata.htm

i hooked up the stim, and everything works but the RPM... (RPM was working off the stim before i did the outputs and these mods.)

SO i get to looking on here, and i see that Kags took a differant approch
https://www.miataturbo.net/forums/showthread.php?t=3061

So what diagram should i go by.. And should the RPM and the outputs work correctly on my Stim?

Here are some pics of my board..

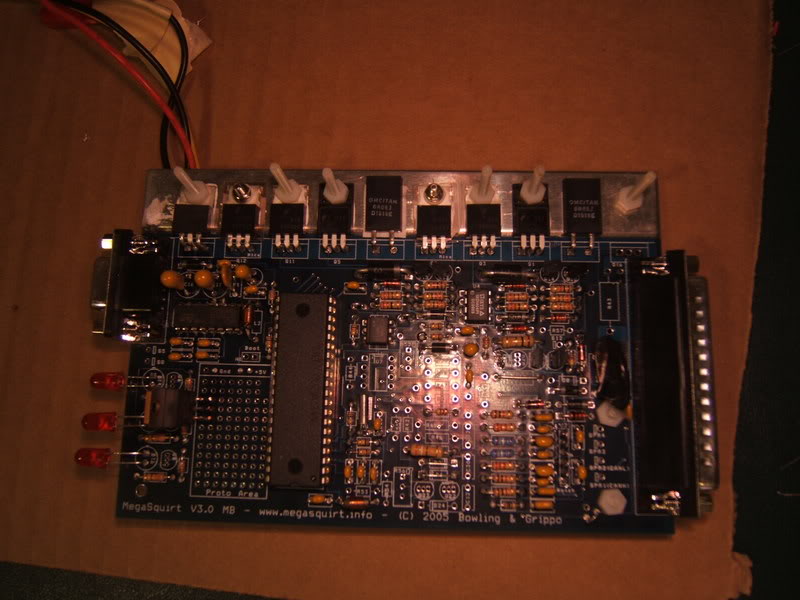

Name:  DSCF5125.jpg
Views: 1
Size:  75.8 KB

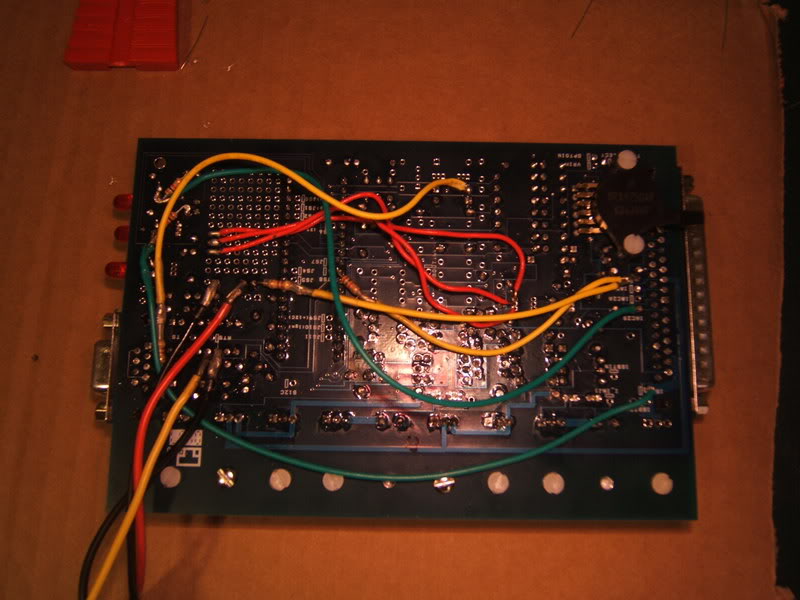

Name:  DSCF5124.jpg
Views: 1
Size:  76.0 KB
adbradley is offline   Reply With Quote
Old 02-23-2007, 12:33 PM   #2
Elite Member
iTrader: (12)

Join Date: Aug 2006
Location: Central-ish VA
Posts: 4,449
Total Cats: 16
Default

After performing the miata mod, rpm will not work on the stim. You have to plug it into the car with a laptop hooked up to it with megatune open to see if it is working.

What are those wires leaving the board for?
neogenesis2004 is offline   Reply With Quote
Old 02-23-2007, 12:37 PM   #3
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Think they might be for his USB adapter.

I also read that the STIM won't read RPM when you do the Miata mods.
cjernigan is offline   Reply With Quote
Old 02-23-2007, 12:37 PM   #4
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

Is that my WI controller you sliy dog you awsome. Or is it maybe boost controll?
magnamx-5 is offline   Reply With Quote
Old 02-23-2007, 12:48 PM   #5
Senior Member
Thread Starter
iTrader: (2)

Join Date: Feb 2006
Location: Mesa, AZ
Posts: 999
Total Cats: 0
Default

usb adapter


thanx, so i wonder why the mods that DIYautotune shows are differant than what kags and aussie have?

Hopefully they log on today to help me out
adbradley is offline   Reply With Quote
Old 02-23-2007, 01:05 PM   #6
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

you tried to plug it in yet?
magnamx-5 is offline   Reply With Quote
Old 02-23-2007, 01:05 PM   #7
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,295
Total Cats: 26
Default

Quote:
Originally Posted by adbradley View Post
usb adapter


thanx, so i wonder why the mods that DIYautotune shows are differant than what kags and aussie have?

Hopefully they log on today to help me out
I did the diyautotune ones also... hopefully they work.

I think i might try to startup the car in the next week or so on it... just to test before fabtime.
Splitime is offline   Reply With Quote
Old 02-23-2007, 01:26 PM   #8
Senior Member
Thread Starter
iTrader: (2)

Join Date: Feb 2006
Location: Mesa, AZ
Posts: 999
Total Cats: 0
Default

nope, still gotta build the plug.. i guess i will do it this weekend
adbradley is offline   Reply With Quote
Old 02-23-2007, 01:35 PM   #9
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,295
Total Cats: 26
Default

Quote:
Originally Posted by adbradley View Post
nope, still gotta build the plug.. i guess i will do it this weekend
Heh, thats all I have left. I'm feeling lazy though.
Splitime is offline   Reply With Quote
Old 02-23-2007, 02:11 PM   #10
Senior Member
Thread Starter
iTrader: (2)

Join Date: Feb 2006
Location: Mesa, AZ
Posts: 999
Total Cats: 0
Default

split did you install the VR circuit? step 51? adn did u install the stuff for the high current ignition driver step 65?
adbradley is offline   Reply With Quote
Old 02-23-2007, 02:53 PM   #11
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,295
Total Cats: 26
Default

I installed the vr circuit when i thought i had problems somewhere with rpm... no need to instal VR though. I'll have to look at mine, i don't remember if i did 65 or not.

I don't think i setup 65. I believe thats what our coils/driver are for. That circuit is for running the vb thingy off the board in q16.
Splitime is offline   Reply With Quote
Old 02-23-2007, 04:08 PM   #12
Senior Member
Thread Starter
iTrader: (2)

Join Date: Feb 2006
Location: Mesa, AZ
Posts: 999
Total Cats: 0
Default

ok goood

so our boards should look about the same except for the usb thing
adbradley is offline   Reply With Quote
Old 02-23-2007, 07:10 PM   #13
Junior Member

Join Date: Nov 2005
Location: Down Under
Posts: 252
Total Cats: 0
Default

Quote:
Originally Posted by adbradley View Post
usb adapter


thanx, so i wonder why the mods that DIYautotune shows are differant than what kags and aussie have?

Hopefully they log on today to help me out
The DIYautotune board mods are different to my board mods (and kags as he copied my mods) as they are a 'development' of our work. I'm not sure exactly why they are a development as my board mods have been going strong for the last 13 months of daily driving, but I guess they you could modify your board either way and it should work without any problems.
Aussie Driver is offline   Reply With Quote
Old 02-23-2007, 07:48 PM   #14
Junior Member

Join Date: Jun 2005
Location: Huntington Beach, CA
Posts: 354
Total Cats: 0
Default

The RPM will NOT READ if you do the miata CAS/Coil mods and set the corresponding wheel decoder settings. To get it to work, go to "Spark"->"Stim for Wheel" and turn the Simulator On, be sure to turn it OFF BEFORE PUTTING THE MS IN YOUR CAR!!! All should be well, the sun won't burn out, and the world will still turn.
iWeasel410 is offline   Reply With Quote
Old 02-24-2007, 01:03 AM   #15
Newb

Join Date: Feb 2007
Location: Qc, Canada
Posts: 43
Total Cats: 0
Default

To get the rpm functionnal by the stim you have to set, under megatune menu, basic setting/codebase and ouputs function and set MSNS(distributor) and unset wheel decoder, just for the time you test it. Don't forget to switch back before installing it in the car
mazdasly75 is offline   Reply With Quote
Old 02-26-2007, 01:03 AM   #16
Senior Member
Thread Starter
iTrader: (2)

Join Date: Feb 2006
Location: Mesa, AZ
Posts: 999
Total Cats: 0
Default

i tried both of those things, but not rpm from the stim
adbradley is offline   Reply With Quote
Old 02-26-2007, 08:13 PM   #17
Newb

Join Date: Feb 2007
Location: Qc, Canada
Posts: 43
Total Cats: 0
Default

How do you know your stim's working??

I experienced a bad tps pot the stim. I was getting no signal, it was stucked at 0....Try searching around the 2 rpm's POT, get resistance of each one. From memory, one's 10k and the other one's 1k
mazdasly75 is offline   Reply With Quote
