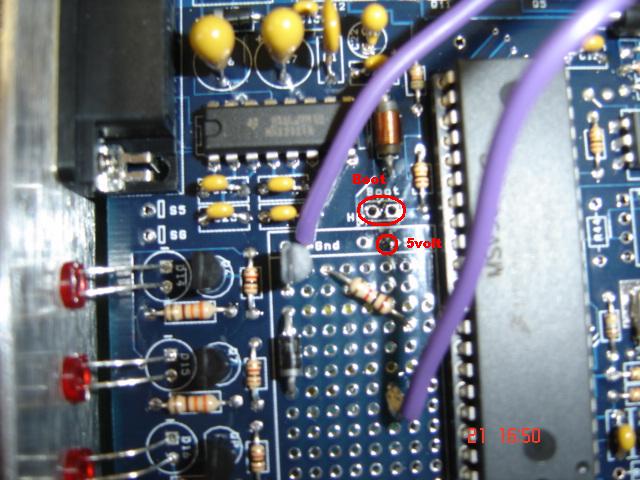

This is the story: Thursday afternoon the postie delivers my MS. Very excited! Even better is I started the first of 6 night shifts that night and building MS would be the perfect night shift project. So I build it as per Braineack's guide and the Megasquirt assembly instructions. All goes well untill this morning. It's 4am and 2 hours till I can go home. I have the laptop hooked up and the Stim and I am playing around getting familiar with the software. For some reason I decide to redo the Easy Therm settings( it is 4am remember). So I change the setting's, depower MS, install boot jumper, power up MS and download changes. Perfect. Now, depower MS and remove boot jumper but can't get to the little jumper with my fingers so I use my side cutters, as I grab the jumper I see the the 3 LED's flicker....WHAT! Like a donut I forgot to depower MS didn't I!!! So I think what I did was short the boot pins to the 5volt pin which is very close. See picture below.
OK. I'm a retard!! What on MS did I fry?-dsc02269.jpg
So when I calm done and put the knife away before I slash my wrists. I check for damage. The software is running fine just like before. The 3 LED's next to the DB9 connector are another story.
OK. I'm a retard!! What on MS did I fry?-dsc02268.jpg

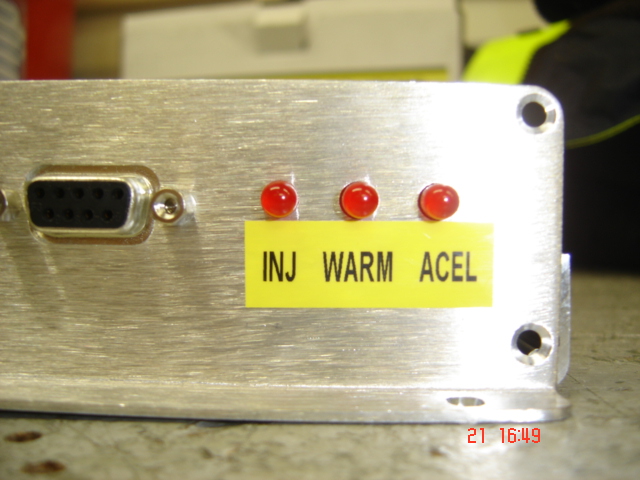

The INJ LED work's as before. The warmup LED stay's on all the time even though on Megatune it is off. It only turns off when I reduce the rpm pot on the Stim to zero. The accell LED mimics the INJ LED exactly.
So. After the noob flaming, tell me, have I fried the CPU or a transistor or transistor's that switch the LED's?

Last edited by Greenie; 12-21-2008 at 05:02 AM. Reason: Spell check
Greenie is offline   Reply With Quote
Old 12-21-2008, 02:20 AM   #2
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,315
Total Cats: 1,913
Default

Before you go slashing anything, open MegaTune and have a look at the "Codebase and Output" box under Basic Settings. The functions of those LEDs are user-definable, so see what parameter is driving the middle LED.

Joe Perez is offline   Reply With Quote
Old 12-21-2008, 02:43 AM   #3
Newb
Thread Starter

Join Date: Nov 2008
Location: Auckland,NZ
Posts: 43
Total Cats: 0
Default

OK Joe, all that checks out, LED 17 Spark A
LED 18 Warm up
LED 19 Acceleration

If I change LED 18 to output 4 it flickers with the other two. and when I turn the rpm pot right down 18 goes off, 19 goes on solid for about a second then goes off and 17 comes on and stays on untill I turn up rpm and then all the flickering starts again.

Not looking good for the CPU!
Greenie is offline   Reply With Quote
Old 12-21-2008, 04:58 AM   #4
Newb
Thread Starter

Join Date: Nov 2008
Location: Auckland,NZ
Posts: 43
Total Cats: 0
Default

Well for $18 I've just ordered a new CPU from DIYAutotune plus the postage to NZ. I'm gona have to take this one on the chin. What a *****!!
Greenie is offline   Reply With Quote
Old 12-21-2008, 12:11 PM   #5
Elite Member
iTrader: (5)

akaryrye's Avatar

Join Date: Jul 2006
Location: Central California
Posts: 2,526
Total Cats: 0
Default

dude, i really dont think anything is messed up. It sounds like the firmware is corrupt. Why not try to reload one more time
akaryrye is offline   Reply With Quote
Old 12-22-2008, 01:25 AM   #6
Newb
Thread Starter

Join Date: Nov 2008
Location: Auckland,NZ
Posts: 43
Total Cats: 0
Default

Good point. I didn't try to reload the firmware. Unfortunately I havn't got it at work tonight. I decided not to play with electronics on night shift anymore. Will give it a go when I get up tomorrow.

Thanks for the advice.
Greenie is offline   Reply With Quote
Old 12-22-2008, 02:03 AM   #7
Elite Member
iTrader: (8)

Join Date: Oct 2007
Location: Dallas
Posts: 1,841
Total Cats: 0
Default

Quote:
Originally Posted by akaryrye View Post
dude, i really dont think anything is messed up. It sounds like the firmware is corrupt. Why not try to reload one more time
+1, Try it. I thought i completely burnt mine up before. This fixed it.
Good Luck!
Toddcod is offline   Reply With Quote
Old 12-22-2008, 04:04 AM   #8
Newb
Thread Starter

Join Date: Nov 2008
Location: Auckland,NZ
Posts: 43
Total Cats: 0
Default

Hey Ogwazza,
Can't PM yet.
Have been asleep all day and didn't bring it in to work tonight. I also remember reading about no boot jumper with Msnse. Will give it a go tomorrow. As for Easytherm I do seem to remember a prompt to power down and install boot jumper, but not sure as night shifts tend to get blurry towards the end
No wisdom yet, still working on it.
Greenie is offline   Reply With Quote
Old 12-22-2008, 11:48 AM   #9
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

Take that label off the megasquirt. The two outer lights wont do anything but stay lit permanently after you do the miata mods.
Saml01 is offline   Reply With Quote
Old 12-22-2008, 11:54 AM   #10
Newb
Thread Starter

Join Date: Nov 2008
Location: Auckland,NZ
Posts: 43
Total Cats: 0
Default

And I'll never see them again once it's installed!
Greenie is offline   Reply With Quote
Old 12-22-2008, 12:08 PM   #11
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,823
Total Cats: 1,781
Default

Quote:
Originally Posted by Greenie View Post
And I'll never see them again once it's installed!

and are incorrectly labeled.
Braineack is online now   Reply With Quote
Old 12-23-2008, 01:27 AM   #12
Newb
Thread Starter

Join Date: Nov 2008
Location: Auckland,NZ
Posts: 43
Total Cats: 0
Default

And the yellow doesn't go with brushed aluminium
Greenie is offline   Reply With Quote
Old 12-23-2008, 05:30 AM   #13
Newb
Thread Starter

Join Date: Nov 2008
Location: Auckland,NZ
Posts: 43
Total Cats: 0
Default

Akaryrye, You da man! Reloaded firmware and it now works as before.
Cheers!
Greenie is offline   Reply With Quote
Old 12-24-2008, 11:57 AM   #14
Junior Member
iTrader: (2)

Join Date: Sep 2008
Location: Sandy, Utah
Posts: 175
Total Cats: 0
Default

Hey Greenie - Where are you in Auckland? I spent some time in Browns Bay, Milford and Mt. Albert areas. Miss it like crazy down there! Especially now that there's snow all over up here.

I could go for some Tim Tams and Milo right now....

-SC
Cpt_Slow is offline   Reply With Quote
Old 12-26-2008, 04:38 AM   #15
Junior Member
iTrader: (6)

Join Date: Aug 2008
Location: New Zealand
Posts: 250
Total Cats: 3
Default

Haha cant beat a bbq and beers in the sun at christmas! Plus dont forget your marmite
ogwazza is offline   Reply With Quote
Old 12-28-2008, 01:40 PM   #16
Newb
Thread Starter

Join Date: Nov 2008
Location: Auckland,NZ
Posts: 43
Total Cats: 0
Default

Hey SC, I live out towards Port Waikato. Just to rub it in, weather has been great. Building decks, drinking beer and bbq'ing in the sun. Enjoy the snow.
