Default Onboard usb connector for MS2!

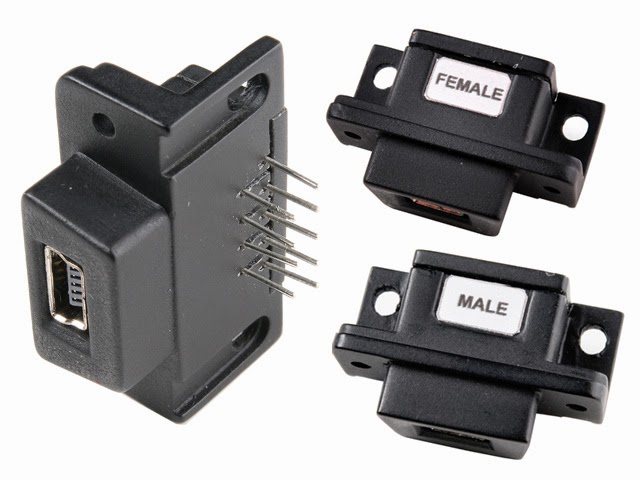

Found this the other day and decided to order a couple.
They have a FTDI chipset so should work perfect for MS2 and are a lot easier than messing with converters!

Attached Thumbnails
Onboard usb connector for MS2!-db9_usb_rs232.jpg
WestfieldMX5 is offline   Reply With Quote
Old 05-15-2014, 03:41 PM   #2
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 198
Default

1) They are expensive.
2) In some cases, I couldn't load the MS2 firmware through those. I had to piggyback a serial port connector.
3) If your OS happens to dislike the FTDI driver, your are done.
4) The port is a little tight; I had to convince customers to really give the cable a good push until it makes a click.
5) Can't be used with bluetooth converters
6) A little sensitive to RF noise; won't work well if you have Low-Z injector drivers on the V3.0 board, lots of comm drops.
7) Some were DoA; good luck getting a refund on an EXPENSIVE component.
Reverant is offline   Reply With Quote
Old 05-15-2014, 06:04 PM   #3
Senior Member
Thread Starter

Join Date: Nov 2007
Location: Belgium
Posts: 939
Total Cats: 59
Default

Well, that's not good :(
I have a couple of them in 5V level and some in RS232 level so I'm gonna test both out.
Which ones did you use?
WestfieldMX5 is offline   Reply With Quote
Old 05-16-2014, 04:06 AM   #4
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 198
Default

RS232 level.
