Default Pic Request: Mounting Location of Your MS3X in '90-'93 Miata 1.6

Just like the title says. I'm finishing up my wiring and its about time to get the ECU where it needs to be instead of on the floor with the carpet ripped up. I don't want to put it in the stock location as is barely fits, and I tend to get some water on the floor when it rains hard (not a nice place for an expensive ECU).

I'm thinking about mounting it in the glove box or zip tied to the black plastic A/C (or heat?) ducting underneath the glove box... It doesn't look like it will fit on the transmission tunnel without looking silly.

Thanks!
Ds1 is offline   Reply With Quote
Old 04-29-2014, 01:41 AM   #2
I'm Miserable!
iTrader: (1)

Join Date: Aug 2011
Location: SWFloriduh
Posts: 114
Total Cats: 9
Default

I took a piece of flat steel, put a bend it with one end about 2" the other about 8" (going off memory) forming an L-bracket.
Drilled a hole in the 2" end and screwed it down with the nut that holds the top of the OEM ECU cover (visible without moving the carpet). The long end of the L-bracket got screwed with a self tapping screw to the metal support bar under the glove box.
The MegaSquirt got attached to the bottom of the L-bracket with big *** zip ties and a piece of foam in between so there's no metal on metal contact.

Not pretty but it took a few minutes to make and tucked everything up out of sight under the dash.
Boris is offline   Reply With Quote
Old 04-29-2014, 01:06 PM   #3
Ds1
Junior Member
Thread Starter
iTrader: (2)

Join Date: Feb 2011
Posts: 283
Total Cats: -31
Default

Cool, thats not a bad idea... now PICS!
Ds1 is offline   Reply With Quote
Old 04-29-2014, 01:22 PM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

stock location, ignored puddle of water.
Braineack is offline   Reply With Quote
Old 04-29-2014, 04:23 PM   #5
Junior Member

Join Date: Sep 2011
Location: finger lakes NY
Posts: 444
Total Cats: 17
Default

The MS3Pro is waterproof. Just get that. Problem solved.
DaveC is offline   Reply With Quote
Old 04-29-2014, 04:39 PM   #6
Senior Member
iTrader: (4)

Join Date: Jul 2006
Location: Shelton, CT
Posts: 672
Total Cats: 2
Default

Put stock padding on top and bottom, shoved into stock location, bolted down cover.
Harv is offline   Reply With Quote
Old 04-29-2014, 09:51 PM   #7
Ds1
Junior Member
Thread Starter
iTrader: (2)

Join Date: Feb 2011
Posts: 283
Total Cats: -31
Default

Ds1 is offline   Reply With Quote
Old 04-30-2014, 12:56 AM   #8
I'm Miserable!
iTrader: (1)

Join Date: Aug 2011
Location: SWFloriduh
Posts: 114
Total Cats: 9
Default

Couldn't put mine in stock location due to the size and ABS module fighting for space.

Got no pictures, too lazy.
Boris is offline   Reply With Quote
Old 04-30-2014, 11:46 AM   #9
Ds1
Junior Member
Thread Starter
iTrader: (2)

Join Date: Feb 2011
Posts: 283
Total Cats: -31
Default

I think I'm going to attempt to put it in my glove box. Wish me luck.
Ds1 is offline   Reply With Quote
Old 04-30-2014, 11:48 AM   #10
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

i doubt it will fit in the glove box.

But putting it in the stock location, with or without ABS, is too simple a solution I know.
Braineack is offline   Reply With Quote
Old 04-30-2014, 11:50 AM   #11
Ds1
Junior Member
Thread Starter
iTrader: (2)

Join Date: Feb 2011
Posts: 283
Total Cats: -31
Default

I've seen other pictures of people mounting them there, just not specifically an MS3X. I'll measure twice and cut once
Ds1 is offline   Reply With Quote
Old 04-30-2014, 08:14 PM   #12
atl
Junior Member

Join Date: Apr 2014
Location: atlanta ga
Posts: 77
Total Cats: -58
Default

wish i should have seen this thread, before i sold my ms. i had mine placed, on the trans tunnel, behind the dash
atl is offline   Reply With Quote
Old 04-30-2014, 11:29 PM   #13
Ds1
Junior Member
Thread Starter
iTrader: (2)

Join Date: Feb 2011
Posts: 283
Total Cats: -31
Default

On the trans tunnel? Under the dash? How the heck did you fit it in there?
Ds1 is offline   Reply With Quote
Old 05-01-2014, 12:06 AM   #14
I'm Miserable!
iTrader: (1)

Join Date: Aug 2011
Location: SWFloriduh
Posts: 114
Total Cats: 9
Default

Quote:
Originally Posted by Braineack View Post
But putting it in the stock location, with or without ABS, is too simple a solution I know.
Especially when it doesn't physically fit but what do I know, I only have one.
Guess I should have stuck with my MS1 since it did fit but I'll live with the shame.
Boris is offline   Reply With Quote
Old 05-01-2014, 10:34 AM   #15
Senior Member
iTrader: (4)

Join Date: Jul 2006
Location: Shelton, CT
Posts: 672
Total Cats: 2
Default

Quote:
Originally Posted by Boris View Post
Especially when it doesn't physically fit but what do I know, I only have one.
Guess I should have stuck with my MS1 since it did fit but I'll live with the shame.
How big is the ABS module? I had plenty of room without ABS.
Harv is offline   Reply With Quote
Old 05-01-2014, 10:52 AM   #16
Ds1
Junior Member
Thread Starter
iTrader: (2)

Join Date: Feb 2011
Posts: 283
Total Cats: -31
Default

Very large, apparently.
Ds1 is offline   Reply With Quote
Old 05-01-2014, 12:30 PM   #17
Senior Member
iTrader: (4)

Join Date: Jul 2006
Location: Shelton, CT
Posts: 672
Total Cats: 2
Default

I'm gonna need to see pics to prove you have such a big ABS module.
Harv is offline   Reply With Quote
Old 05-01-2014, 12:39 PM   #18
Ds1
Junior Member
Thread Starter
iTrader: (2)

Join Date: Feb 2011
Posts: 283
Total Cats: -31
Default

Quote:
Originally Posted by Harv View Post
I'm gonna need to see pics to prove you have such a big ABS module.
Aw crap, this thread turned gay already?!
Ds1 is offline   Reply With Quote
Old 05-01-2014, 01:41 PM   #19
Senior Member
iTrader: (4)

Join Date: Jul 2006
Location: Shelton, CT
Posts: 672
Total Cats: 2
Default

What do you mean already? That was way late.
Harv is offline   Reply With Quote
Old 05-05-2014, 04:39 PM   #20
Junior Member

Join Date: Feb 2012
Location: Johnson City, Tn
Posts: 70
Total Cats: 1
Default

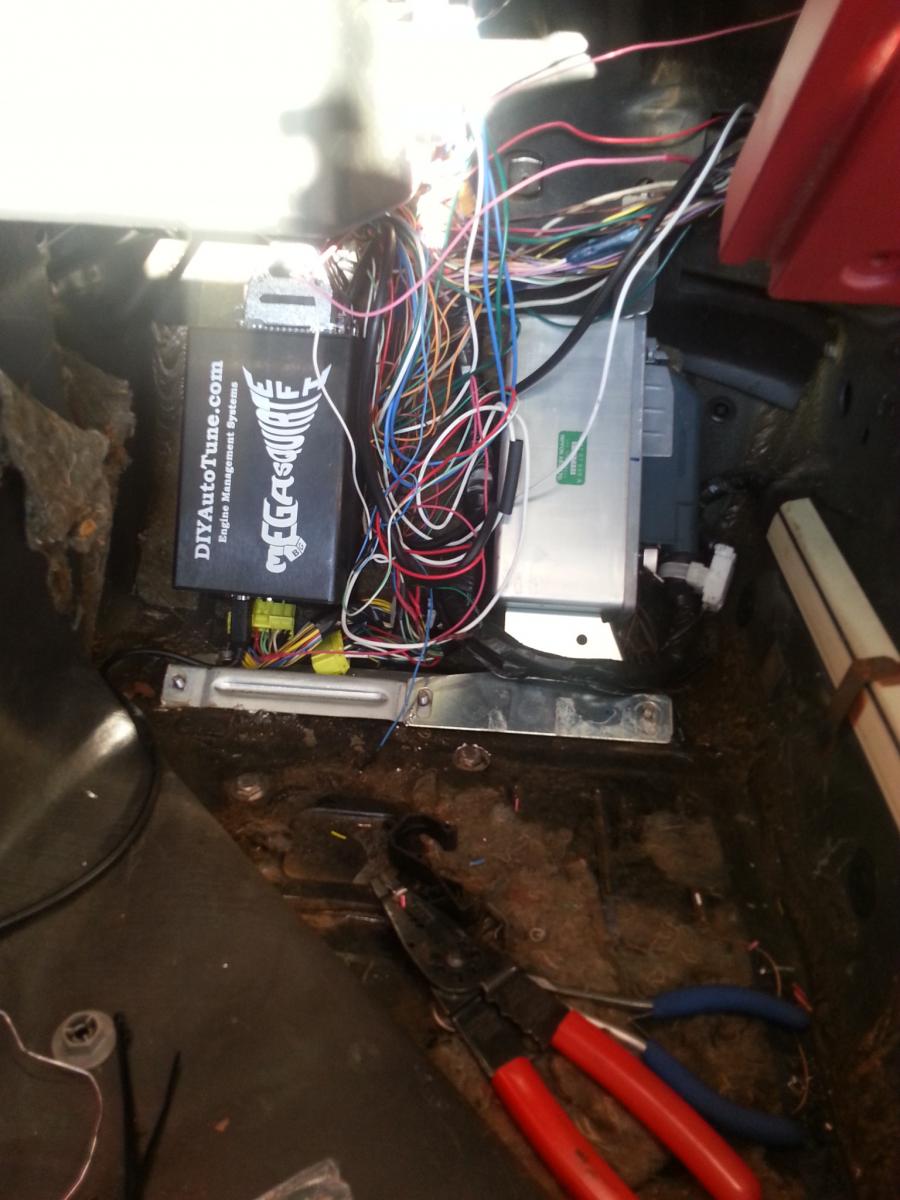

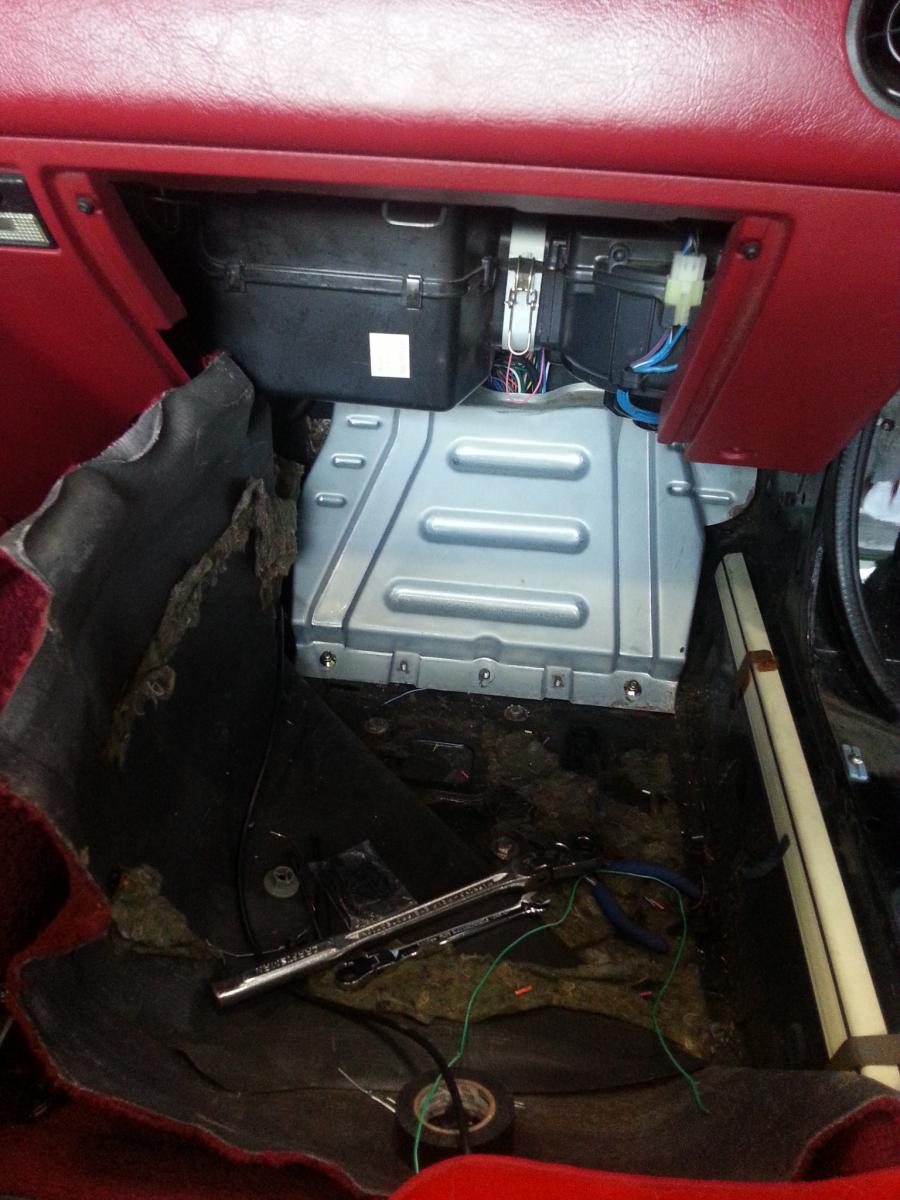

Maybe that is why I am having issues. I got it stuffed in easily with the ABS unit in place (93 LE). Of course, I tested fit before I soldered all the wires in place.

The wires were cleaned up a lot between the before and after pictures.
