Default Questions on IAT and where to mount in SC Car

Hi Guys,

Been reading a lot on these forums. trying to soak in as much info as possible. I just received a new MS2 bought from another user this week. The description is as follows:

MS2 enhanced from revenant. set up for 1997 1.8l with sequential fuel injection, calibrated from him to run 460cc injectors running n/a, with PS and AC. its NEVER been installed.

The car I plan on using this on is a 97 with an m45 supercharger, ac, ps...
i do have 460cc injectors but not installed. The unit did not come with an iat and the question i have is what would be the best place to mount the iat on an sc car? i am not running an intercooler at this point. and which would be the best one to buy? i see a stainless and aluminum bung versions are offered. any thoughts or suggestions would be great? thanks
bubb is offline   Reply With Quote
Old 02-04-2013, 01:17 AM   #2
Senior Member
iTrader: (8)

Join Date: Feb 2012
Location: Raleigh, NC
Posts: 617
Total Cats: 53
Default

Well first question would be what is your intake piping made out of? Assuming its aluminum tubing running from the SC to the TB, go with the aluminum bung option unless you are a MAGI and can weld a stainless bung onto your aluminum piping. You can also choose to tap the tubing you have now with the correct threading to mount the sensor directly into it or get the bung welded on and run the sensor in it.

Alternatively, your post makes it sound like you will have an intercooler in the near future. If this is true I'd go ahead and wire and install the IAT near the TB or relatively close with extra wiring. When the IC is finally in your system, you want the IAT to be installed at or just after the IC outlet. This gives you minimal heat soak and an appropriate reading for IATs.

Last edited by petrolmed; 02-04-2013 at 02:02 AM.
petrolmed is offline   Reply With Quote
Old 02-04-2013, 01:32 AM   #3
Newb
Thread Starter

Join Date: Feb 2012
Posts: 12
Total Cats: 0
Default

Thanks for the reply. I haven't decided on an intercooler yet. Will have to see how things go. i do have the aluminum crossover pipe but i've read that having the iat sensor up in the engine will screw with the readings when the car is started after being hot. i'm just trying to get some suggestions on where to put the iat for my current configuration to prevent heat soak. if that's my only choice then that's where i'll mount it. Thanks again
bubb is offline   Reply With Quote
Old 02-04-2013, 01:47 AM   #4
Senior Member
iTrader: (8)

Join Date: Feb 2012
Location: Raleigh, NC
Posts: 617
Total Cats: 53
Default

I've not yet installed my turbo, but having my IAT installed in the engine bay on the hot side with the stock intake I've even had heak soak issues with hot starts. Granted, my AFRs in these situations are high at idle (greater than 15) but once you get driving its minimized. It may be less when on the cold side right before the TB but I've read of similar conditions occurring regardless.

If I were you running a wonderful MS with IAT and all, get a cheap intercooler system now for more potential power and efficiency and do the sensor install ONCE. If you use whatever tubing you have now it will work, but you'll have to redo it later when you finally want that IC. With the crossover tube, you'll have similar hot start issues regardless of where you place the IAT. Obviously, farther from the exhaust and not behind the radiator will give you less trouble, but you'll still get heatsoak at any of its possible locations. From what I've read, you're only really safe from it down in front of the radiator, post IC outlet for good readings.
petrolmed is offline   Reply With Quote
Old 02-04-2013, 11:29 AM   #5
Newb
Thread Starter

Join Date: Feb 2012
Posts: 12
Total Cats: 0
Default

Thanks for that. will look for a cheap ic.
bubb is offline   Reply With Quote
Old 02-05-2013, 11:27 AM   #6
Junior Member
iTrader: (1)

Join Date: May 2011
Location: South Jersey
Posts: 95
Total Cats: 3
Default

Quote:
Originally Posted by bubb View Post
Thanks for that. will look for a cheap ic.
The throttle body ( real one) on the blower is back on the blower its self normally, adding an intercooler has an effect of adding a ton of volume to the "manifold" you run into issues with idle droop and throttle lag if you just toss in a cheap old intercooler.

another option is Alcohol/water injection, or a dual TB set up... the TDR intercooler set up works well, but is $$.

Mount the IAT as close to the intake manifold as you possibly can with the S/C. If you add water injection, spray before temp. ( IAT temps on the m45 may get as hot at 240*, and will evaporate the water/meth before it hits sthe sensor)
tuckntruck is offline   Reply With Quote
Old 02-05-2013, 11:28 AM   #7
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

last night the ambient sensor on my DD, which is in front of the radiator, read 50F after It was parked in my garage for a few minutes. It quickly dropped to 27F when I backed out of the driveway.
Braineack is offline   Reply With Quote
Old 02-05-2013, 12:14 PM   #8
Junior Member
iTrader: (1)

Join Date: May 2011
Location: South Jersey
Posts: 95
Total Cats: 3
Default

personaly, I'd be game for using nitrous rather than Meth. to cool the intake charge.

If I had to guess, M45 with a "25" shot from 4000-7000 rpm would work... and likely make crazy power for an m45... but one small miss step in the tuning, and the whole things going boom!

but, it would be fun right up to that point.
tuckntruck is offline   Reply With Quote
Old 02-05-2013, 12:41 PM   #9
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

would it?
Braineack is offline   Reply With Quote
Old 02-05-2013, 12:51 PM   #10
Junior Member
iTrader: (1)

Join Date: May 2011
Location: South Jersey
Posts: 95
Total Cats: 3
Default

In most YouTube videos, it would seem the greatest elation happens immediately prior to panic despair, so I would conclude that the moment before boom = fun

In reality a 25 shot would prob. Be fine, nO2 under boost behaves a bit differently though, and is more effective with the combine charge cooling, and extra oxygen. Just make sure you fuel for it.
tuckntruck is offline   Reply With Quote
Old 02-05-2013, 10:14 PM   #11
Newb
Thread Starter

Join Date: Feb 2012
Posts: 12
Total Cats: 0
Default

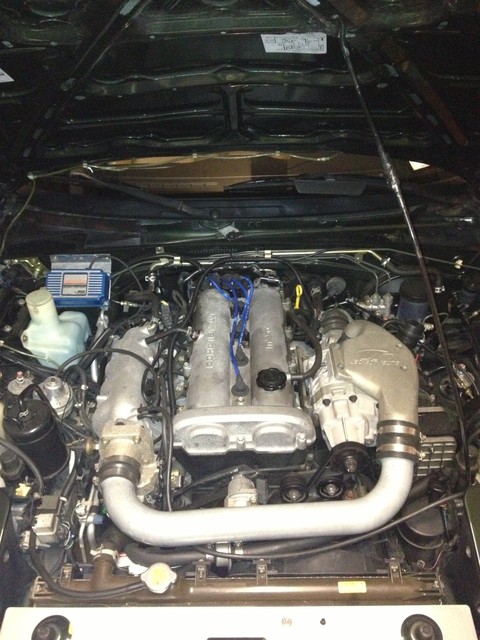

I don't think i want to mess with adding no2 to the car but thanks for the suggestion. Here is the car as it sits now



From my reading i believe i will need to remove the msd ignition module and the afpr. It also came with the dummy throttle body and yes i will need to change that radiator out real soon. any more input from you guys? thanks!
Attached Thumbnails
Questions on IAT and where to mount in SC Car-photo1hm.jpg   Questions on IAT and where to mount in SC Car-photo1hm.jpg   Questions on IAT and where to mount in SC Car-photo1hm.jpg
bubb is offline   Reply With Quote
Old 02-05-2013, 10:43 PM   #12
Junior Member
iTrader: (1)

Join Date: May 2011
Location: South Jersey
Posts: 95
Total Cats: 3
Default

I was somewhat joking about the "naazzz" but, yes put the IAT as close to the dummy throttle body as you can. If you intercom it, you will replace the entire pipe. I'd get the aluminum bung welded in
tuckntruck is offline   Reply With Quote
Old 02-06-2013, 09:31 AM   #13
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

Quote:
Originally Posted by tuckntruck View Post
In most YouTube videos, it would seem the greatest elation happens immediately prior to panic despair, so I would conclude that the moment before boom = fun

In reality a 25 shot would prob. Be fine, nO2 under boost behaves a bit differently though, and is more effective with the combine charge cooling, and extra oxygen. Just make sure you fuel for it.
and still slower and less torque than the simplest of turbo builds.
Braineack is offline   Reply With Quote
Old 02-06-2013, 09:53 AM   #14
Junior Member
iTrader: (1)

Join Date: May 2011
Location: South Jersey
Posts: 95
Total Cats: 3
Default

Quote:
Originally Posted by Braineack View Post
and still slower and less torque than the simplest of turbo builds.
Most likely, but, he's already got the blower in the car.
tuckntruck is offline   Reply With Quote
Old 02-06-2013, 04:54 PM   #15
Newb
Thread Starter

Join Date: Feb 2012
Posts: 12
Total Cats: 0
Default

Yah the blower came with the car. i've sat in a turbo car and yes it did feel great i'm just not ready to rip everything out and install a turbo just yet. figured i'd start with this and see where i get with it. doesn't hurt to learn and thanks again for the input.
bubb is offline   Reply With Quote
Old 02-13-2013, 12:50 PM   #16
Newb

Join Date: Jun 2008
Posts: 15
Total Cats: -1
Default

I had on my 1.6 a M45 with h2o Injection, and using boost pullie the car run great but just using JS Safeguard and the JR addons, soon will get a proper ecu upgrade
AMMendes is offline   Reply With Quote
Old 02-13-2013, 02:19 PM   #17
Supporting Vendor

DIYAutoTune's Avatar

Join Date: Feb 2013
Posts: 63
Total Cats: 7
Default

I prefer to inject water over anything else. Its cheaper and less of a boom when you inject it.
DIYAutoTune is offline   Reply With Quote
Old 02-13-2013, 02:35 PM   #18
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

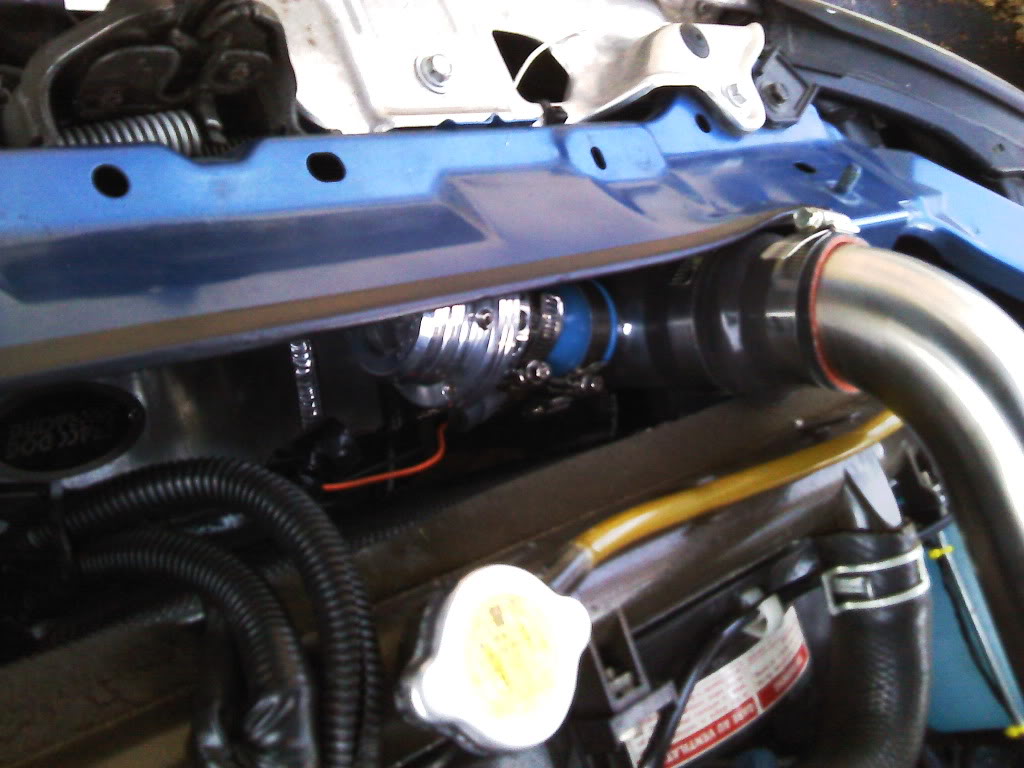

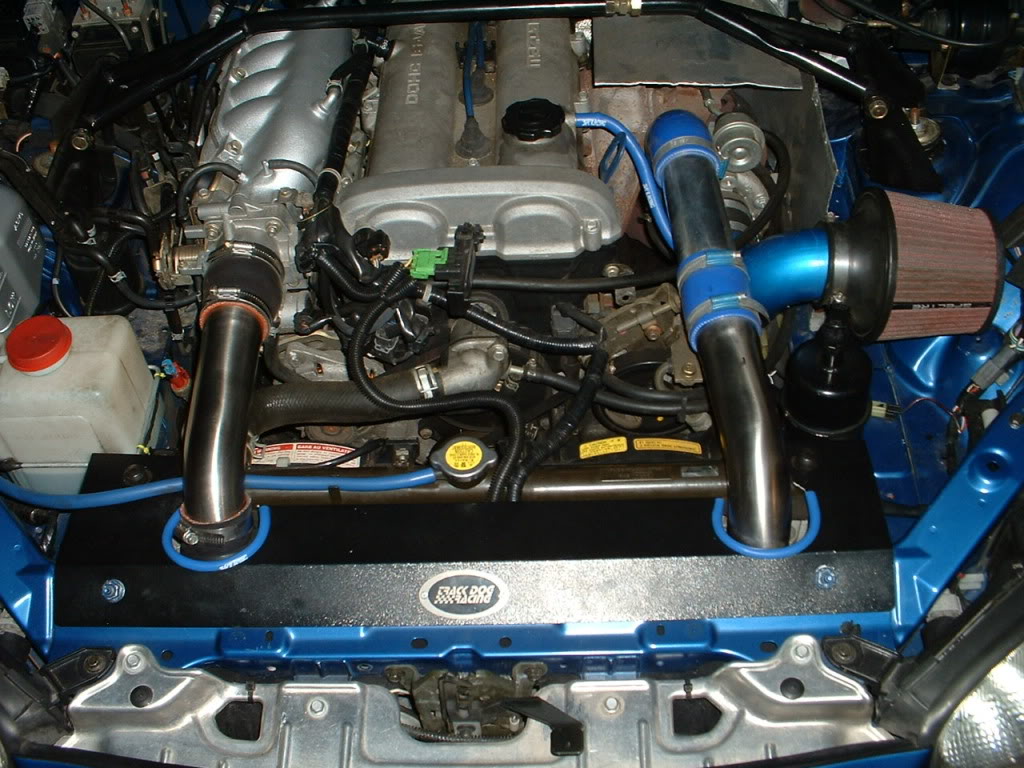

I am running a Track Dog IC originally made for a 45 on my turbo setup, fits lovely. I had to cut the bent pipe that goes to the SC.

See IAT sensor under BOV.



Attached Thumbnails
Questions on IAT and where to mount in SC Car-p081110_1626_03.jpg   Questions on IAT and where to mount in SC Car-dscf0005.jpg
triple88a is offline   Reply With Quote
Old 02-14-2013, 04:43 PM   #19
Newb
Thread Starter

Join Date: Feb 2012
Posts: 12
Total Cats: 0
Default

Thanks for that. Problem is i don't have an intercooler yet. That tdr kit looks nicely built just expensive as hell.
