Default Racepak module for Megasquirt



A while back I got the guys at Racepak and DIY autotune together to create an EFI interface module for the MSI & MSII. They have worked their magic, it's done and available now. Fully compatible with DIY's Megasquirt PnP & DIYPnP.

This $375 module allows the following data to be displayed and logged in your G2X, G2X Pro, IQ3, UDX V300, V300SD, V500. Two simple commands load data into RacePak software, no need to manually enter and calibrate each channel. Yes, this also means you can display all that data on your onboard video using Racepak's free video integration software. Cool!

We're excited about this as it brings a very high level of functionality at prices that are club racer friendly. There are already EFI modules for AEM and many other ECU's. We will be carrying the full line and have the web pages for Racepak built in the next week or so.

MS I:
  • Engine RPM
  • Wat Temp
  • IAT
  • MAP
  • Injector pulse width
  • TPS
  • Voltage - (any channel)
  • AFR
  • O2 correction

MS II:
  • Engine RPM
  • Wat Temp
  • IAT
  • MAP
  • Injector pulse width
  • TPS
  • Voltage - (any channel)
  • AFR 1
  • AFR 2
  • O2 correction
  • Knock
  • Knock Correction
  • Ignition Timing


Last edited by emilio700; 01-08-2010 at 03:41 PM. Reason: F7
emilio700 is offline   Reply With Quote
Old 01-08-2010, 02:15 PM   #2
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

so $375 for the sub-pack...how much for the display?
hustler is offline   Reply With Quote
Old 01-08-2010, 02:28 PM   #3
Supporting Vendor
Thread Starter
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 5,323
Total Cats: 1,344
Default

Quote:
Originally Posted by hustler View Post
so $375 for the sub-pack...how much for the display?
Displays start at around $625 for an IQ3. Shoot me an email with an outline of what you need and I'll make some suggestions.
I can set up a package deal including shipping.

Racepak Price List
emilio700 is offline   Reply With Quote
Old 01-08-2010, 02:41 PM   #4
Elite Member
iTrader: (8)

Join Date: Jun 2009
Location: Albany, NY
Posts: 1,523
Total Cats: 4
Default

Wow. Great work, Emilio!

I took a quick look at the racepak website and didn't readily find the info: do you know what the GPS sampling rate is on the DAQ device? Suitable for autocross?
webby459 is offline   Reply With Quote
Old 01-08-2010, 02:53 PM   #5
Supporting Vendor
Thread Starter
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 5,323
Total Cats: 1,344
Default

Quote:
Originally Posted by webby459 View Post
Wow. Great work, Emilio!

I took a quick look at the racepak website and didn't readily find the info: do you know what the GPS sampling rate is on the DAQ device? Suitable for autocross?
20hz
The G2X is perfect for autocross.
emilio700 is offline   Reply With Quote
Old 01-08-2010, 03:39 PM   #6
Elite AbsurdFlow Member

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

**** that is nice. Good thing I'm focussing on the MaX5 for now or I would've bought one.
Laur3ns is offline   Reply With Quote
Old 01-08-2010, 03:39 PM   #7
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Thanks Emilio, but I don't know if I can stomach bleeding out any more money on this car for a while. I'm going to ***** the "used" market.
hustler is offline   Reply With Quote
Old 01-08-2010, 06:28 PM   #8
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Holy crap. Very spiffy; I'm glad to see there was progress made.

I thought the product was going to have to run over CAN, so it was going to be limited to MS2+. Pretty neat that/if it runs on MS1 as well.
Ben is offline   Reply With Quote
Old 07-24-2011, 08:24 PM   #9
I haz no trubo
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

Kind of digging this ancient thread up, but any reason this module wouldn't work on a brain-built MS2? (previously MS1)?
Oscar is offline   Reply With Quote
Old 07-24-2011, 08:36 PM   #10
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

No.
Ben is offline   Reply With Quote
Old 07-24-2011, 08:42 PM   #11
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,780
Total Cats: 1,106
Default

How about ms3.
shuiend is offline   Reply With Quote
Old 07-24-2011, 08:46 PM   #12
Supporting Vendor
Thread Starter
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 5,323
Total Cats: 1,344
Default

Quote:
Originally Posted by Oscar View Post
Kind of digging this ancient thread up, but any reason this module wouldn't work on a brain-built MS2? (previously MS1)?
We usually have the efi modules for MS1, MS2 and AEM in stock.
http://949racing.com/Racepak-EFI-Interface.aspx
emilio700 is offline   Reply With Quote
Old 07-24-2011, 08:49 PM   #13
Supporting Vendor
Thread Starter
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 5,323
Total Cats: 1,344
Default

Quote:
Originally Posted by shuiend View Post
How about ms3.
I haven't asked Tim and the guys to make a module for MS3 yet. My gut feeling is MS3 isn't fully mature yet.
emilio700 is offline   Reply With Quote
Old 07-25-2011, 07:29 AM   #14
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 198
Default

The MS3 just changed the serial protocol in the latest alpha, so it is definitely not compatible.
Reverant is offline   Reply With Quote
Old 07-25-2011, 09:12 AM   #15
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Works with MS3 release firmware and alpha 11. I'll try alpha 13 later.

Ben is offline   Reply With Quote
Old 07-25-2011, 10:00 AM   #16
Elite AbsurdFlow Member

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Laur3ns is offline   Reply With Quote
Old 09-01-2011, 10:55 AM   #17
Newb

Join Date: Jul 2009
Posts: 14
Total Cats: 0
Default

Has anybody tried using the Racepak dash with more recent MS3 firmware? Is it confirmed non-functional?
lg2k is offline   Reply With Quote
Old 09-01-2011, 01:42 PM   #18
Junior Member

Join Date: Mar 2010
Location: Durham, NC
Posts: 409
Total Cats: 19
Default

Anything past alpha 11 uses a different serial protocol and won't work.
FatKao is offline   Reply With Quote
Old 09-01-2011, 01:49 PM   #19
Supporting Vendor
Thread Starter
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 5,323
Total Cats: 1,344
Default

Quote:
Originally Posted by lg2k View Post
Has anybody tried using the Racepak dash with more recent MS3 firmware? Is it confirmed non-functional?

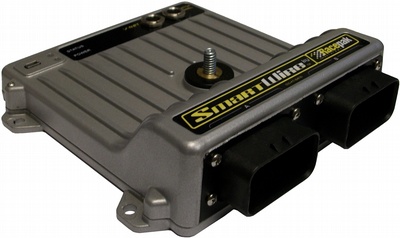

Our enduro car, "Crusher" will be running and IQ3 and Smartwire power control system with MS3. We'll be using some of the ECU data fed into the IQ3 to display instantaneous and average fuel used per distance and per time increment.

We'll certainly share our experiences here once it's up and running.

Smartwire
Attached Thumbnails
Racepak module for Megasquirt-smartwire.jpg
emilio700 is offline   Reply With Quote
Old 09-01-2011, 01:58 PM   #20
Elite Member
iTrader: (5)

pusha's Avatar

Join Date: Nov 2009
Location: Miami, FL
Posts: 7,363
Total Cats: -32
Default

Attached Thumbnails
Racepak module for Megasquirt-steal-do-want.jpg
pusha is offline   Reply With Quote
