Default Reverant MS3 basic - winter upgrades now won't start

Hey guys just looking for a little help here. 99 miata on MS3 basic built by rev. have COPS and basic small upgrades started and ran fine all last year.

Did two upgrades this winter.
- FM 32-2 trigger wheel
- changed to a Honda intake manifold - I did recal TPS already.

I believe the problem is in the 32-2 trigger wheel upgrade. I'm getting error messages and not sure which settings I should be on. Which cam input?, fully sequential or semi sequential? Number of coils?

I've attached some screen shots.
Attached Thumbnails

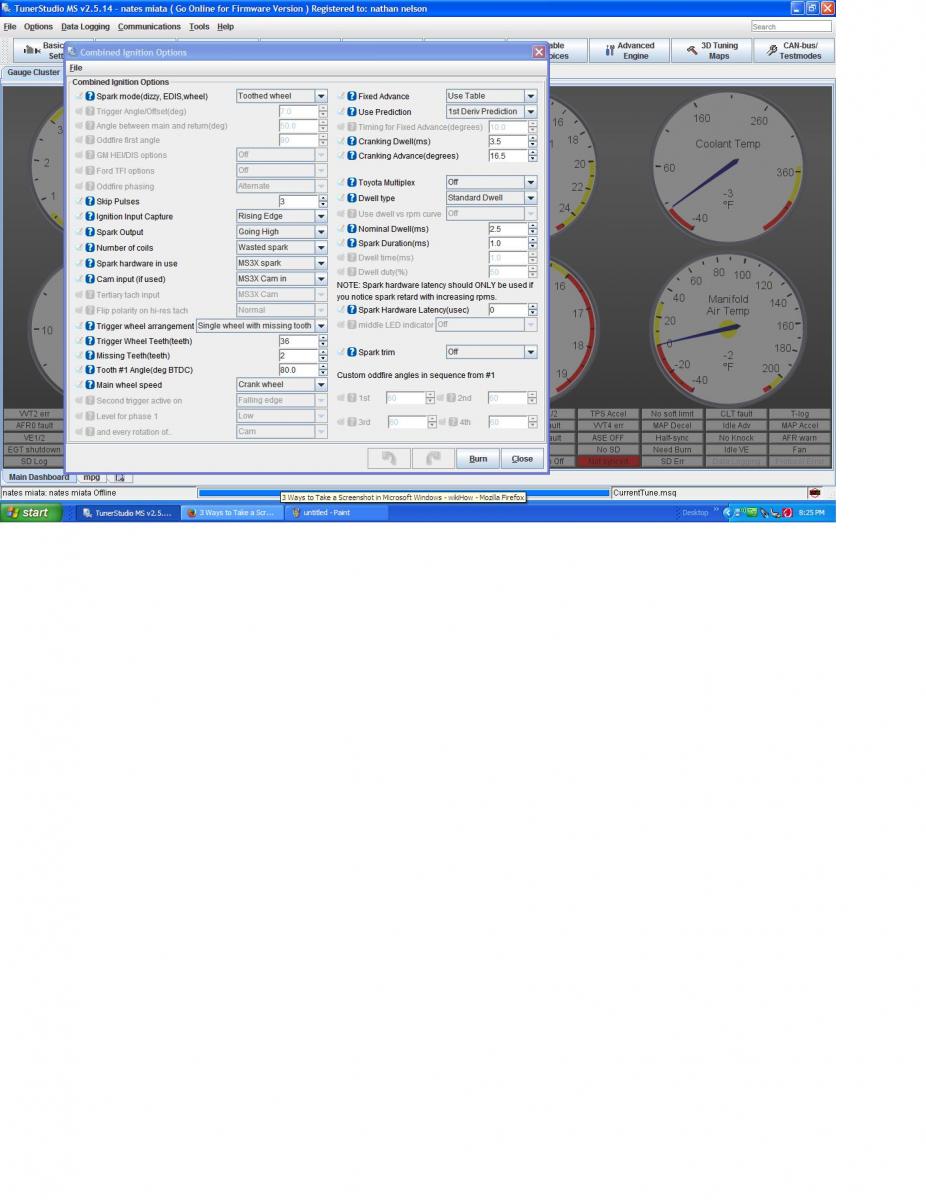

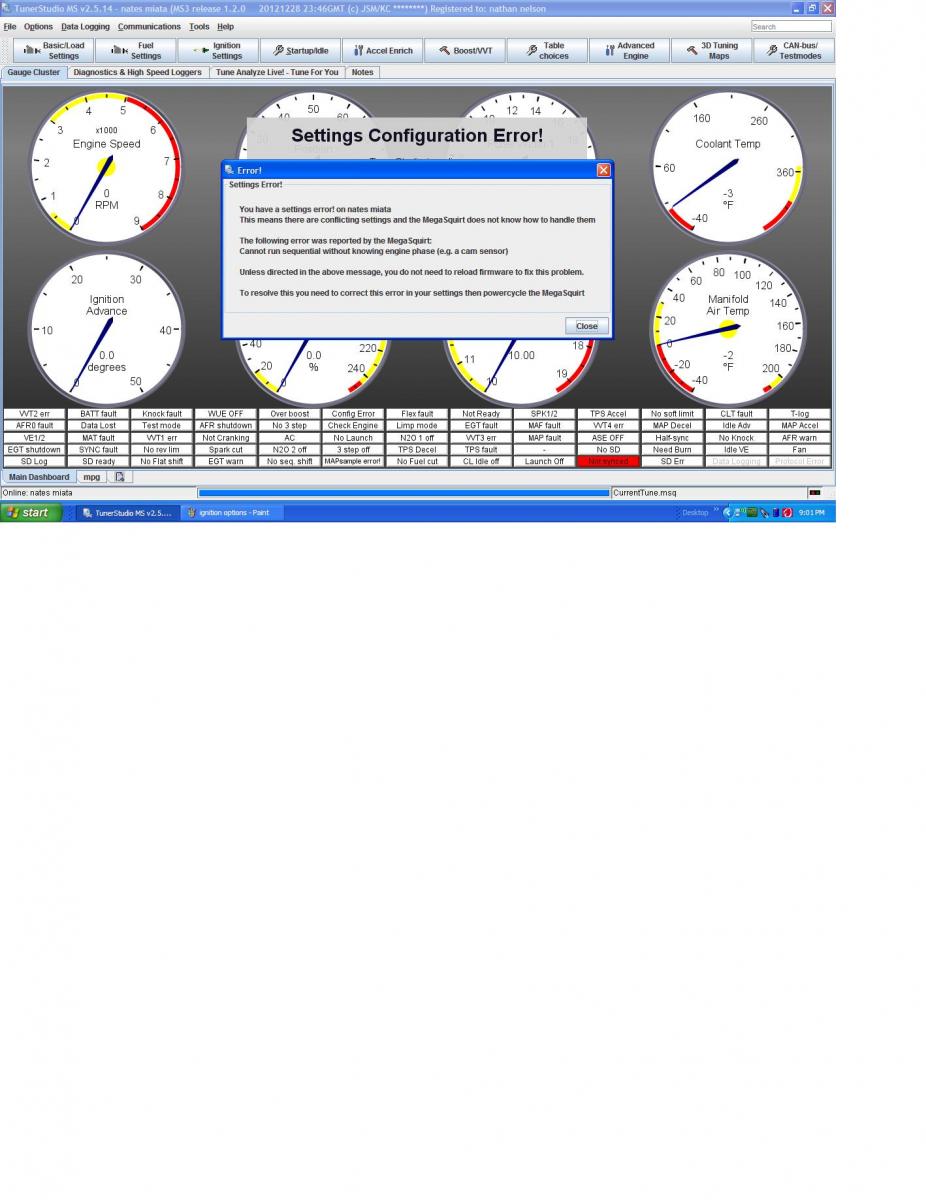

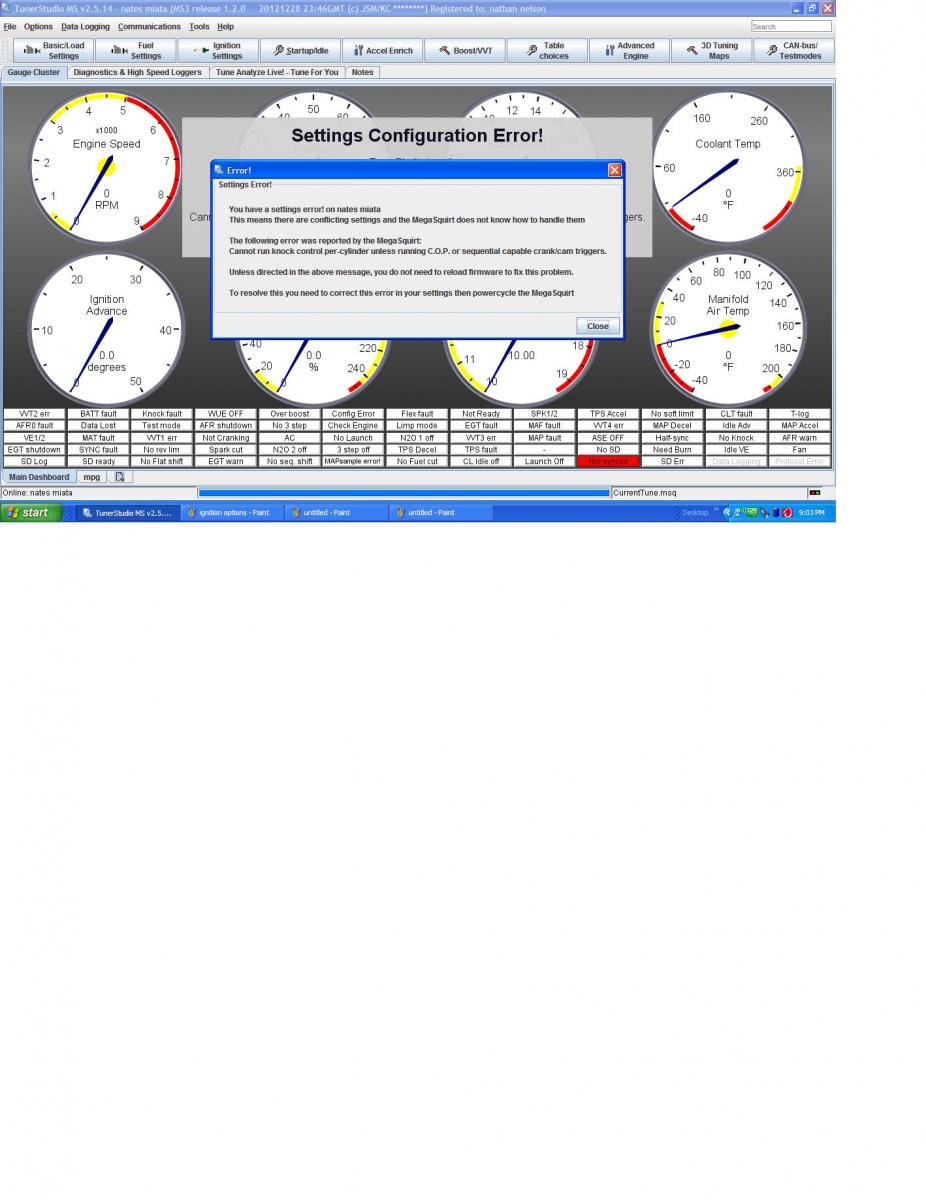

Reverant MS3 basic - winter upgrades now won't start-ignition-options.jpg   Reverant MS3 basic - winter upgrades now won't start-error2.jpg   Reverant MS3 basic - winter upgrades now won't start-error1.jpg
Attached Files
File Type: msq 2014-03-16_21.44.25.msq (177.0 KB, 174 views)
natedawg is offline   Reply With Quote
Old 03-17-2014, 02:38 AM   #2
Senior Member
iTrader: (4)

2manyhobyz's Avatar

Join Date: Feb 2011
Location: Joliet, IL
Posts: 622
Total Cats: 16
Default

Mine's a 36-1
A couple things I have different.
Under Sequential I have> Sequential/Semi-sequential
Timing Trigger> End of Pulse
Fixed timing or table> Fixed Timing
Fixed Injection timing> -350.0
Cranking Injection timing> 360.0

Trigger wheel arrangement is> Dual wheel missing tooth (try this first)
Cranking advance is> 16.5
Every thing else looks the same. Try one change at a time. Distance from sensor to wheel is really tight @ .60.
2manyhobyz is offline   Reply With Quote
Old 03-17-2014, 04:45 AM   #3
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 199
Default

You need to update the ECU to the latest 1.3.0 firmware.

Then simply select ignition mode "36-2" from the bottom of the list, instead of toothed wheel.
Reverant is offline   Reply With Quote
Old 03-18-2014, 01:32 AM   #4
Junior Member
Thread Starter

Join Date: Nov 2010
Location: Chicagoland
Posts: 160
Total Cats: 2
Default

thanks guys! got it started tonight.

Is there any gauge on megasquirt that could easily tell me if i have a vacuum leak? I just want to make sure my hondata manifold gasket/ custom intake manifold isn't leaking at the head.

MAP was pretty steady around 39-40kpa, not sure if that tells me much.

My idle quality was pretty shitty when cold or a load (headlights) (was at 14.7afr & 16 degrees timing) Not sure if that's something I need to setup with the Honda IAC (2 wire). Any insight or help would be greatly appreciated.
natedawg is offline   Reply With Quote
Old 03-18-2014, 04:41 AM   #5
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 199
Default

Reduce your timing to 10* and report back your kPa when warmed up.
Reverant is offline   Reply With Quote
Old 03-19-2014, 12:32 AM   #6
Junior Member
Thread Starter

Join Date: Nov 2010
Location: Chicagoland
Posts: 160
Total Cats: 2
Default

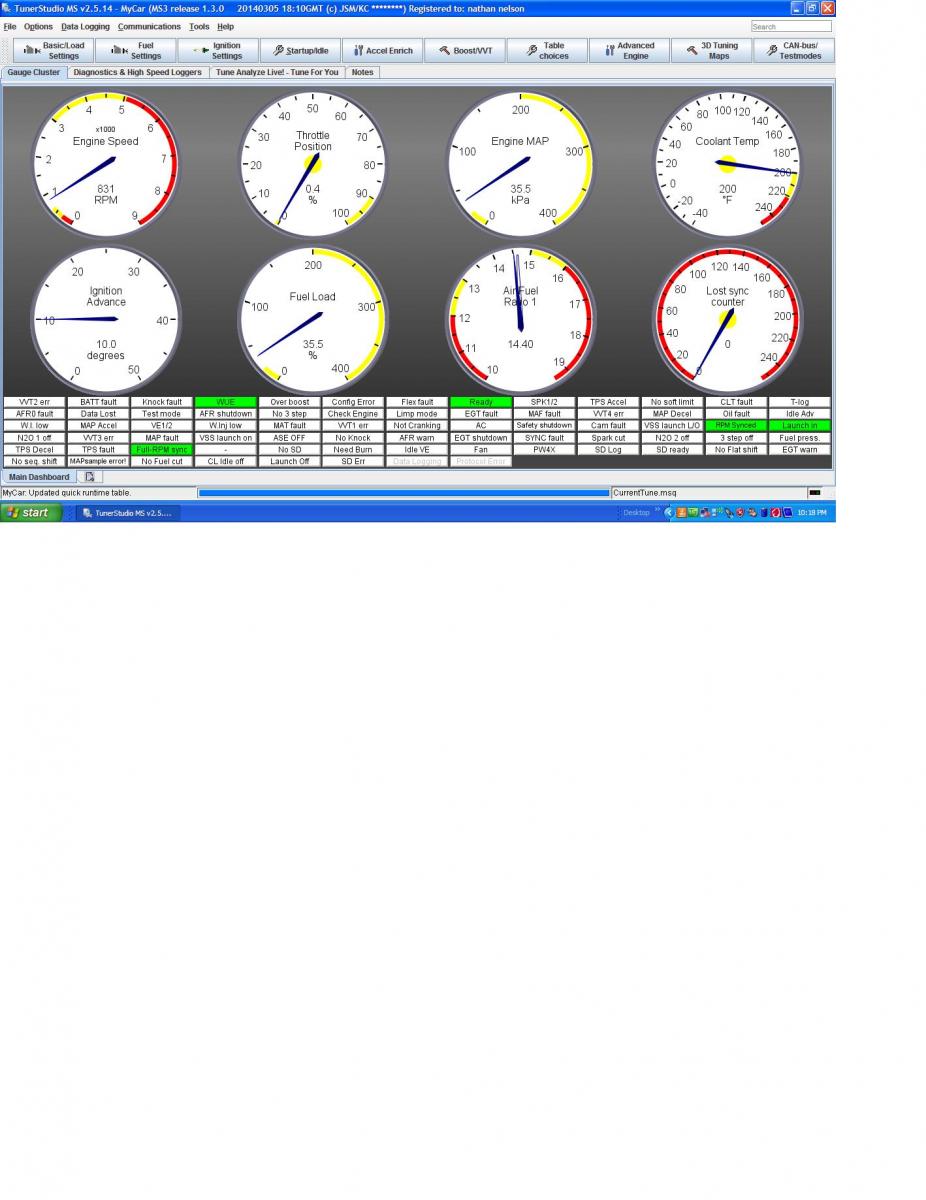

Posted attachment. For KPA.

I noticed the default setting on the trigger angle for the 36-2 setting was 7 degrees. Changed that 0.5 and it started to run a lot better. It said in the notes that it should be 0 on a toothed wheel. not sure why MS set it to 7 degrees.
Attached Thumbnails
Reverant MS3 basic - winter upgrades now won't start-screenshot.jpg
natedawg is offline   Reply With Quote
Old 06-23-2015, 12:55 PM   #7
Newb

Join Date: Mar 2011
Posts: 22
Total Cats: 1
Default

Quote:
Originally Posted by natedawg View Post
Posted attachment. For KPA.

I noticed the default setting on the trigger angle for the 36-2 setting was 7 degrees. Changed that 0.5 and it started to run a lot better. It said in the notes that it should be 0 on a toothed wheel. not sure why MS set it to 7 degrees.
@natedawg - So did you use the Miata 36-2 mode option from the first menu or left it on the Toothed Wheel mode option and just changed the number of teeth along with degree angle values? Shouldn't selecting the Miata 36-2 mode automatically populate the rest of the setting accordingly?

Last edited by NwaR; 06-29-2015 at 05:16 AM.
NwaR is offline   Reply With Quote
Old 06-23-2015, 03:44 PM   #8
Junior Member

Join Date: May 2015
Posts: 86
Total Cats: 10
Default

Pressurize the air path to look for vacuum and boost leaks.
arghx7 is offline   Reply With Quote
Old 07-13-2015, 08:57 PM   #9
Newb

Join Date: Mar 2011
Posts: 22
Total Cats: 1
Default

Installed 3.3.3 firmware and the Miata 36-2 ignition option mode failed to populate the needed data to use a FM 36-2 toothed wheel. But lucky me a week later fireware 3.4.0 was released and this worked.
The Spark A Output changed to IGN1 and think this is causing my stock oem tach to not display the correct RPMs. There is a Tacho. Output menu and this is selected OFF. Wonder if this has anything to do with the tach issue?
NwaR is offline   Reply With Quote
Old 07-14-2015, 02:27 PM   #10
Newb

Join Date: Mar 2011
Posts: 22
Total Cats: 1
Default

Quote:
Originally Posted by NwaR View Post
Installed 3.3.3 firmware and the Miata 36-2 ignition option mode failed to populate the needed data to use a FM 36-2 toothed wheel. But lucky me a week later fireware 3.4.0 was released and this worked.
The Spark A Output changed to IGN1 and think this is causing my stock oem tach to not display the correct RPMs. There is a Tacho Output menu and this is selected OFF. Wonder if this has anything to do with the tach issue?
ON needs to be selected and TACHOUT with NORMAL speed is the correct setting to get the oem tach working.
NwaR is offline   Reply With Quote
