Old 09-29-2015, 05:05 PM   #21
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,791
Total Cats: 247
Default

I never liked TPS based, I've always stuck with map based and tuned it when the car is up to temp. This has worked well for me.
patsmx5 is offline   Reply With Quote
Old 09-29-2015, 05:09 PM   #22
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,990
Total Cats: 1,457
Default

TPS based usual has a lot faster response time.
aidandj is offline   Reply With Quote
Old 09-29-2015, 05:13 PM   #23
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,460
Total Cats: 781
Default

Quote:
Originally Posted by aidandj View Post
TPS based usual has a lot faster response time.

And response is what's important. The fact that MAP changes is something that happens as a RESULT of what happens when TPS values change is reason enough for me to not want to use it. It's all about that x-tau.
concealer404 is offline   Reply With Quote
Old 09-29-2015, 06:04 PM   #24
Boosting since 1984
iTrader: (1)

stefanst's Avatar

Join Date: Sep 2011
Location: Levittown
Posts: 1,198
Total Cats: 68
Default

But TPS doesn't kick in when the turbo spools and you're already on 100% TPS. The spool does however cause a change in MAP and that requires a bit of extra fuel. This can only be provided via MAPdot.
stefanst is offline   Reply With Quote
Old 09-29-2015, 06:06 PM   #25
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,990
Total Cats: 1,457
Default

Thats what the VE table is for...
aidandj is offline   Reply With Quote
Old 09-29-2015, 06:10 PM   #26
Boosting since 1984
iTrader: (1)

stefanst's Avatar

Join Date: Sep 2011
Location: Levittown
Posts: 1,198
Total Cats: 68
Default

Quote:
Originally Posted by aidandj View Post
Thats what the VE table is for...
Nope. Rise in MAP causes some fuel to condense in the intake runners. This is a transient condition. VE tunes static condition.
stefanst is offline   Reply With Quote
Old 09-29-2015, 06:11 PM   #27
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,990
Total Cats: 1,457
Default

So EAE? Isn't that what is used for transient conditions?
aidandj is offline   Reply With Quote
Old 09-29-2015, 06:15 PM   #28
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

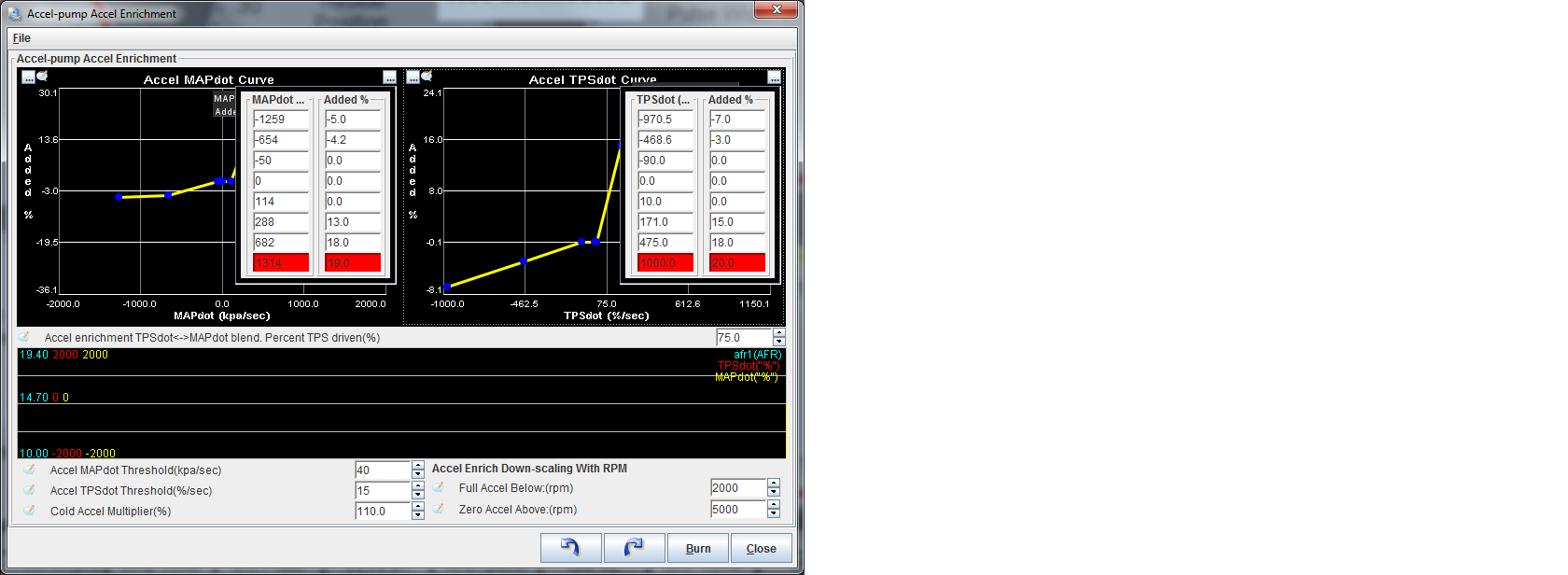

here's something I'd probably start out with (very close to what I had):





bsaed on these setting's AE wont trigger between -90 and 15 %/sec TPSdot.



if you have MAPdot triggering in boost, then your tune sucks.


I could lift and press my pedal in boost and my AFRs would stay rock solid -- cause I tuned EAE very well.
Attached Thumbnails
Someone help me with AE-80-accel_pump_e90a1800ba0537de34db031bb6bf17ad59ae43ae.png
Braineack is offline   Reply With Quote
Old 09-29-2015, 08:16 PM   #29
Boosting since 1984
iTrader: (1)

stefanst's Avatar

Join Date: Sep 2011
Location: Levittown
Posts: 1,198
Total Cats: 68
Default

That's what EAE does- it adds or subtracts fuel in transient conditions.
It estimates how big a "puddle" of fuel will be in the intake area, based on some parameters, the most important of which is MAP. More MAP means bigger puddle. So we need to initially add fuel until MAP stabilizes.

So to me EAE is a better version of MAPdot-based enrichment.

TPSdot, in my understanding, is essentially a predictor of MAPdot and allows the computer to react to increases/decreases in MAP in the near future.

I think if EAE was perfect and instantaneous, no AE would be needed at all.
stefanst is offline   Reply With Quote
Old 09-29-2015, 08:25 PM   #30
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 113
Default

AE is meant to work together with EAE. EAE will never take a hit like AE can.

Mapdot is ******* useless, at least for me. I haven't bothered with eae because I really only need it to pull fuel on a slight decel, or add a touch on a slight incline if it's under the TPSdot limit.
deezums is offline   Reply With Quote
Old 10-01-2015, 12:35 AM   #31
Junior Member

Join Date: May 2015
Posts: 86
Total Cats: 10
Default

you can also try X-Tau
arghx7 is offline   Reply With Quote
Old 10-07-2015, 07:41 PM   #32
Junior Member
Thread Starter

Join Date: Jul 2013
Location: TX
Posts: 319
Total Cats: -12
Default

I've got AE tuned in pretty well now. I'm still using time based, I can't seem to get my head wrapped around Accel Pump just yet.

I still get a little of stumble, depending on how I stab it, but for the most part, I've got it down like 90% of the way. The few times it does stumble, it's when I'm hitting a throttle that I don't normally hit. So pretty happy about it. Figured I'd just report back in to you guys
ihiryu is offline   Reply With Quote
Old 10-08-2015, 05:01 PM   #33
Boosting since 1984
iTrader: (1)

stefanst's Avatar

Join Date: Sep 2011
Location: Levittown
Posts: 1,198
Total Cats: 68
Default

Quote:
Originally Posted by ihiryu View Post
The few times it does stumble, it's when I'm hitting a throttle that I don't normally hit. So pretty happy about it. Figured I'd just report back in to you guys
How many throttles do you have???
stefanst is offline   Reply With Quote
Old 10-08-2015, 05:56 PM   #34
Junior Member
Thread Starter

Join Date: Jul 2013
Location: TX
Posts: 319
Total Cats: -12
Default

Quote:
Originally Posted by stefanst View Post
How many throttles do you have???
782 of 'em
ihiryu is offline   Reply With Quote
