Default someone mind looking over my map...

so iv had the DIYPNP in for a week now.

the car spec

stock Eunos 1.6 1991 NA (non turbo)
stock fuel pump
stock 240cc injectors
AFM removed, IAT installed.
lc-1 wideband

so the issue im having is the car feels fine uptill 4500rpm, where after it feels flat... is struggles to pick up any more speed and doesnt feel very powerful.

it doesnt feel to bad where your foot is flat to the floor but nothing really inbetween.

it struggles so bad that I cant get upto 100mph (on a private road of course)

Iv tried using the Autotune feature but not seemed to have helped.

iv posted below my ignition table, AFR and fuel table.

can you guys pick up on anything.

thanks

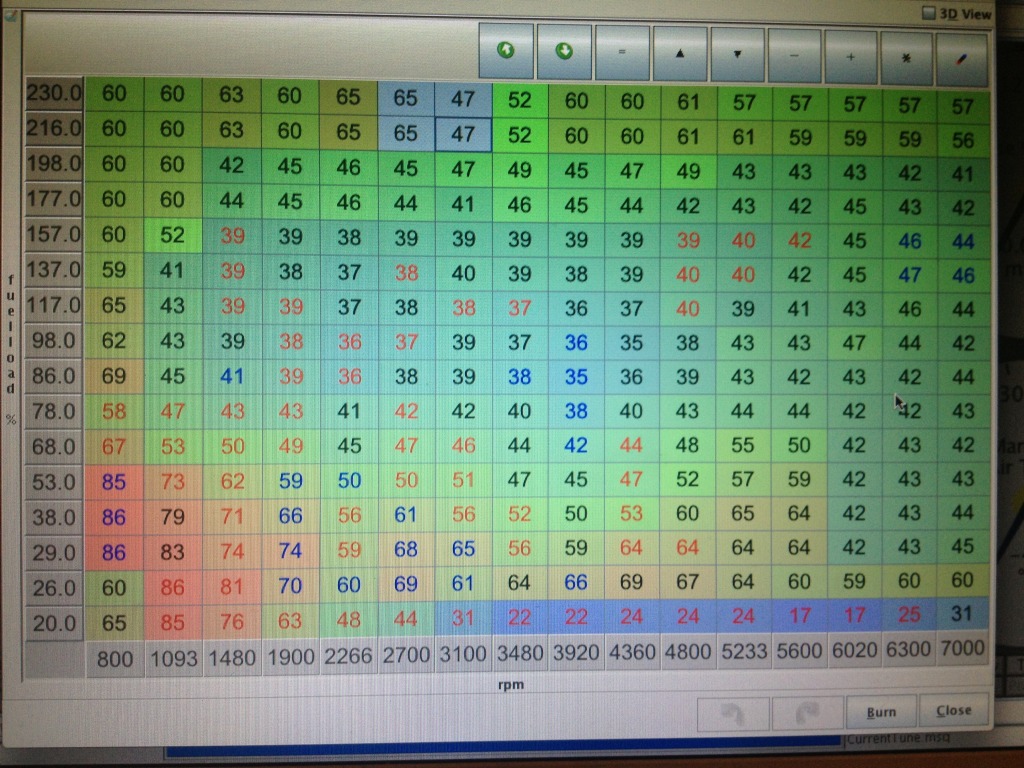

Fuel

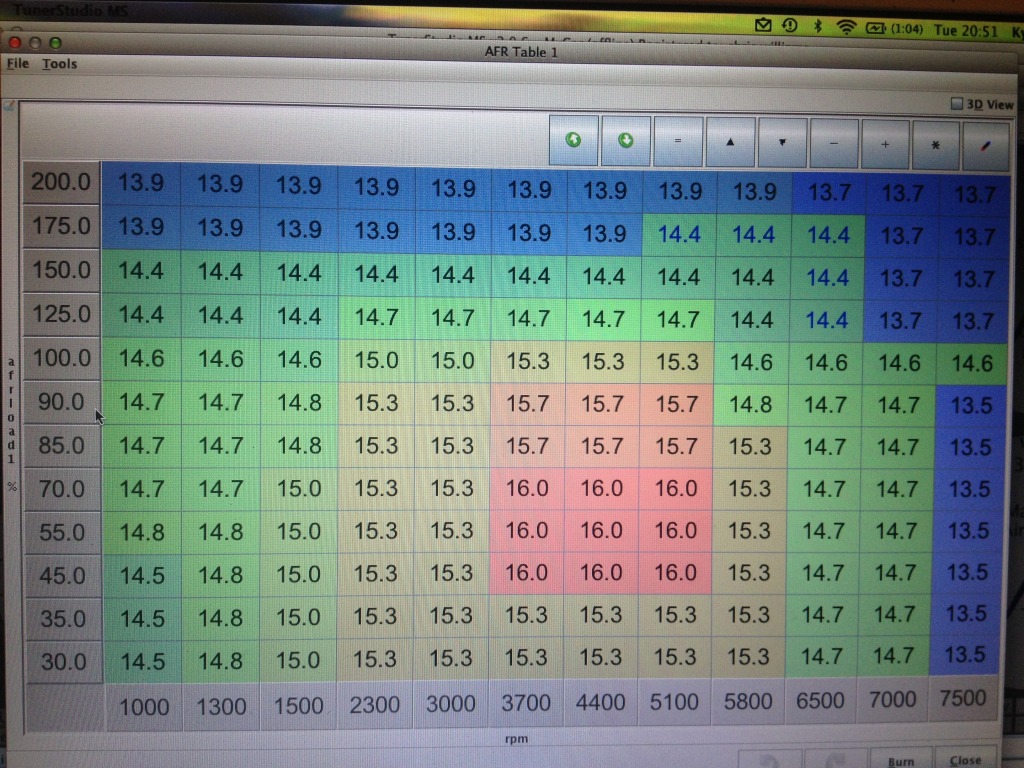

AFR table

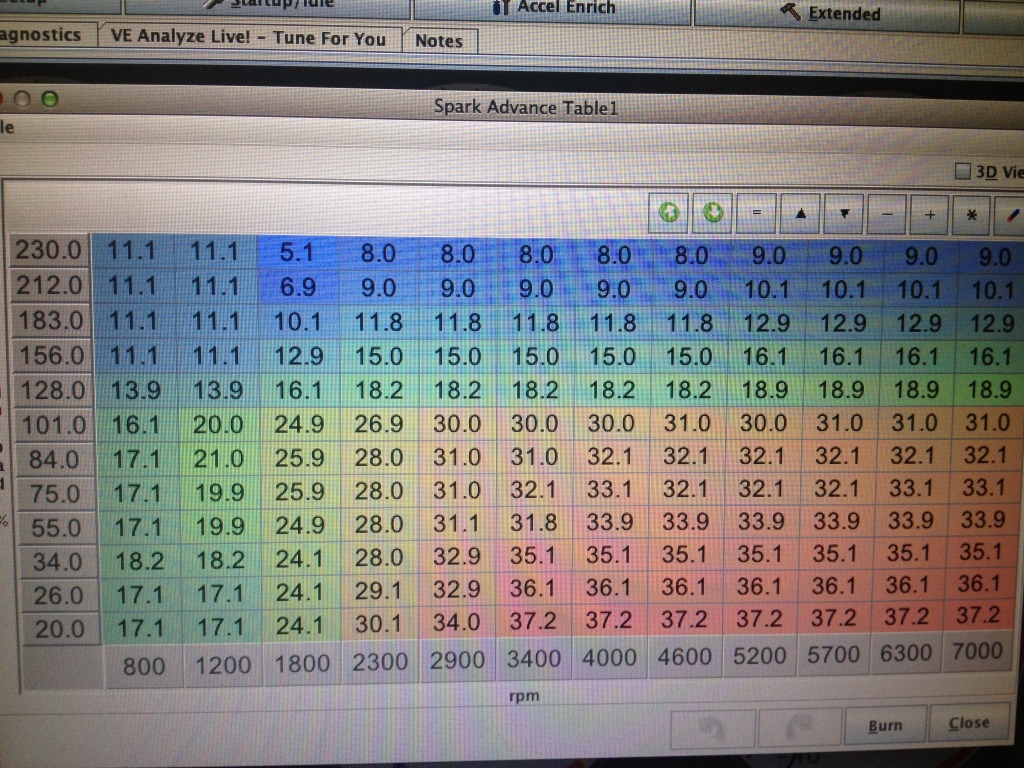

ignition table
Attached Thumbnails
someone mind looking over my map...-dc76eaee-76c6-4adc-a2d1-31cbf94a5903-14383-00000c7d3d831c39_zps81b739ed.jpg   someone mind looking over my map...-760cd337-c260-4976-8aa9-68dccc4b0893-14383-00000c7d44c49d16_zps90e1cb4c.jpg   someone mind looking over my map...-e34ffc3c-e103-4fa6-9979-917bc58fbc74-14383-00000c7d4dc7a087_zps57e7b40e.jpg
jdm-binnzie is offline   Reply With Quote
Old 06-04-2013, 05:31 PM   #2
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

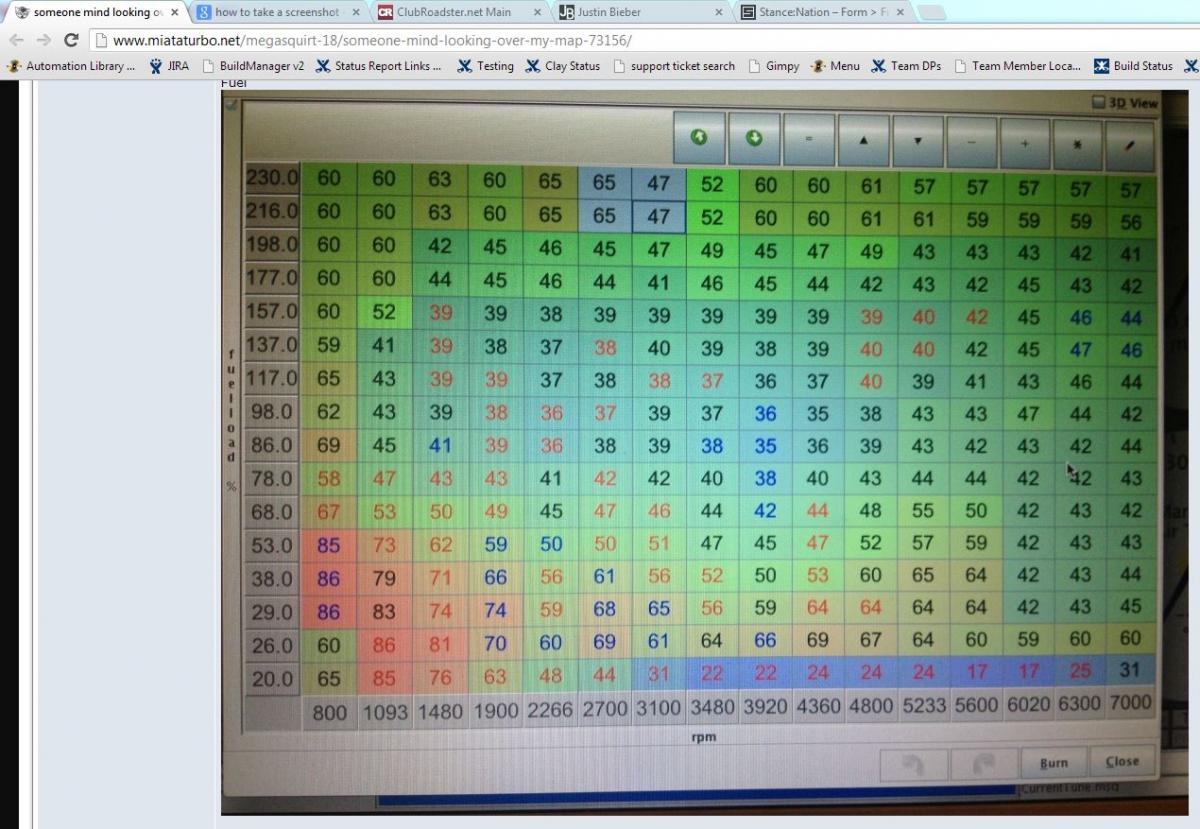

We can go deeper

Attached Thumbnails
someone mind looking over my map...-utu6rmd.jpg
thenuge26 is offline   Reply With Quote
Old 06-04-2013, 05:36 PM   #3
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,009
Total Cats: 583
Default

Holy cow are your AFR's FUBAR. Search and get that stuff straightened out.
hornetball is offline   Reply With Quote
Old 06-04-2013, 05:55 PM   #4
Newb
Thread Starter

Join Date: May 2013
Posts: 10
Total Cats: 0
Default

I did a search a used ones that came up in a thread on here. What sort of things should I be aiming towards.

This is my first time doing it so a little confusing
jdm-binnzie is offline   Reply With Quote
Old 06-04-2013, 05:58 PM   #5
Senior Member
iTrader: (3)

Join Date: Apr 2011
Location: Volo, IL
Posts: 1,247
Total Cats: 140
Default

Here. http://www.megamanual.com/v22manual/mtune.htm
Come back after you've read this.
dieselmiata is offline   Reply With Quote
Old 06-04-2013, 06:13 PM   #6
Senior Member
iTrader: (5)

Join Date: Jul 2005
Posts: 715
Total Cats: 53
Default

You did a search and that search gave you 15.3:1 AFR at 100kpa? Really?
bcrx7 is offline   Reply With Quote
Old 06-04-2013, 06:30 PM   #7
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,518
Total Cats: 259
Default

your afr are dangerous
your timing is very very very very mild

should be the other way around.
soviet is offline   Reply With Quote
Old 06-04-2013, 06:39 PM   #8
Newb
Thread Starter

Join Date: May 2013
Posts: 10
Total Cats: 0
Default

Ok thank you for the advice. Id like to getting it running normally without any issues before turning it to get more power.

I did try uploading the basemap from DIYauto tune but as stated before car run very very rough, however I kept the timing from that map so I would assume that is the standard timing?

I will change the afr tomorrow after work once I have a look about trying to get a better table.
jdm-binnzie is offline   Reply With Quote
Old 06-04-2013, 06:40 PM   #9
Junior Member
iTrader: (20)

Join Date: Apr 2010
Location: Redmond, WA
Posts: 494
Total Cats: 15
Default

just use something like this. import it into your afr table
Attached Files
File Type: table afrTable1Tbl_2013-06-04_14.39.23.table (2.6 KB, 84 views)
bmxfuel007 is offline   Reply With Quote
Old 06-04-2013, 06:44 PM   #10
Newb
Thread Starter

Join Date: May 2013
Posts: 10
Total Cats: 0
Default

Ok Thankyou! I shall do this tomorrow
jdm-binnzie is offline   Reply With Quote
Old 06-04-2013, 06:49 PM   #11
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,518
Total Cats: 259
Default

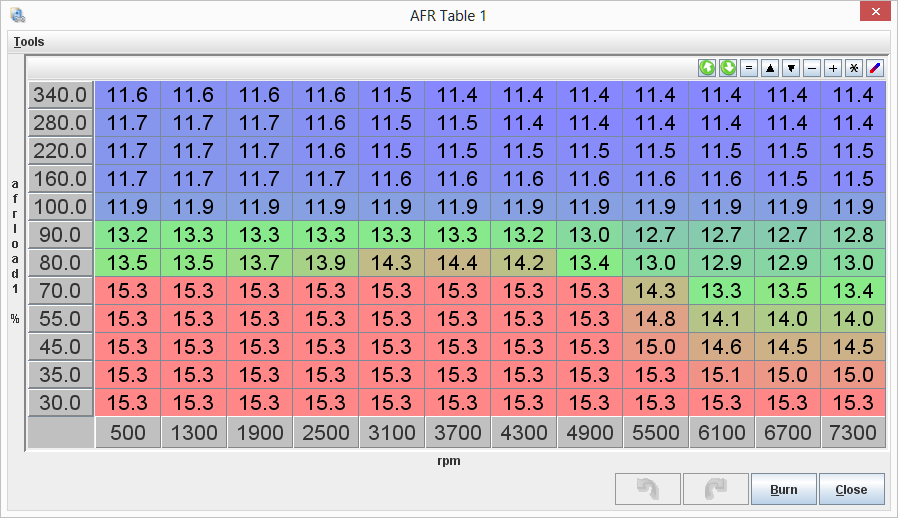

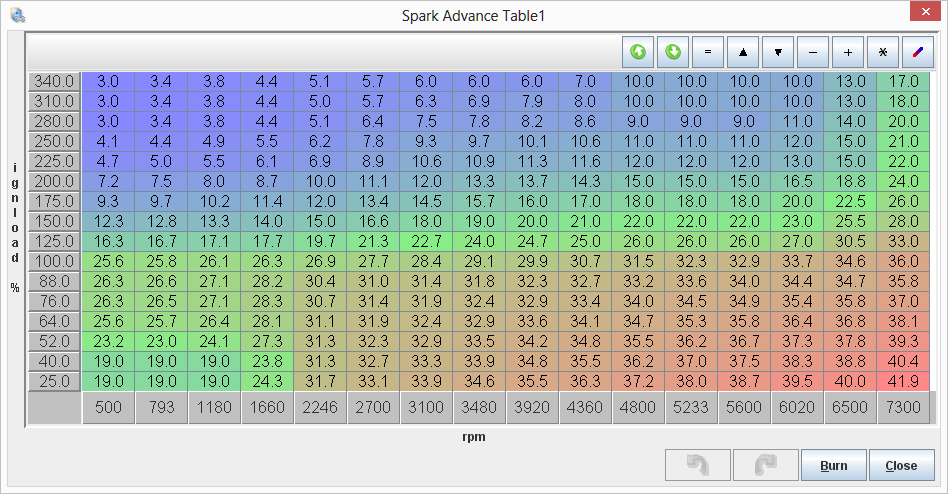

I run something like this
keep in mind it's not the BEST MAP IN THE WORLD and also goes to 35psi


Attached Thumbnails
someone mind looking over my map...-timing.png   someone mind looking over my map...-afr.png
soviet is offline   Reply With Quote
Old 06-04-2013, 06:57 PM   #12
Newb
Thread Starter

Join Date: May 2013
Posts: 10
Total Cats: 0
Default

Ok thank you I really appreciate your help !
jdm-binnzie is offline   Reply With Quote
Old 06-04-2013, 07:51 PM   #13
Junior Member
iTrader: (1)

Join Date: May 2009
Location: TN
Posts: 328
Total Cats: 4
Default

...and OP wins the award for most jacked up VE table of 2013
southernmx5 is offline   Reply With Quote
Old 06-05-2013, 10:25 AM   #14
Supporting Vendor

Matt Cramer's Avatar

Join Date: Sep 2006
Posts: 2,266
Total Cats: 51
Default

You said it was non turbo. Why is the map scaled for over 100 kPa?

Stranger still... why is VE Analyzer Live making changes above 100 kPa?

Check to be sure your MAP sensor is reading something reasonable with the key on and the engine off.
Matt Cramer is offline   Reply With Quote
Old 06-05-2013, 10:42 AM   #15
Newb
Thread Starter

Join Date: May 2013
Posts: 10
Total Cats: 0
Default

for some reason the fuel pressure always reads around 150% when engine is off.

also what would be reasonable for the map to be reading whilst off?
jdm-binnzie is offline   Reply With Quote
Old 06-05-2013, 01:45 PM   #16
Senior Member

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

You are reading fuel pressure in % with your MS?

Map should be ~100kPa (atmospheric pressure) with the engine off...
