Default Spark Table

Could anyone provide some feedback on my spark table. I am thinking of adjusting it slightly on the new motor and havent been to the dyno yet. I need to get a set of det cans made first. Honestly I still think this is pretty conservative but I still like some feedback. Many Thanks

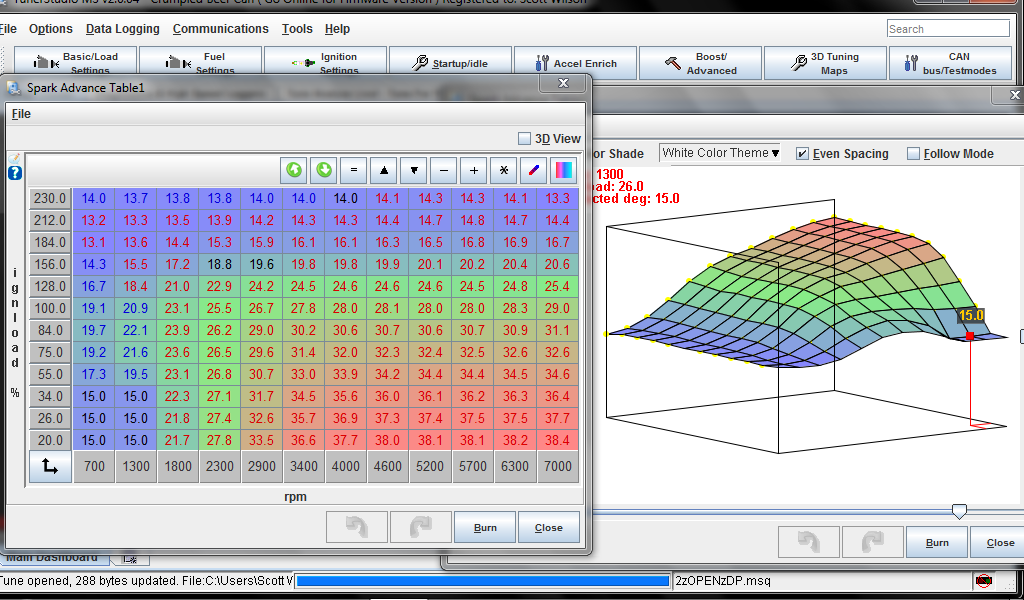

BEFORE

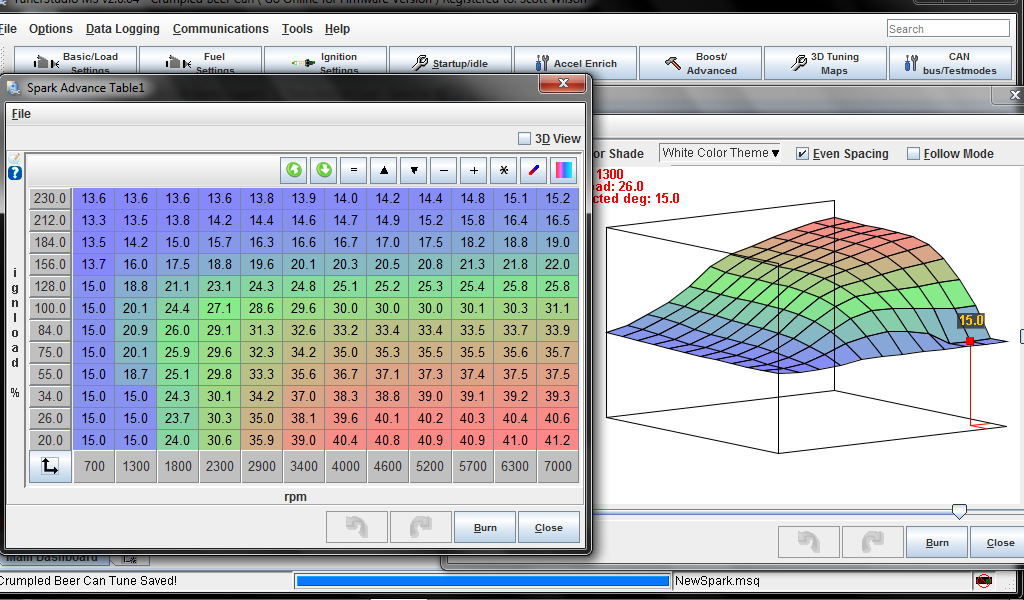

AFTER
Attached Thumbnails
Spark Table-old.png   Spark Table-new.png
ScottyP3821 is offline   Reply With Quote
Old 10-30-2014, 06:18 PM   #2
Elite Member
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,201
Total Cats: 260
Default

I hate to be the one asking this. But can you provide more details on the setup?
Erat is offline   Reply With Quote
Old 10-30-2014, 06:19 PM   #3
Senior Member
Thread Starter
iTrader: (2)

Join Date: Jun 2012
Location: New Braunfels,TX
Posts: 1,141
Total Cats: 51
Default

Of course its on a 2560r Toyota Cops 460cc rx7 inj and running 93 octane

EDIT

Im not familar with difference in winter/summer fuel. the low in my part of the state is around 40 through out winter. Its still in the 80s right now
ScottyP3821 is offline   Reply With Quote
Old 10-30-2014, 07:33 PM   #4
Elite Member
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,201
Total Cats: 260
Default

Yeah, i mean i guess it depends on your fuel.

I was at 15 - 16* and started getting some knock in boost due to shitty fuel. Backed it down to 12* and the knock pretty much went away.
Erat is offline   Reply With Quote
Old 10-31-2014, 01:18 AM   #5
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,202
Total Cats: 2,584
Default

you either tune properly, for mbt, or until you find knock threshold, or you stay conservative.

that said, we tuned my friends 8.6:1 BP at 15 psi and 16 tapering to 18 and he's been absolutely raping the car for the past 2 years with no problems
18psi is offline   Reply With Quote
Old 10-31-2014, 10:12 AM   #6
Senior Member
Thread Starter
iTrader: (2)

Join Date: Jun 2012
Location: New Braunfels,TX
Posts: 1,141
Total Cats: 51
Default

So whats the best DIY det can. Their are so many out there im skeptical. What are you guys using?
ScottyP3821 is offline   Reply With Quote
Old 10-31-2014, 10:16 AM   #7
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,202
Total Cats: 2,584
Default

so many? there's pretty much two: electronic and non
18psi is offline   Reply With Quote
Old 10-31-2014, 11:38 AM   #8
Senior Member
Thread Starter
iTrader: (2)

Join Date: Jun 2012
Location: New Braunfels,TX
Posts: 1,141
Total Cats: 51
Default

Quote:
Originally Posted by 18psi View Post
so many? there's pretty much two: electronic and non
Duhh I can figure that. Just curious on electronic det can approach.
ScottyP3821 is offline   Reply With Quote
Old 10-31-2014, 11:49 AM   #9
Senior Member
Thread Starter
iTrader: (2)

Join Date: Jun 2012
Location: New Braunfels,TX
Posts: 1,141
Total Cats: 51
Default

http://www.autospeed.com.au/cms/article.html?&A=0353

I think I'll do this. Seems super ****** easy.
ScottyP3821 is offline   Reply With Quote
